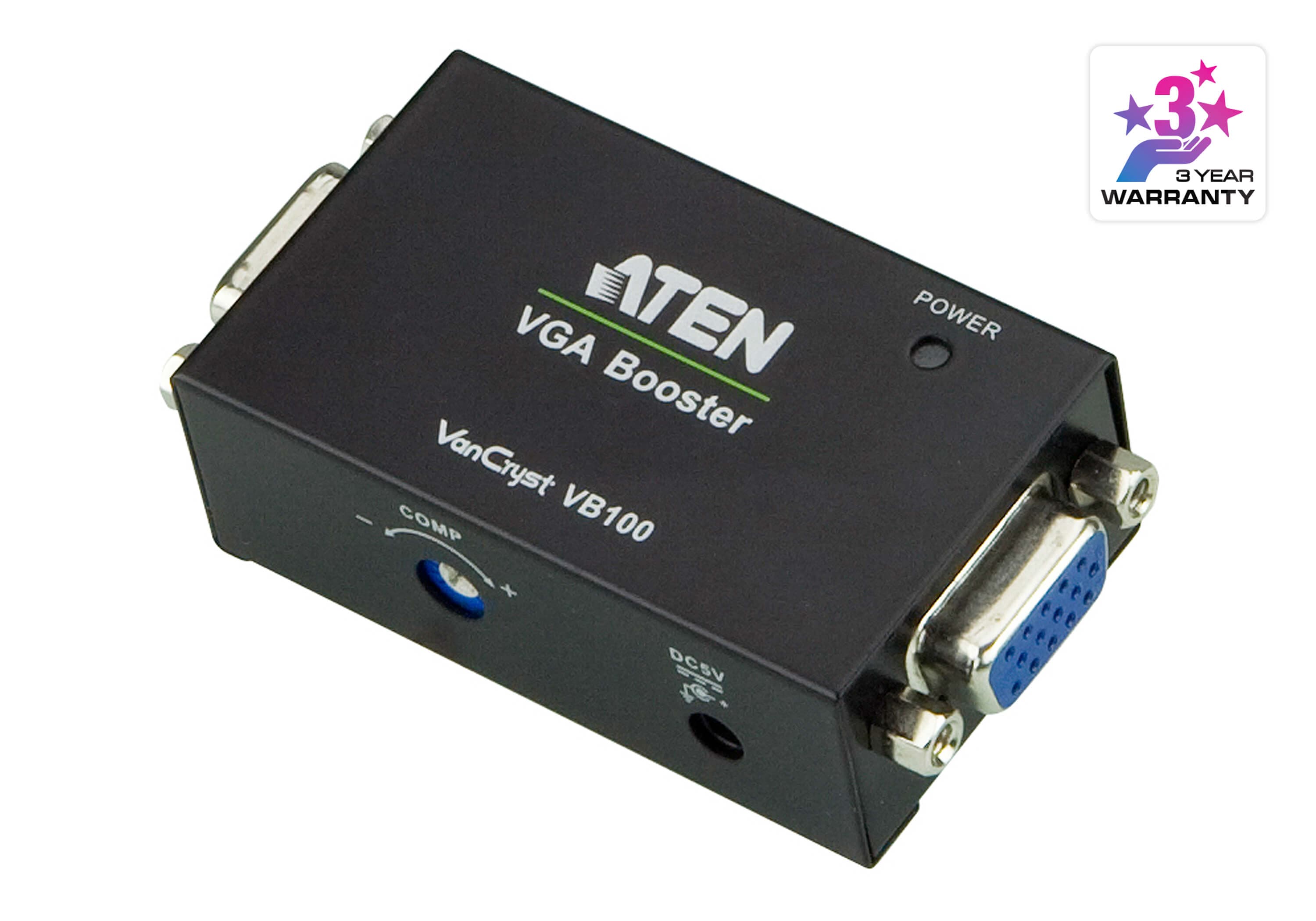

VGA Booster (1280 x 1024@70m)
VB100Discontinued

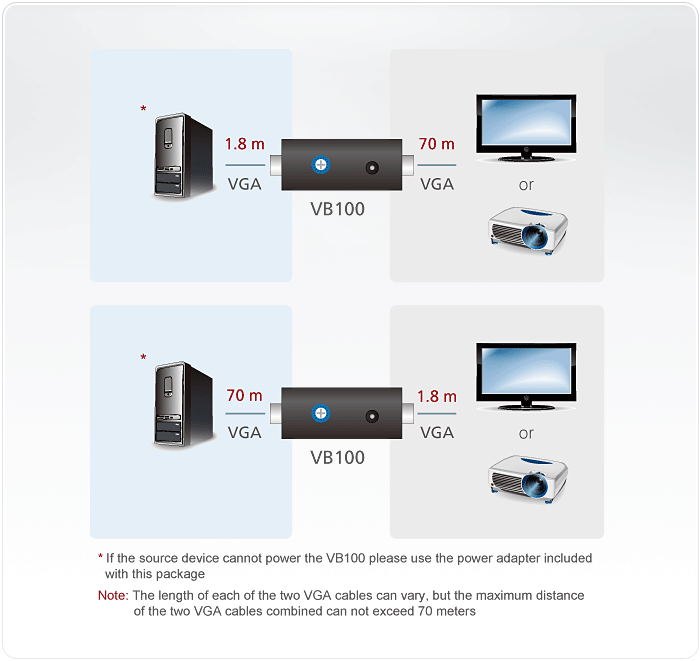

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance
Features
- Long distance transmission – up to 70 m
- Adjustable video compensation – manually adjust signal strength to compensate for distance
- Superior video quality – up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Compact housing
- LED indication of power status and source device
- Plug-and-play – no software installation required

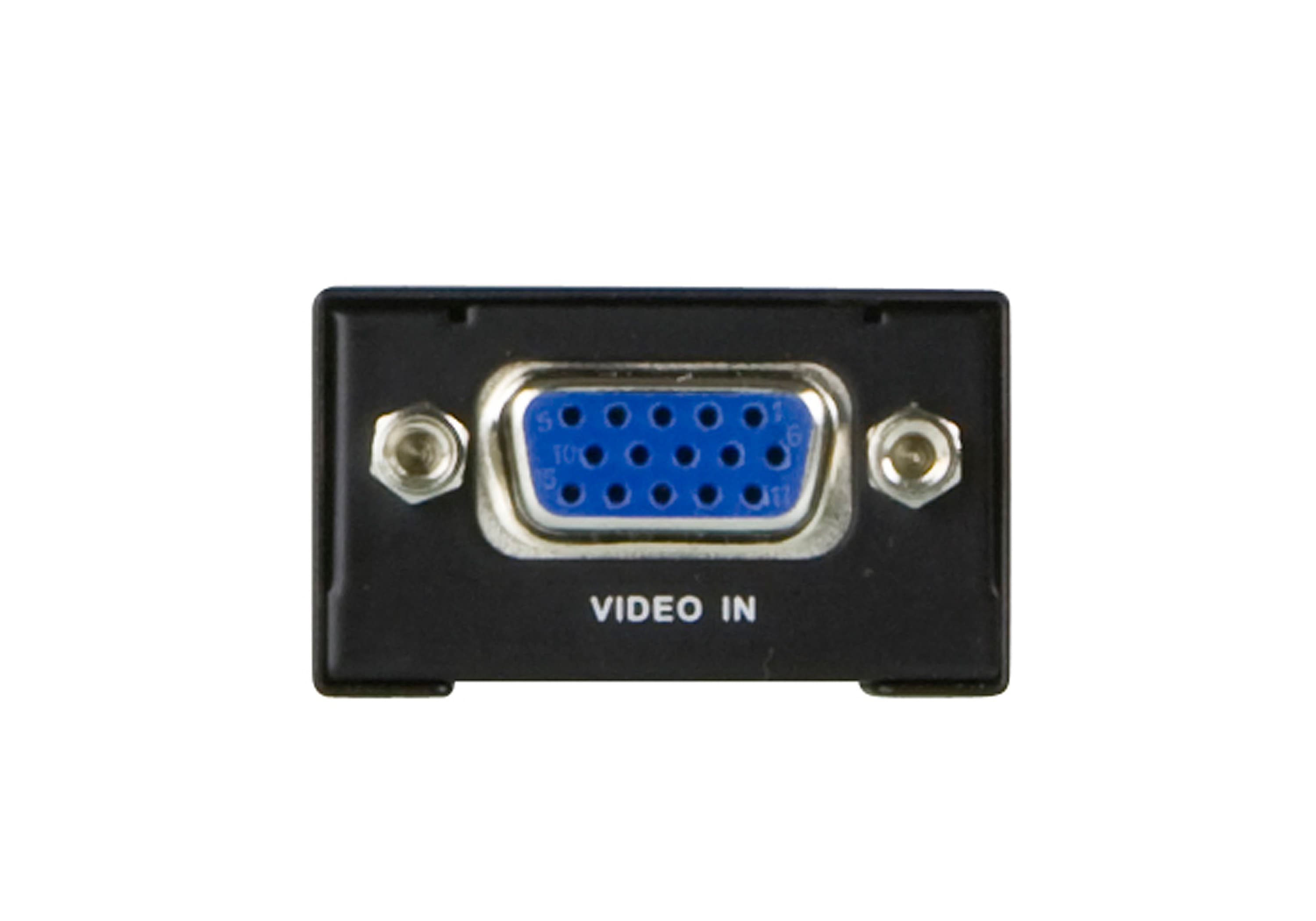

Video Input
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω

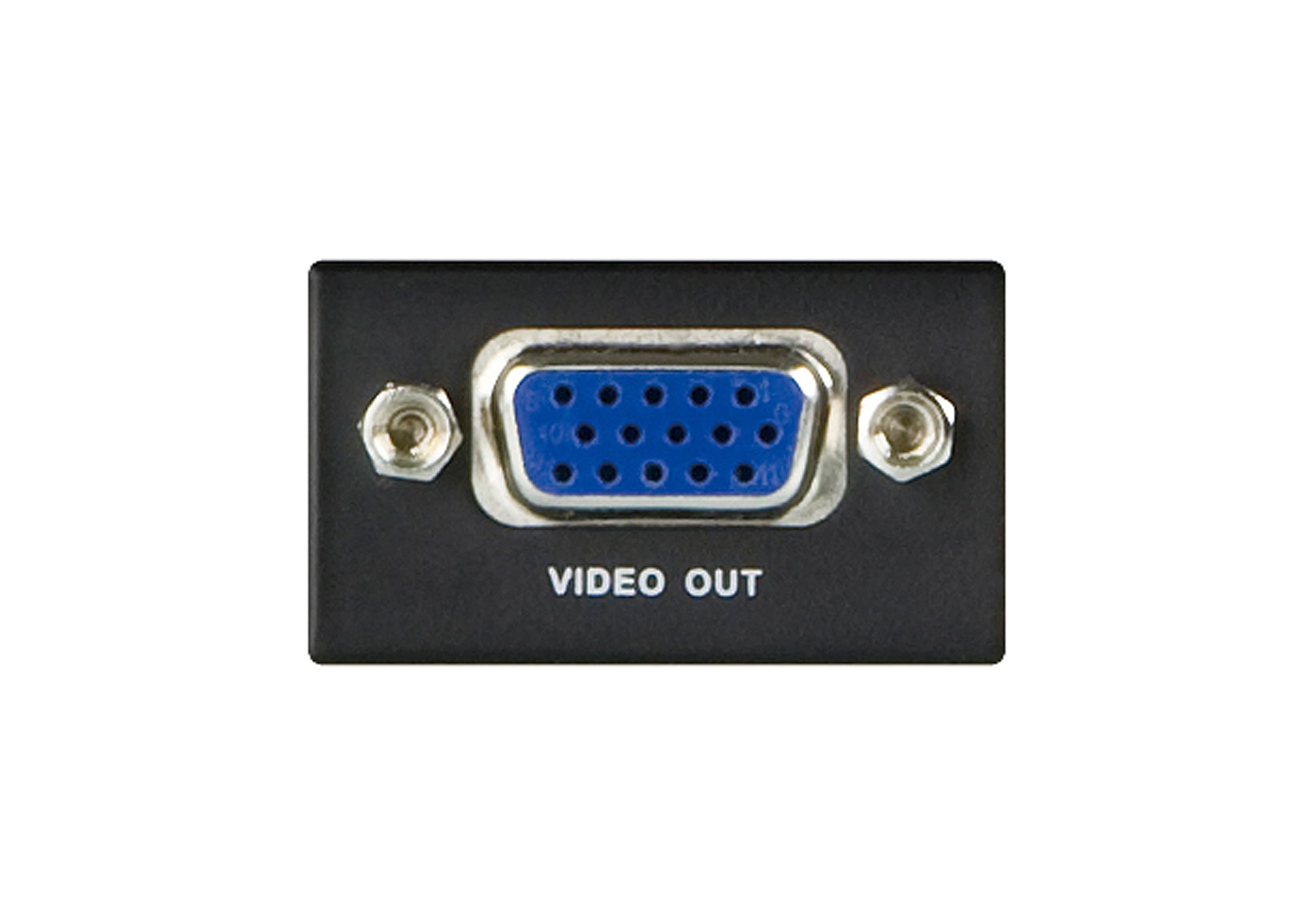

Video Output
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
Video
- Max. Bandwidth
- 300 MHz
- Max. Resolutions / Distance
- Up to 1920 x 1200@30m; 1280 x 1024@70m
Connectors
- Power
- 1 x DC Jack
- Power Consumption
- DC5V:0.63W:3BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.06 kg ( 0.13 lb )
- Dimensions (L x W x H)
- 3.53 x 6.88 x 2.06 cm (1.39 x 2.71 x 0.81 in.)
- Carton Lot
- 10 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
