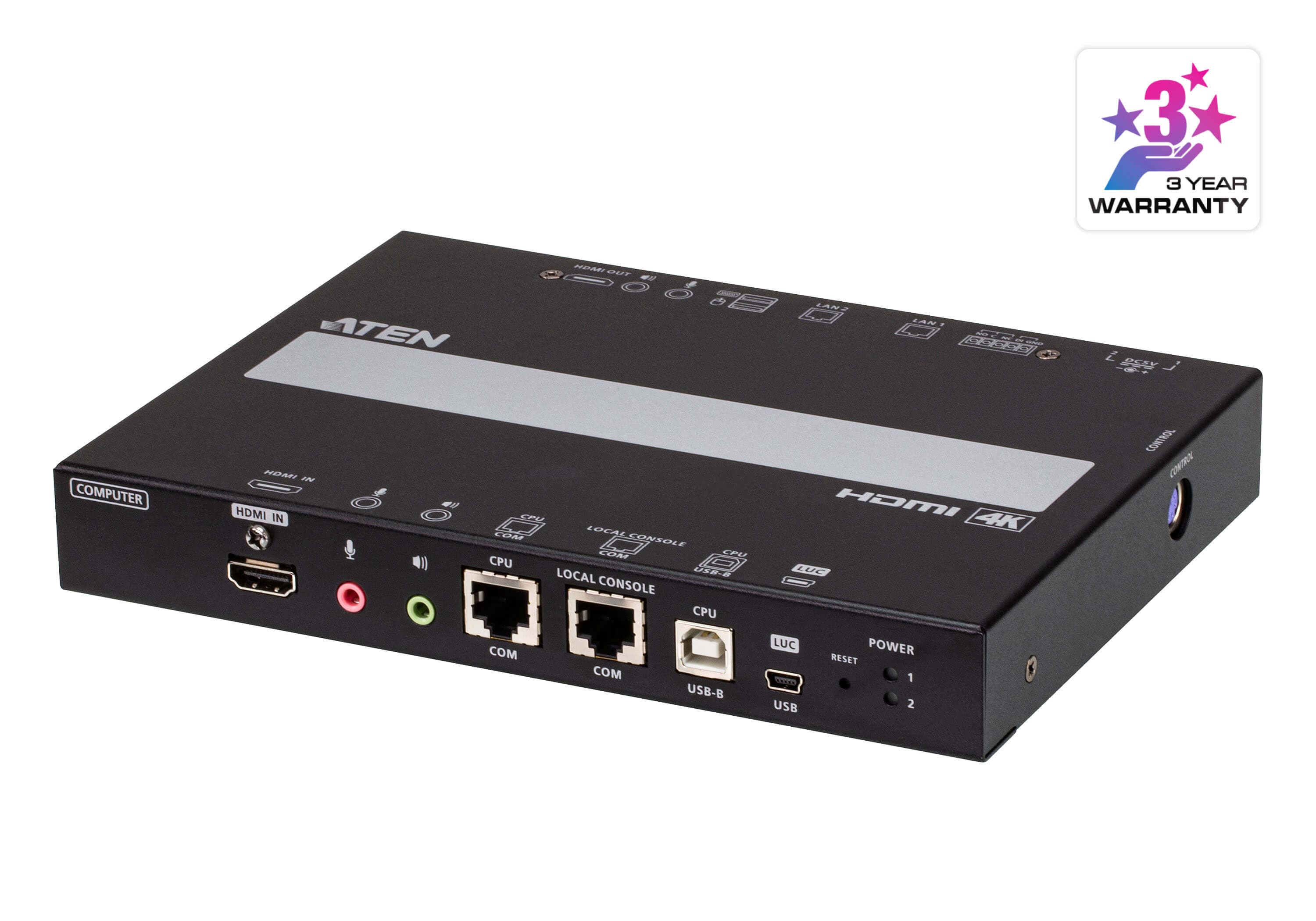

1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch

Name: 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch
Brand: ATEN
SKU: RCMHD101U

RCMHD101U

Request a quote Datasheet PDF Manual CAD drawing

Single-port KVM over IP switch sharing one 4K HDMI computer between a local console and remote network users, with dual LAN ports, dual power inputs, virtual media and serial control.

Features

Supports ATEN Access Control Box for on-site enabling / disabling of remote control privilege
Supports RCMMS for customizable Panel Array for operators to monitor all machines simultaneously
Supports exclusively integrated RCM APIs with various functions, such as OCR, for system integrators
OSD title bar notification – instantly notifies users upon urgent events
Local console priority – gives the local console the priority over remote consoles to access the connected server
Compact and slim design for space usage optimization
Provides an FPGA graphics processor for better image quality
RS-232 DTE / DCE standards compliant for serial control
Provides over-IP capability to HDMI KVM switches that do not have built-in over-IP functionality*
Local console provides USB keyboard and mouse support**
A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or dual IP operation
Dual Power Supply for power backup
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media support
High video resolution – up to 4096 x 2160 @ 30 Hz for both local and remote consoles
Audio support – microphone and speakers are supported on both local and remote consoles*** Note: *When connecting to KVM switches, certain features of the RCMHD101U may not be supported (e.g. some switches do not support virtual media). **Using keyboards / mouses with OS-dependent functions not designed for Windows may have compatibility issues. Windows may have compatibility issues. ***Audio is not supported by RCMHD101U's HDMI and can only be transmitted through its 3.5 mm audio ports.
Up to 64 user accounts – up to 32 users can simultaneously share control Note: As more users connect to the device, the bandwidth allocated to each user decreases.
Console access right management
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Event Logging – the RCMHD101U can record all events and write them to a searchable database
Supports instant notification of critical system events via email, SNMP trap and Syslog
Firmware upgradable via remote access
Access via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
Out-of-band support – accessible through its serial port using a dial-up connection
Port Share Mode allows multiple users to gain access to a server simultaneously
Local / Remote Share Mode conveniently grants shared or exclusive console privilege
Integration with ATEN CCVSR Video Session Recording Software
Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
Supports export / import of user account and configuration settings
Browser Access Permission – extra security feature to allow / disallow browser http / https access
Supports IPv6
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac, Linux, Sun)
Multibrowser support (IE, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel with configurable function for quick launch
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard / mouse, video, and virtual media data encryption
Supports IP / MAC Filter
Supports password protection
Private CA
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 1.1 and USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives, folders and ISO images
Video quality can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
Full-screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

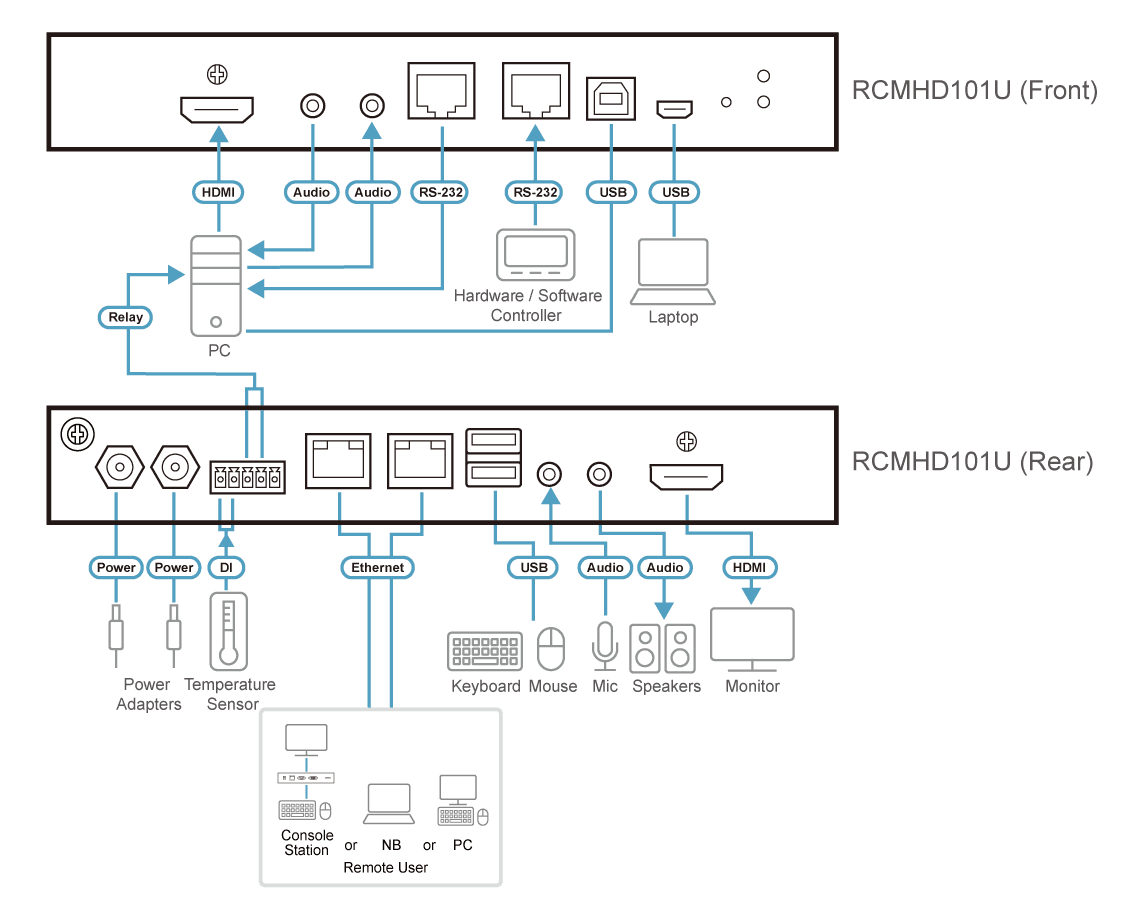

Connectors

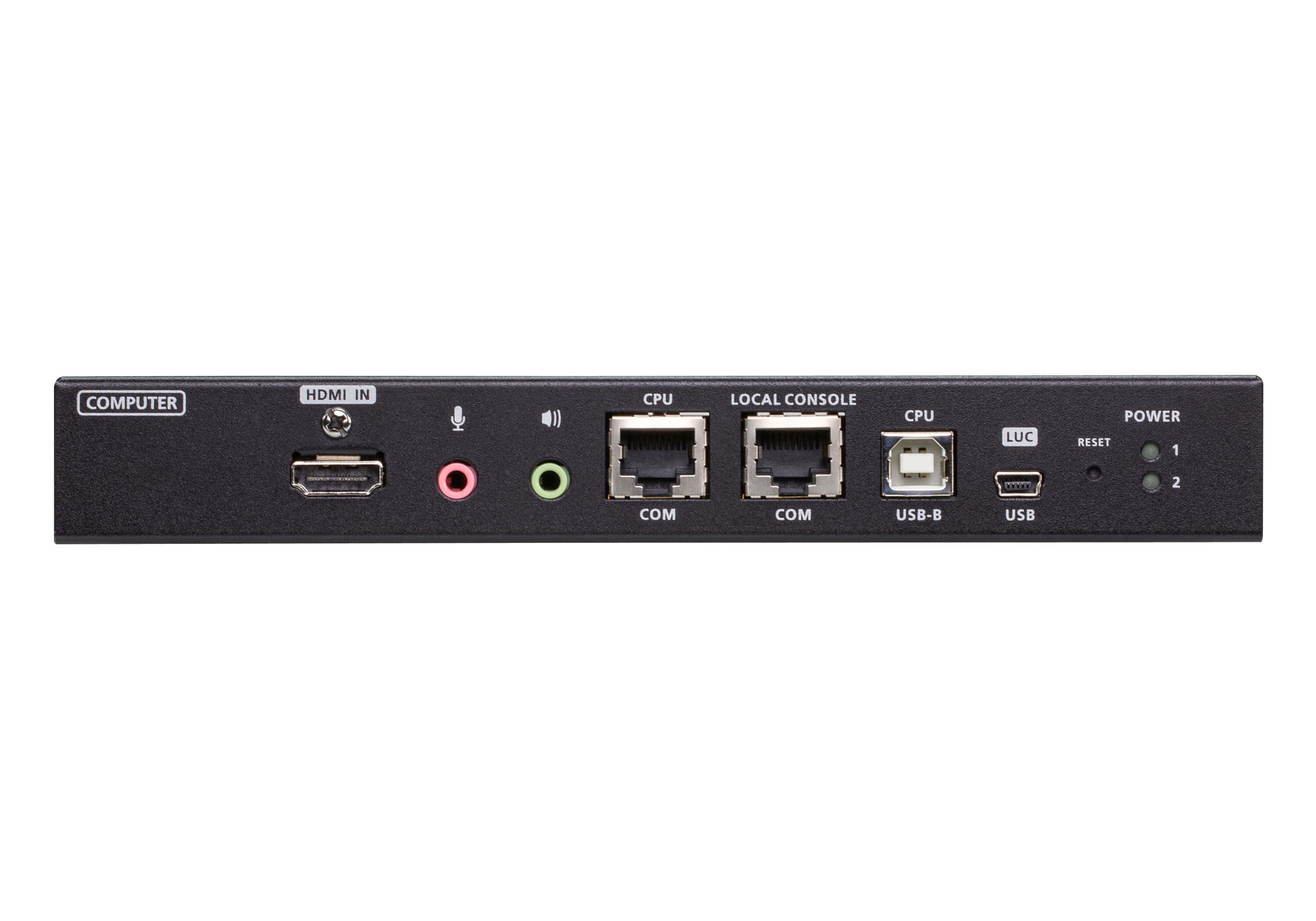

Console Ports: 2 x USB Type A Female (White) 1 x HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports: 1 x USB Type B Female (White) 1 x HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)

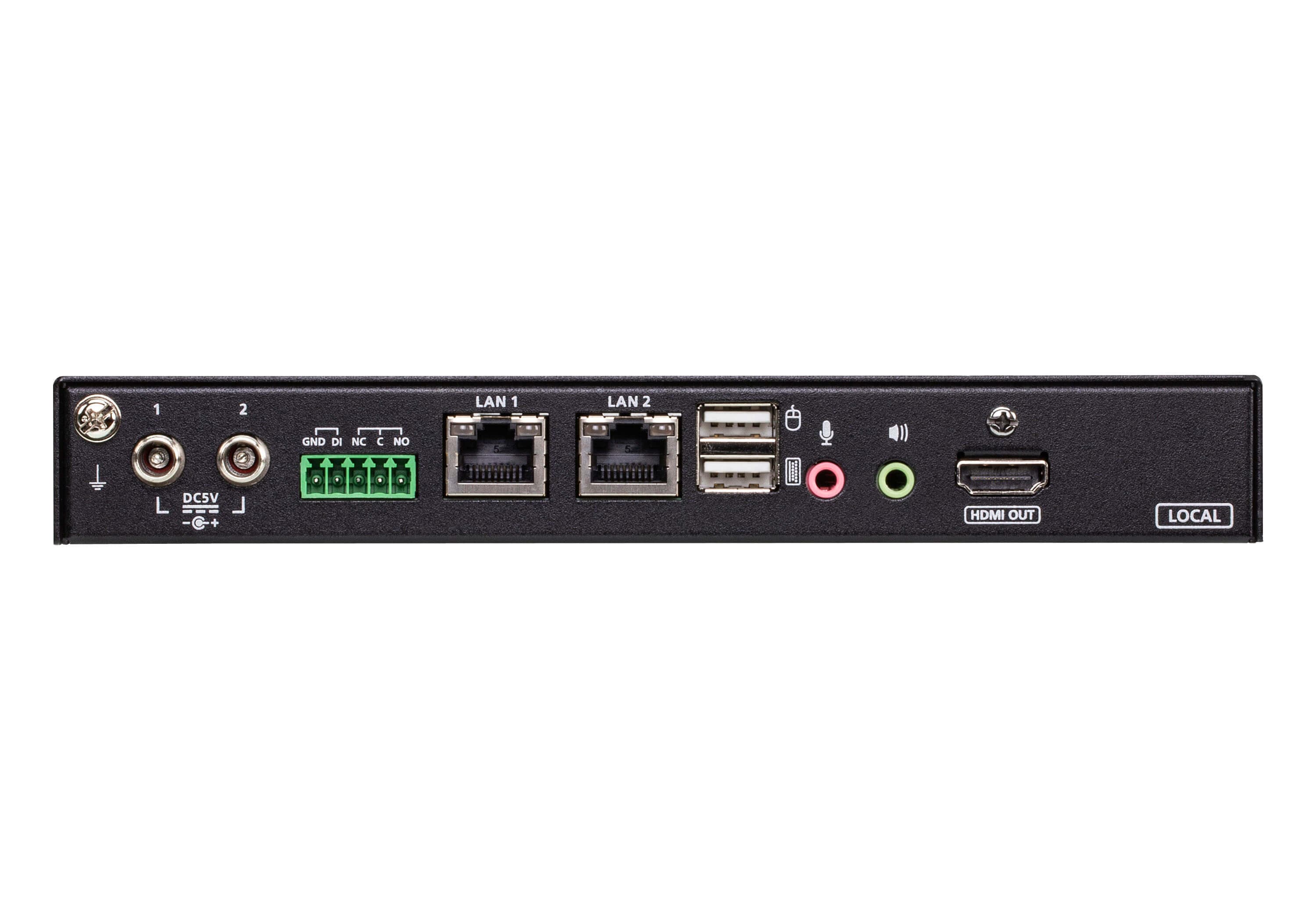

LAN Ports: 2 x RJ-45 Female
Virtual Media: 1 x USB Mini-B Female
Power: 2 x DC Jack
Serial: 2 x RJ-45 Female
Control: 1 x 6-pin Mini-DIN Female (Purple)

Switches

Reset: 1 x Semi-recessed pushbutton (Black)

Emulation

Keyboard / Mouse: USB

LEDs

Power: 2 (Green)
Video: Local console - 4096 x 2160 @ 30 Hz Remote console - 4096 x 2160
Power Consumption: DC5V:10.07W:48BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 0.84 kg ( 1.85 lb )
Dimensions (L x W x H): 20.00 x 15.05 x 2.84 cm (7.87 x 5.93 x 1.12 in.)
