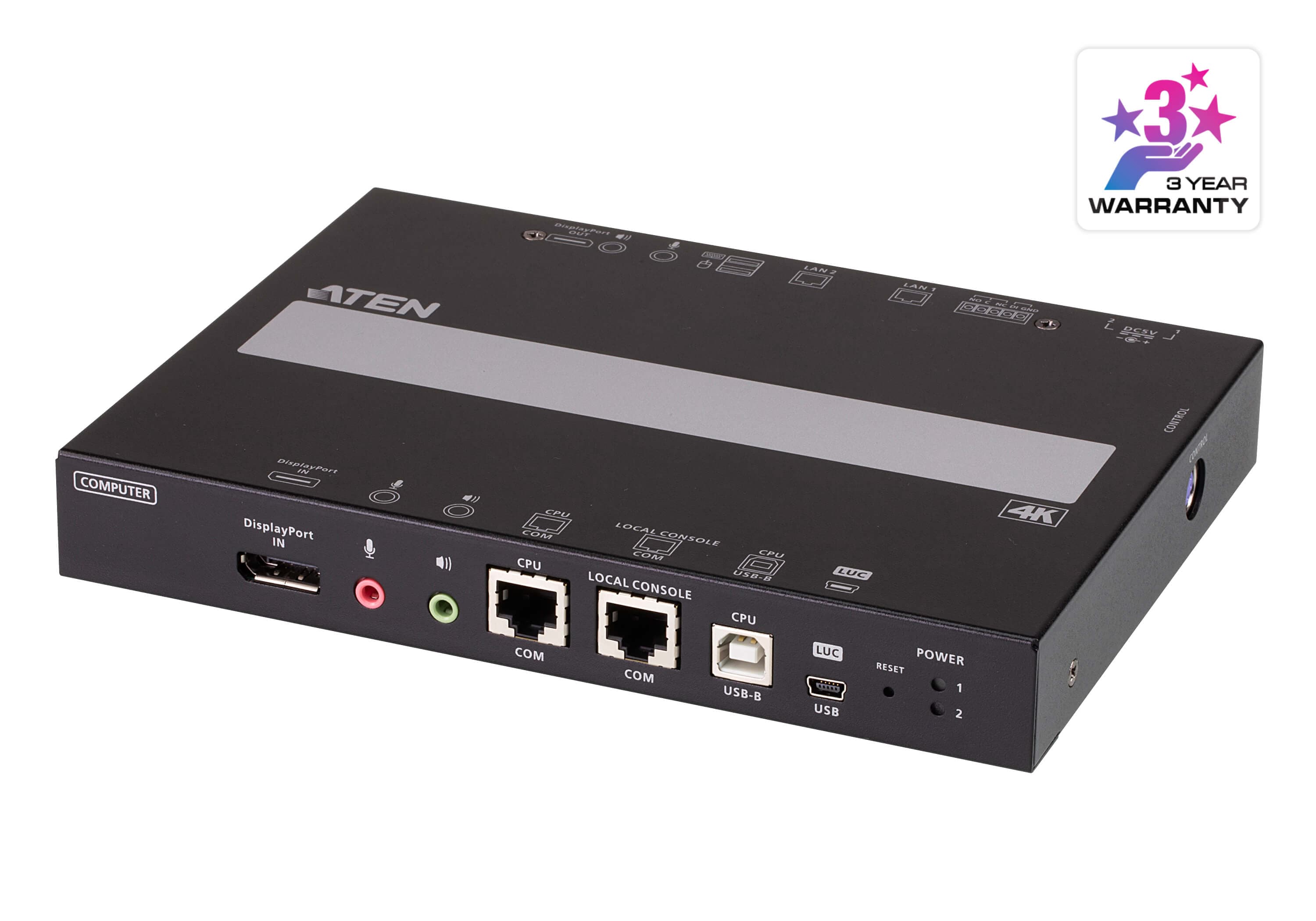

1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch
RCMDP101U
KVM over IP устройство, което дава на локален и отдалечен оператор споделен достъп до един DisplayPort компютър при 4K. Има 2 LAN порта, порт за виртуална медия и OSD известяване при спешни събития.
Характеристики
- Supports ATEN Access Control Box for on-site enabling / disabling of remote control privilege

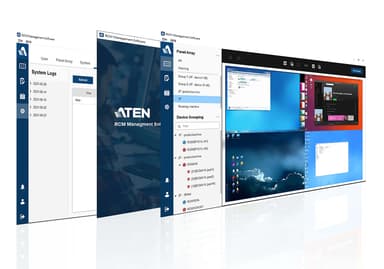

- Supports RCMMS for customizable Panel Array for operators to monitor all machines simultaneously
- Supports exclusively integrated RCM APIs with various functions, such as OCR, for system integrators
- OSD title bar notification – instantly notifies users upon urgent events
- Local console priority – gives the local console the priority over remote consoles to access the connected server
- Compact and slim design for space usage optimization
- Provides an FPGA graphics processor for better image quality
- RS-232 DTE/DCE standards compliant for serial control
- Provides over-IP capability to DisplayPort KVM switches that do not have built-in over-IP functionality*
- Local console provides USB keyboard and mouse support**
- A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
- Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
- Dual power supply to ensure seamless connectivity
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual Media support
- High video resolution – up to 4096 x 2160 @ 30 Hz for both local and remote consoles
- Audio support – microphone and speakers are supported on both local and remote consoles *When connecting to KVM switches, certain features of the RCMDP101U may not be supported (e.g. some switches do not support virtual media). **Using keyboards / mouses with OS-dependent functions not designed for Windows may have compatibility issues.
- Up to 64 user accounts – up to 32 users can simultaneously share control Note: As more users connect to the device, the bandwidth allocated to each user decreases.
- Console access right management
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Event Logging – the RCMDP101U can record all events and write them to a searchable database
- Supports instant notification of critical system events via email, SNMP trap and Syslog
- Firmware upgradable via remote access
- Access via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
- Out of Band support – accessible through its serial port using a dial-up connection
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Local/Remote Share Mode conveniently grants shared or exclusive console privilege
- Integration with ATEN CCVSR Video Session Recording Software
- Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
- DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
- Supports export/import of user account and configuration settings
- Browser Access Permission – extra security feature to allow/disallow browser/http/https access
- Supports IPv6
- Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac, Linux, Sun)
- Multibrowser support (IE, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel with configurable function for quick launch
- External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard/mouse, video, and virtual media data encryption
- Supports IP/MAC Filter
- Supports password protection
- Private CA
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO images
- Video quality can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
- Full-screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
- Supports Exit Macros
- BIOS-level access
Конектори

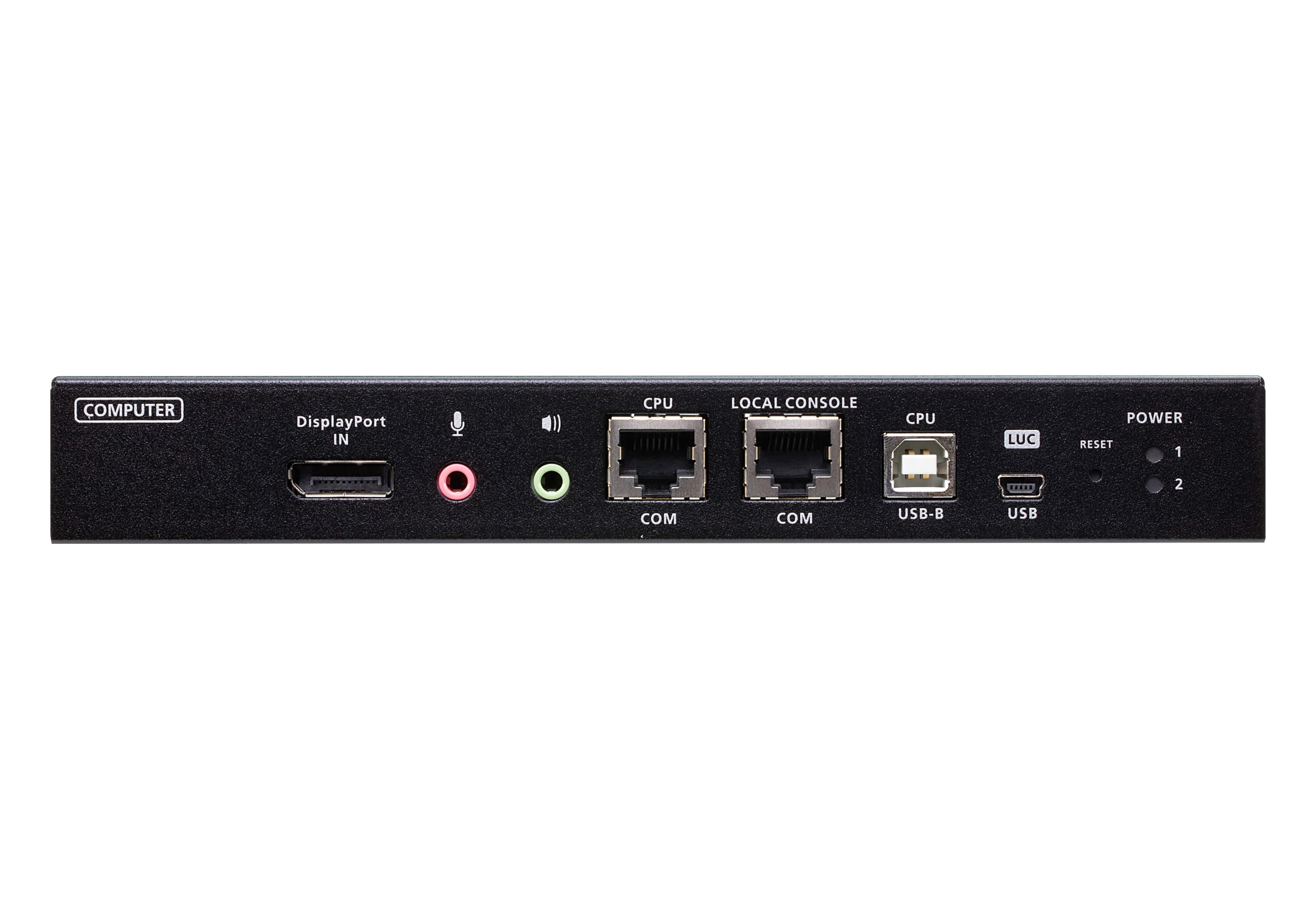

- Конзолни портове
- 2 x USB Type A Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- 1 x USB Type B Female (White) 1 x DisplayPort Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)

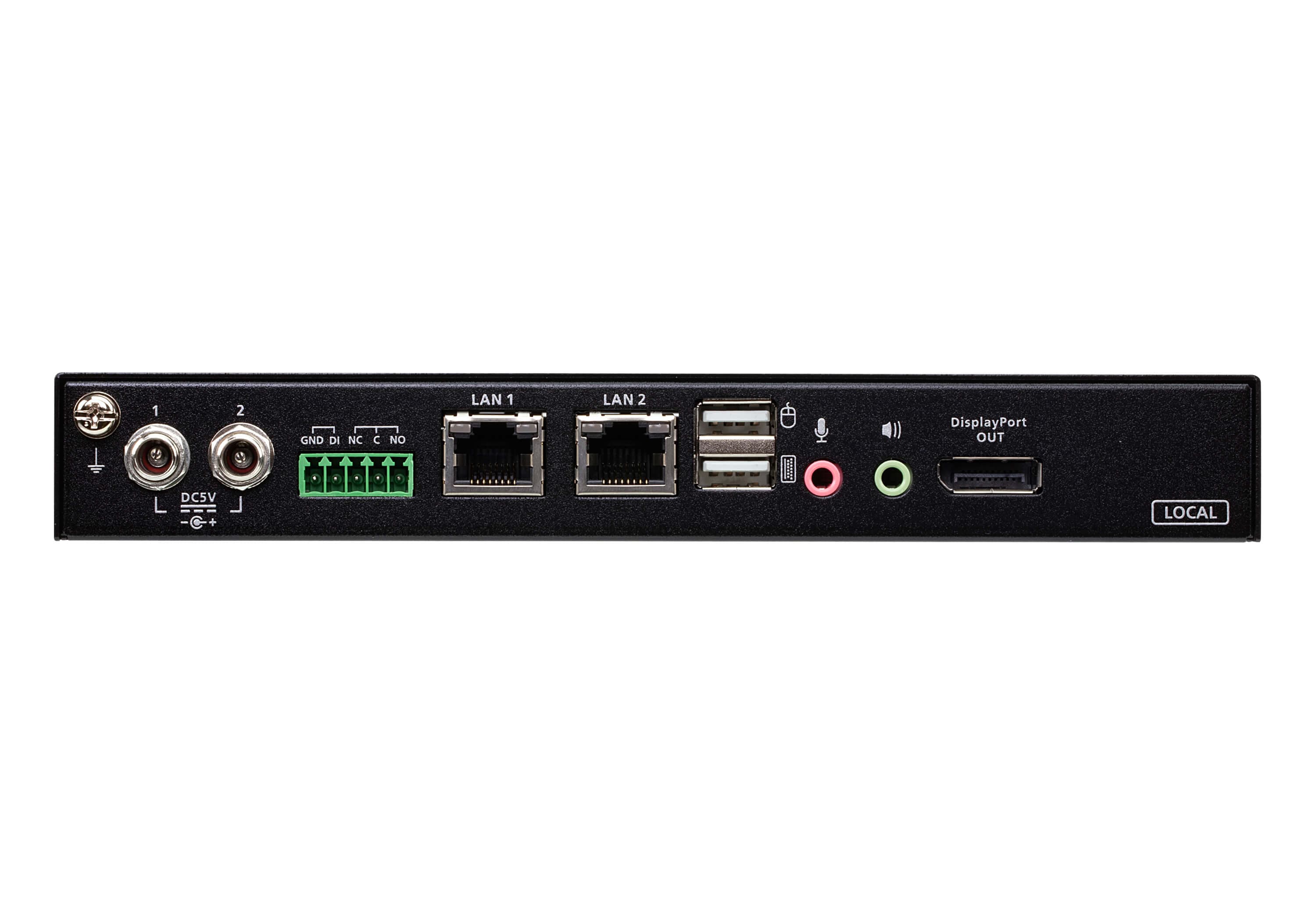

- LAN портове
- 2 x RJ-45 Female
- Виртуална медия
- 1 x USB Mini-B Female
- Захранване
- 2 x DC Jack
- Сериен
- 2 x RJ-45 Female
- Управление
- 1 x 6-pin Mini-DIN Female (Purple)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed pushbutton (Black)
Емулация
- Клавиатура / мишка
- USB
Индикатори
- Захранване
- 2 (Green)
- Видео
- Local console - 4096 x 2160 @ 30 Hz Remote console - 4096 x 2160
- Консумация
- DC5V:9.76W:50BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.85 kg ( 1.87 lb )
- Размери (Д x Ш x В)
- 20.00 x 14.93 x 2.85 cm (7.87 x 5.88 x 1.12 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
