4-Port USB 4K HDMI KVMP™ Switch (Cables included)

Name: 4-Port USB 4K HDMI KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS784H

CS784H

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

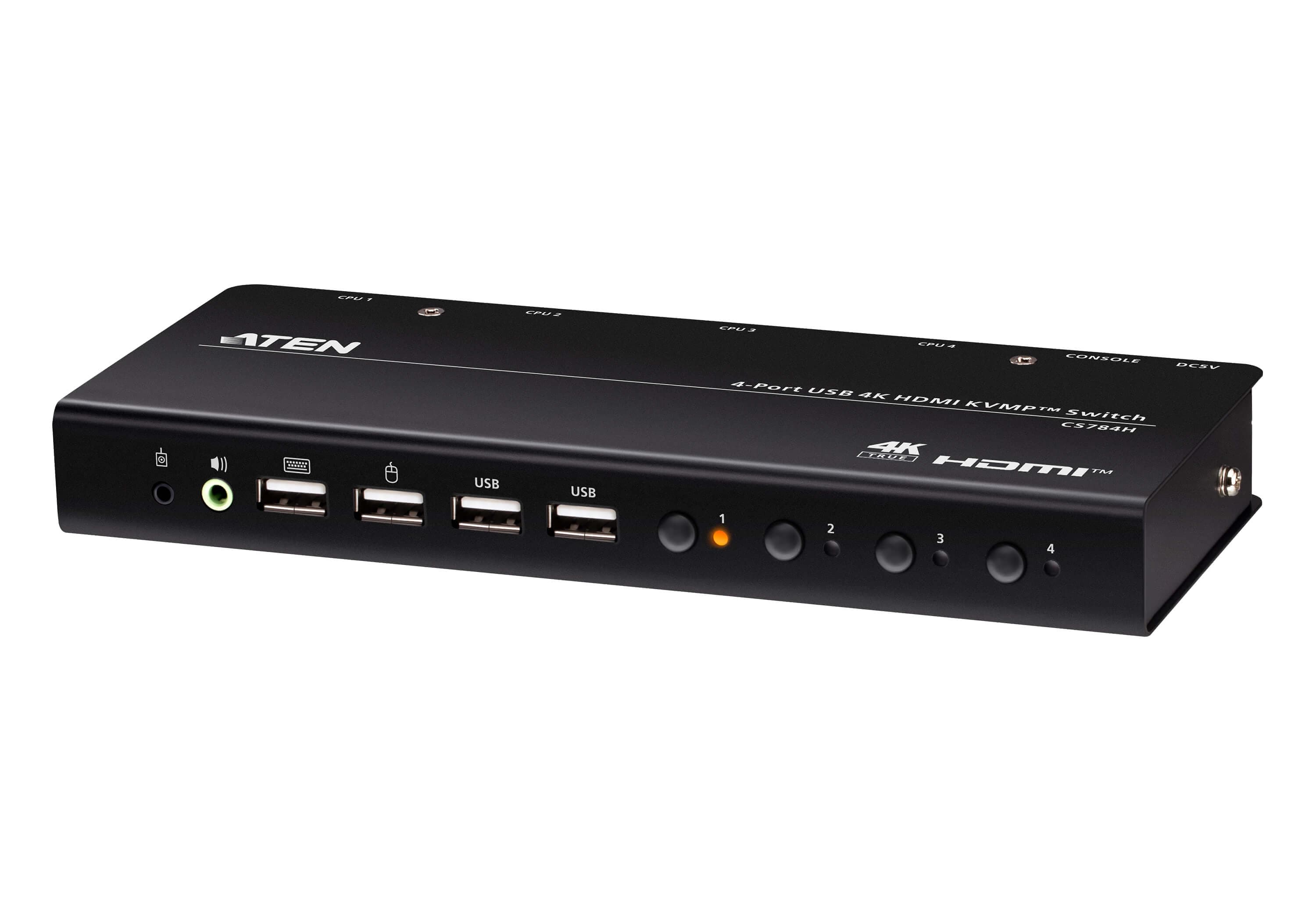

Desktop switch letting one USB keyboard, mouse and HDMI monitor control 4 computers, with a USB 2.0 hub. Video up to 4096 x 2160 @ 60 Hz; cables included.

Features

Single USB keyboard and mouse control up to 4 PCs, simplifying cables and reducing the cost of multi-computer setups
Superior video quality – up to 4096 x 2160 @ 60 Hz, 5120 x 1440 @ 60Hz
Supports Video DynaSync™ – exclusive ATEN technology ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows
Computer selection via remote port selector, hotkeys, and USB mouse
Multiplatform support – Windows, Mac, and Linux
USB peripheral sharing

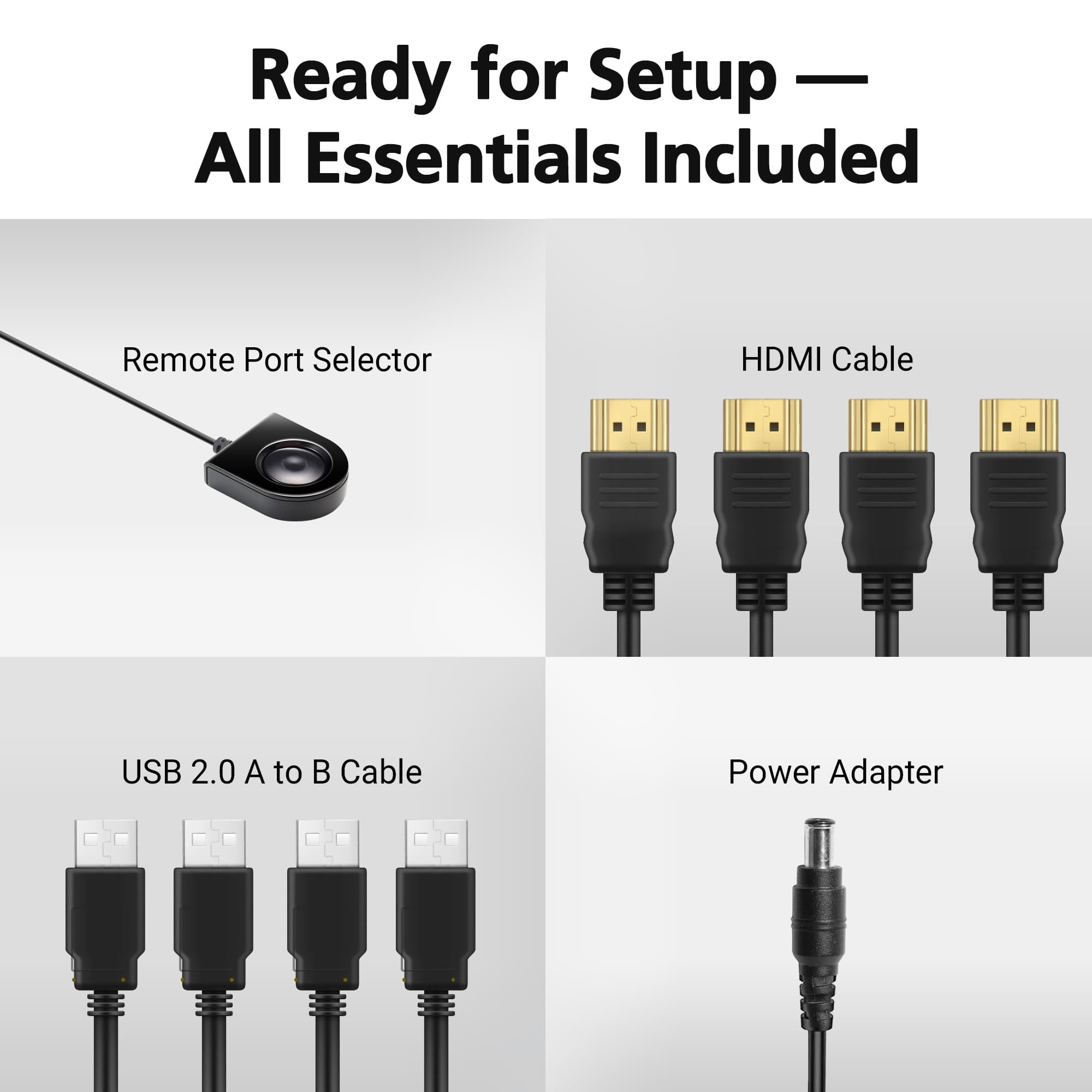

All HDMI / USB cables and power adapter included – for plug-and-play setup and hassle-free installation, no extra purchases needed
Power-on detection automatically switches to the next active computer
Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
Auto-scan function allows continuous monitoring of connected systems
Plug and play – no software installation or configuration required
Supports hot-plugging
Firmware upgradeable

Specifications

Computer Connections: 4
Port Selection: Hotkey, Pushbutton, Mouse, Remote Port Selector

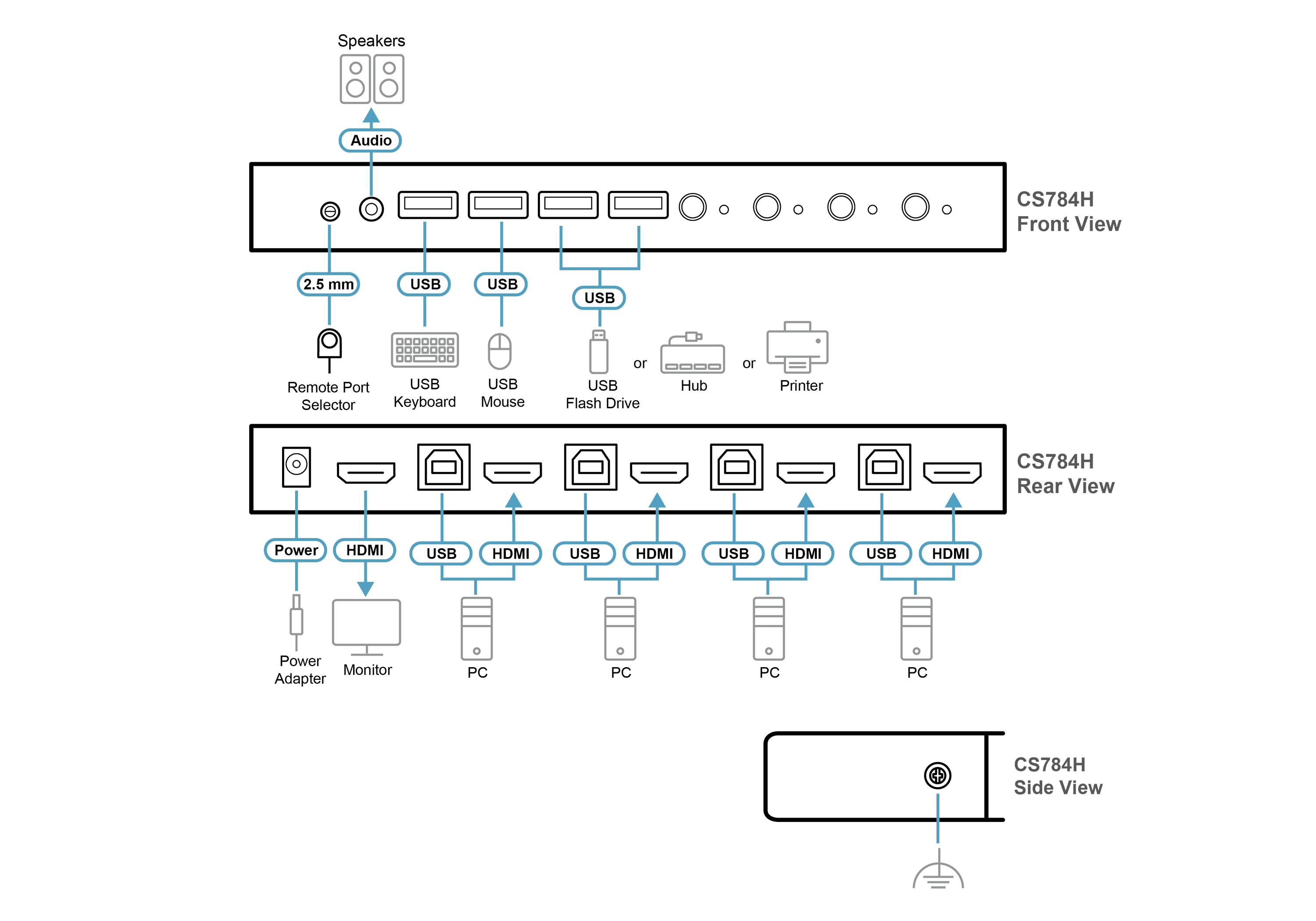

Connectors

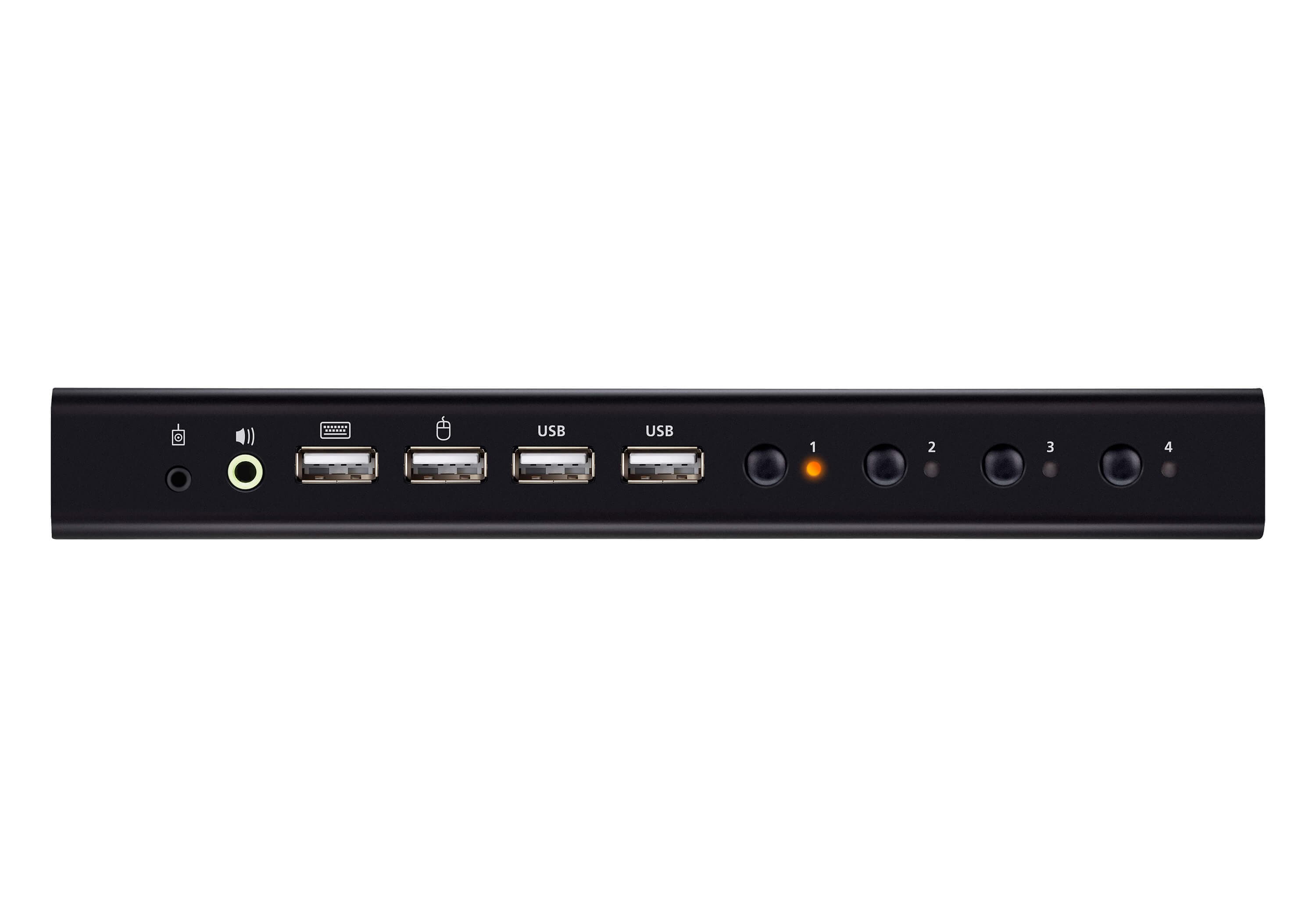

Console Ports: 2 x USB Type A Female 1 x HDMI Female (Black) 1 x 3.5mm Audio Jack Female (Green; 1 x front)

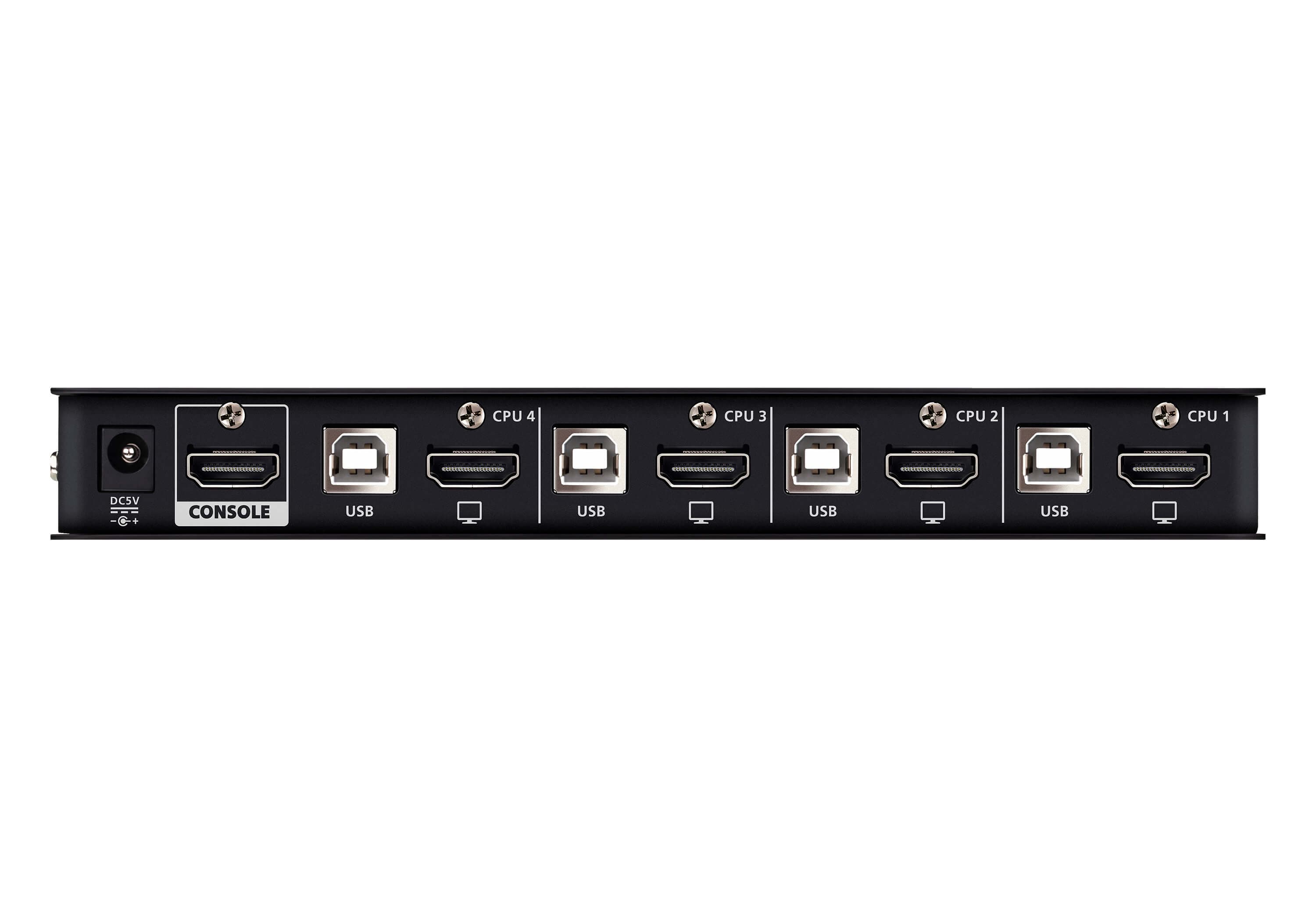

KVM (Computer) Ports: 4 x USB2.0 Type B Female (White) 4 x HDMI Female (Black)
Power: 1 x DC Jack
USB Hub: 2 x USB2.0 Type A Female (White; 2 x front)

Switches

Selected: 4 x Pushbutton

LEDs

On Line /Selected: 4 (Orange)

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz
Scan Interval: 1-99 Seconds (Default: 5 sec.)
Power Consumption: DC5V:1.73W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal, Plastic
Weight: 0.47 kg ( 1.04 lb )
Dimensions (L x W x H): 20.23 x 8.17 x 2.50 cm (7.96 x 3.22 x 0.98 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
