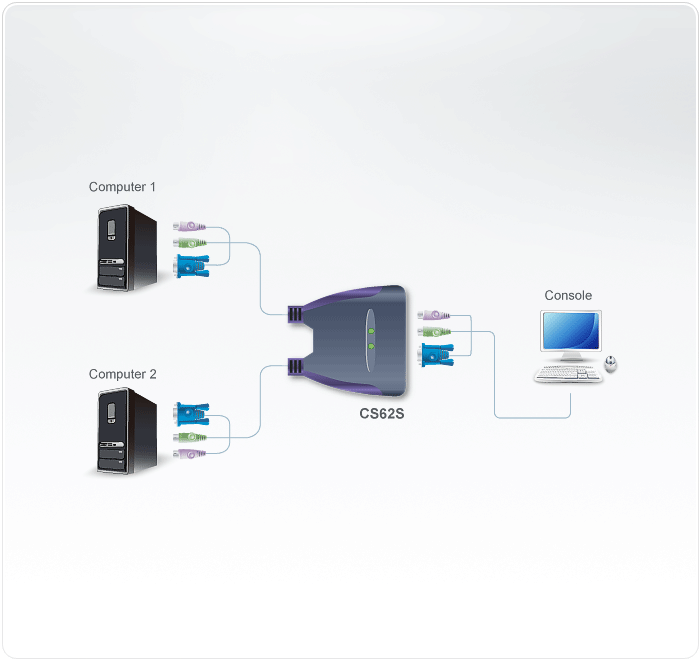

CS62S 2-port KVM Switch has a handy design integrating with 0.9m of cable. It can control 2 servers via a single console.
Features
- One PS/2 console controls 2 PS/2 computers
- Compact design, built in 0.9m cables
- All-in-one design
- Superior video quality-up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Bus-Powered
- OS Compatibility includes Windows 2000/XP/Vista,LINUX and FreeBSD
Specifications
- Computer Connections
- 2
- Port Selection
- Hotkey
Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- KVM Ports
- 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x 6-pin Mini-DIN Male (Green)
LEDs
- Selected
- 2 (Green)
Cable Length
- Computer
- 2 x 0.9 m
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 2048 x 1536; DDC2B
- Scan Interval
- 3, 5, 10, 20 seconds (default: 5 secs.)
- Power Consumption
- DC5V:0.17W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.25 kg ( 0.55 lb )
- Dimensions (L x W x H)
- 7.30 x 6.24 x 2.25 cm (2.87 x 2.46 x 0.89 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
