2-Port PS/2 VGA/Audio Cable KVM Switch (1.2m)
CS62ADiscontinued

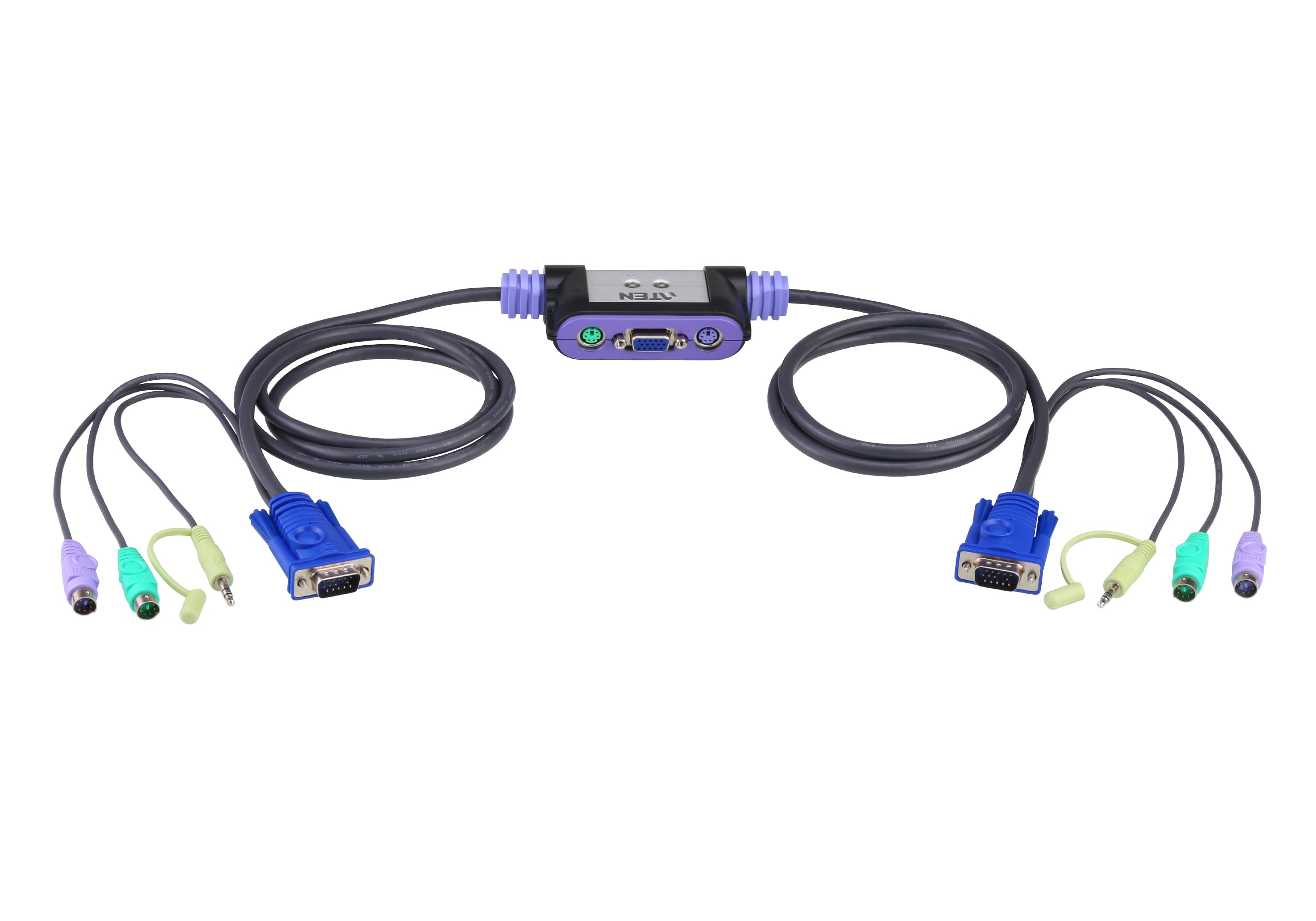

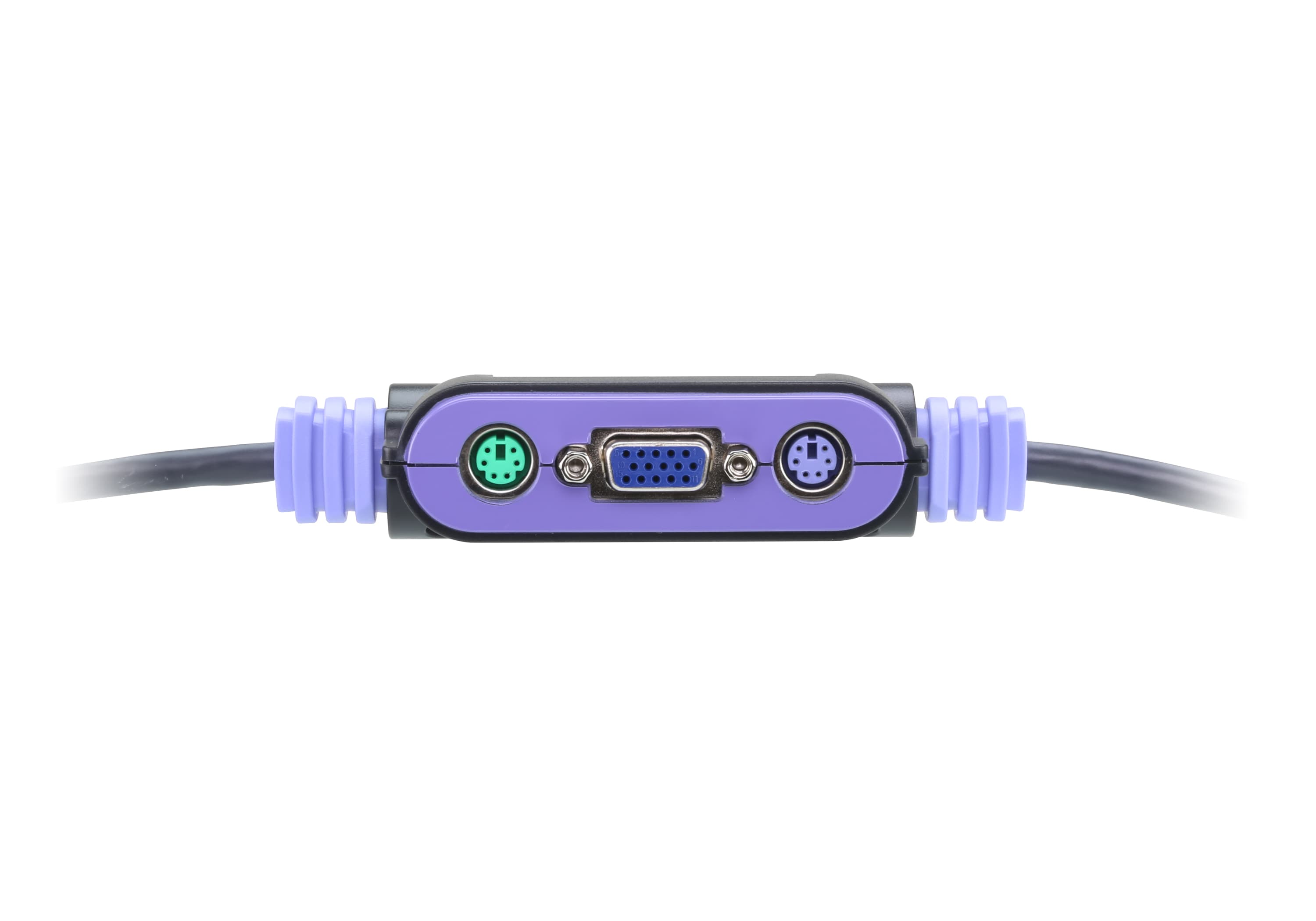

CS62A 2-Port KVM Switch has a handy design integrating with 4 feet of cables. It can control 2 servers via a single console.
Features

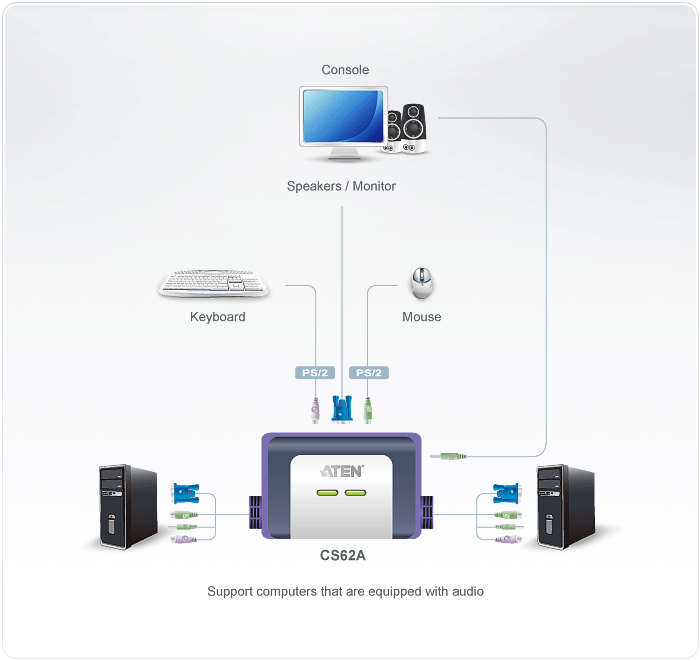

- One PS/2 console controls 2 computers
- Compact design, built in 1.2m cables
- All-in-one design
- With speaker support
- Superior video quality- up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Bus-Powered
- OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD
Specifications
- Computer Connections
- 2
- Port Selection
- Hotkey
Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x 3.5mm Audio Jack Female (Green)
- KVM Ports
- 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x 6-pin Mini-DIN Male (Green) 2 x 3.5mm Audio Jack Male(Green)
LEDs
- Selected
- 2 x Green
Cable Length
- Computer
- 2 x 1.2 m
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 2048 x 1536; DDC2B
- Scan Interval
- 3, 5, 10, 20 seconds (default: 5 secs)
- Power Consumption
- DC5V:0.22W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0~80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.30 kg ( 0.66 lb )
- Dimensions (L x W x H)
- 8.40 x 5.40 x 3.00 cm (3.31 x 2.13 x 1.18 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
