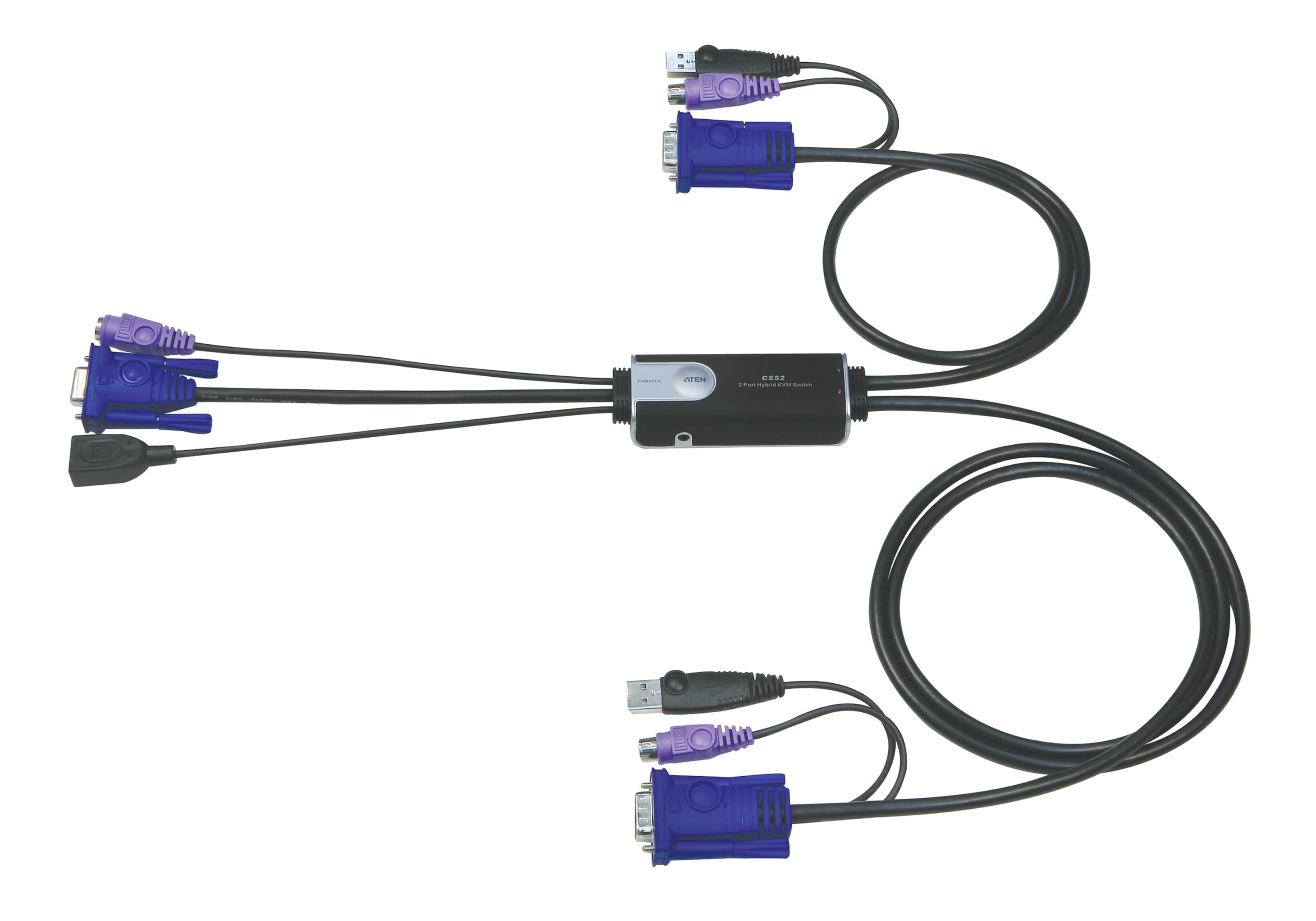

2-Port PS/2 USB VGA Cable KVM Switch with Remote Port Selector

Name: 2-Port PS/2 USB VGA Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: CS52

CS52Discontinued

Flexible Combinations : PS/2 Keyboard+USB Mouse

Features

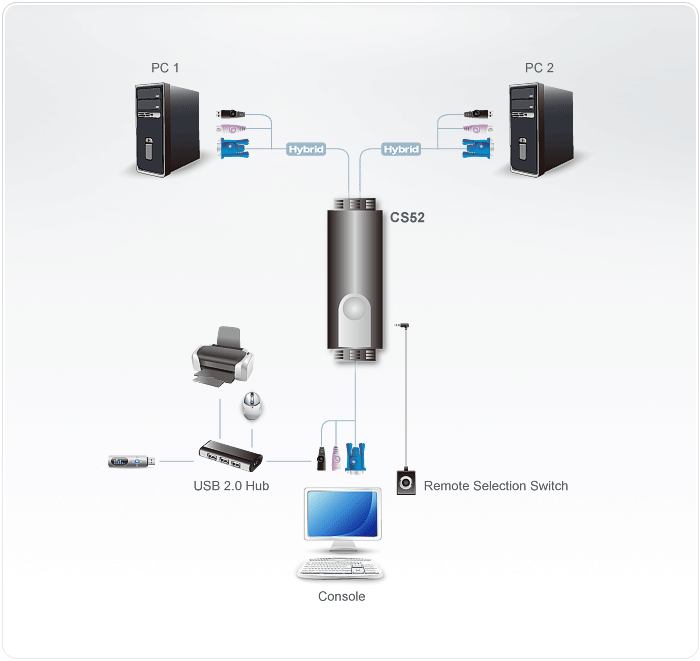

One console (monitor, PS/2 keyboard, and USB mouse) controls two computers
Remote port selection switch for convenient switch placement
Supports multi-function mice
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
Superior video quality- up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD.

Console Ports: 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x USB Type A Female
KVM Ports: 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x USB Type A Male (Black)
Remote Port Selector: 1 x 2.5mm Audio Jack Female

Keyboard / Mouse: PS/2
Video: 2048 x 1536; DDC2B
Scan Interval: 3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption: DC5V:0.02W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Housing: Plastic
Weight: 0.35 kg ( 0.77 lb )
Dimensions (L x W x H): 8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
