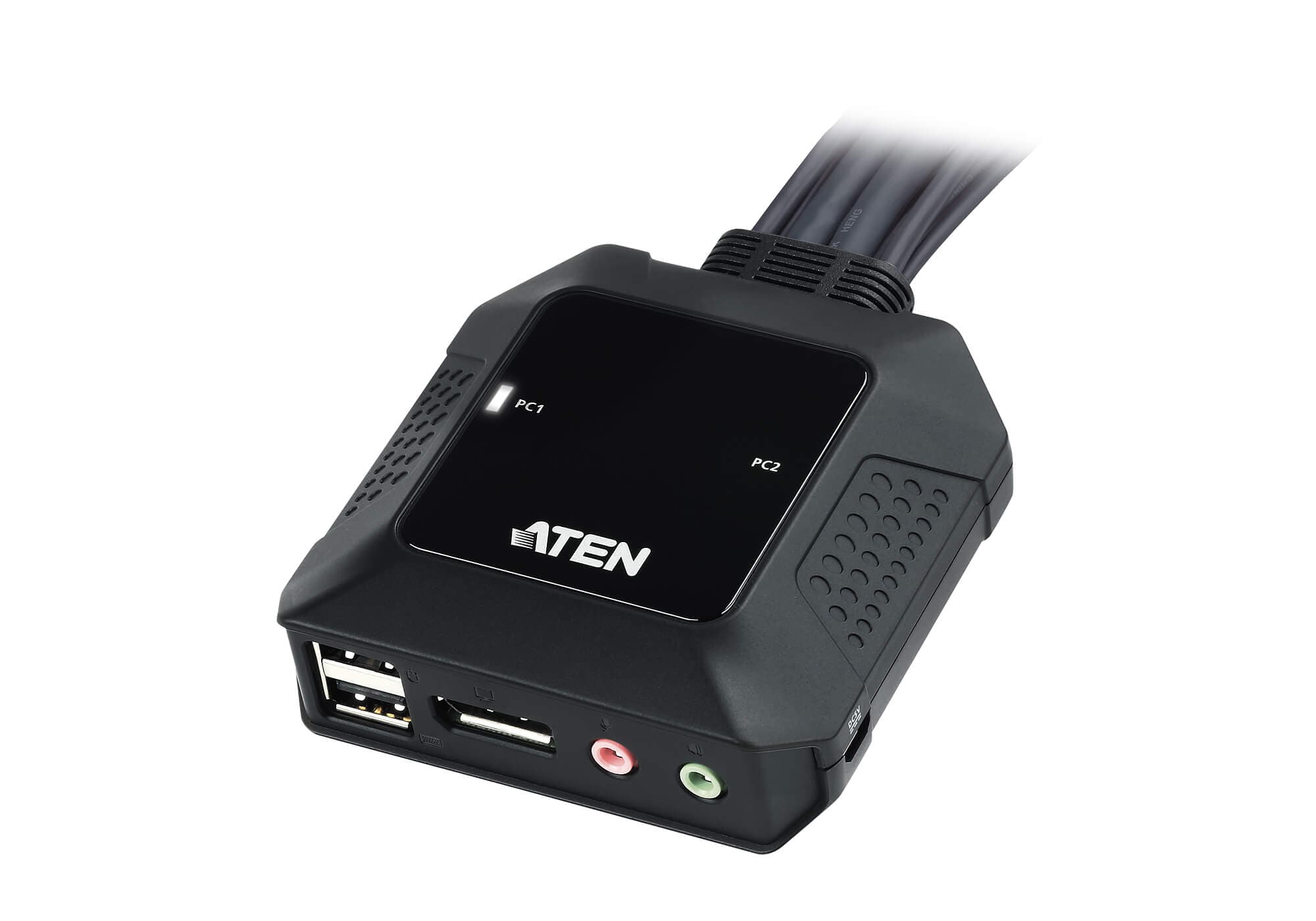

2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
CS22DP
Cable KVM switch controlling two USB DisplayPort computers from one console at up to 4096 x 2160 @ 60 Hz via a wired remote port selector; 1.2 m leads; supports Windows, Mac and Linux.
Features

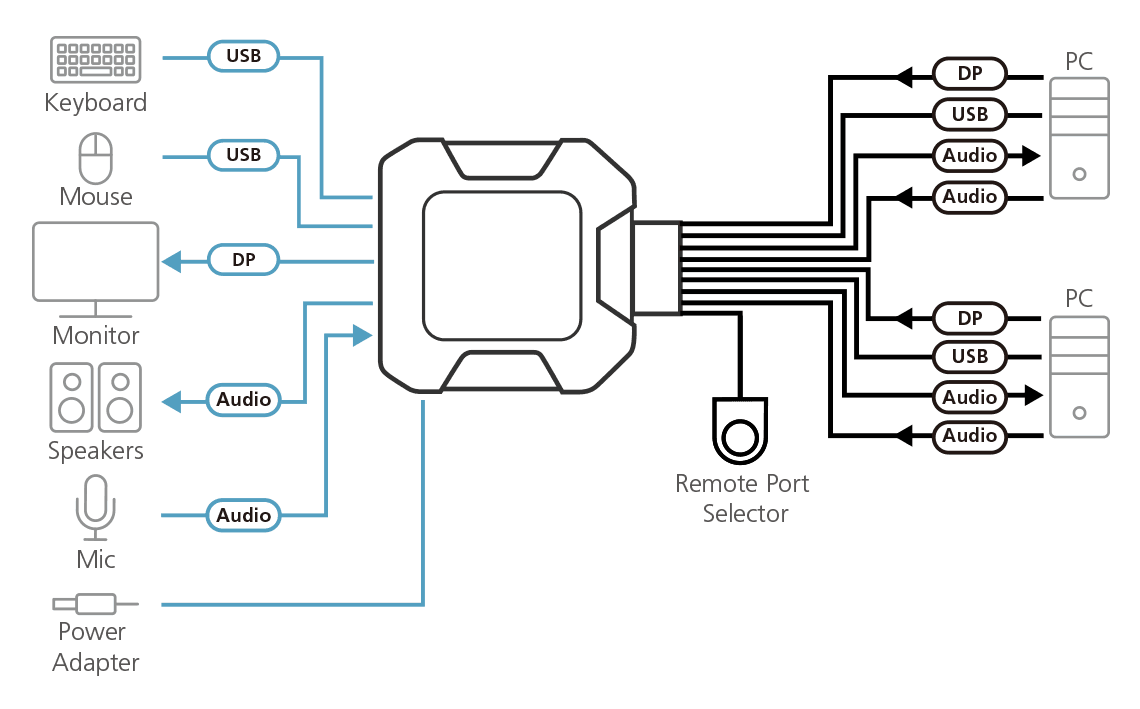

- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 60 Hz
- Computer selection via Remote Port Selector
- Multiplatform support – Windows, Mac, and Linux
- Supports microphone and speakers

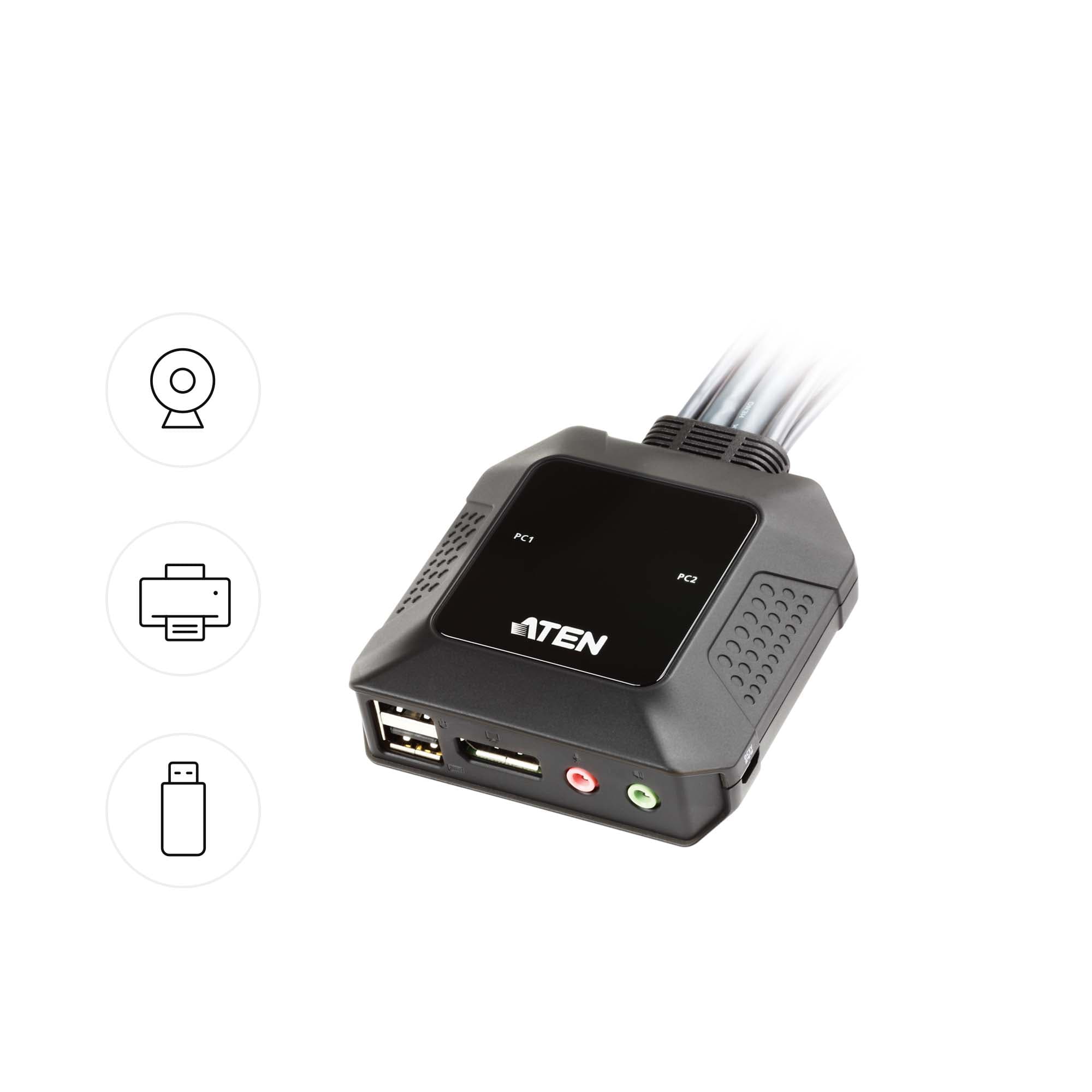

- The console USB ports can be used for USB peripheral sharing1
- Supports USB hot-plugging
- DisplayPort 1.2 compliant; HDCP compliant2
- Compatible with widescreen LCD monitors
- Bus-powered 1. The CS22DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use. 2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.
Specifications
- Computer Connections
- 2
- Port Selection
- Remote Port Selector
Connectors
- Console Ports

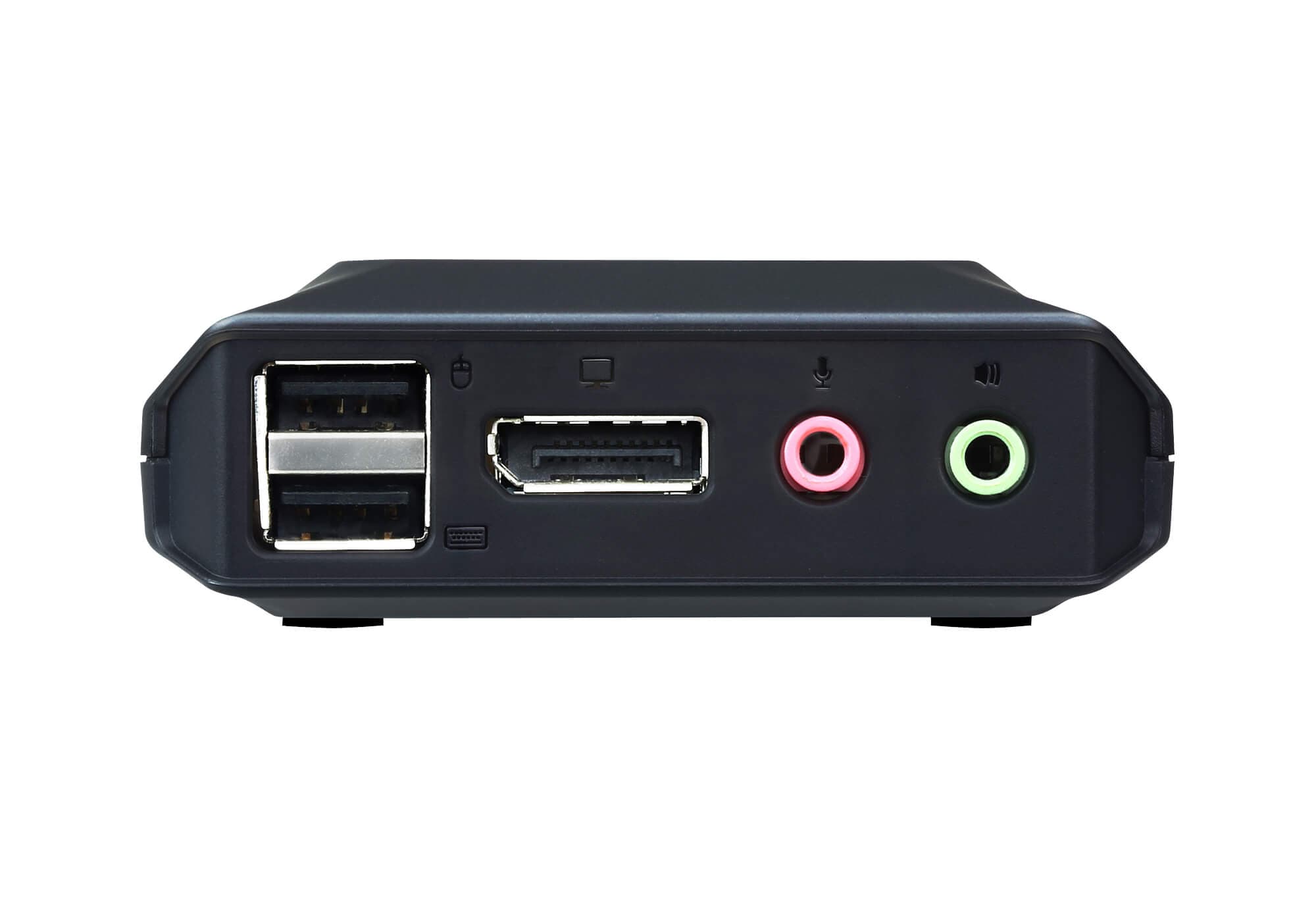

- 1 x DisplayPort Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
- KVM (Computer) Ports

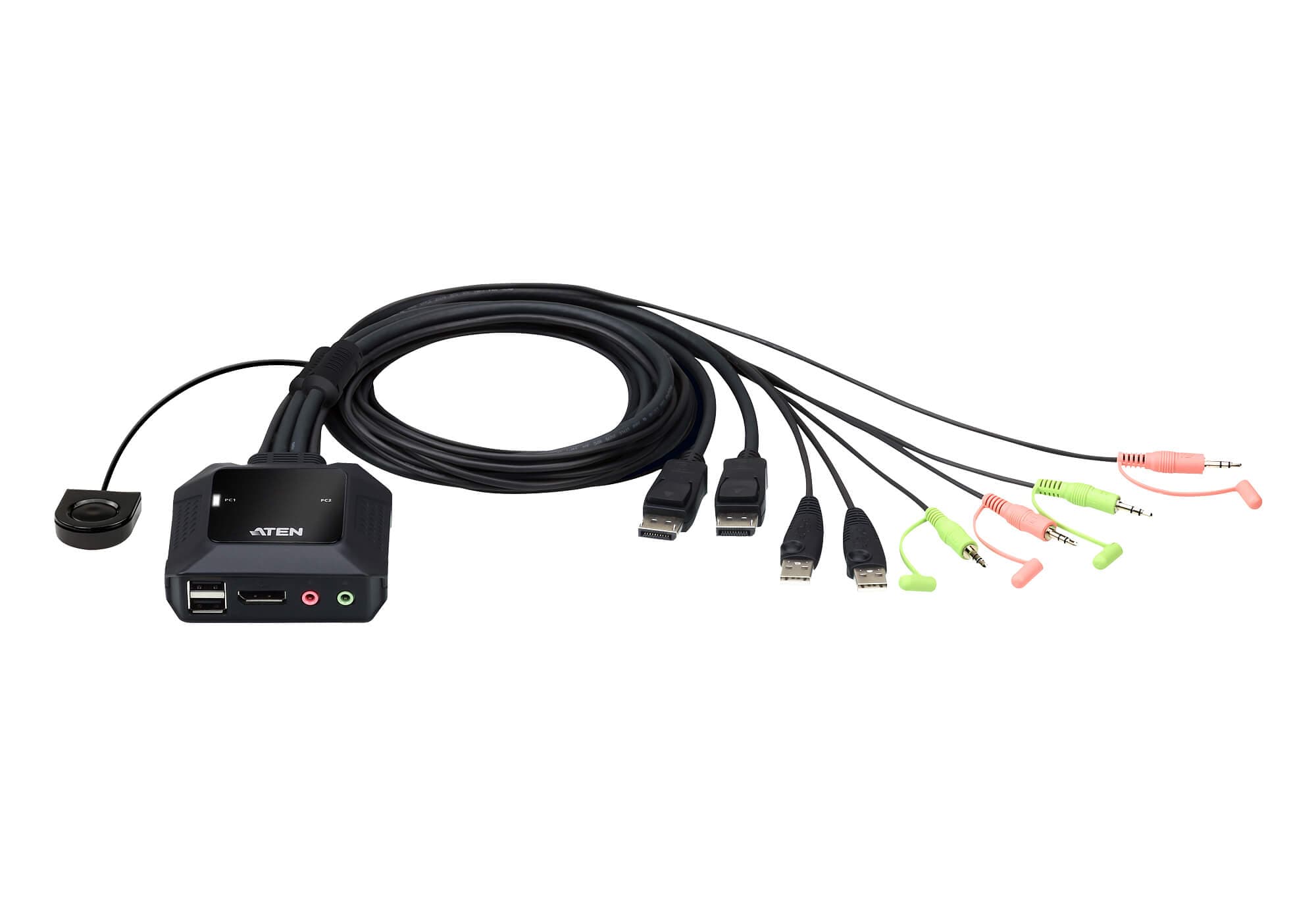

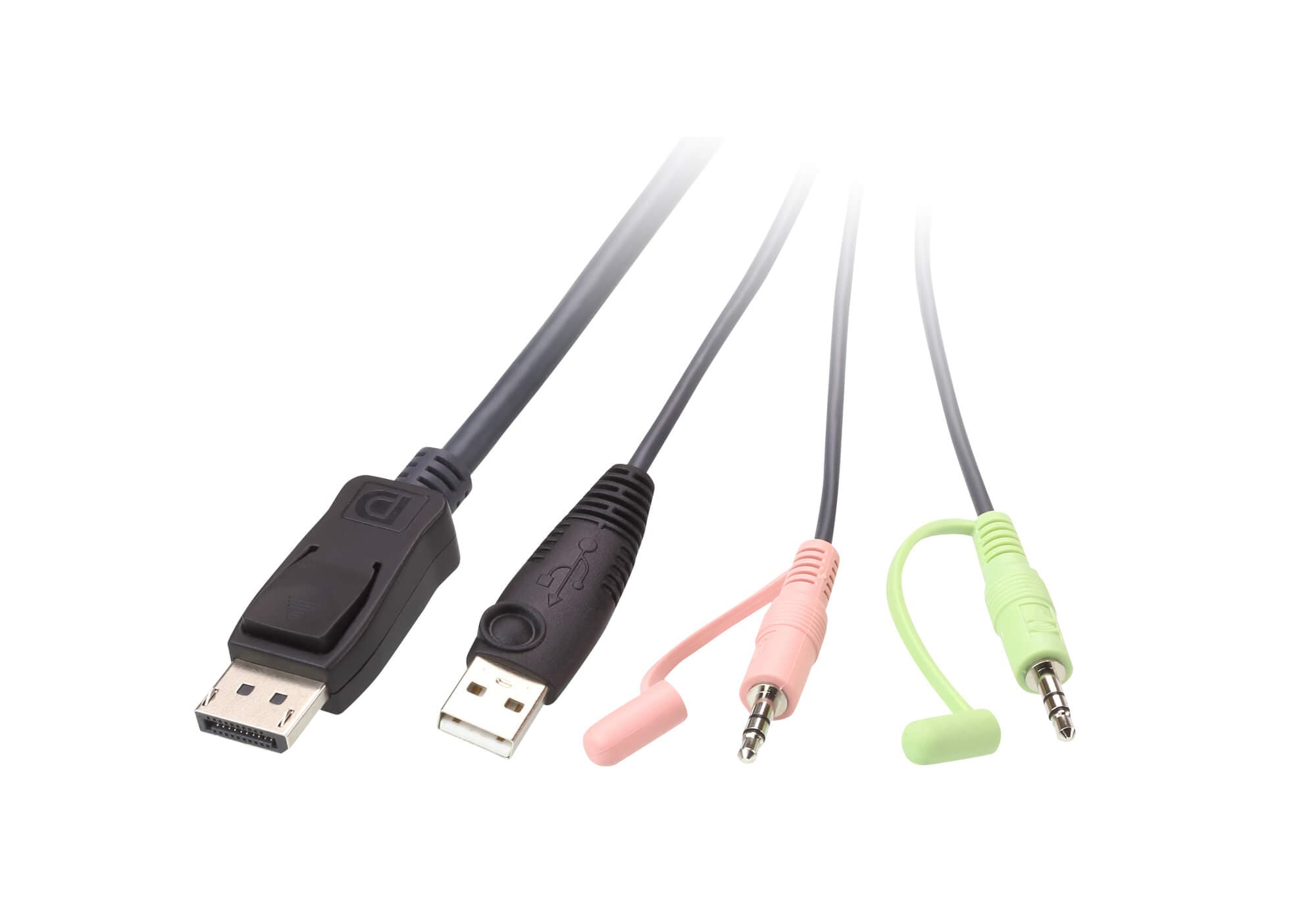

- 2 x DisplayPort Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
- Power (Optional)

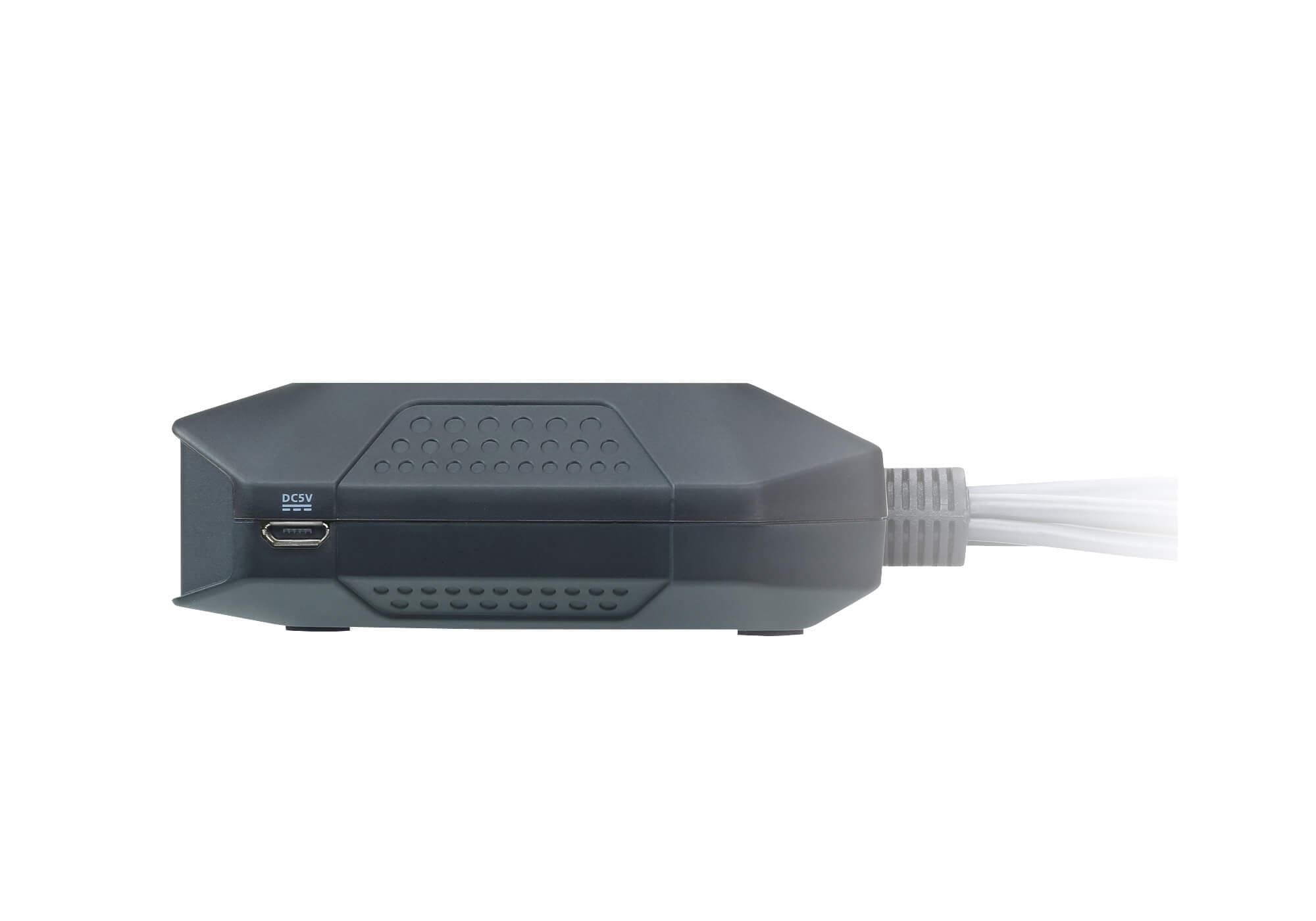

- 1 x USB Micro Type B Female
LEDs
- KVM Port (On Line /Selected)
- 2 (White)
Cable Length
- KVM
- 2 x 1.2 m
- Remote Port Selector
- 1.8 m
Emulation
- Keyboard / Mouse
- N/A
- Video
- 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Power Consumption
- DC5V:1.38W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.35 kg ( 0.77 lb )
- Dimensions (L x W x H)
- 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
