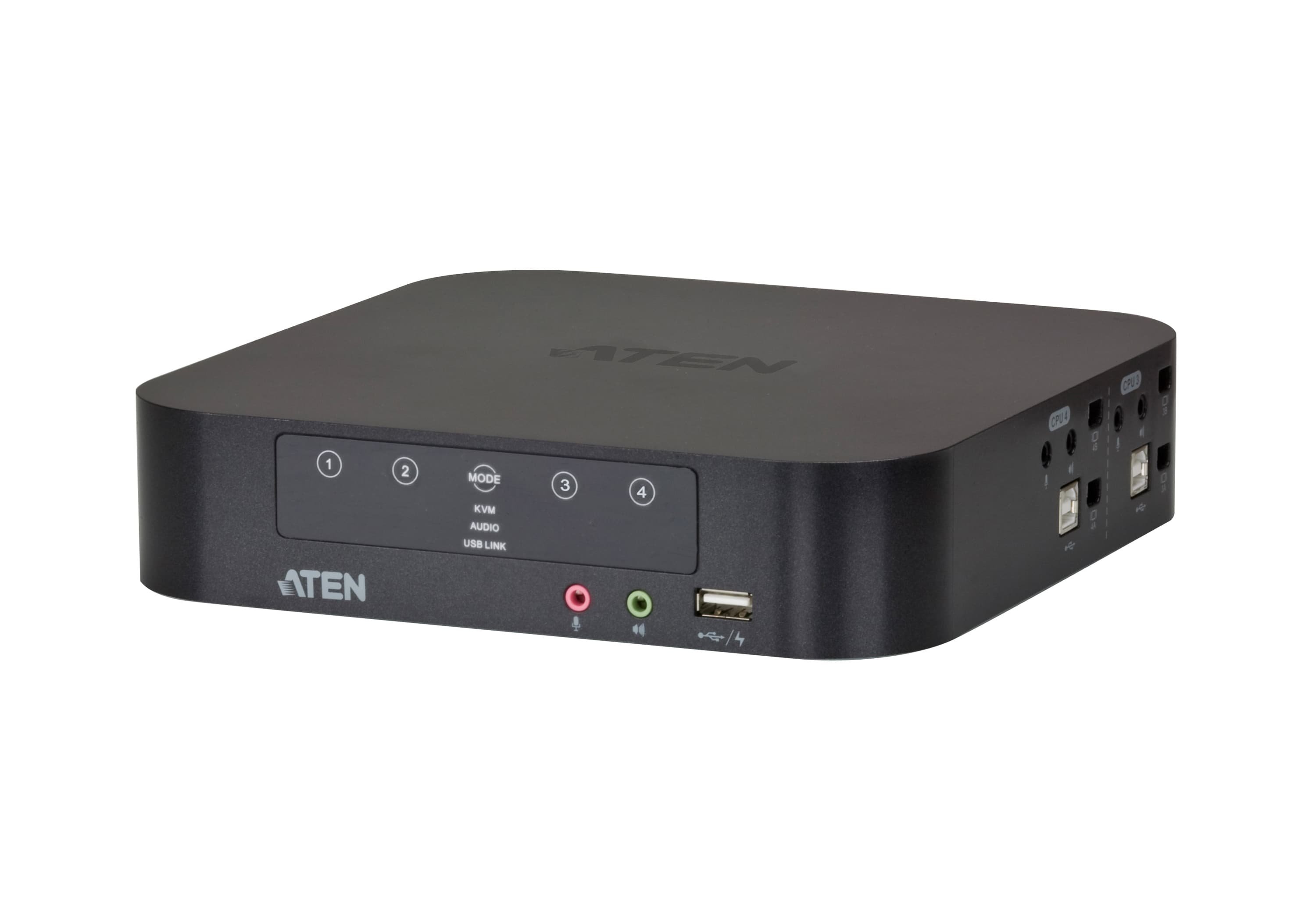

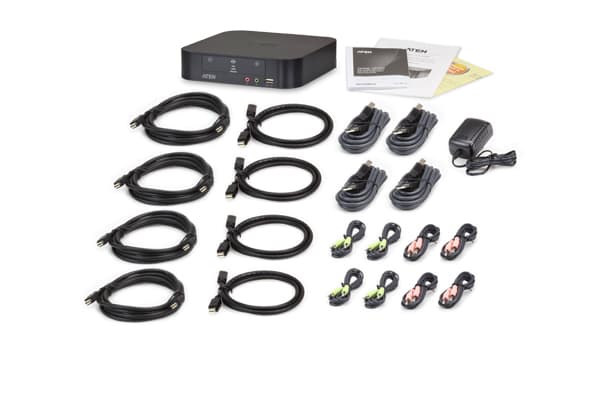

4-Port USB Mini DisplayPort/Audio Dual Display KVMP™ Switch (Cables included)

Name: 4-Port USB Mini DisplayPort/Audio Dual Display KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1944

CS1944Discontinued

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

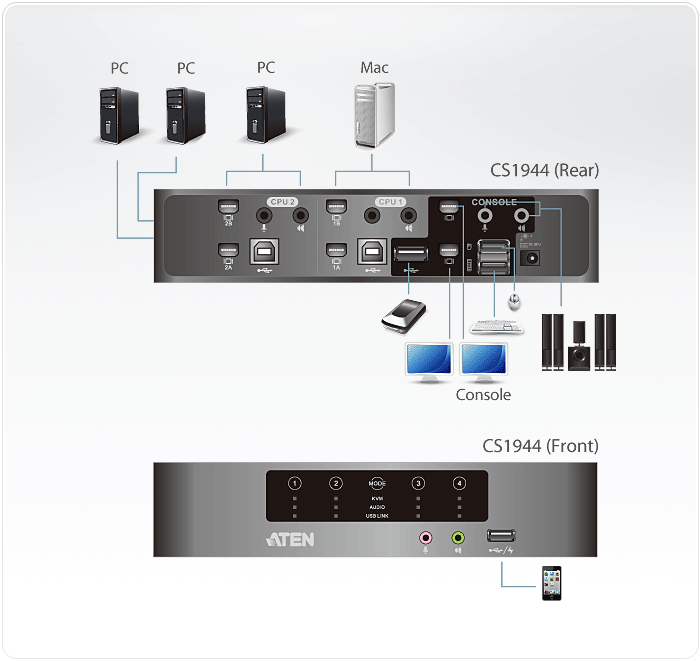

The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches

Features

One dual-view USB console independently and simultaneously controls four Mini DisplayPort computers and two USB devices
USB quick charge mode (front panel USB port)
Mini DisplayPort 1.1a & HDCP compatible
Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK
Superior video quality – enables up to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at 120Hz
Nvidia 3D Vision Ready
2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications

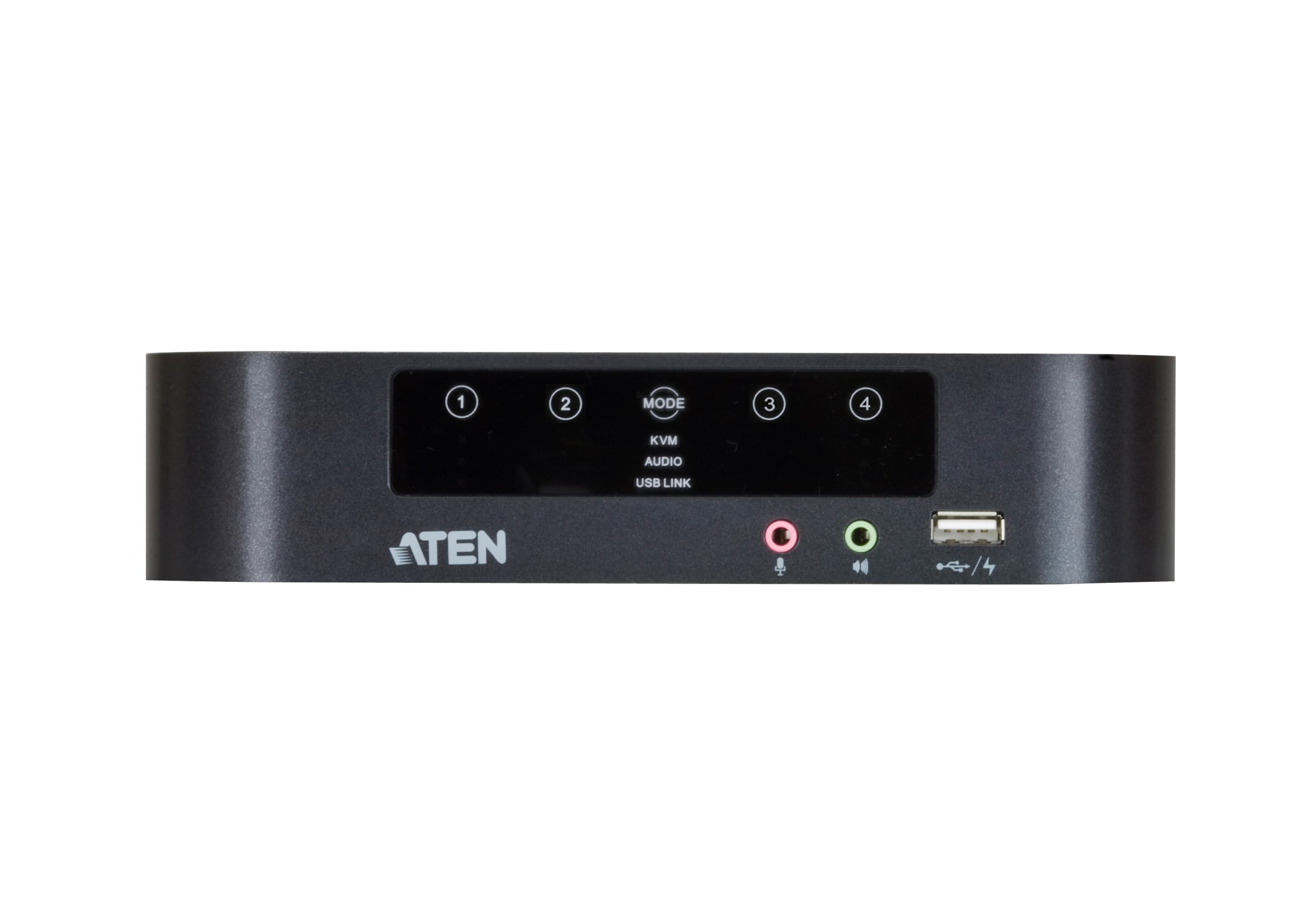

Computer selection via front touch panel /hotkeys/ mouse*
Independent switching for USB peripherals, audio, and KVM focus
Keyboard and Mouse support emulation and bypass
Power on Detection
Mac keyboard support and emulation**
Multilingual keyboard mapping – Supports English, Japanese, and French keyboards
Multiplatform support – Windows, Linux and Mac * Mouse port switching is only workable under mouse emulation mode. For 3-key USB wheel mouse only. **PC keyboard combinations emulate Mac keyboards. **Mac keyboards only work with their own computers.

Specifications

Computer Connections: 4
Port Selection: Touch Panel, Hotkey, Mouse

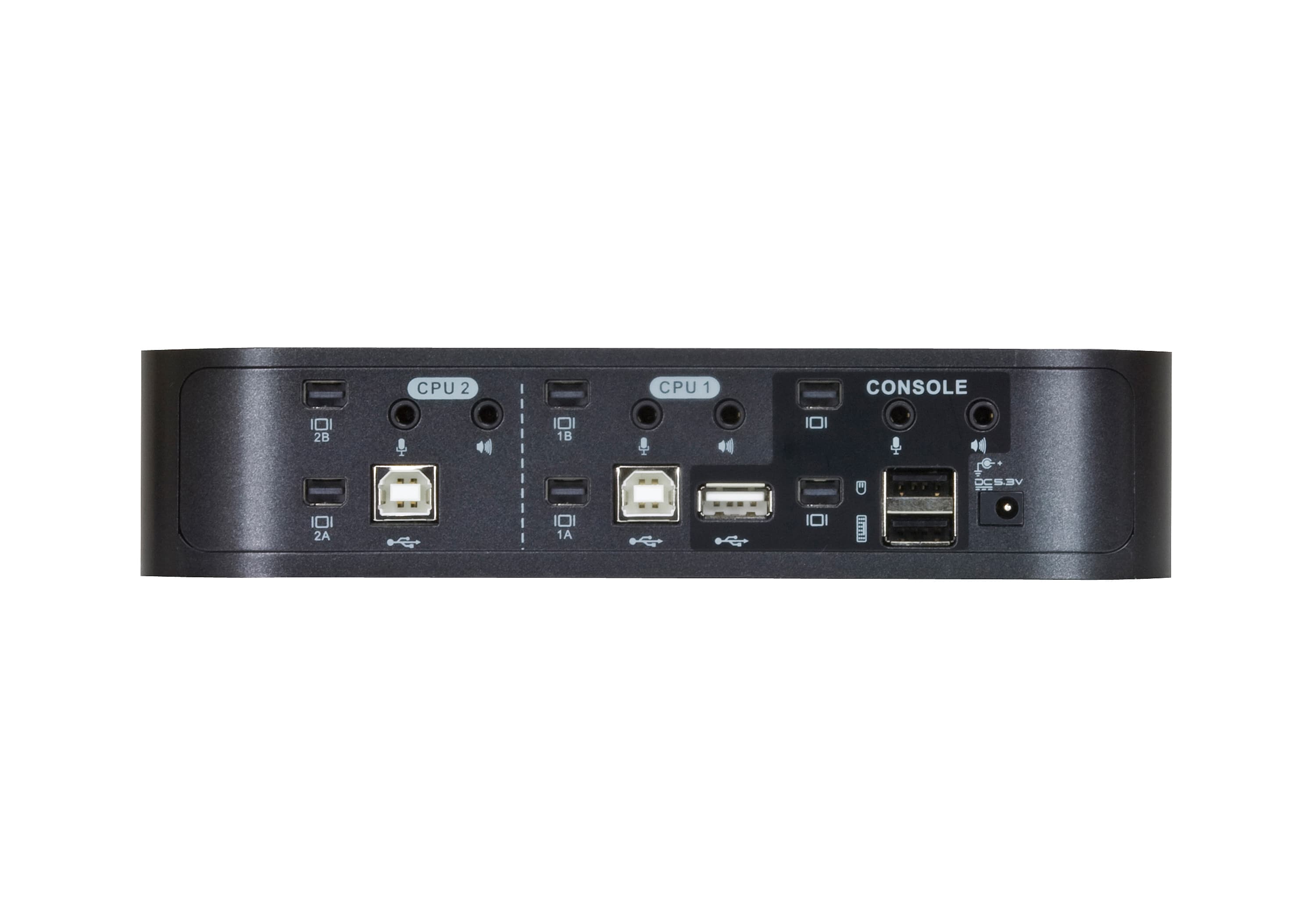

Connectors

Console Ports: 2 x USB Type A Female (Black, rear panel) 2 x Mini DisplayPort Female (Black) 2 x Mini TOSLINK Jack Female (Black) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports: 4 x USB Type B Female (White) 8 x Mini DisplayPort Female (Black) 4 x Mini TOSLINK Jack Female (Black)
USB Hub: 2 x USB Type A Female (White; 1 x Front panel, 1 x Rear panel)
Power: 1 x DC Jack

Switches

Selected: 4 x Point Touch Panel

LEDs

KVM: 4 (Orange)
Audio: 4 (Green)
USB: 4 (Green)

Emulation

Keyboard / Mouse: USB
Video: DP: 2560 x 1600 resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @ 120Hz
Scan Interval: 1 – 99 seconds (Default: 5 seconds)
Power Consumption: DC5.3V:3.9W:52BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 – 50°C
Storage Temperature: –20 – 60°C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.61 kg ( 1.34 lb )
Dimensions (L x W x H): 19.70 x 19.70 x 4.47 cm (7.76 x 7.76 x 1.76 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
