8-Port PS/2 VGA KVM Switch

Name: 8-Port PS/2 VGA KVM Switch
Brand: ATEN
SKU: CS128A

CS128ADiscontinued

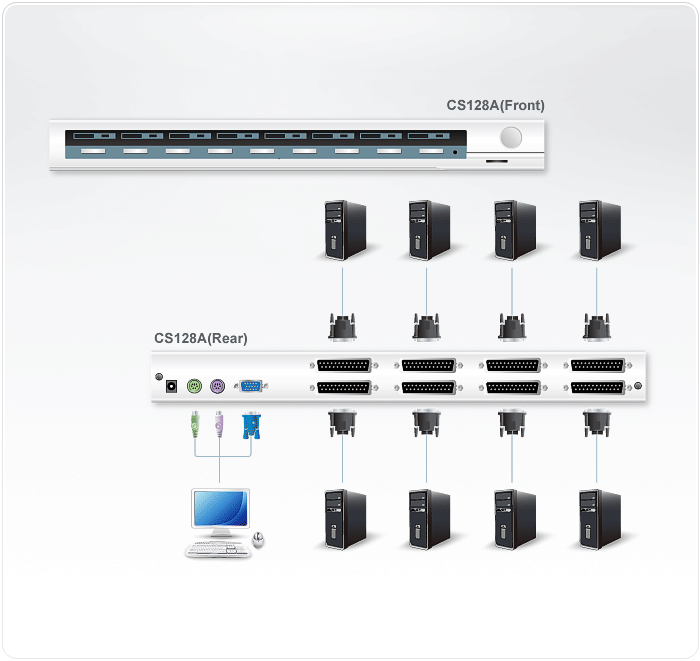

CS128A is a KVM Switch with 8 built-in ports. It can control 8 computers via the console. Moreover, it allows connections of up to 512 servers in 3 tiers by

Features

Microsoft Intellimouse, Logitech Firstmouse, MouseMan+…support PS/2 mice and MS mouse emulation.
Easy PC selection via hotkeys, front panel push buttons and footswitch.
Auto scan mode for monitoring PCs.
Cascadable to three levels.
One PS/2 style keyboard controls all PCs.
Multiplatform support: DOS, Windows 2003/2000//XP/98/ME/NT and Linux.
For more information about KVMs which can connect to CS128A, see Compatible KVM Table.

Computer Connections

Direct: 8
Maximum: 512
Port Selection: Pushbutton, Hotkey

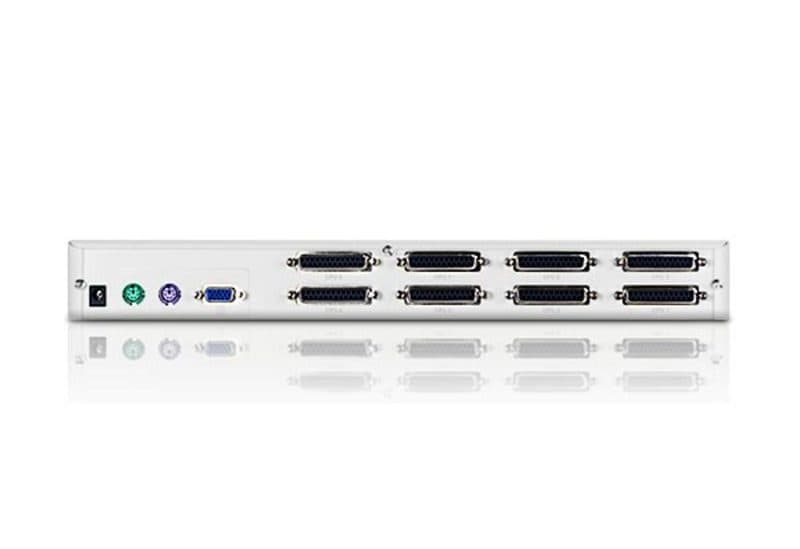

Connectors

Console Ports: 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
Computer: 8 x DB-25 Female (Black)

LEDs

Online: 8
Selected: 8

Emulation

Keyboard: PS/2; PC/AT
Mouse: PS/2; Serial
Video Resolution: 1920 x 1440 ( Max.); DDC2AB
Scan Interval: 3, 5, 10, 15, 20, 30, 40, 60 Seconds
Power Consumption: DC 9V,1.08W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Physical Properties

Housing: Plastic / Metal
Weight: 2.85 kg
Dimensions (L x W x H): 36.6 x 25 x 4.5 cm
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
