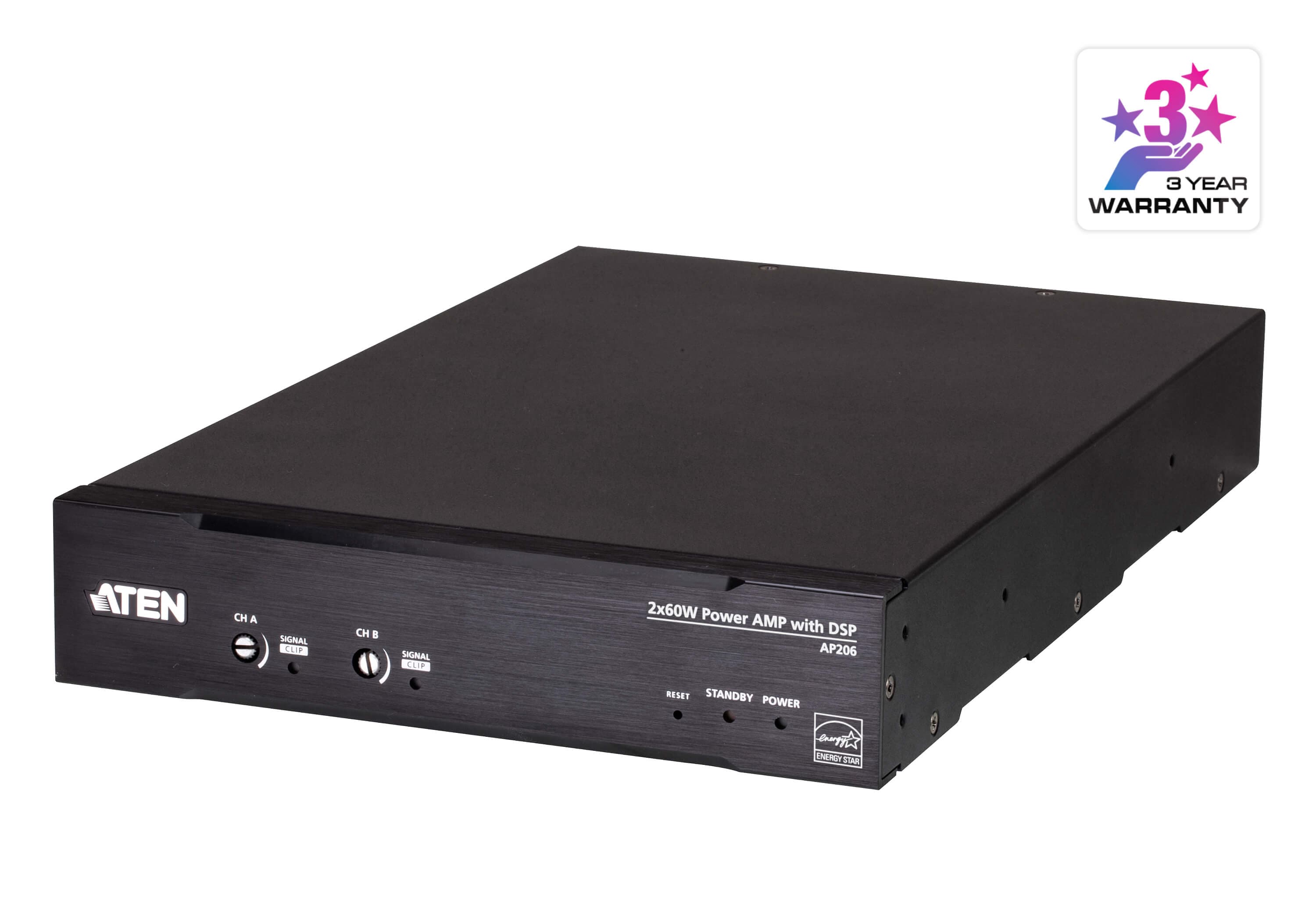

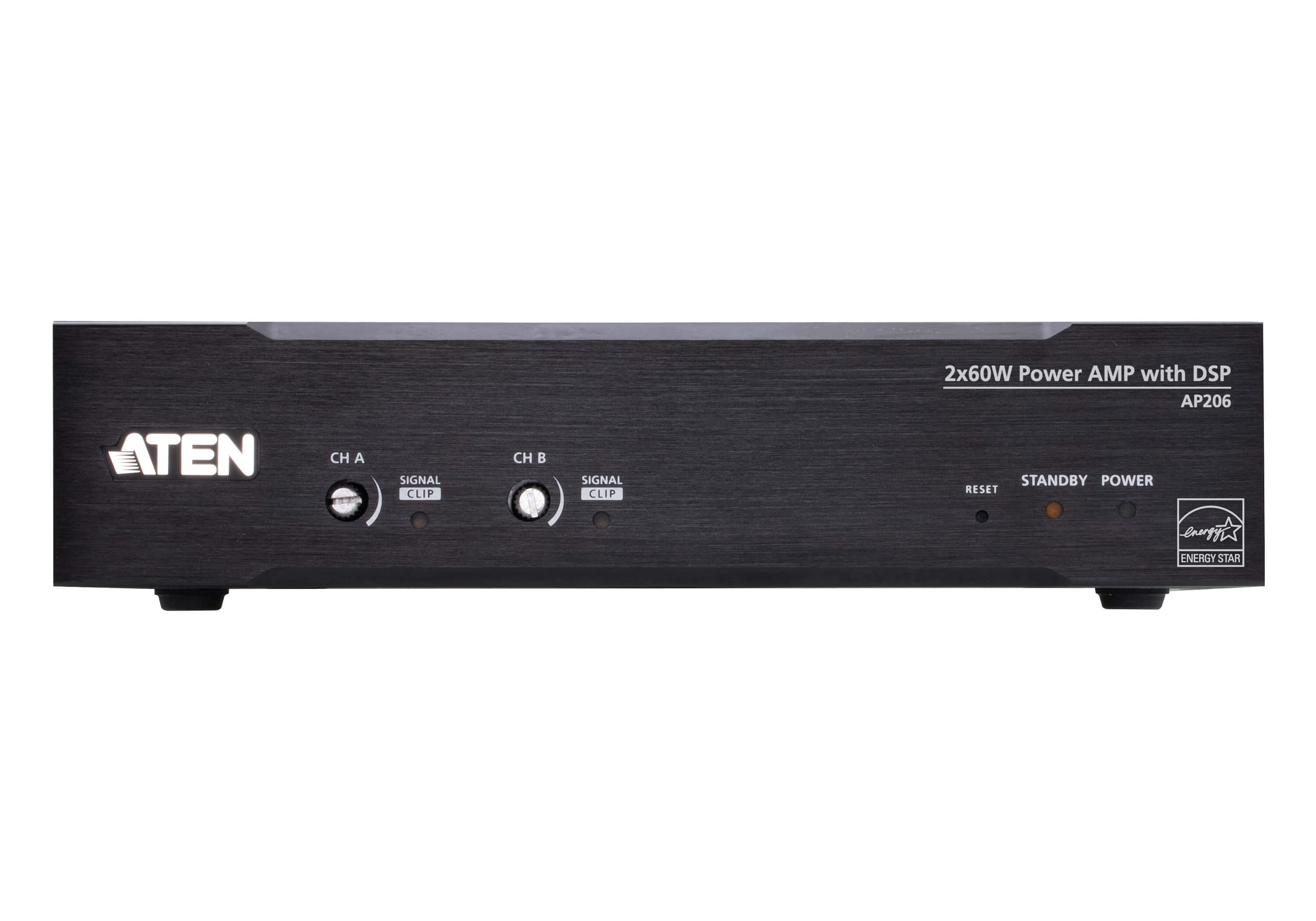

2 x 60W Power Amplifier with DSP

Name: 2 x 60W Power Amplifier with DSP
Brand: ATEN
SKU: AP206

AP206

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

Two-channel Class D amplifier delivering 60 W per channel into 4-ohm speakers, or 70 / 100 V lines in bridge mode, with WebGUI-configurable DSP: 5-band EQ, delay, limiter and 20 presets.

Features

A dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure
Supports balanced / unbalanced line level inputs and drives 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems
Built-in WebGUI-configurable DSP allows speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and system protection
Ground lift deployed to eliminate unwanted noises from power circuit.
Class-D design with ENERGY STAR qualification for high power efficiency
Customizable Auto Standby mode – Amplifier automatically switches to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes
Integrated protection circuit – Protects the system from damages caused by Amp shortcut, Amp output over/under voltage, high frequency overload, and overtemperature
Amplifier will be muted when the heat sink temperature exceeds the limit
Fanless design – Avoids fan noise and prevents dust from building up

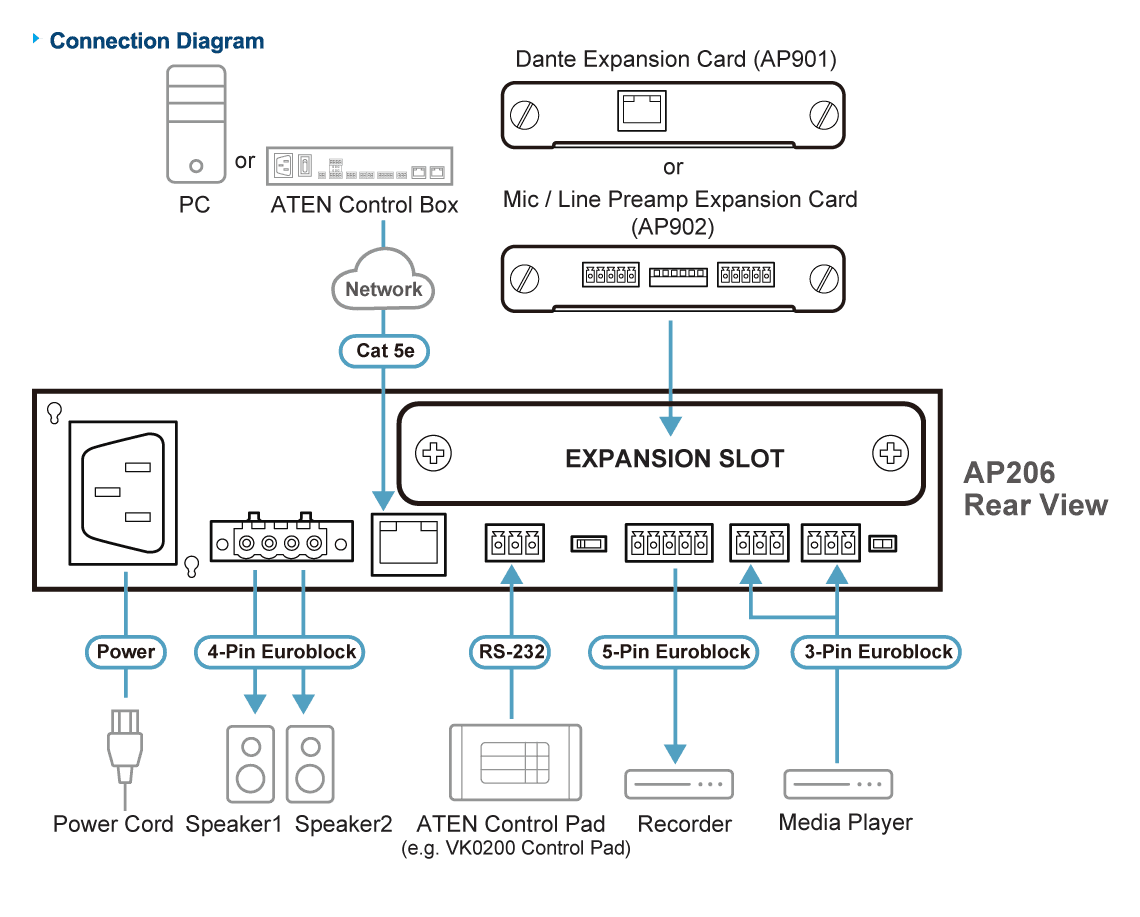

Expansion slot for add-on expansion card – Install AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals
Supports VK Control System via RS-232 and Ethernet connection
Supports rack or surface-mounting
Firmware upgradable

System Specification

Rated Power: 60Wrms / 120Wpeak per Channel @4Ω 120Wrms / 240Wpeak @70/100V Under Bridge Mode
Distortion: THD+N: <0.1%, 1kHz, 3dB before clipping
Frequency Response: 50~20kHz, +/-3dB @4Ω, 1W
Sensitivity: Balanced: +4dBu Unbalanced: -10dBV (0dBu=0.775Vrms, 0dBV=1Vrms)
Amplifier Type: Class D

Audio Inputs

Interfaces: 2 x 3-pin 3.5mm Euroblock (Bal/Unbal Line In)
Impedance: Balanced: 20kΩ / Unbalanced: 10kΩ
Detect Threshold: -50dBu

Audio Outputs

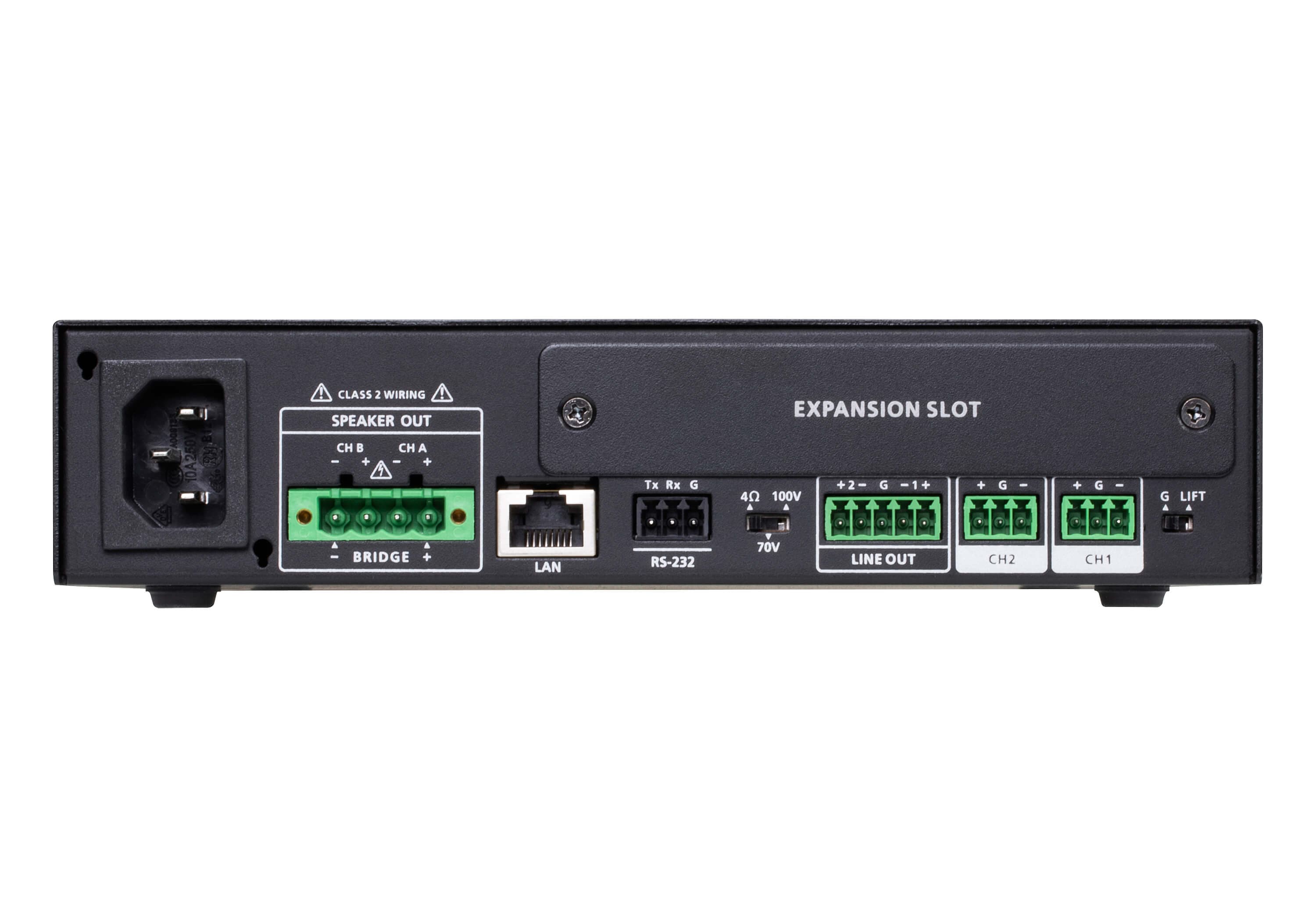

Interfaces: Line Output: 1 x 5-pin 3.5mm Euroblock Speaker Output: 1 x 4-pin 5.08mm Euroblock
Impedance: Lo-Z: 4Ω / Hi-Z: 70V (40Ω), 100V (80Ω) Line Output: 600Ω
Audio Effects: Built-In DSP
Protection: Output Shortcut AMP Output over/under voltage High Frequency Overload Thermal Protect

Communication

RS-232: Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Compliance

Certification: FCC, CE, UKCA

Power

Maximum Input Power Rating: 100-240V~, 50/60Hz, 2A with PFC
Power Consumption: AC110V:18.6W:87BTU AC220V:18W:84BTU
Note: 1/8 Max. Power Output

Environmental

Operating Temperature: 0~50℃
Humidity: 0-80% RH, Non-Condensing
Storage Temperature: -20~60℃

Physical Properties

Weight: 2.15 kg ( 4.74 lb )
Housing: Metal
Dimensions (L x W x H): 20.00 x 32.30 x 4.40 cm (7.87 x 12.72 x 1.73 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
