Сплитер, който подава един True 4K HDMI източник към два дисплея едновременно – до 4096x2160@60Hz (4:4:4) с HDR. Автоматично понижава резолюцията до 1080p за свързани 1080p екрани.
Характеристики

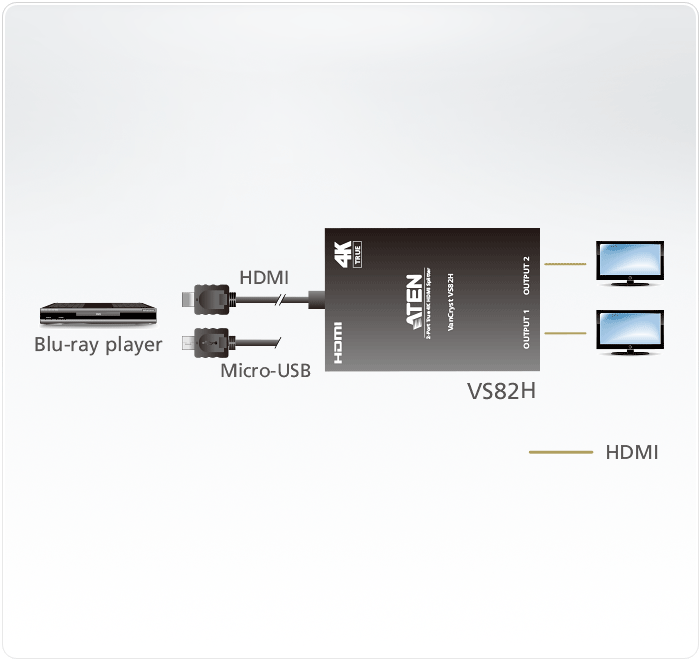

- Distributes one True 4K source to two HDMI displays at the same time
- Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
- Quality and durable aluminum metal enclosure
Спецификация
- EDID настройки
- PORT-1 & Default
Индикатори
- Състояние
- HDMI Output x 2 (Blue) Power Input x 1 (Blue)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 30cm at 4K@60Hz (4:4:4)
Видео изход
- Интерфейси

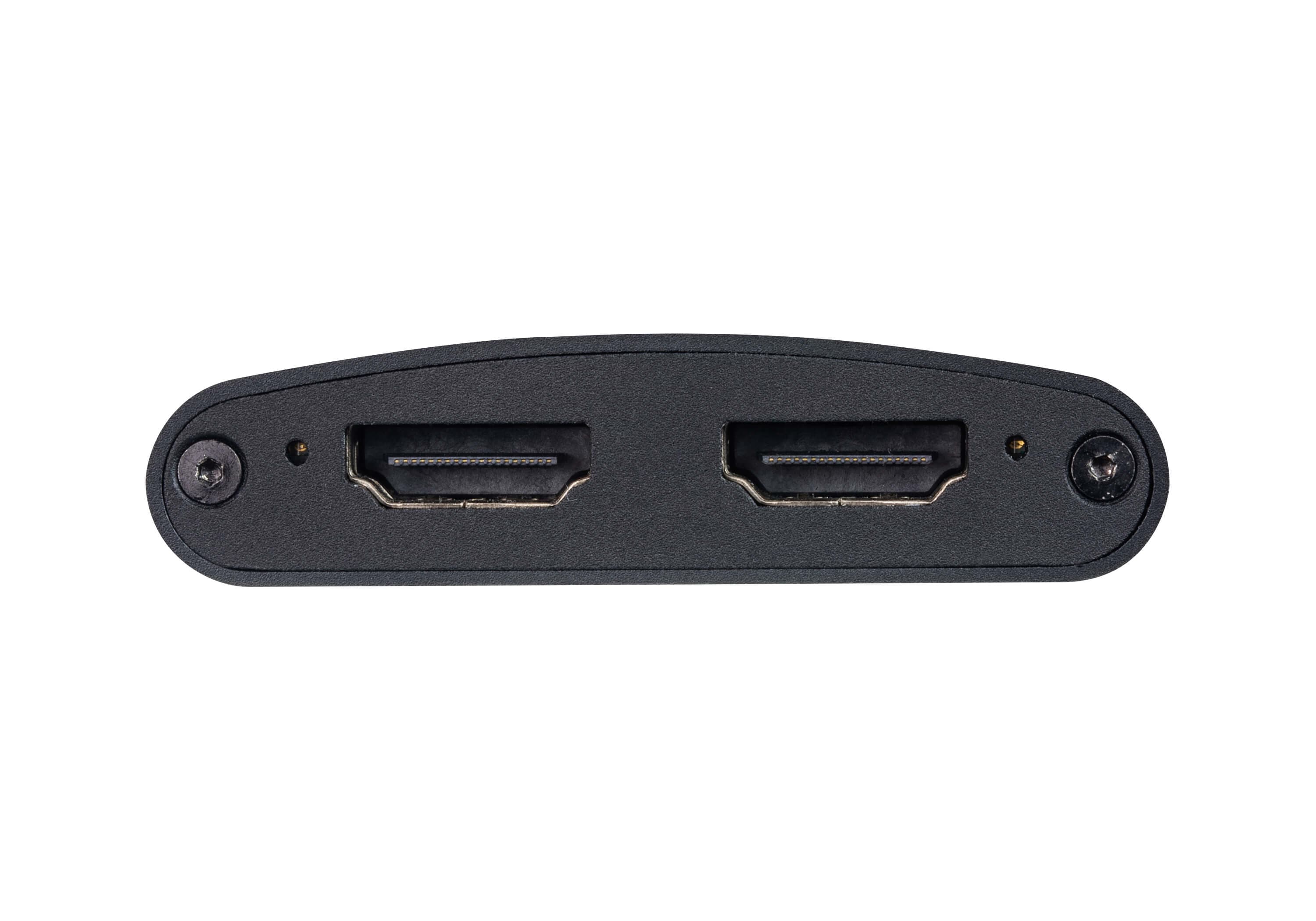

- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m at 4K@60Hz (4:4:4)
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Консумация
- DC 5V:1.35W:4.6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Конектори
- USB порт
- Micro-USB to USB cable (50cm) X 1 Firmware upgrade & power source
Работна среда
- Работна температура
- 0-40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal (aluminum)
- Тегло
- 0.09 kg ( 0.2 lb )
- Размери (Д x Ш x В)
- 8.80 x 6.00 x 1.50 cm (3.46 x 2.36 x 0.59 in.)
- Брой в кашон
- 40 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
