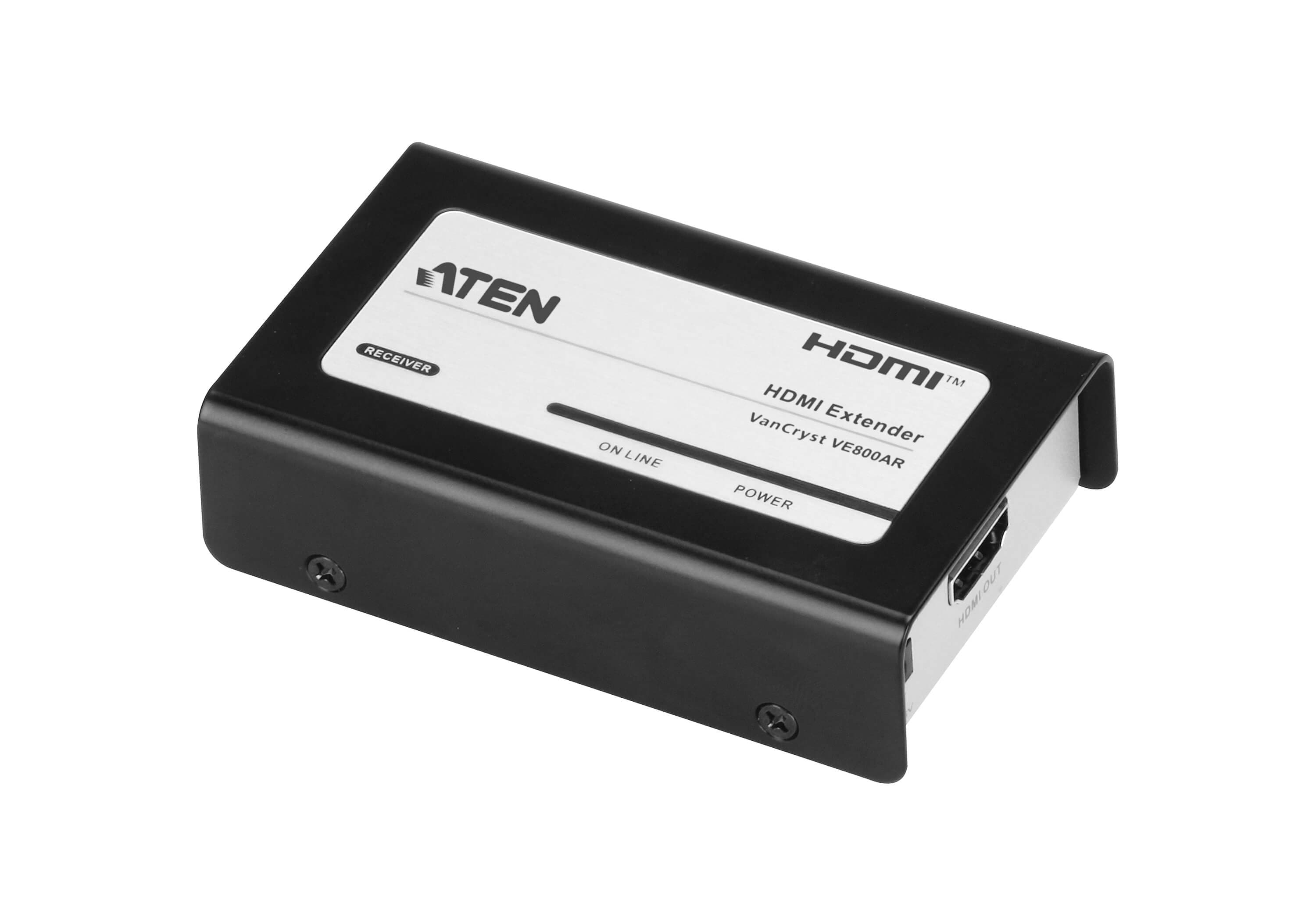

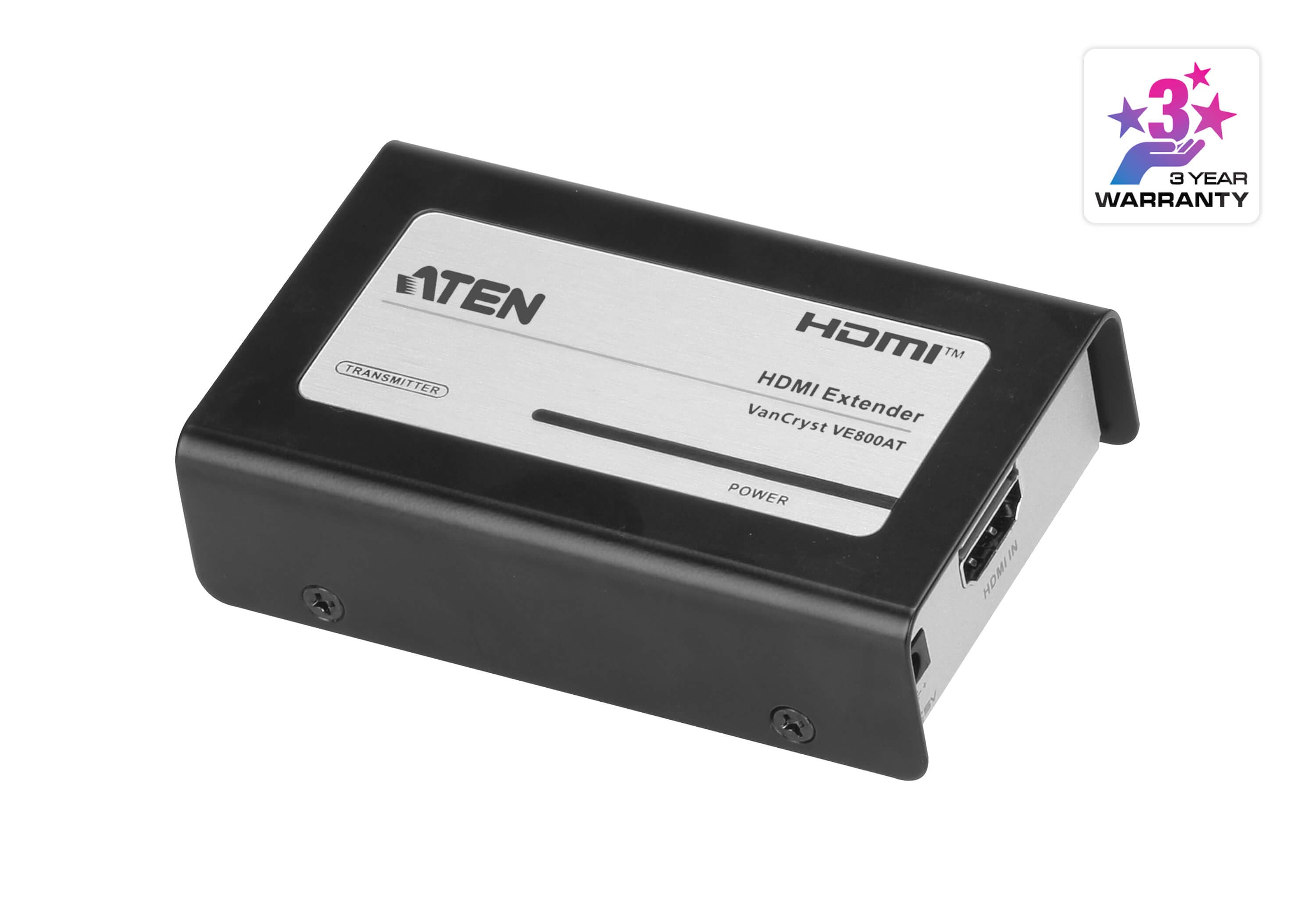

HDMI удължител по един Cat 5e кабел — пренася 1080p до 40 m и 1080i до 60 m между източника и дисплея.
Характеристики
- Extends the distance between HDMI source and HDMI display

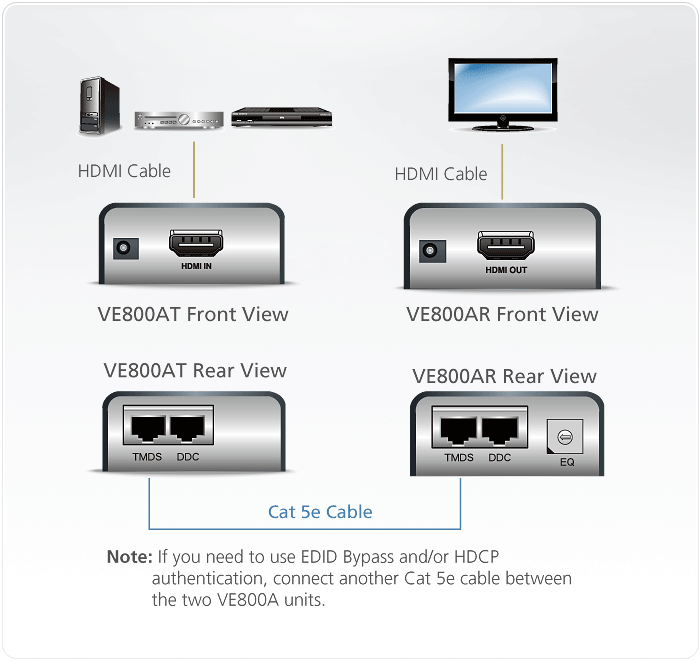

- Uses Cat 5e cable to connect the local and remote units
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio

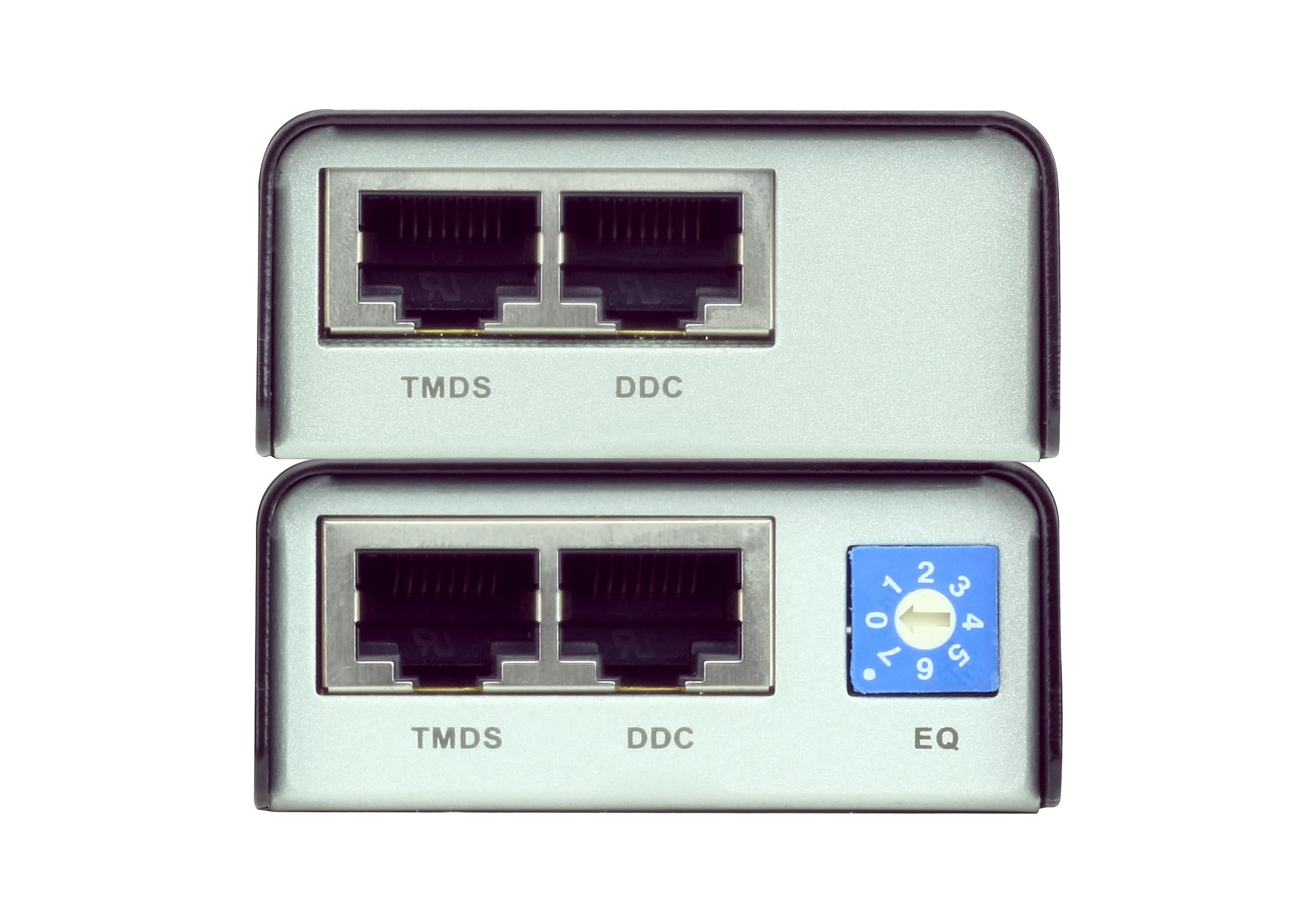

- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Видео изход

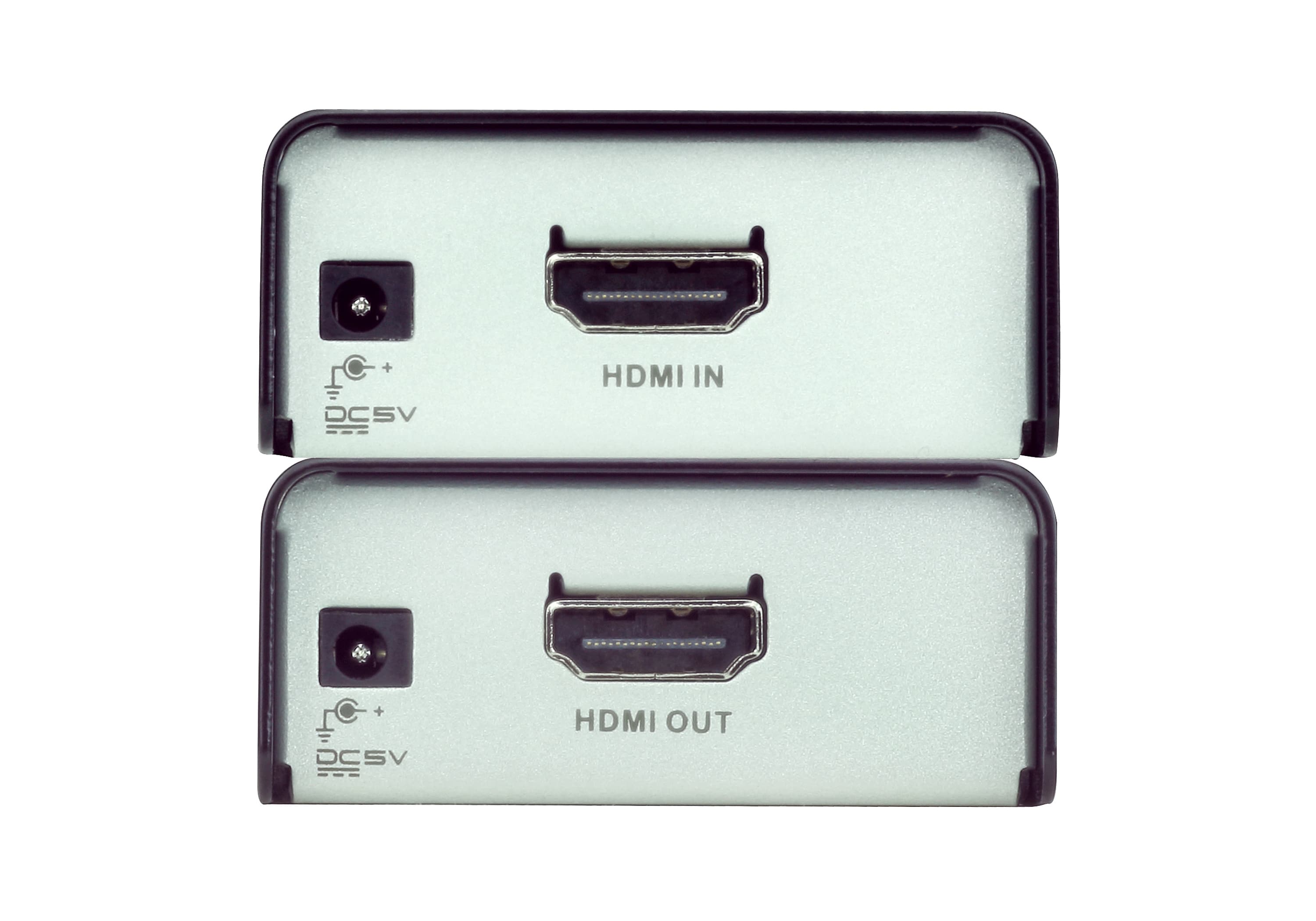

- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео вход
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
- Макс. резолюция / разстояние
- Up to 1080p@40m; 1080i@60m
Аудио
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- N/A
- Вход
- N/A
- Вход
- 1 x HDMI Type A Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:0.61W:3BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:0.9W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.16 kg ( 0.35 lb )
- Тегло
- 0.16 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.)
- Размери (Д x Ш x В)
- 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
