Комплект за безжични 4K презентации: превключвател и 2 USB-C донгъла VP200. Включен в лаптопа, донгълът излъчва образ и звук и се захранва през USB-C; един превключвател сдвоява до 8 донгъла.
Характеристики

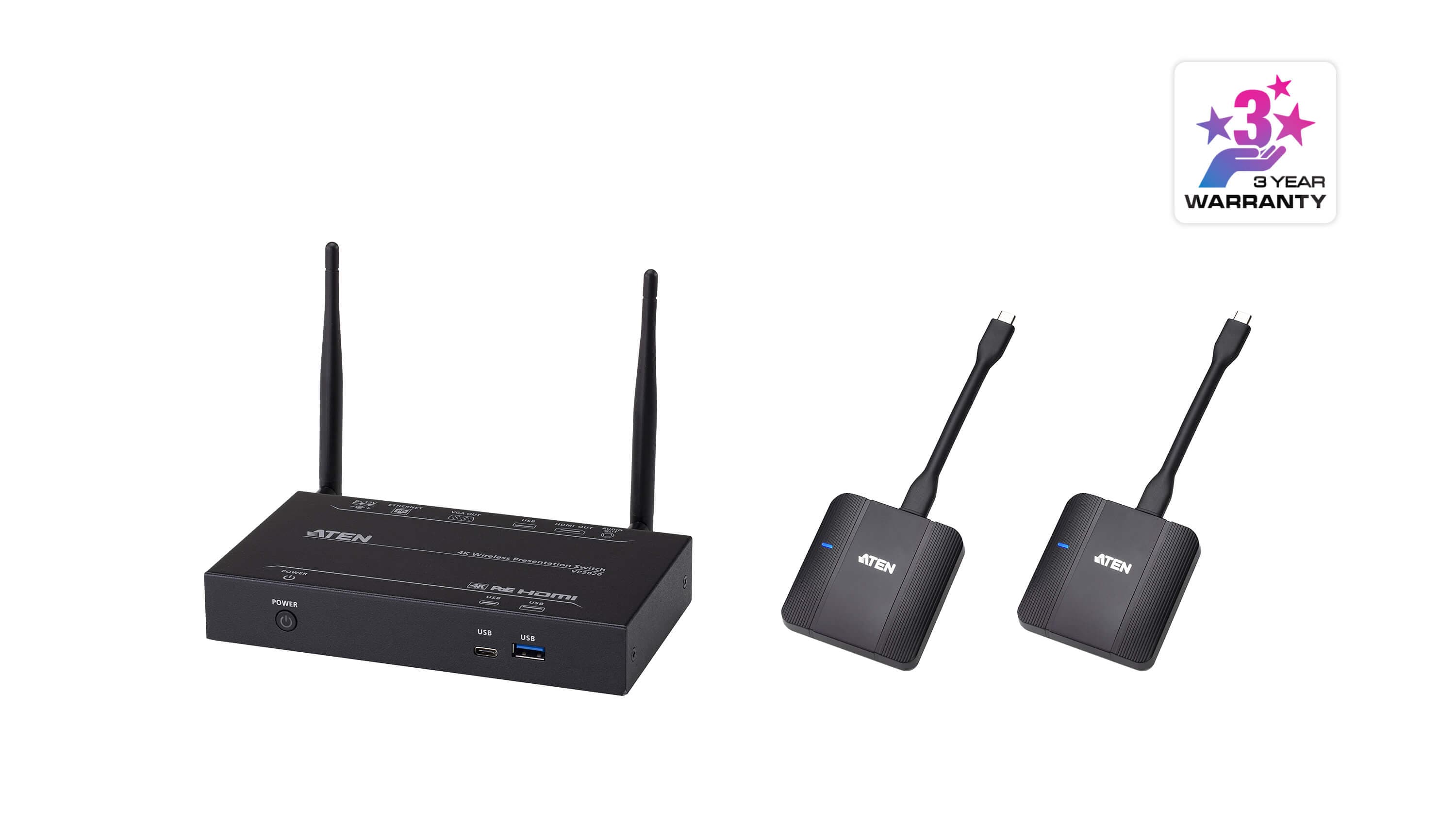

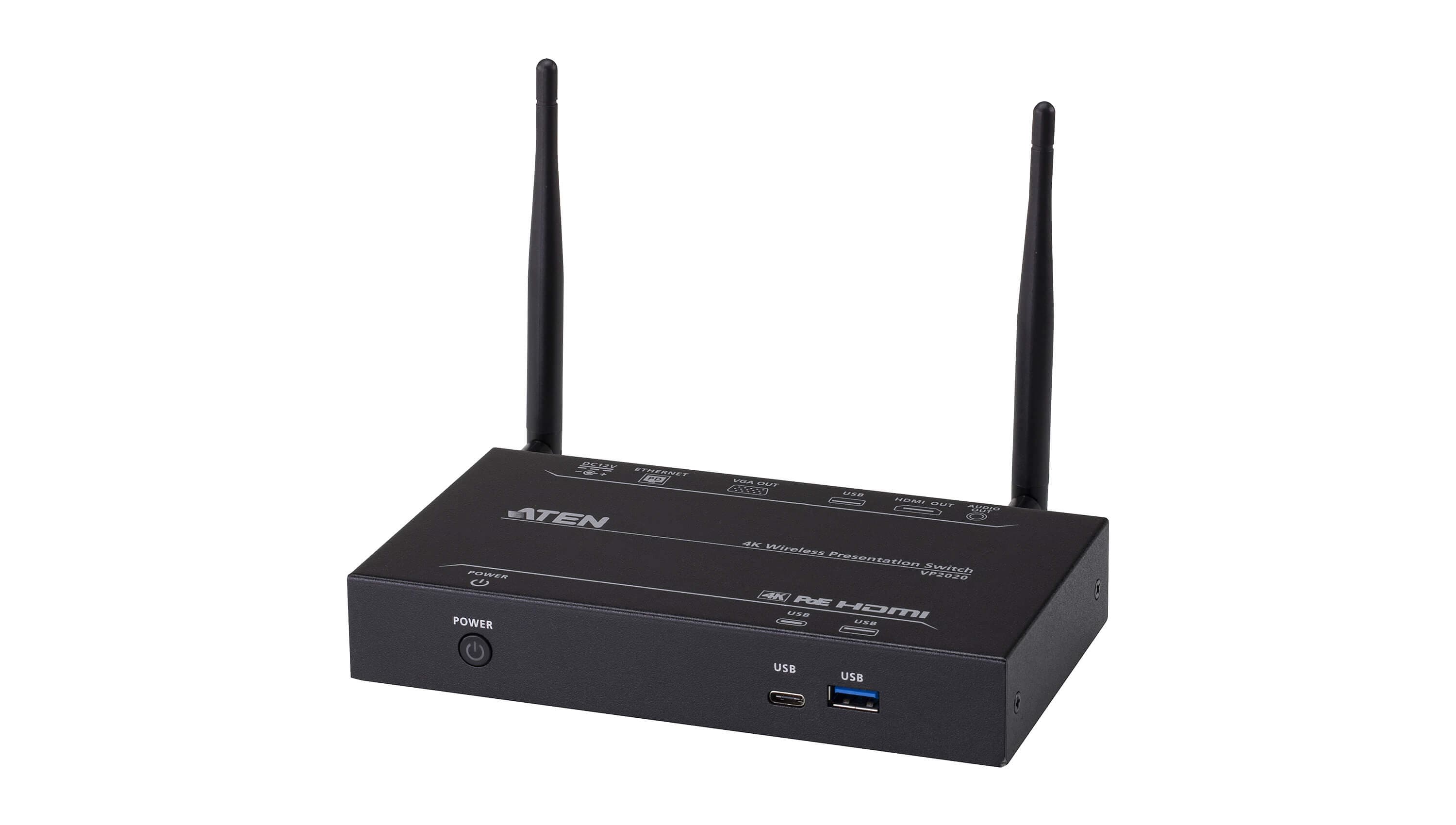

- Each kit includes 1 × VP2020 wireless presentation switch and 2 × VP200 USB-C wireless dongles

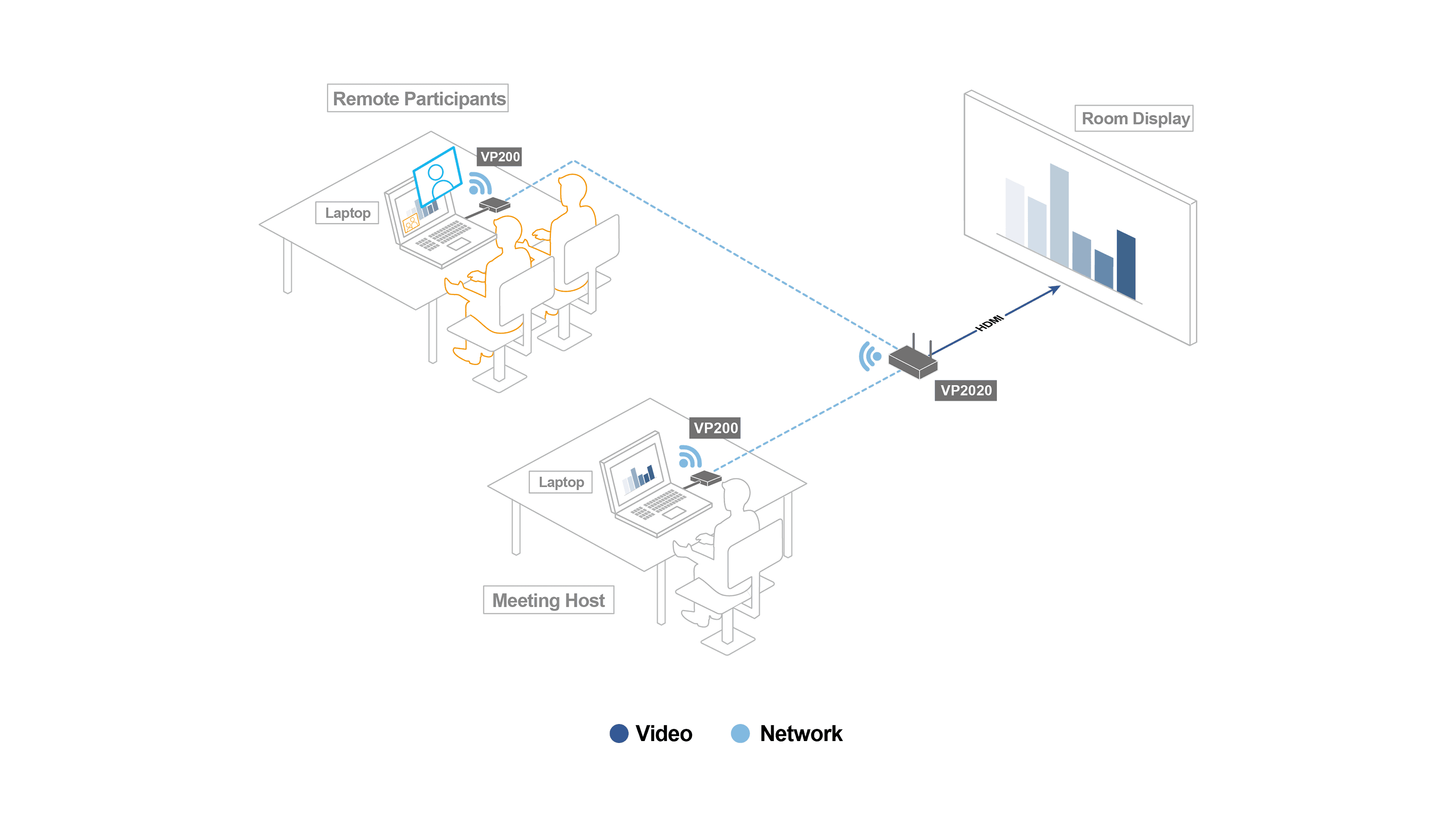

- 1 × VP2020 can pair with up to 8 × VP200 – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices Note: 2 × VP200s are included in this kit. The additional 6 × VP200s must be purchased separately.

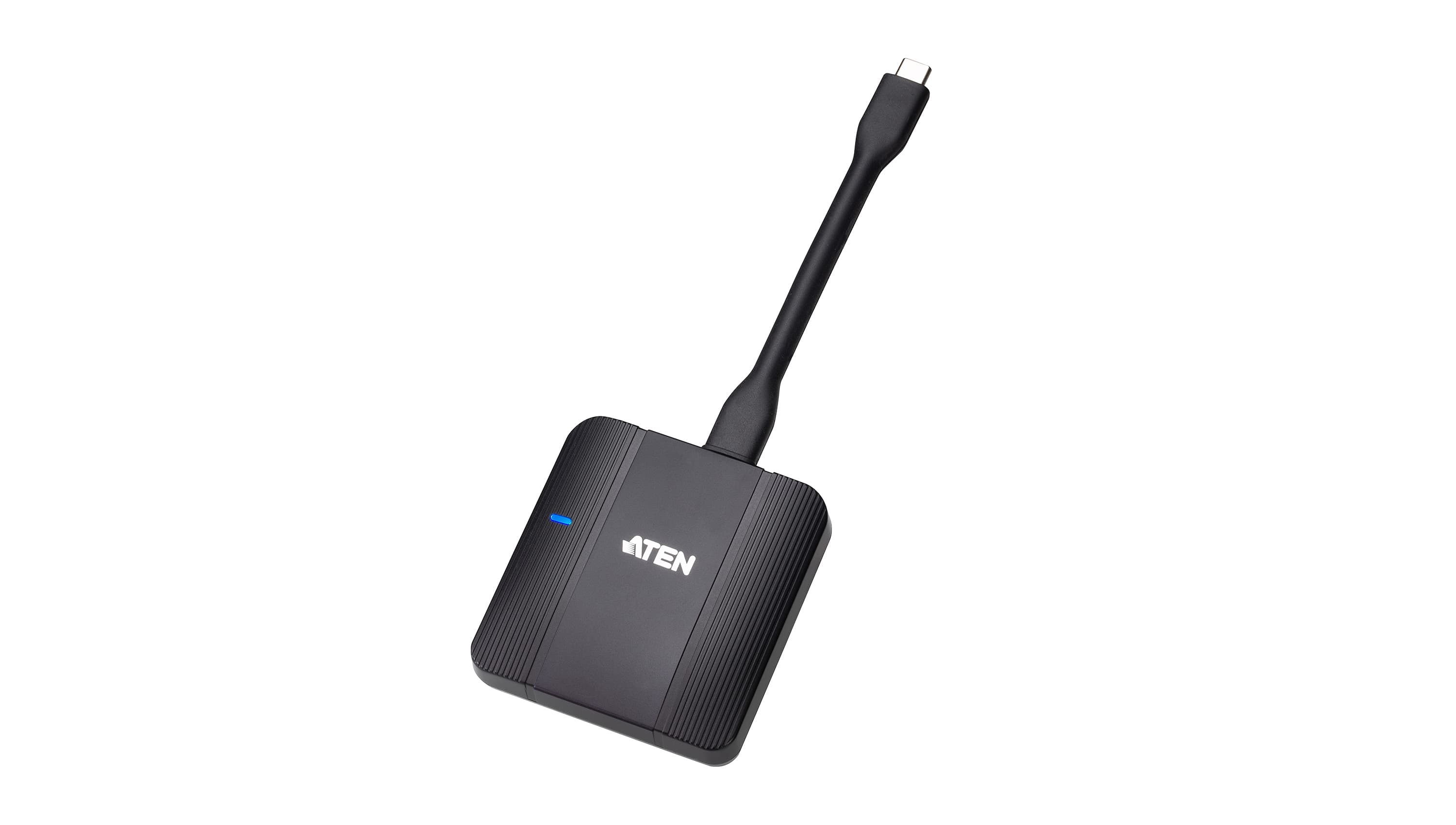

- Wireless A/V content casting and power supply via VP200's USB-C connector plugged into laptops / mobile devices
- USB touchback – ensures seamless presentation flow directly from the in-room eWhiteboard or content interaction from users' USB devices
- BYOD (Bring Your Own Device) – allows attendees to use their personal devices to share content
- Supports in-room AV equipment ranging from cameras, microphones to speakers
- Multi-view – up to 2 sources can be shared wirelessly in full screen / side-by-side layout
- Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
- Multiple collaboration tools – annotation, whiteboard on screen, and screen capture
- Simultaneously outputs content at up to 4K to an HDMI display and a VGA display
- HDMI audio de-embedding – easy integration with audio amplifiers or mixing systems
- Power over Ethernet (PoE) – eliminates the need for an additional power adapter
- Supports up to 8 attendees to join the meeting via LAN in the same network environment
- OS-independent – works on Windows / macOS / Linux
- Plug-and-play with no need to install software / drivers
Видео вход
- Интерфейси
- 1 x USB-C
- Интерфейси
- N/A
- Макс. разстояние
- 12cm cable length and is fixed to the unit
- Макс. разстояние
- N/A
Видео изход
- Интерфейси
- N/A
- Интерфейси

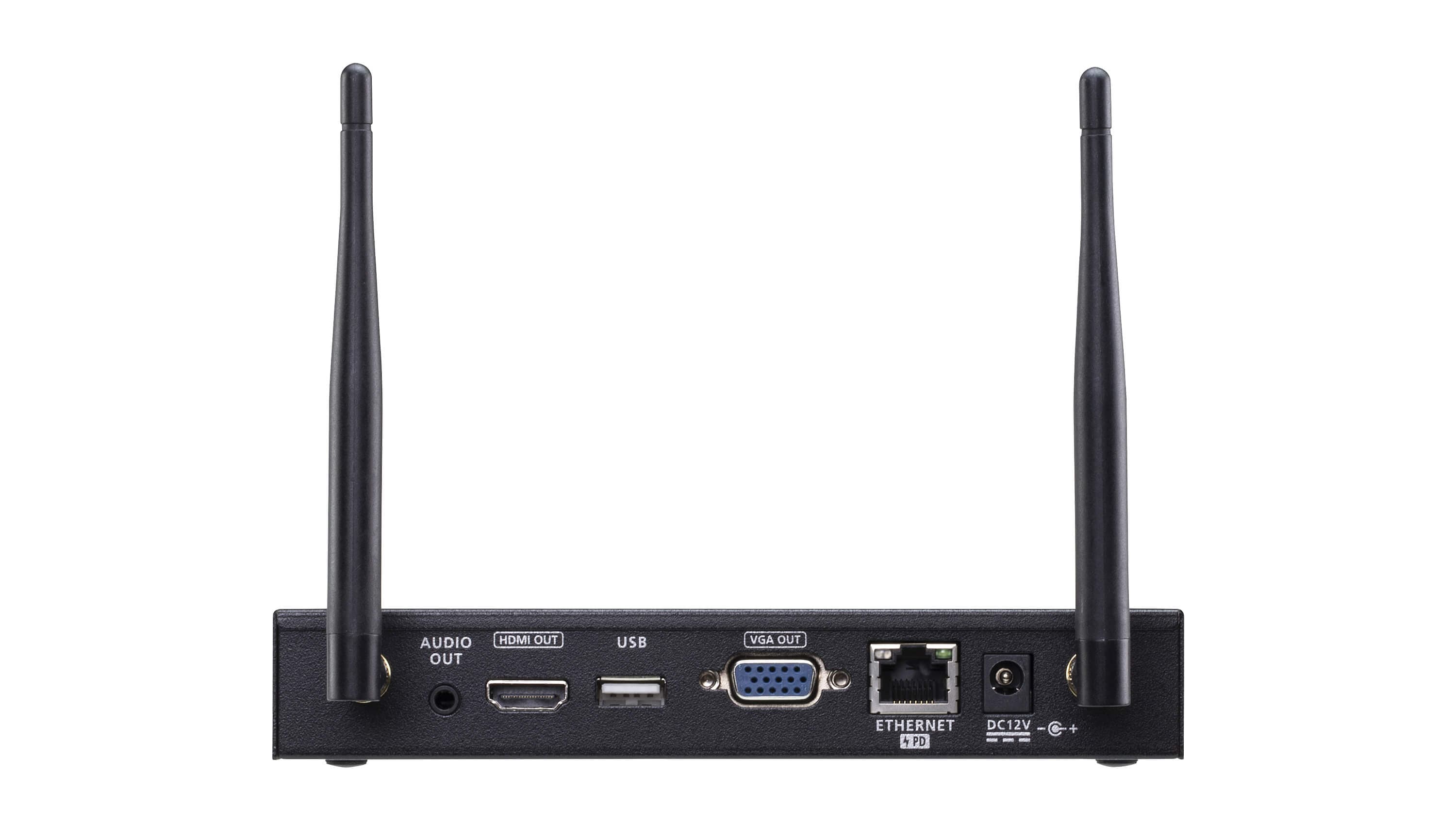

- 1 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female
- Макс. разстояние
- N/A
- Макс. разстояние
- HDMI: Up to 5 m VGA: Up to 15 m
Видео
- Макс. скорост на данните
- Average ~ 12 Mbps
- Макс. скорост на данните
- Average ~ 12 Mbps
- Макс. резолюция
- Up to 1080p @ 60 Hz
- Макс. резолюция
- HDMI: Up to 4K @ 30 Hz VGA: Up to 1080p
Аудио
- Вход
- 1 x USB-C
- Вход
- N/A
- Изход
- N/A
- Изход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Black)
Безжична връзка
- Протокол за удостоверяване
- WPA2-PSK using the ATEN PresentOn solution in network integration mode
- Протокол за удостоверяване
- AP mode: WPA2-PSK Station mode: WEP, WPA, WPA2, 802.1x EAP
- Протокол за безжичен пренос
- IEEE 802.11 a/g/n/ac
- Протокол за безжичен пренос
- IEEE 802.11 ac
- Честотен обхват
- Switchable dual band 2.4 GHz and 5 GHz (DFS channels not supported)
- Честотен обхват
- Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
- Обхват
- Up to 10 m* (Line of Sight)
- Обхват
- Up to 20 m* (Line of Sight)
Конектори
- Захранване
- 1 x USB-C male
- Захранване
- 1 x DC Jack (Black)
- Конзолни портове
- 1 x USB-C male
- Конзолни портове

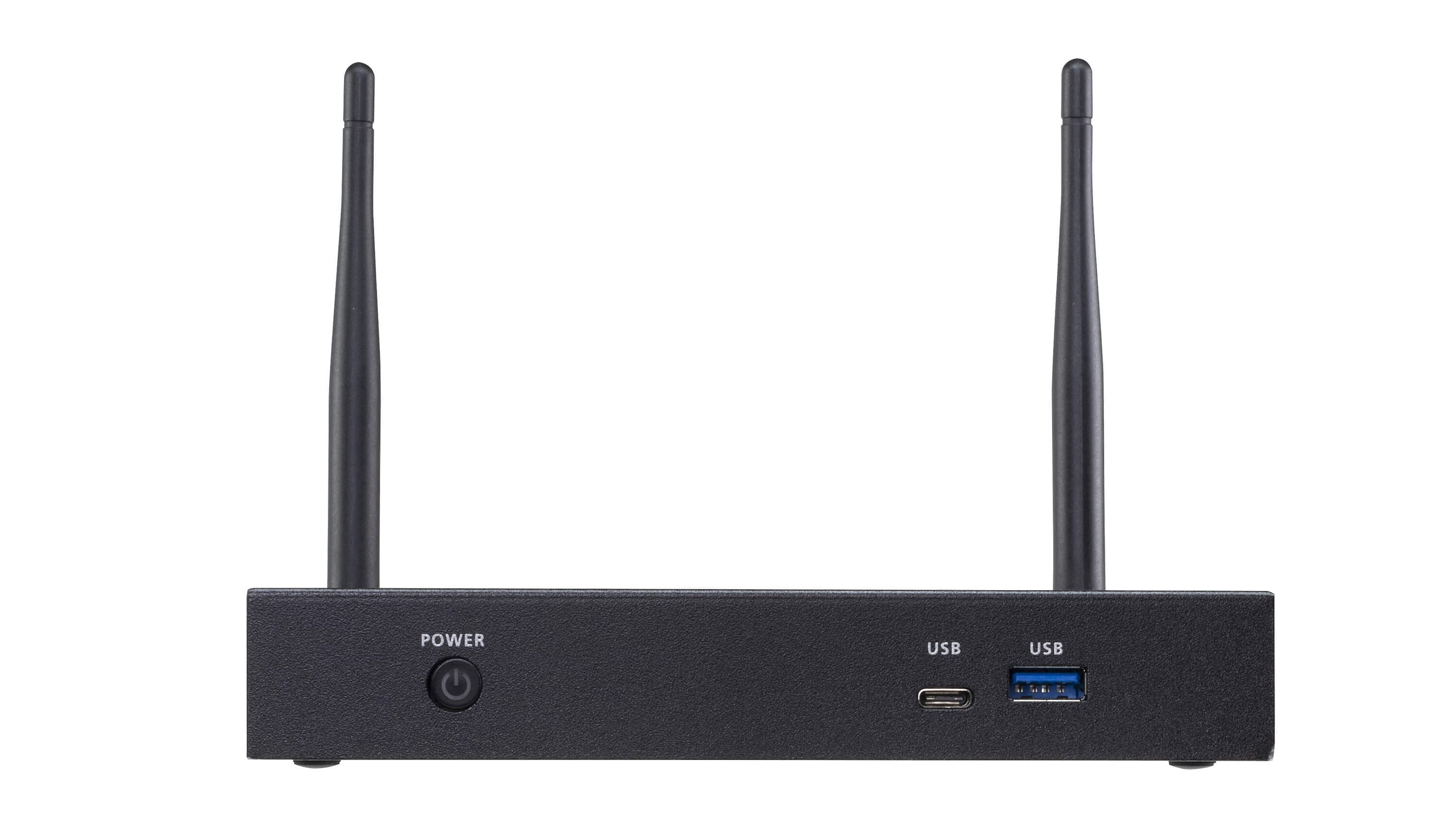

- USB 3.0: 1 x USB Type-A Female (Blue) USB 2.0: 1 x USB Type-A Female USB-C: 1 x USB-C Female
- RJ-45 10/100/1000 портове
- N/A
- RJ-45 10/100/1000 портове
- 1 x RJ-45 Ethernet port (Support POE)
Бутони и превключватели
- Захранване
- N/A
- Захранване
- 1 x Pushbutton (LED: Blue)
- Консумация
- DC5V:1.37W
- Консумация
- DC12V:12W
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -10 - 70°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 20 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Корпус
- Metal
- Тегло
- 0.09 kg ( 0.2 lb )
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В)
- 6.70 x 6.90 x 1.50 cm (2.64 x 2.72 x 0.59 in.)
- Размери (Д x Ш x В)
- 17.00 x 10.40 x 2.83 cm (6.69 x 4.09 x 1.11 in.)
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
