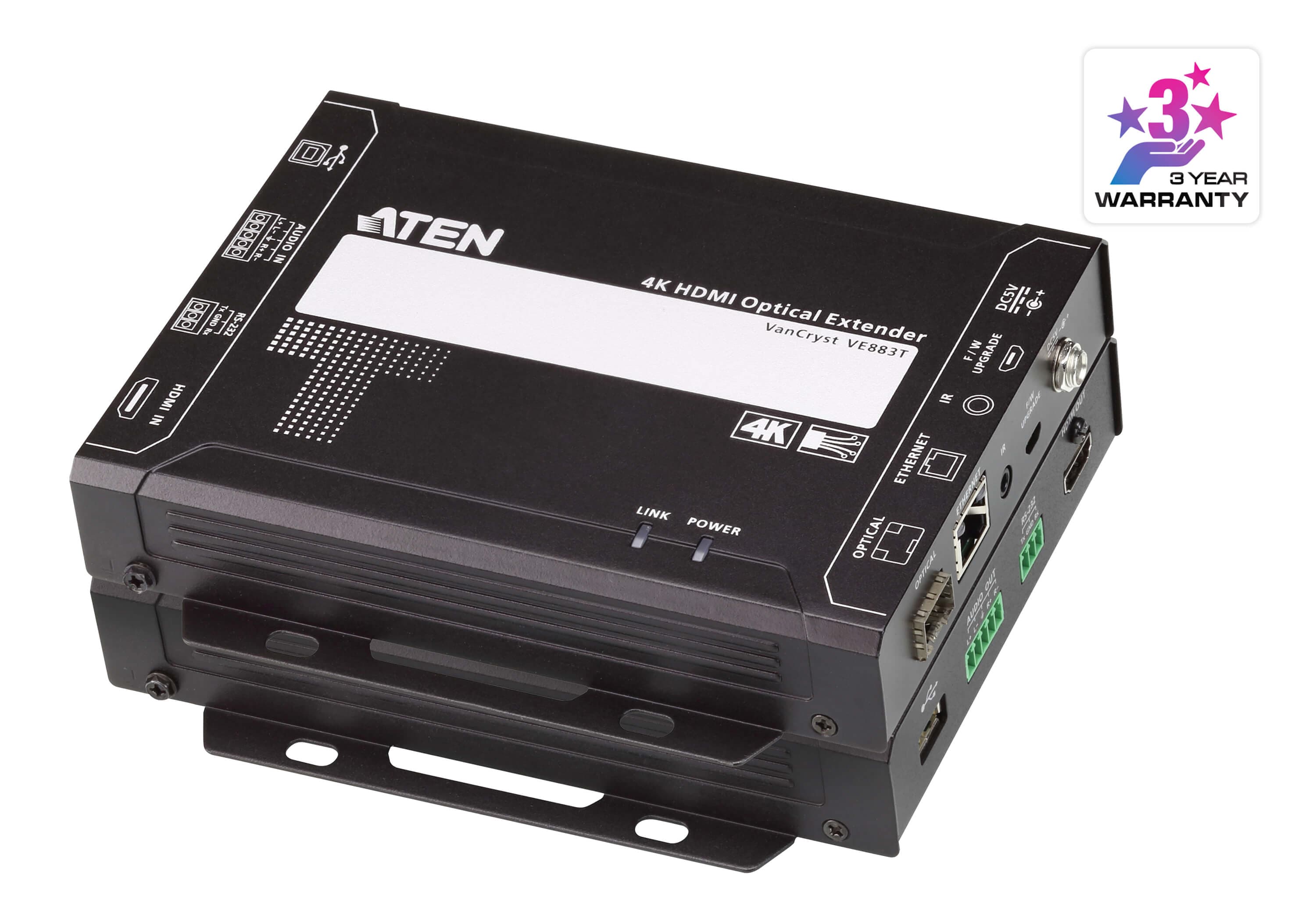

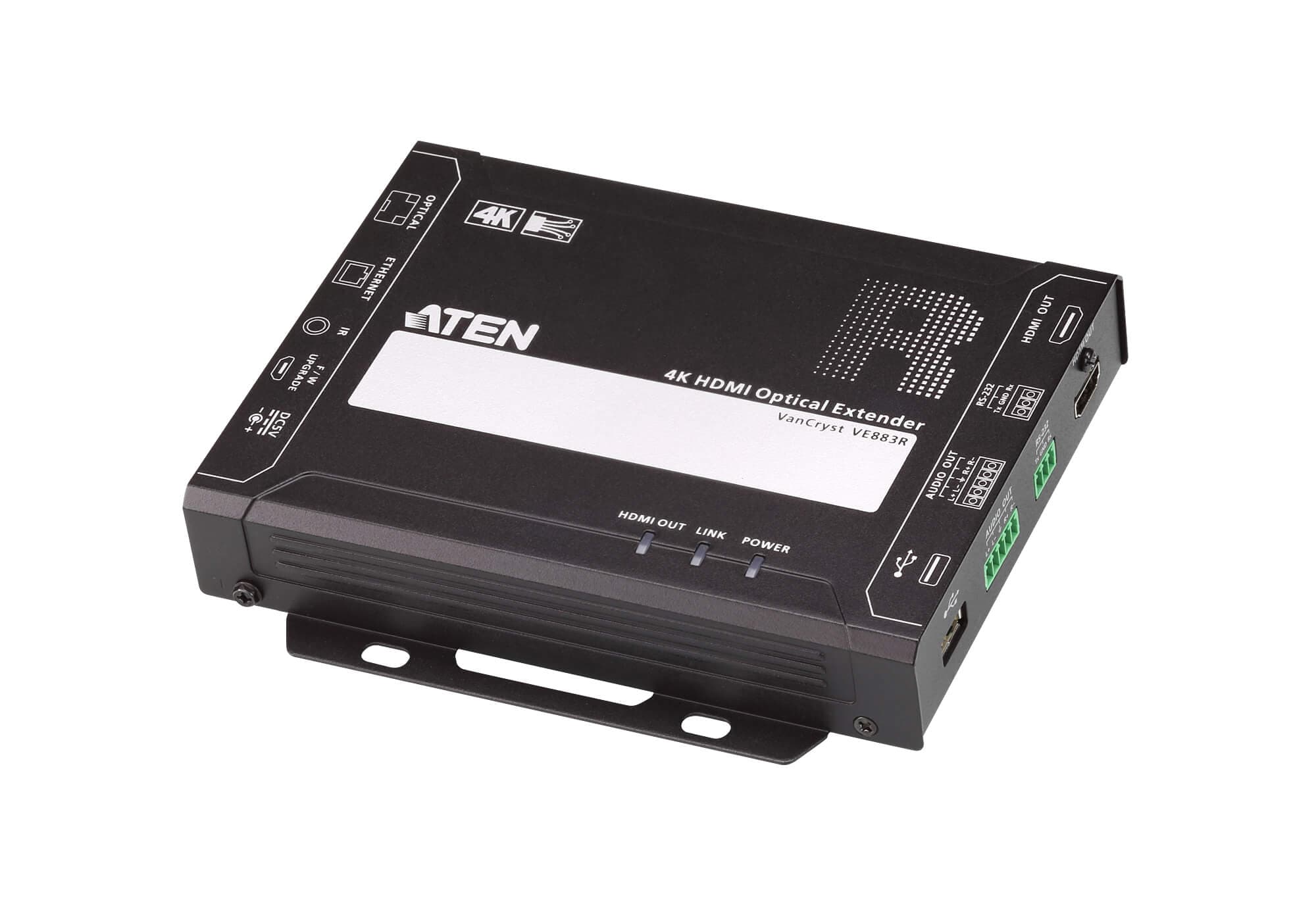

4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))

Name: 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))
Brand: ATEN
SKU: VE883

VE883Снет от производство

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Оптичен удължител, който пренася HDMI видео, стерео аудио, IR, RS-232 и Ethernet по дуплексен оптичен кабел при 4K — до 300 m по многомодово или 10 km по едномодово влакно.

Характеристики

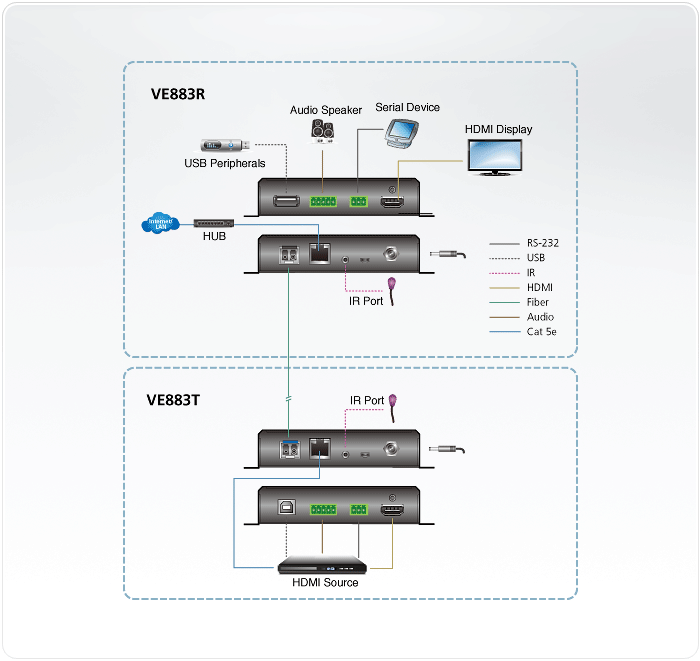

Extends HDMI video, stereo audio, IR, RS-232 control, and Ethernet signals over duplex fiber optic cabling
Applies duplex fiber optic cables to connect the transmitter and the receiver
Supports ultra long distance transmission up to 10 km*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Supports lossless 4K video up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
FarSmooth – ATEN’s exclusive FarSmooth technology prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.
Supports Gigabit Ethernet Channel
Supports USB 2.0, with a maximal transfer rate of 25MByte/s
Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
Supports batch upgrades using Firmware Upgrade Utility
Built-in 8 kV / 15 kV ESD protection
Plug-and-play
Hot-pluggable
Rack-mountable Note: • The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks. • For long distance transmissions, ATEN recommends using SFP+ modules to allow compatibility with single or multi mode fibers. Depending on the chosen package (VE883K1 or VE883K2), different SFP+ modules are supplied: • VE883K1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver • VE883K2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver • ATEN recommends using Single Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and Multi Mode fibers that conform to IEC 11801 (OM3, OM4) specifications. • The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Видео вход

Интерфейси: N/A

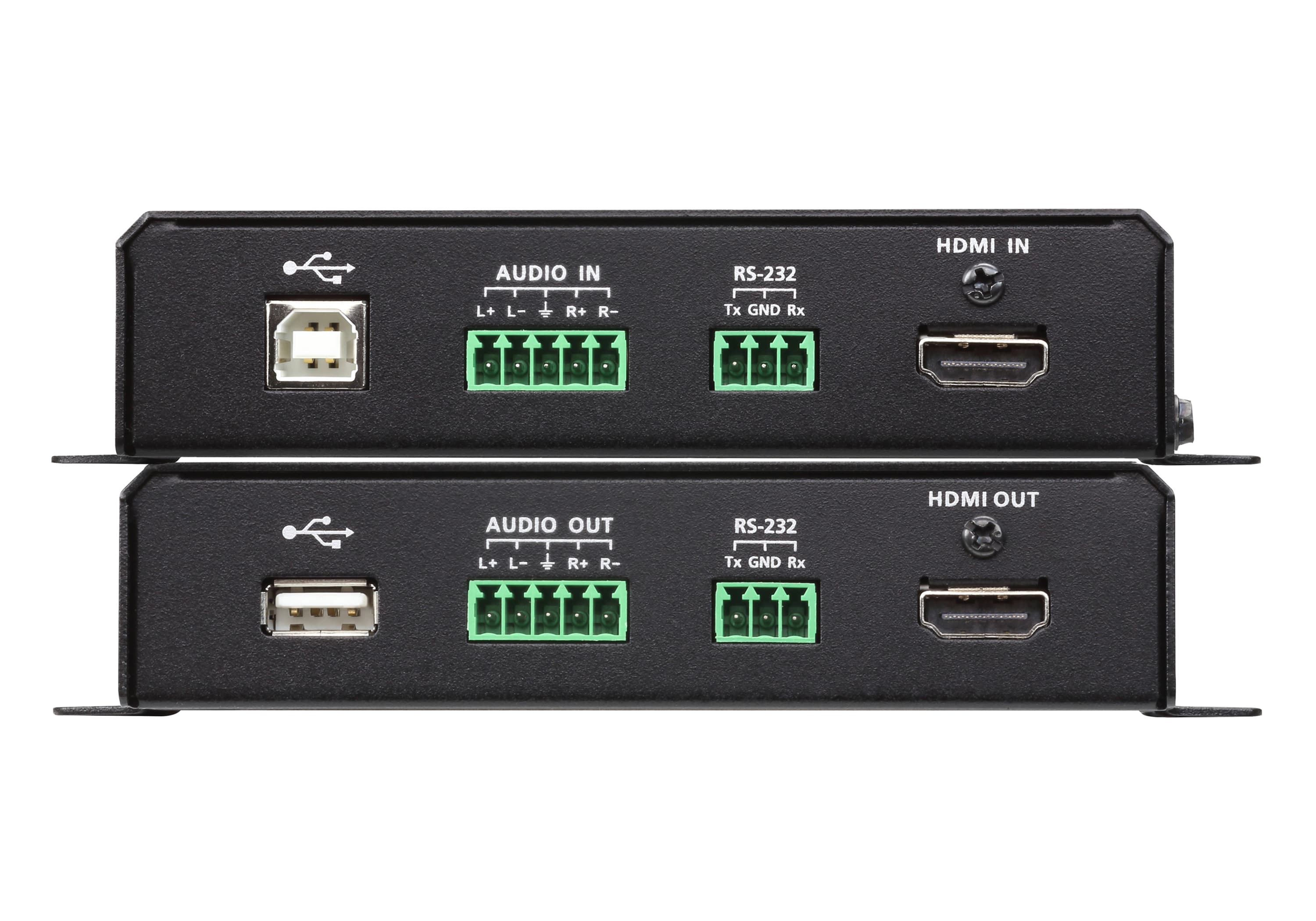

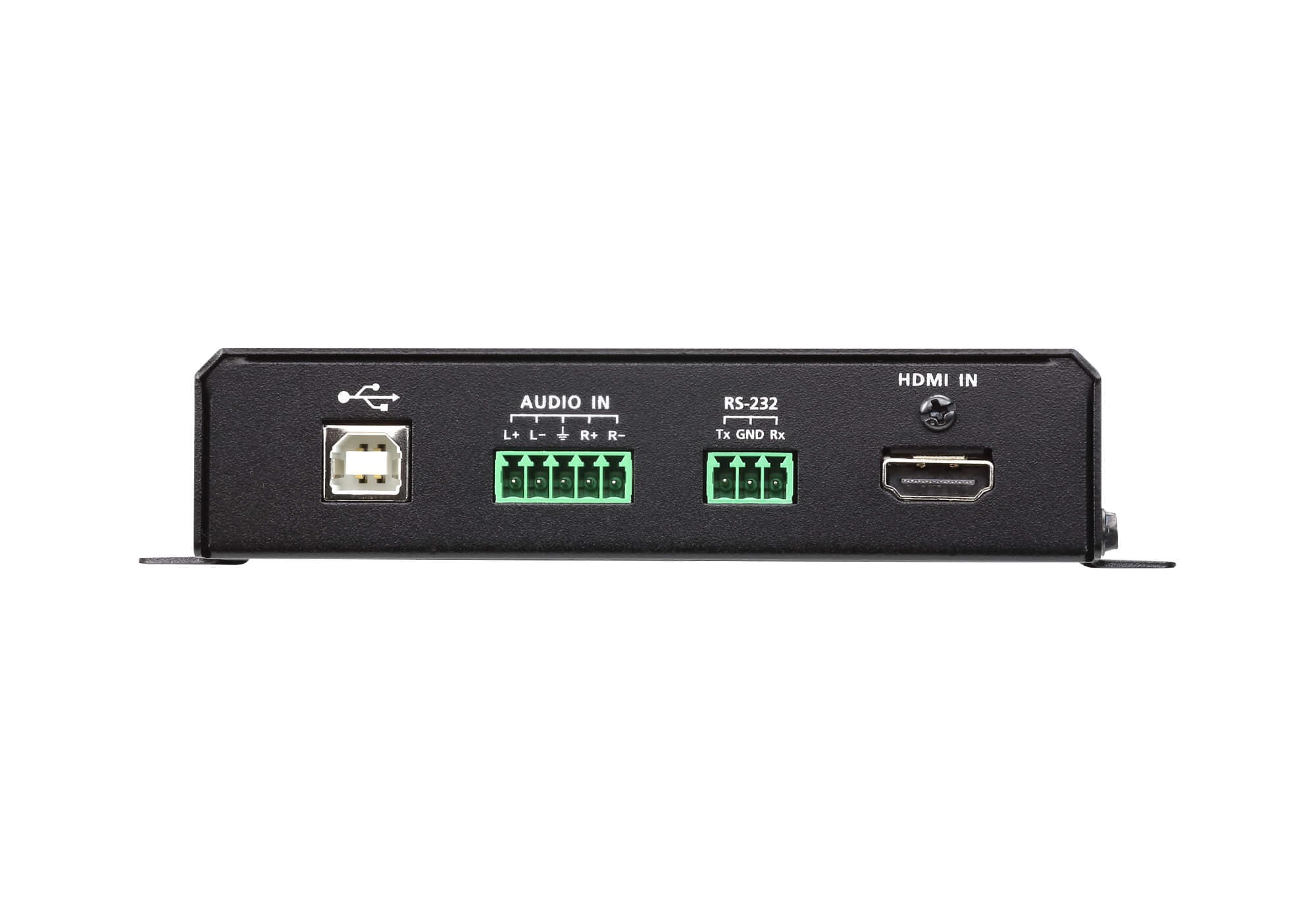

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: N/A
Импеданс: 100 Ω
Макс. разстояние: N/A
Макс. разстояние: Up to 5 m

Видео изход

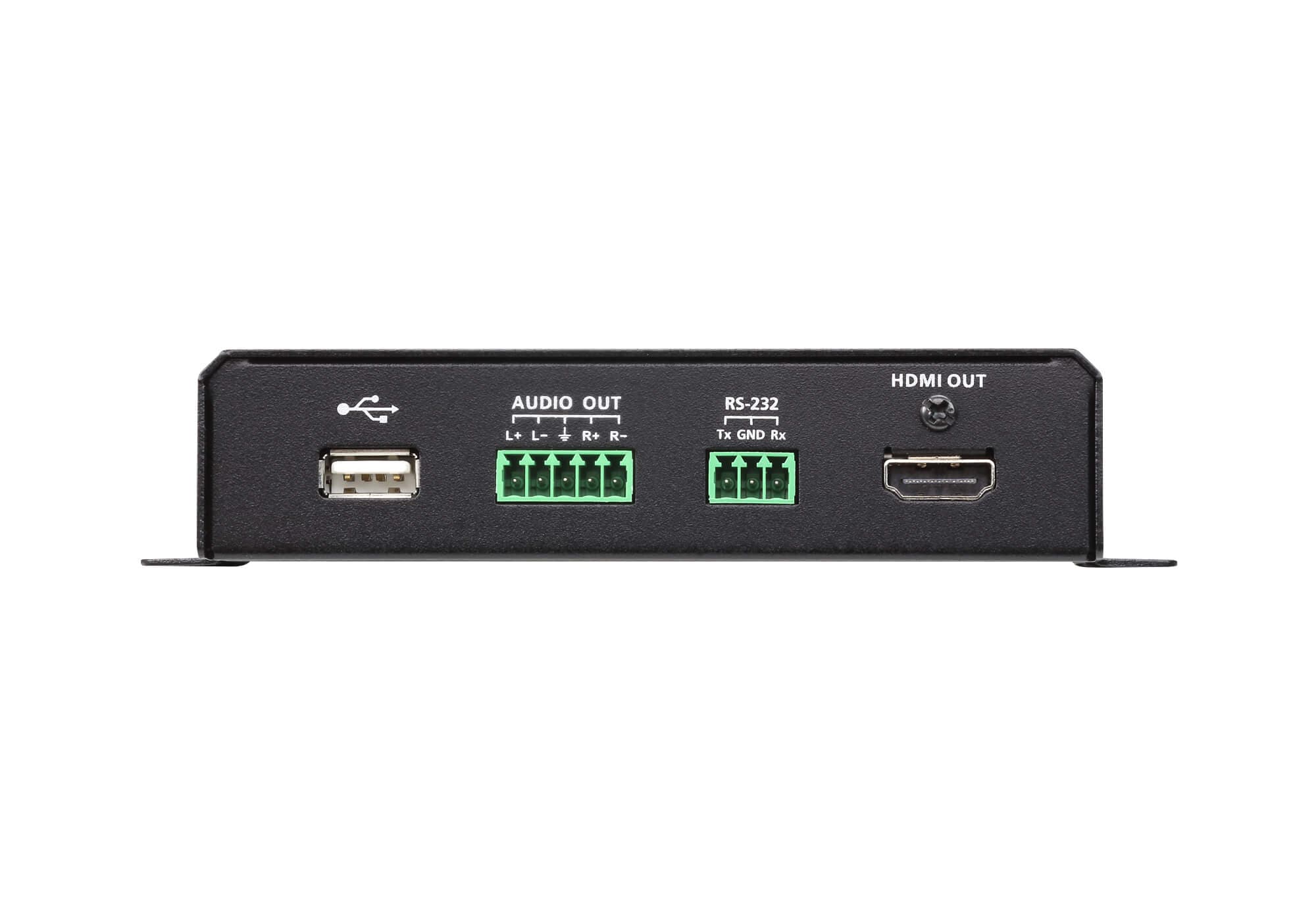

Интерфейси: 1 x HDMI Type A Female (Black)
Интерфейси: N/A
Импеданс: 100 Ω
Импеданс: N/A
Макс. разстояние: Up to 10 m
Макс. разстояние: N/A

Видео

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. пикселна честота: 340 MHz
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible
Съответствие: HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible
Макс. резолюция: 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)
Макс. резолюция: 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)
Макс. разстояние: 1 x SFP Module (*Note) VE883K1: up to 300m (MM, OM3, Black) VE883K2: up to 10km (SM, Blue)
Макс. разстояние: 1 x SFP Module (*Note) VE883K1: up to 300m (MM, OM3, Black) VE883K2: up to 10km (SM, Blue)

Аудио

Вход: N/A
Вход: 1 x Terminal Block, 5 pole (Green)
Изход: 1 x Terminal Block, 5 pole (Green)
Изход: N/A

Конектори

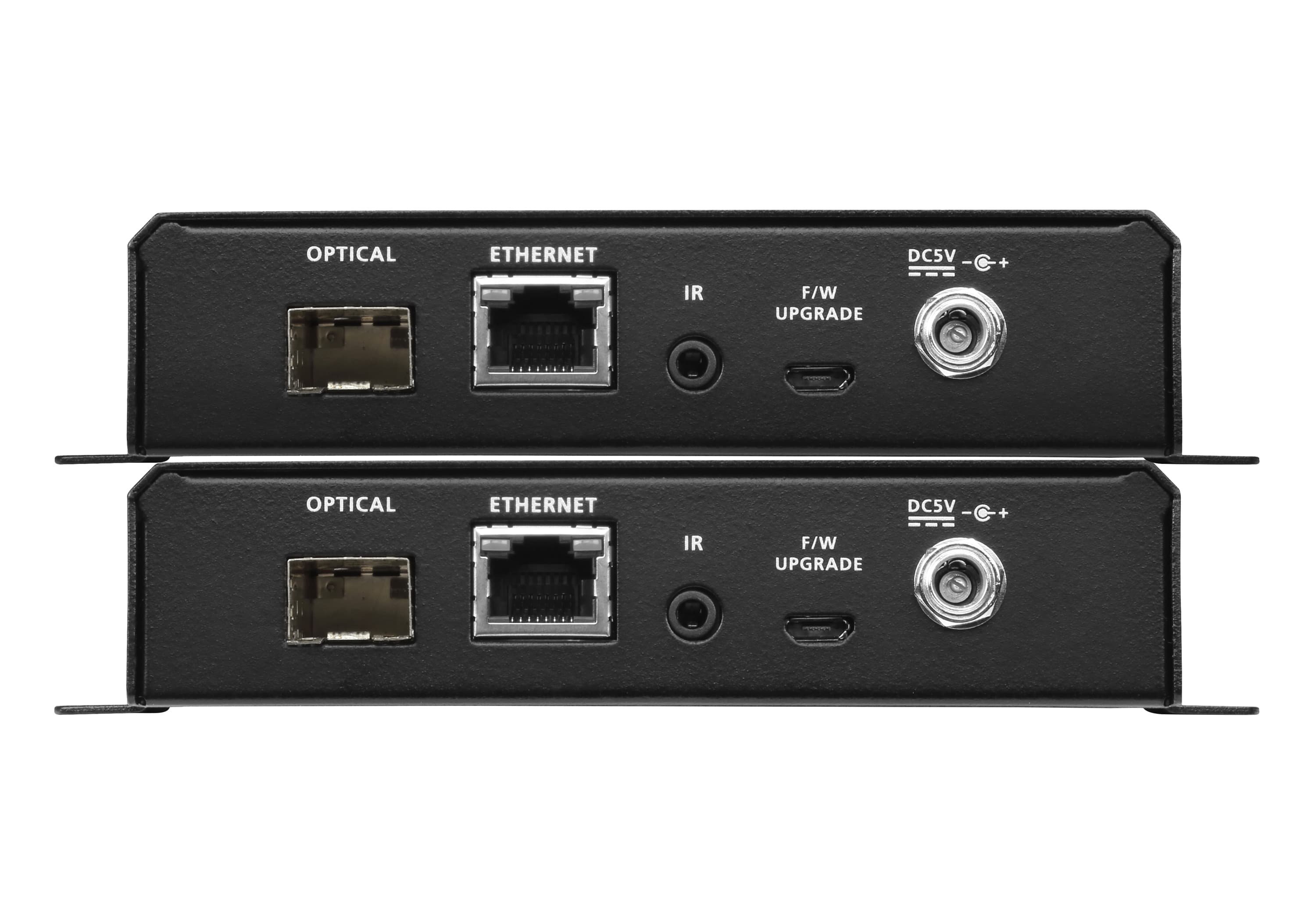

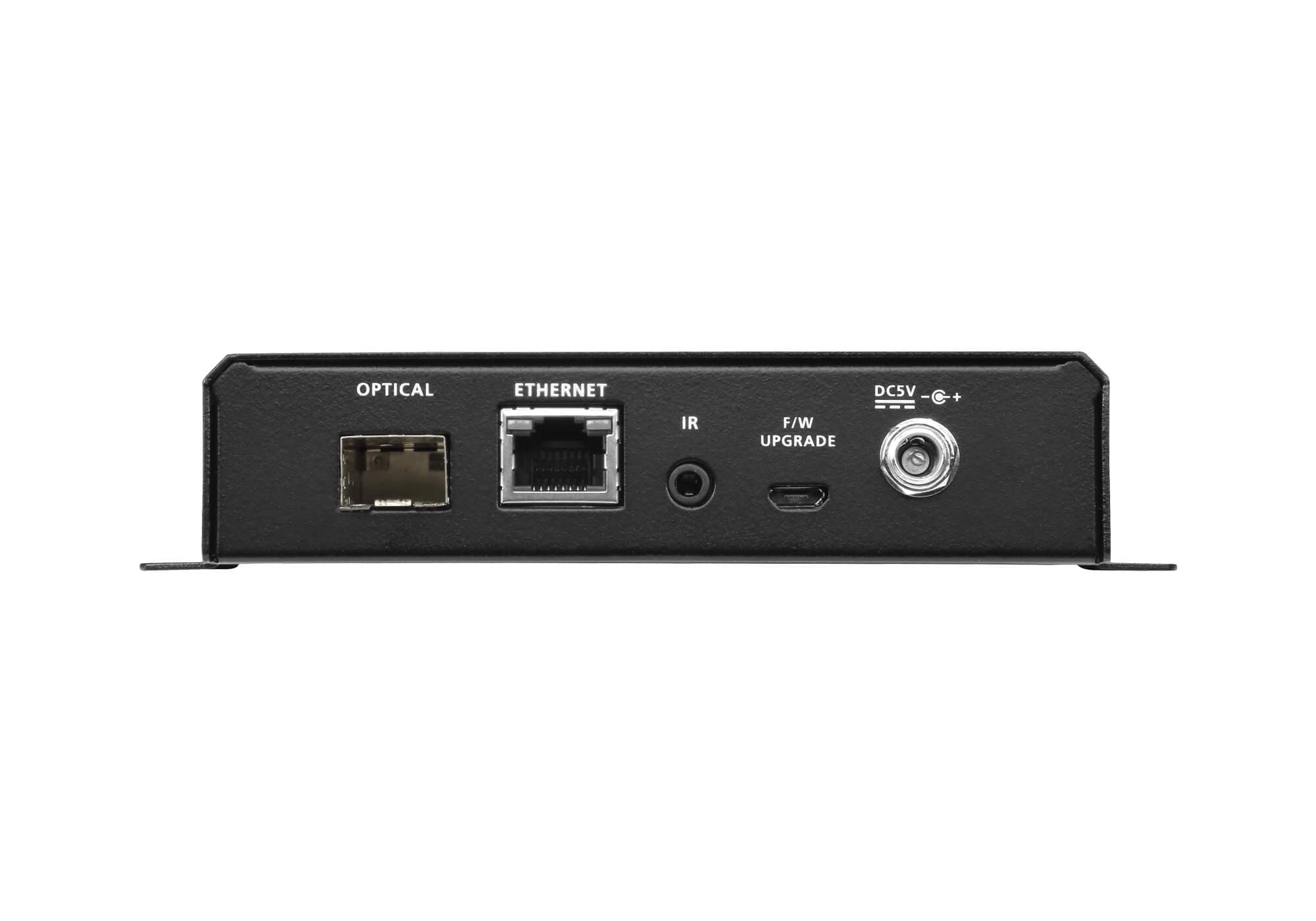

Между устройства: 1 x bi-directional SFP (LC)
Между устройства: 1 x bi-directional SFP (LC)
Обновяване на фърмуера: 1 x Micro USB (Type B) Female (Black)
Обновяване на фърмуера: 1 x Micro USB (Type B) Female (Black)
Захранване: 1 x DC Jack with locking
Захранване: 1 x DC Jack with locking

Оптични влакна

Скорост на данните: 10.3 Gbps
Скорост на данните: 10.3 Gbps
Дължина на вълната: VE883K1: 850 nm VE883K2: 1310 nm
Дължина на вълната: VE883K1: 850 nm VE883K2: 1310 nm
Тип оптично влакно: VE883K1: Multimode(MM), OM3, LC Duplex Type VE883K2: Singlemode(SM), LC Duplex Type
Тип оптично влакно: VE883K1: Multimode(MM), OM3, LC Duplex Type VE883K2: Singlemode(SM), LC Duplex Type

Управление

USB канал: 1 x USB Type A Female (White)
USB канал: 1 x USB Type B Female (White)
RS-232 канал: 1 x Terminal Block, 3 pole (Green)
RS-232 канал: 1 x Terminal Block, 3 pole (Green)
IR канал: 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
IR канал: 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
Ethernet канал: 1 x RJ45 Female
Ethernet канал: 1 x RJ45 Female

Индикатори

Захранване: 1 (Green)
Захранване: 1 (Green)
Връзка: 1 (Orange)
Връзка: 1 (Orange)
Видео изход: 1 (Orange)
Видео изход: N/A
Консумация: DC5V:6.77W:42BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:7.05W:33BTUBTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Работна температура: 0-40°C
Температура на съхранение: -20 - 60°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Корпус: Metal
Тегло: 0.64 kg ( 1.41 lb )
Тегло: 0.64 kg ( 1.41 lb )
Размери (Д x Ш x В) със скоба: 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)
Размери (Д x Ш x В) със скоба: 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
Размери (Д x Ш x В) без скоба: 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
Брой в кашон: 5 pcs
Брой в кашон: 5 pcs
Забележка: 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
Забележка: 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.

Фърмуер

ve883_v1.3.125.zip →
