16 x 16 HDMI Matrix Switch with Scaler
VM51616H

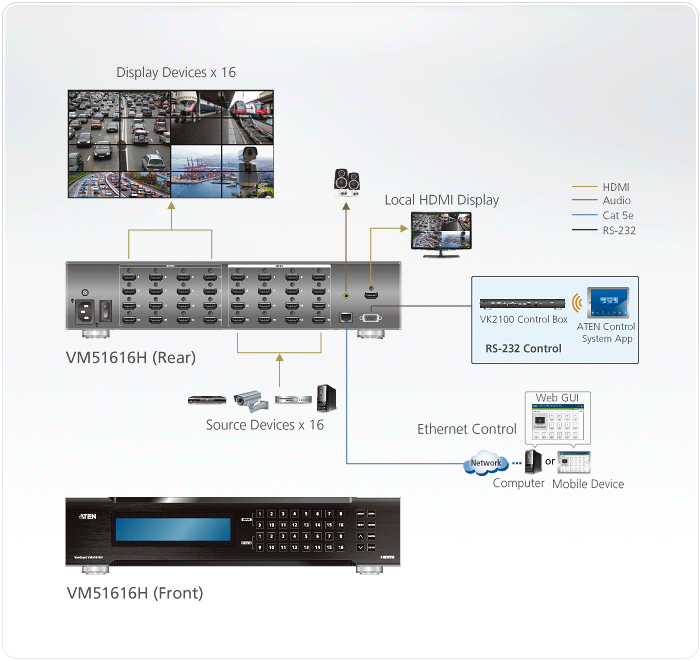

HDMI матрица 16 x 16 със скалер, която свързва всеки от 16 източника с всеки от 16 дисплея. Seamless Switch превключва без прекъсване на потока; управление по RS-232, Ethernet или през ATEN Video Matrix Control App.
Характеристики
- Connects any of 16 HDMI sources to any of to 16 HDMI displays

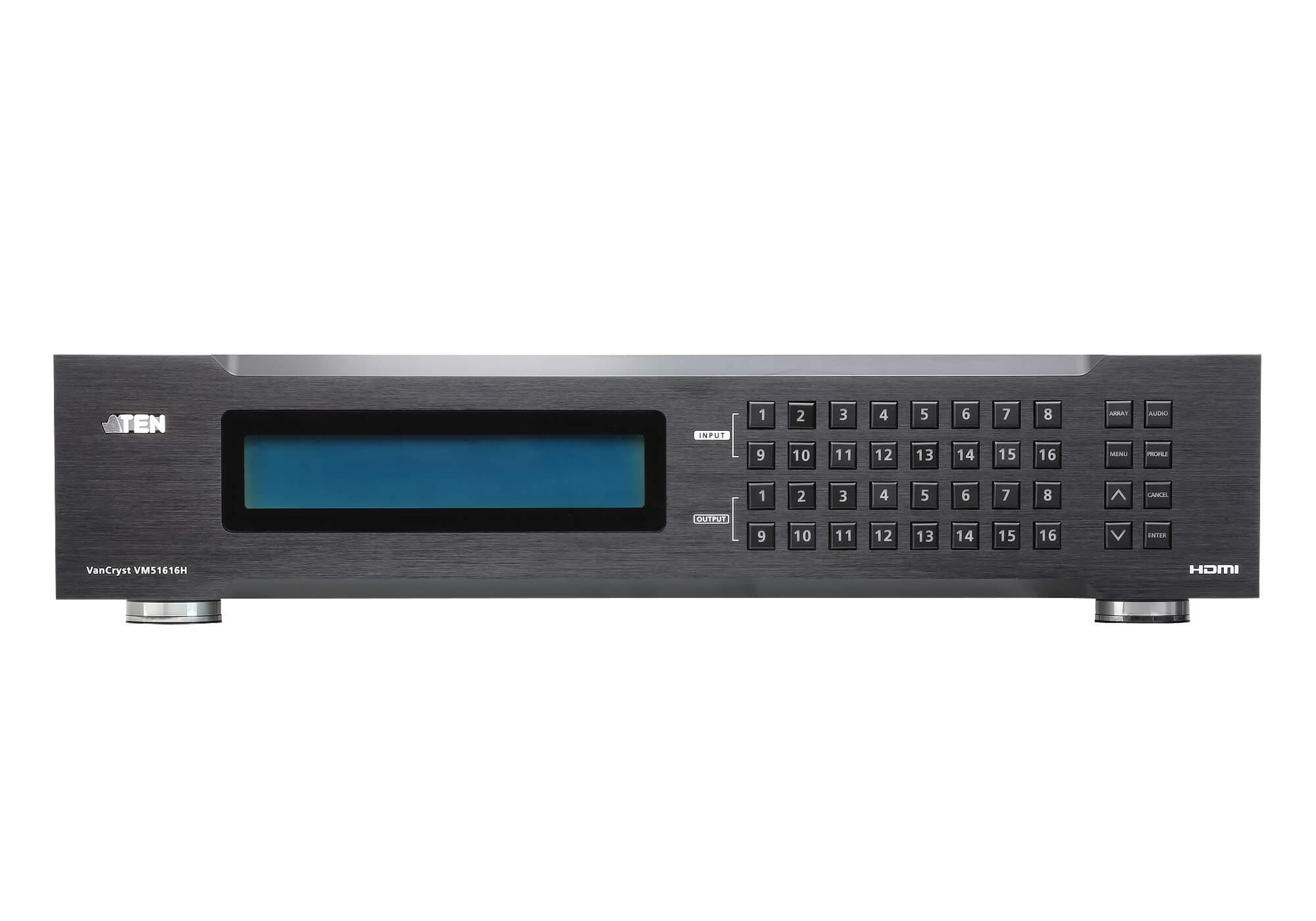

- Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
- Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
- EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep color); HDCP 1.4 compatible
- Consumer Electronics Control (CEC) support
- Local HDMI output –allows multiple preview of 16 video sources
- Audio-enabled; HDMI audio can be extracted to stereo audio
- Supports Dolby True HD and DTS HD Master audio
- ESD protection for HDMI
- Rack-mountable (2U design) *Note: 1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™. 2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

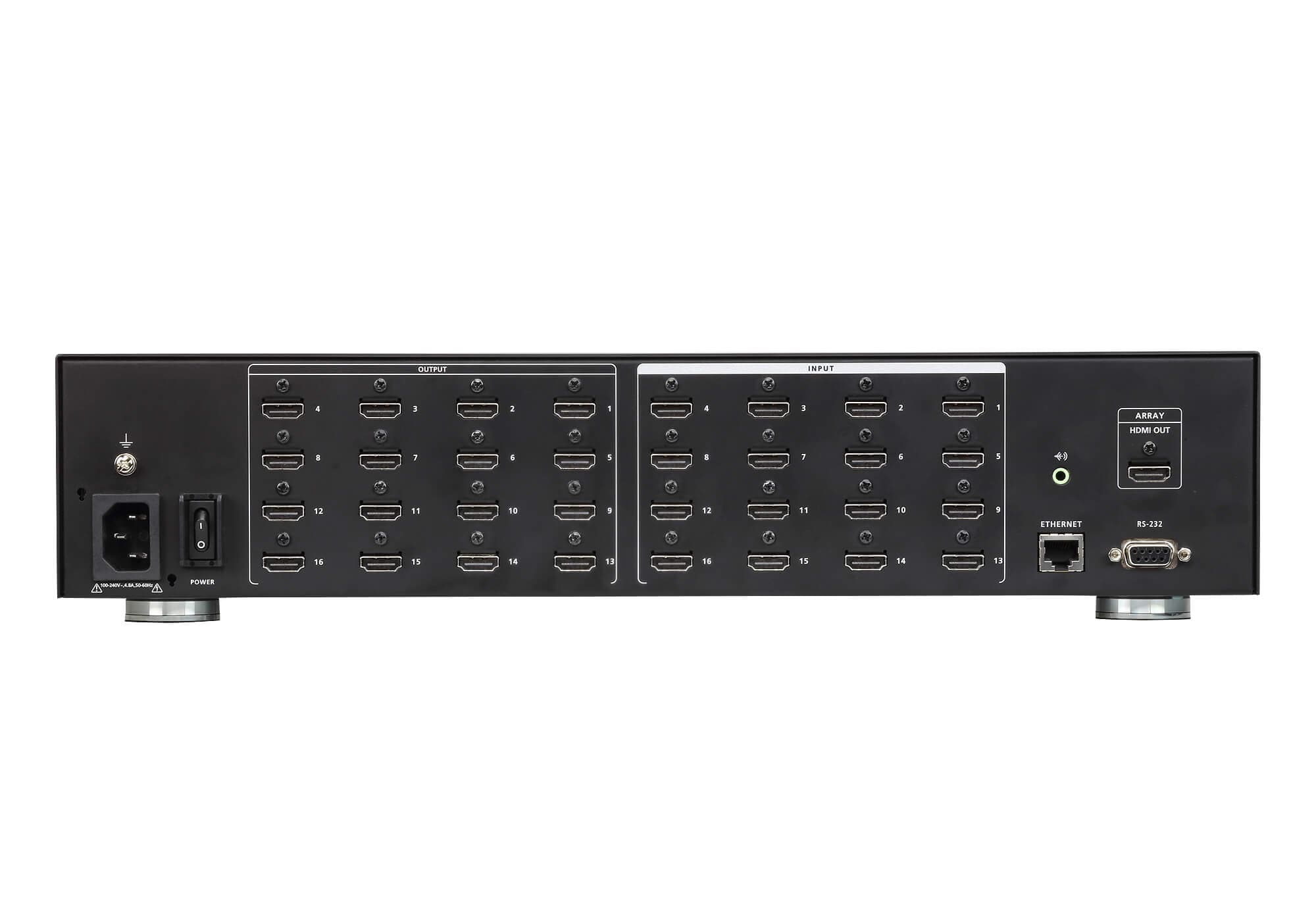

Видео вход
- Интерфейси
- 16 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- up to 5m
Видео изход
- Интерфейси
- 16 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- up to 15 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p
Аудио
- Изход
- 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Бутони и превключватели
- Захранване
- 1 x Rocker Switch
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
- Консумация
- AC110V:124.5W:584BTU/h AC220V:121.8W:571BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 7.86 kg ( 17.31 lb )
- Размери (Д x Ш x В)
- 43.24 x 38.18 x 8.80 cm (17.02 x 15.03 x 3.46 in.)
- Височина (U)
- 2U
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
