HDMI Dongle Wireless Extender (1080p@10m)
VE819Снет от производство
Безжичен HDMI удължител тип донгъл: пренася некомпресирано 1080p видео до 10 m и дублира или разширява образа от компютър; закъснение под 1 ms, аудио до LPCM 7.1.
Характеристики
- Low latency < 1ms
- Uncompressed full HD 1080p video transmission
- Supports audio formats – digital audio LPCM 7.1 channels, Dolby Digital and DTS Digital 5.1 channels

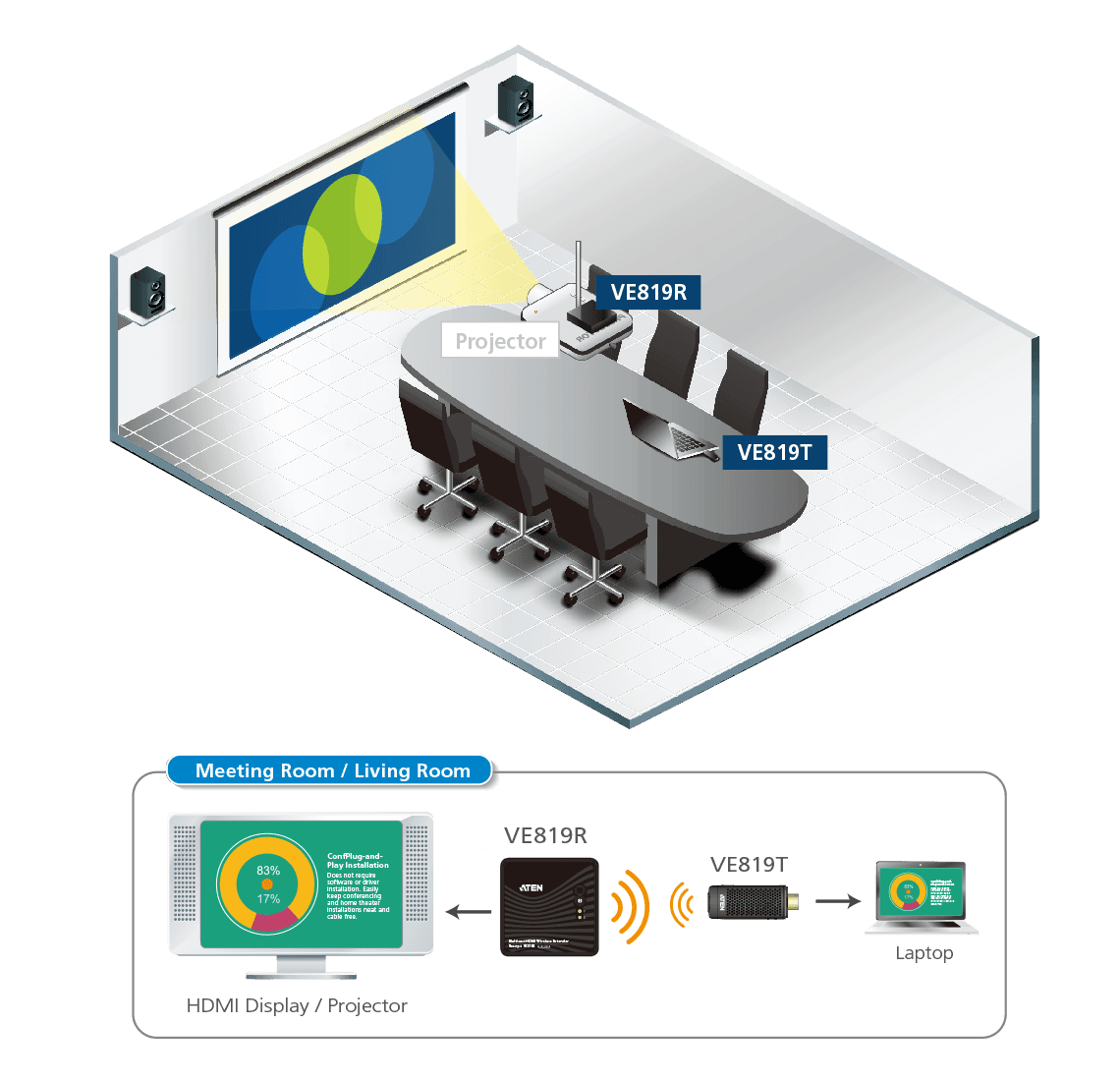

- Wireless extend or mirror the computer or laptop
- Extends signals up to 10 m*
- Up to 4 Wireless HDMI Transmitters can be paired to one Receiver
- Plug-and-play – No software installation required
- Secure data transmission – AES 128-bit encryption *Note: For optimal video quality, the transmission distance shall not exceed 7 m. The true effective transmission distance may vary depending on the installation site; solid obstacles such as steel, concrete, and brick may affect transmission quality and shorten its effective distance.
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Male (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D) HDCP Compatible
- Съответствие
- HDMI (3D) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p/60Hz@10m (Line of Sight) *
- Макс. резолюция / разстояние
- Up to 1080p/60Hz@10m (Line of Sight) *
Аудио
- Вход
- N/A
- Вход
- 1 x HDMI Type A Male (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- N/A
Управление
- IR
- 1 x 2.5mm Mini Stereo Jack Female (Black)
- IR
- N/A
Конектори
- Захранване
- 1 x Mini USB Jack
- Захранване
- 1 x Mini USB Jack
- Консумация
- DC5V: 7.84WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V: 2.5WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Корпус
- Plastic
- Тегло
- 0.13 kg ( 0.29 lb )
- Тегло
- 0.03 kg ( 0.07 lb )
- Размери (Д x Ш x В)
- 9.50 x 9.50 x 3.33 cm (3.74 x 3.74 x 1.31 in.)
- Размери (Д x Ш x В)
- 3.00 x 7.03 x 1.75 cm (1.18 x 2.77 x 0.69 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
