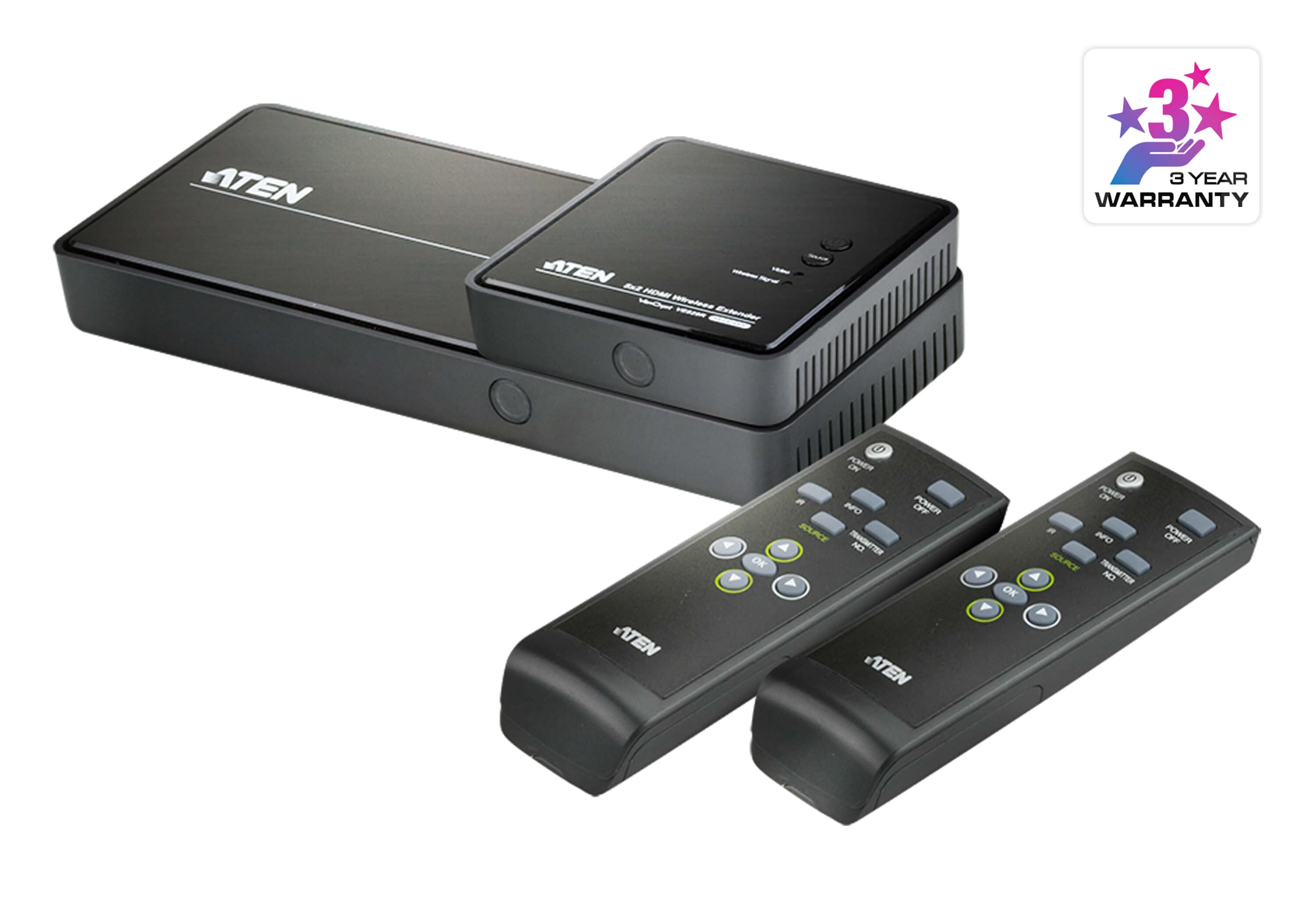

Безжичен HDMI удължител 5 x 2 — превключва 5 източника (4 HDMI и 1 компонентен) към два телевизора на разстояние до 30 m; некомпресирано 1080p, 3D и 5.1-канално аудио.
Характеристики
- Wireless transmission of full uncompressed HD videos up to 30m* for two HDTVs

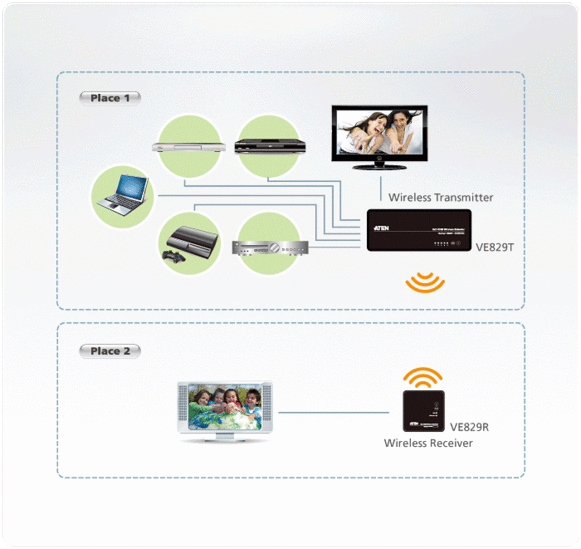

- Allows you to switch and independently select any of 5 sources (4 x HDMI connectors, 1 x component connector) between 2 HDTVs
- Supports full uncompressed HD, 1080P, 3D content and 5.1 channel digital audio
- Superior video quality – 480P, 720P, 1080i, 1080P
- USB HID ports on Transmitter and Receiver units enable wireless keyboard connectivity to control attached computers/laptops
- Based on WHDI™ technology – Low latency < 1 ms
- HDMI (3D), HDCP compatible
- No software or driver installation needed
Видео вход
- Интерфейси
- N/A
- Интерфейси

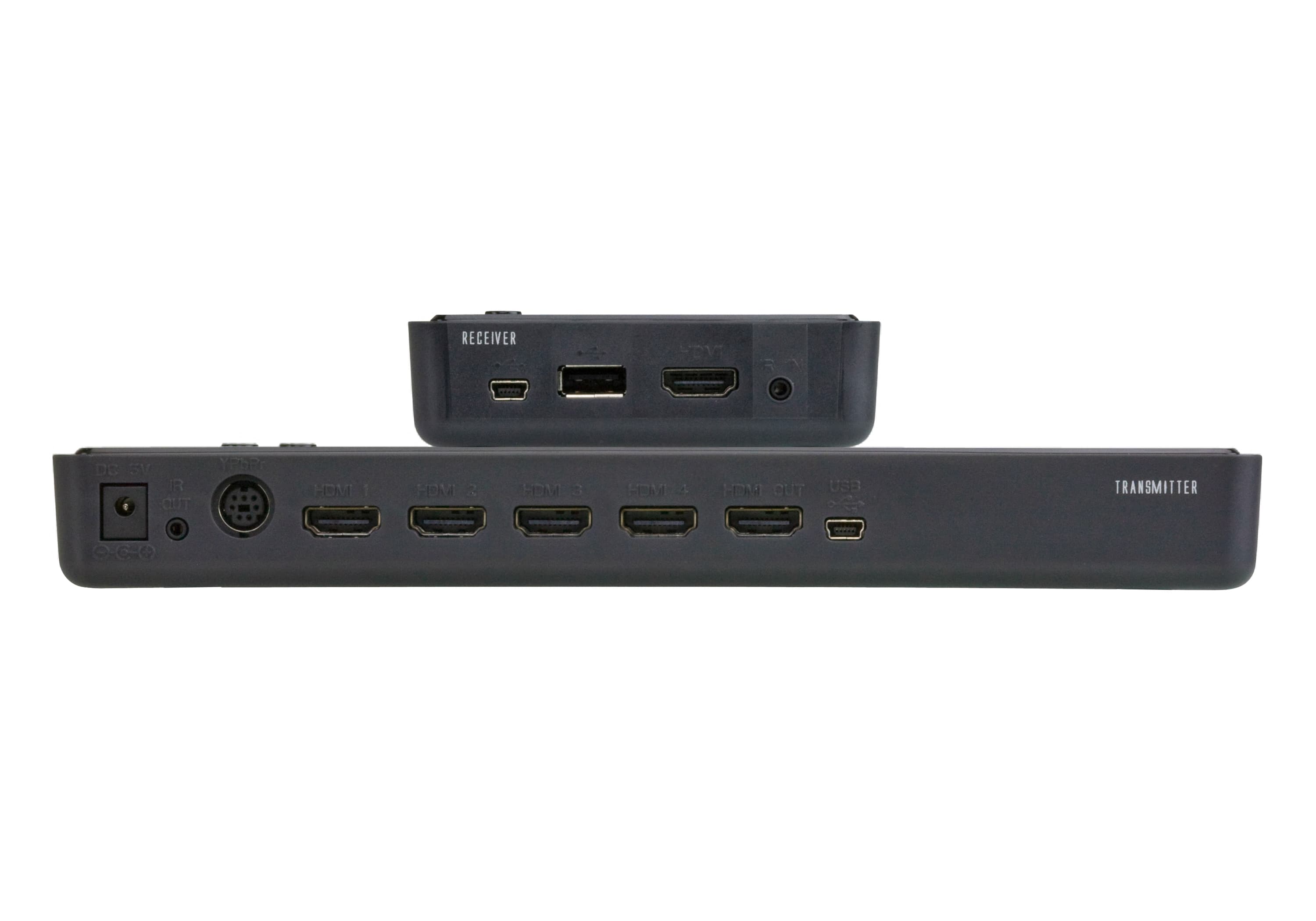

- 4 x HDMI Type A Female (Black) 1 x Component Video Female (Blue/Green/Red)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D) HDCP Compatible
- Съответствие
- HDMI (3D) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1080p@30m (Line of Sight) *
- Макс. резолюция / разстояние
- Up to 1080p@30m (Line of Sight) *
Аудио
- Вход
- N/A
- Вход
- 4 x HDMI Type A Female (Black) 1 x Component Audio Female (Red/White)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- IR
- 1 x 2.5mm Jack Female (Black)
- IR
- 1 x 2.5mm Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack (Mini USB)
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:6.7WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:9.5WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Корпус
- Plastic
- Тегло
- 0.13 kg ( 0.29 lb )
- Тегло
- 0.28 kg ( 0.62 lb )
- Размери (Д x Ш x В)
- 9.50 x 9.50 x 3.55 cm (3.74 x 3.74 x 1.4 in.)
- Размери (Д x Ш x В)
- 23.40 x 9.65 x 3.25 cm (9.21 x 3.8 x 1.28 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
