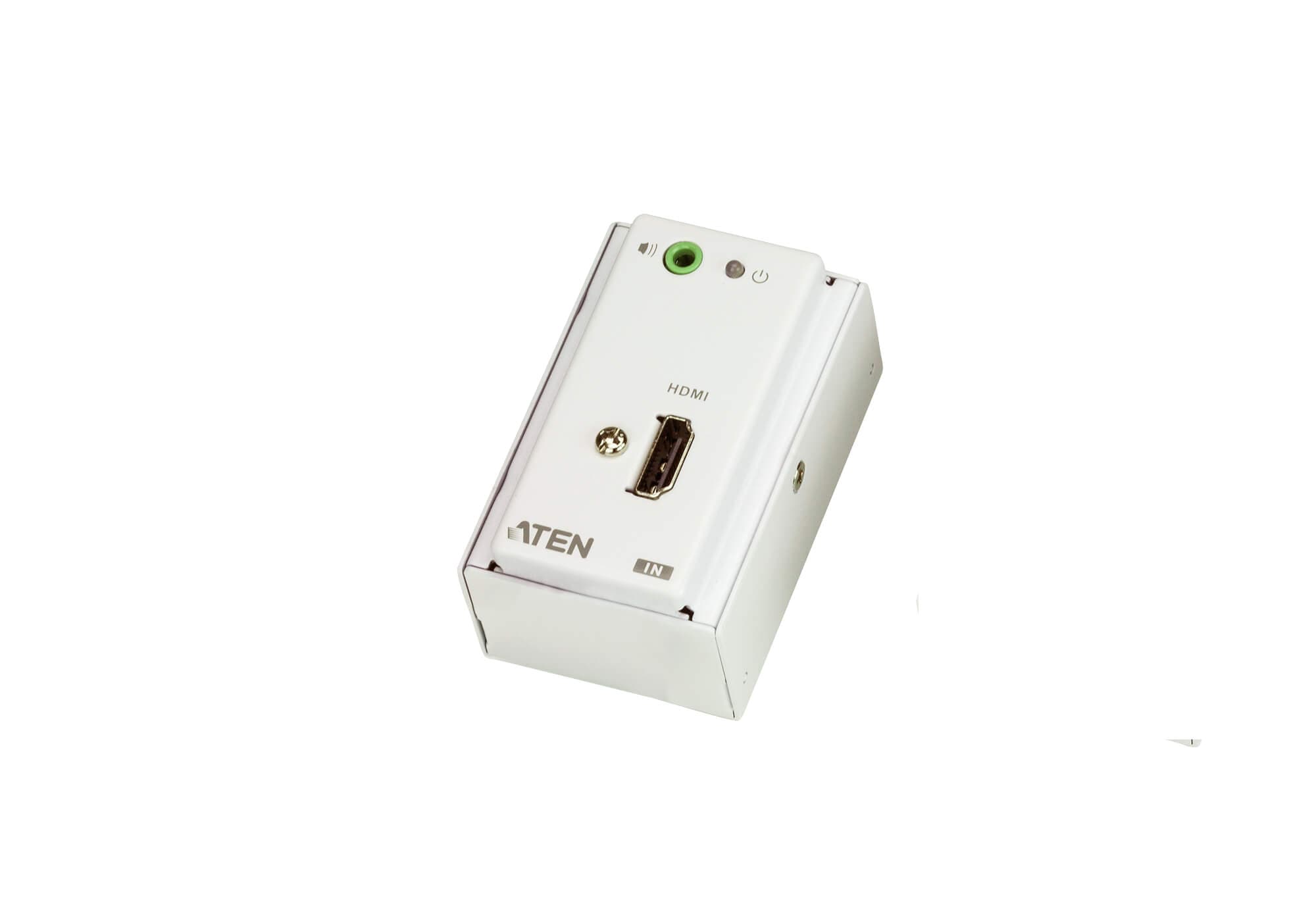

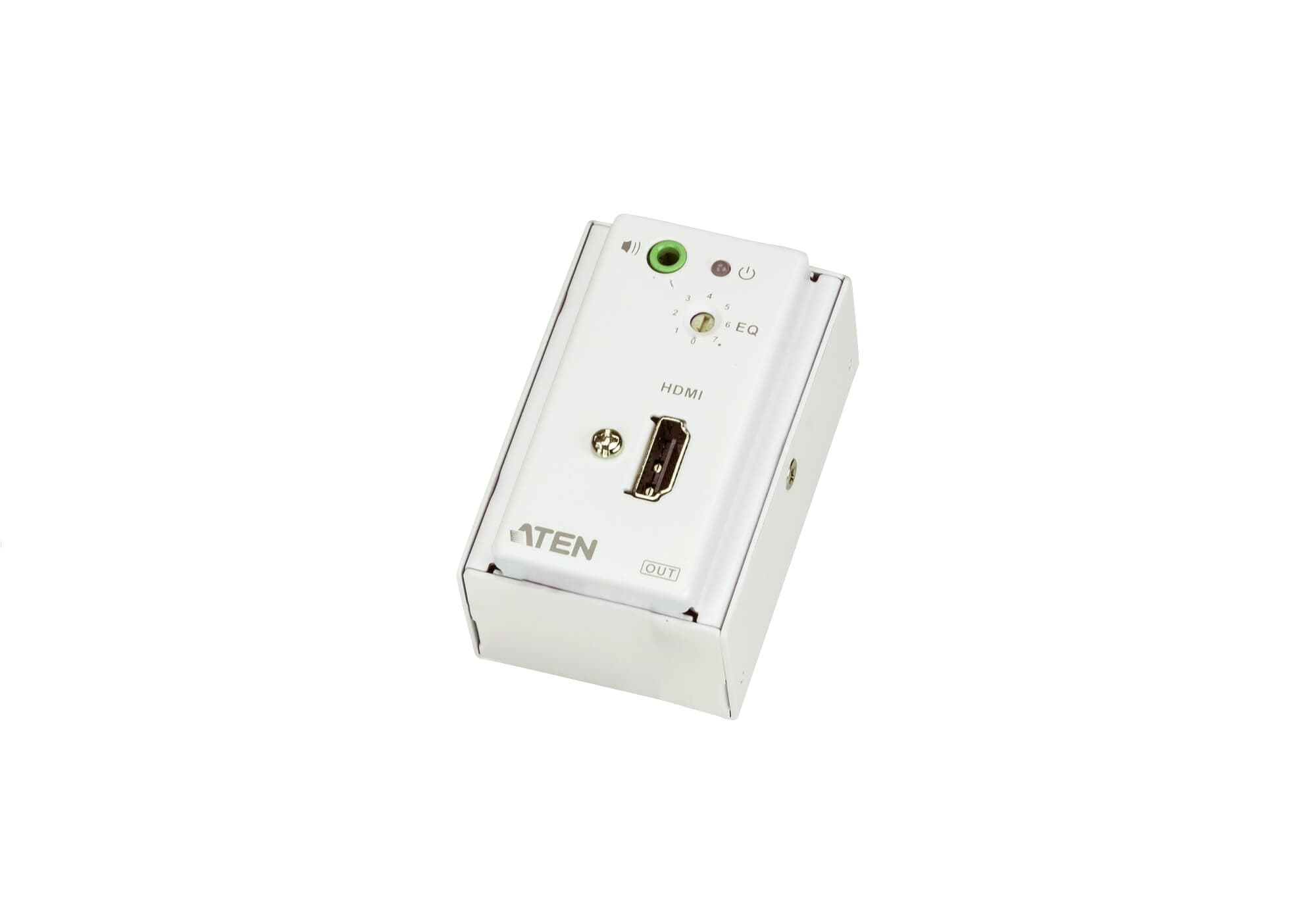

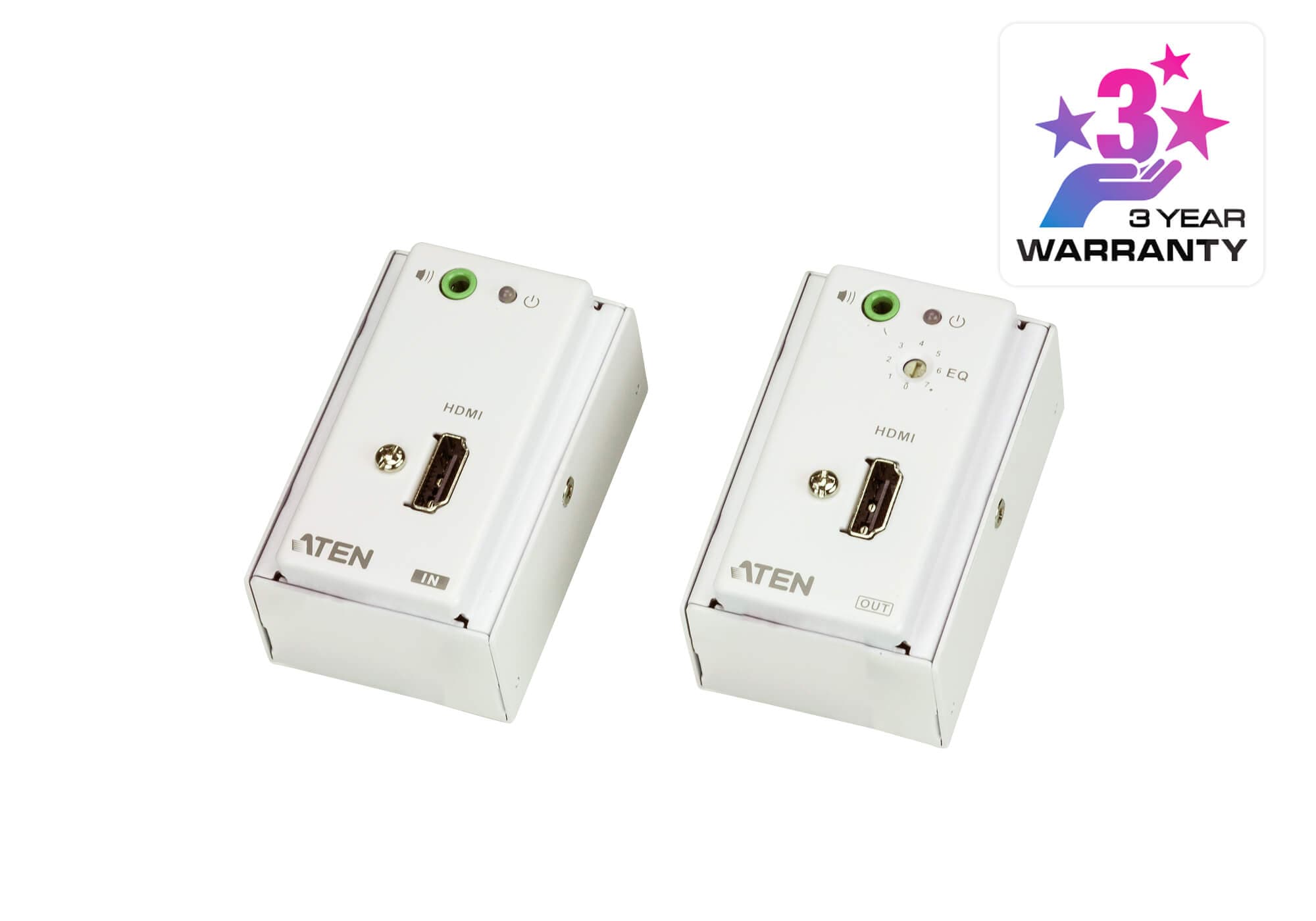

HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m)

Name: HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m)
Brand: ATEN
SKU: VE807

VE807

Удължава HDMI сигнал и аудио по два Cat 5e/6 кабела — 1080p при 40 m или 1080i при 60 m. Изпълнение като стенна платка тип MK.

Характеристики

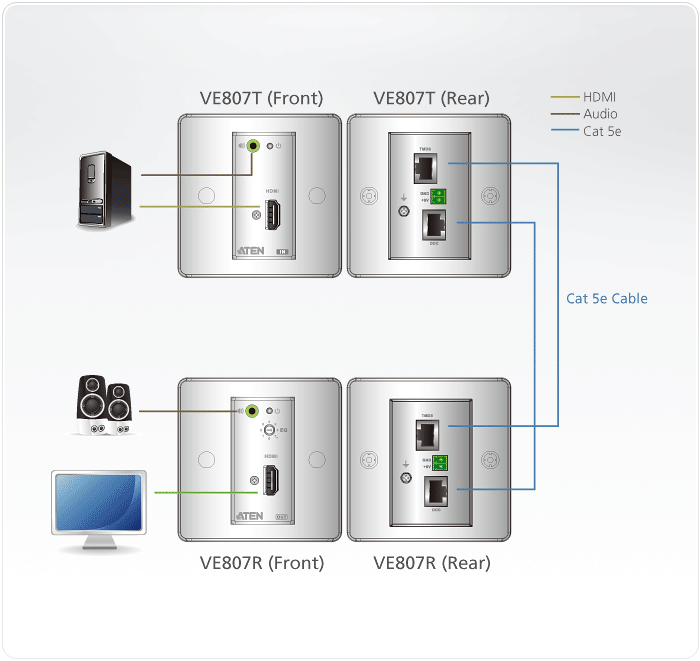

Uses two Cat 5e/6 cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
Remotely powered from either the transmitter or receiver side**
Extends the distance between HDMI source and display
Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m

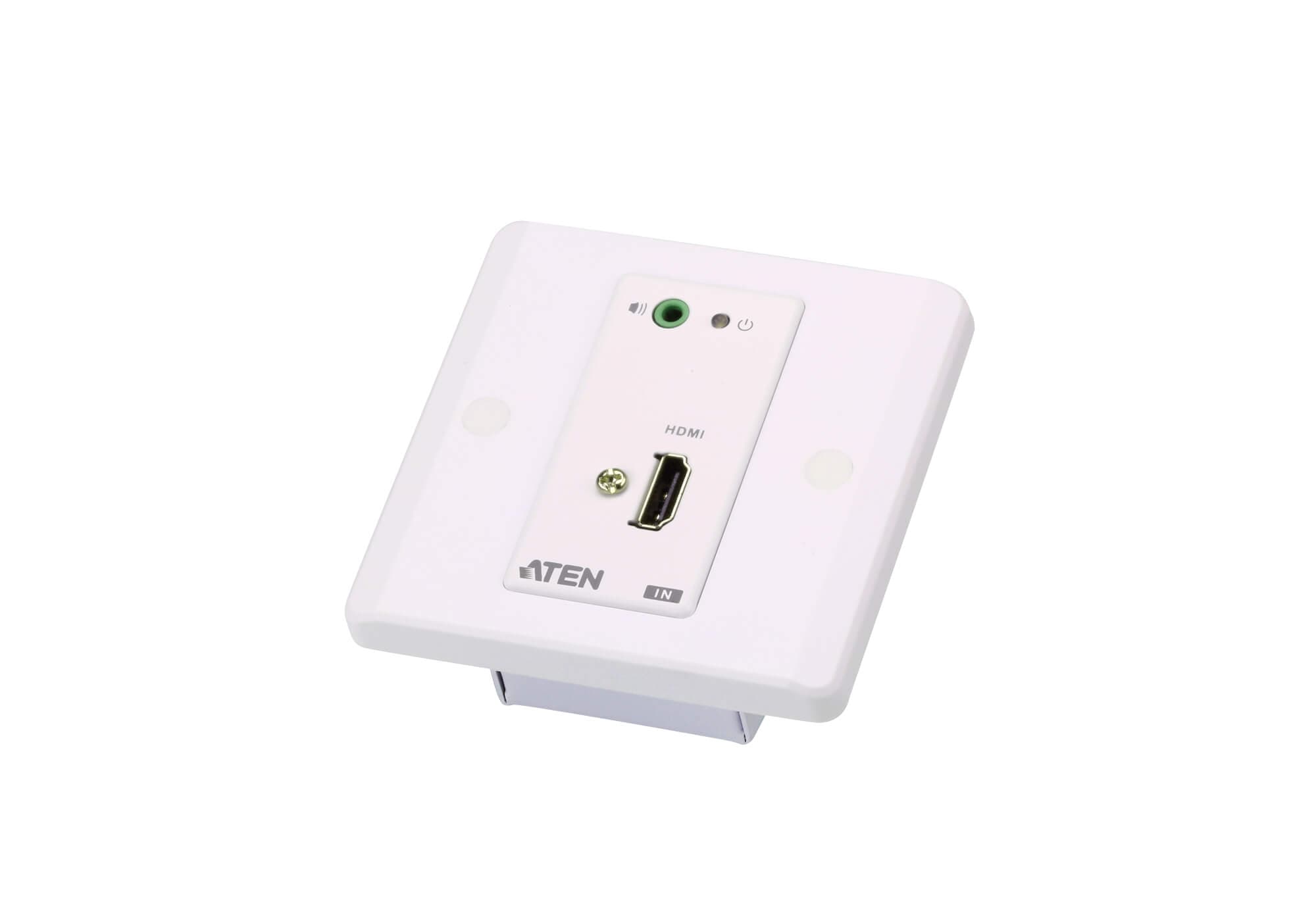

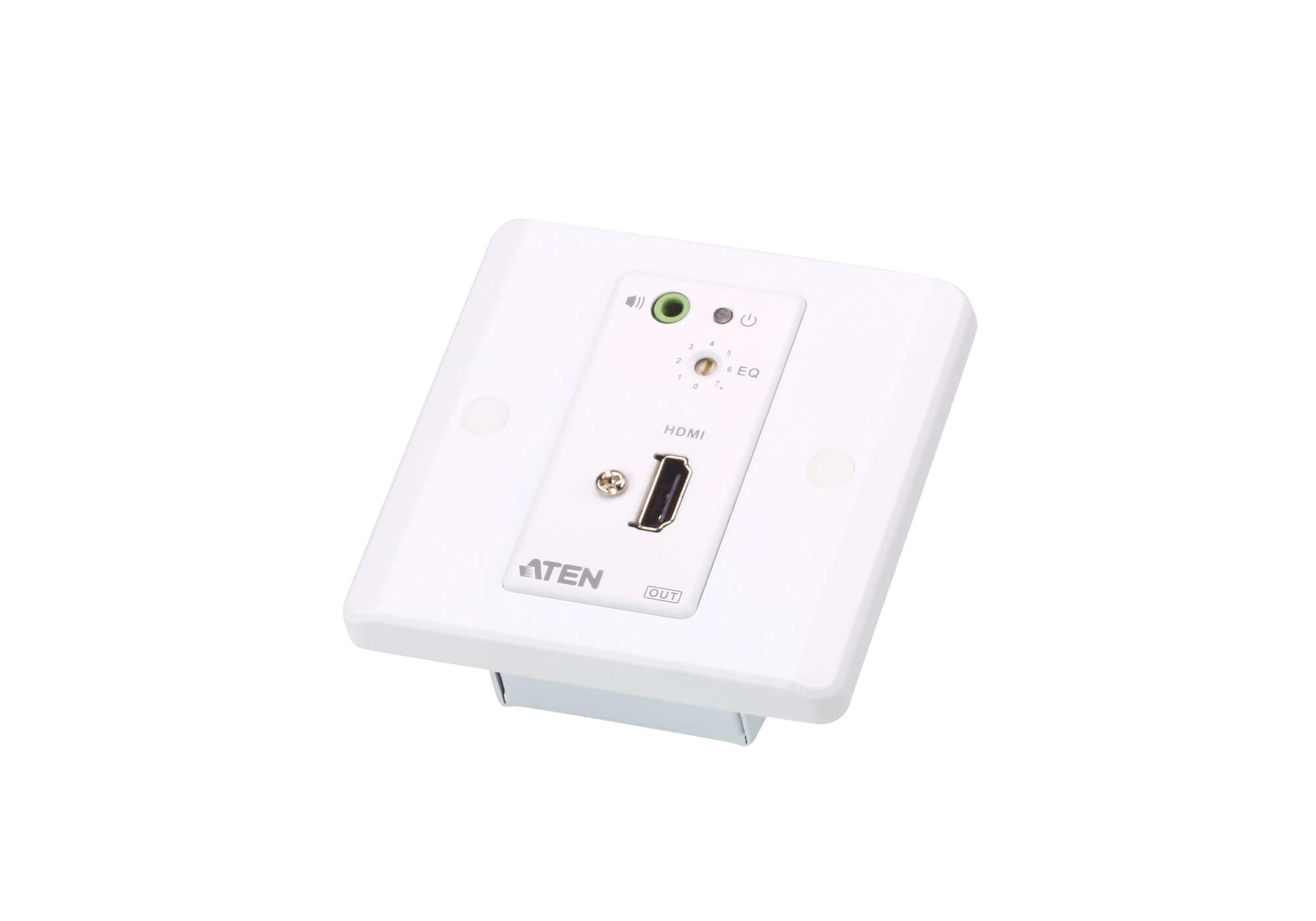

Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
HDMI (3D, Deep Color); HDCP compatible
Supports 8 segment equalization adjustment via switch
Supports widescreen formats
Supports hot- plugging
Supports stereo audio
Built- in 8KV/ 15 KV ESD protection
Plug- and- play with no software installation required
LED indication of power sources / connection status * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver **A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

Захранване: 1 x Terminal Block (Green)
Захранване: 1 x Terminal Block (Green)
Консумация: DC9V:0.81W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC9V:1.35W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.18 kg ( 0.4 lb )
Тегло: 0.18 kg ( 0.4 lb )
Размери (Д x Ш x В): 6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)
Размери (Д x Ш x В): 6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)
Размери на лицевия панел (Д x Ш x В): 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
Размери на лицевия панел (Д x Ш x В): 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
Брой в кашон: 5 pcs
Брой в кашон: 5 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
