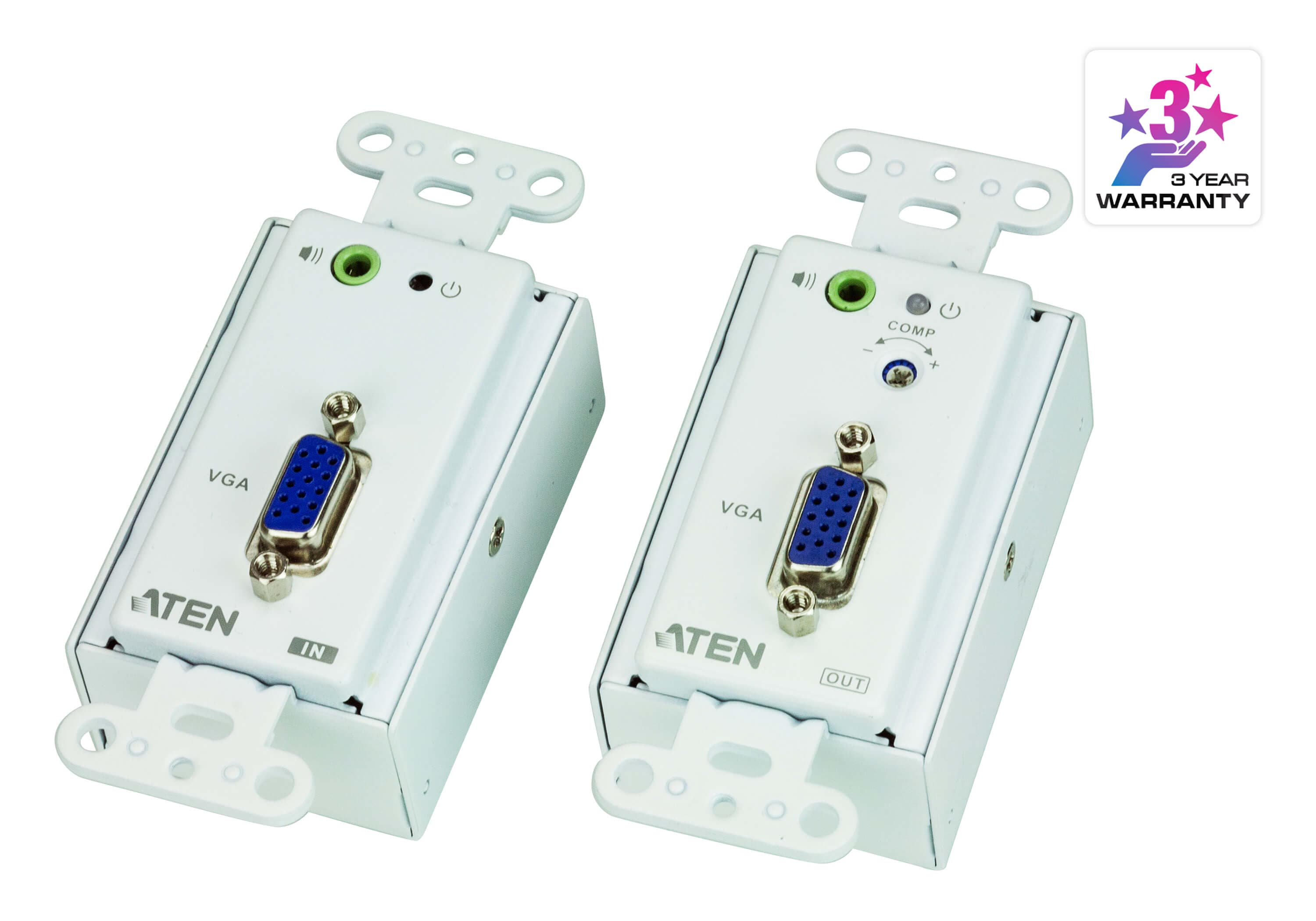

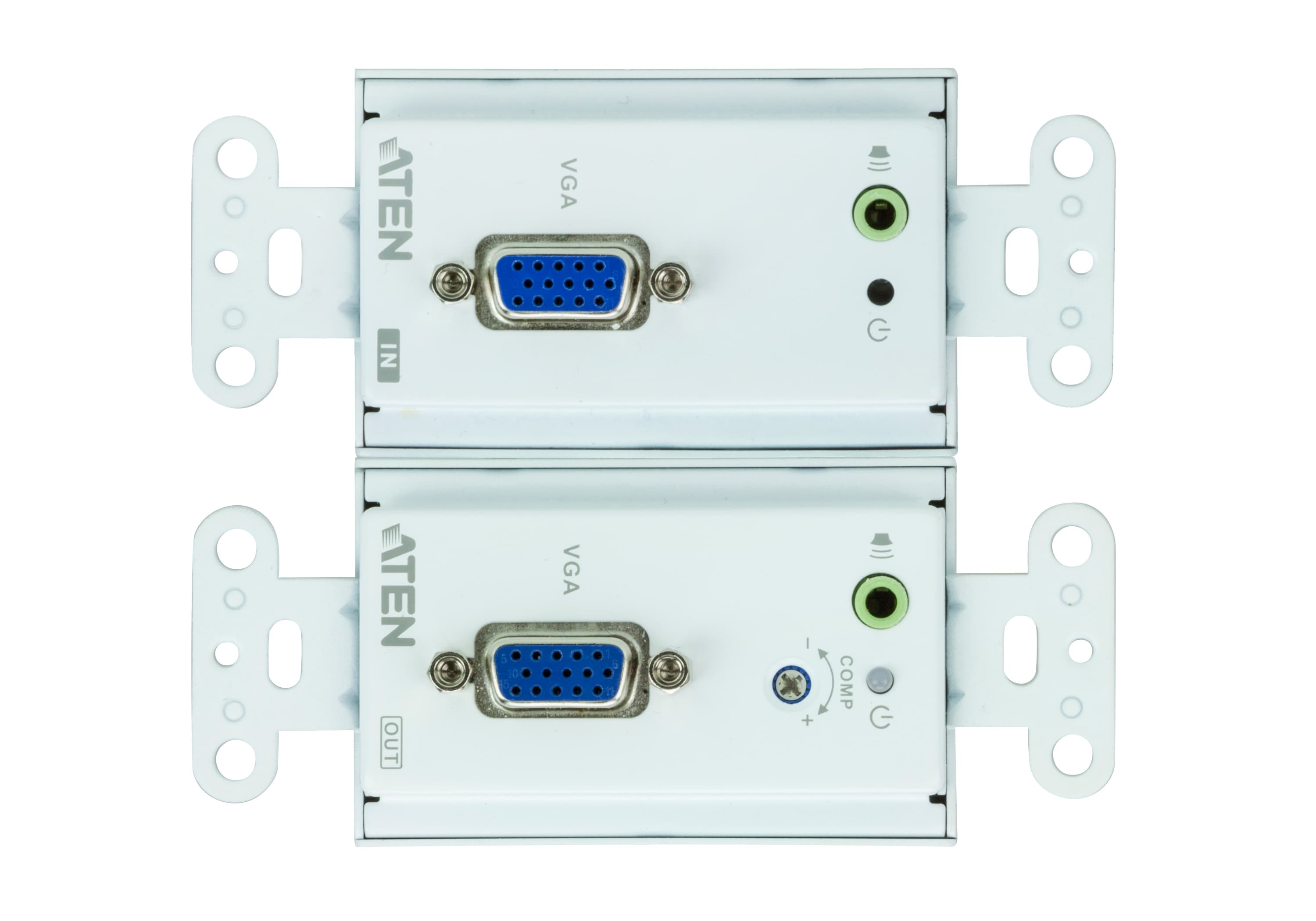

VGA/Audio Cat 5 Extender Wall Plate (US) (1280 x 1024@150m)
VE156
Удължител за VGA и аудио в корпус за стенен монтаж (US wall plate) — до 150 m (1280 x 1024) по два кабела Cat 5e. Захранва се отдалечено от предавателя или приемника.
Характеристики

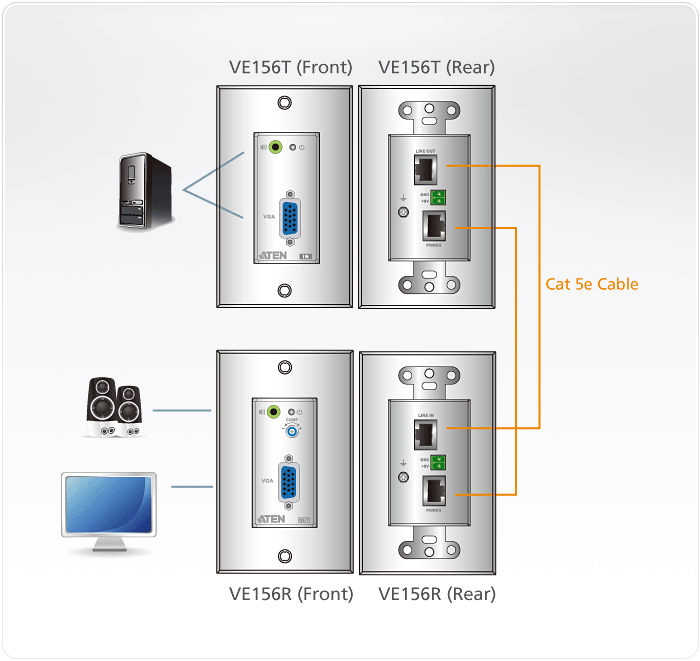

- Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
- Remotely powered from either the Transmitter or Receiver side**
- Extends the distance between VGA source and VGA display
- Superior video quality – up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
- Adjustable Gain Control – manually adjusts signal strength to compensate for distance
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play – no software installation required Note: The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver. **A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- N/A
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
Видео
- Макс. честотна лента
- 300 MHz
- Макс. честотна лента
- 300 MHz
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
Аудио
- Вход
- N/A
- Вход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- N/A
Конектори

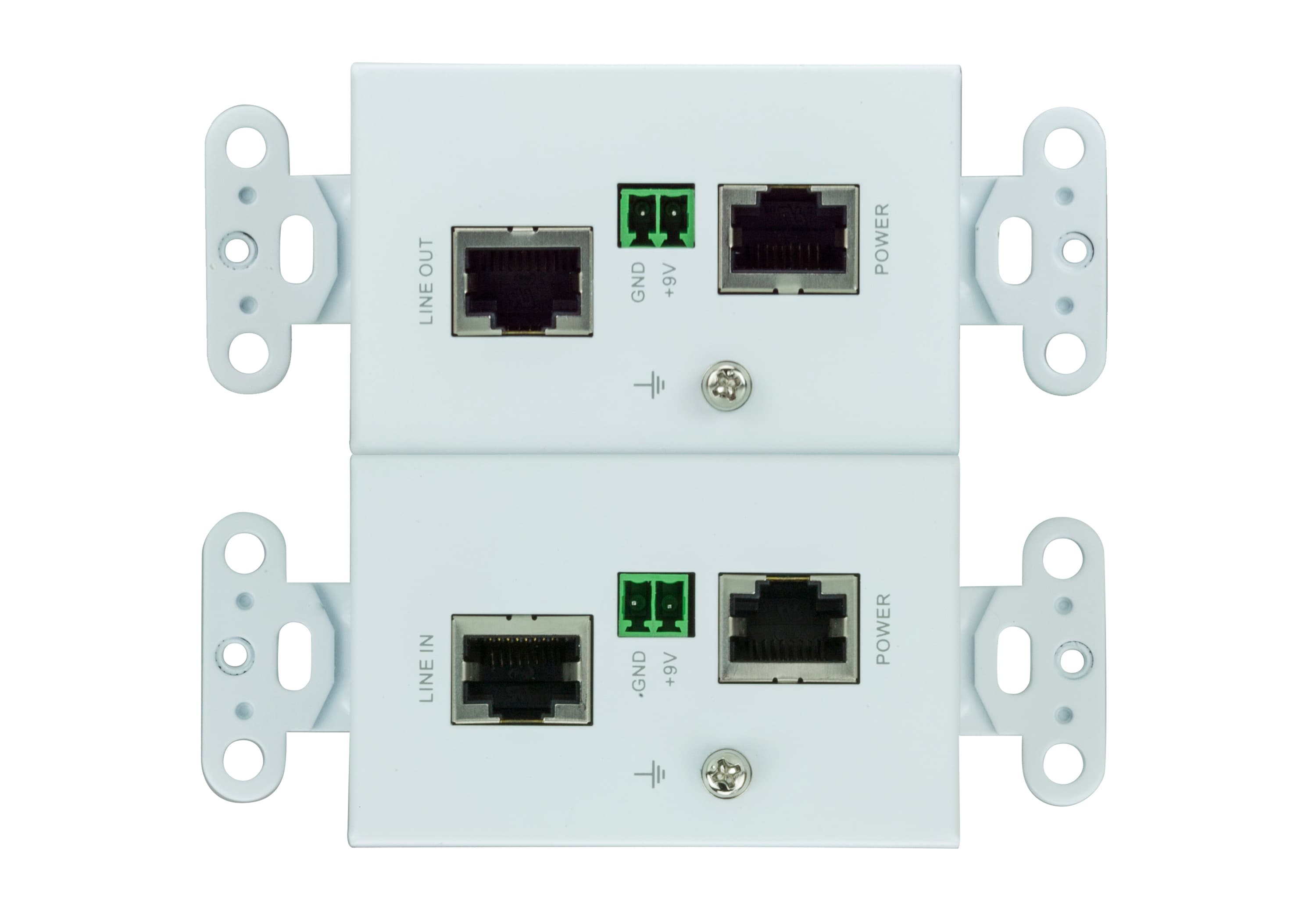

- Захранване
- 1 x Terminal Block (Green)
- Захранване
- 1 x Terminal Block (Green)
- Консумация
- DC9V:1.65W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC9V:0.95W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.18 kg ( 0.4 lb )
- Тегло
- 0.18 kg ( 0.4 lb )
- Размери (Д x Ш x В)
- 10.41 x 4.44 x 4.28 cm (4.1 x 1.75 x 1.69 in.)
- Размери (Д x Ш x В)
- 10.41 x 4.44 x 4.28 cm (4.1 x 1.75 x 1.69 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
