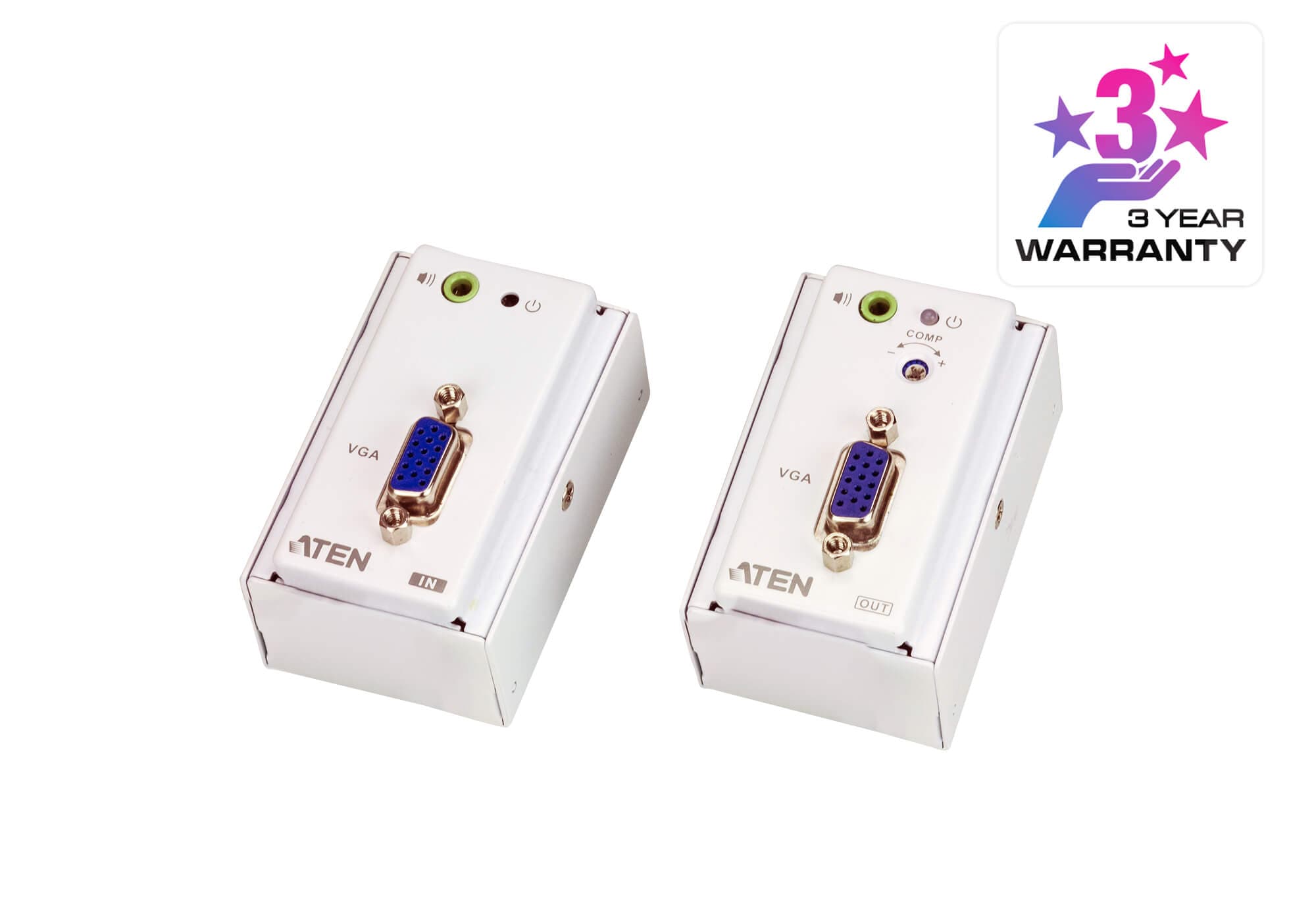

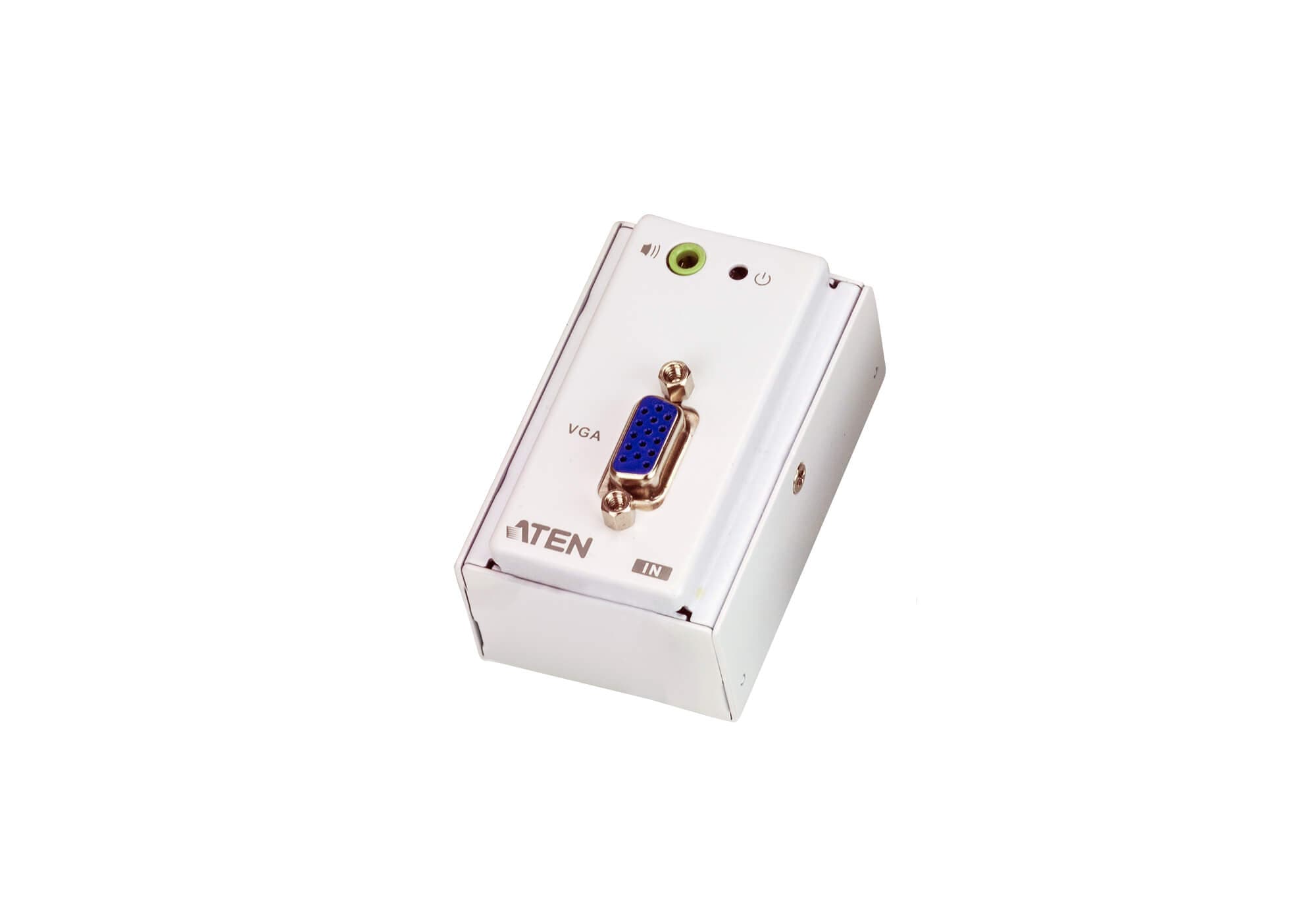

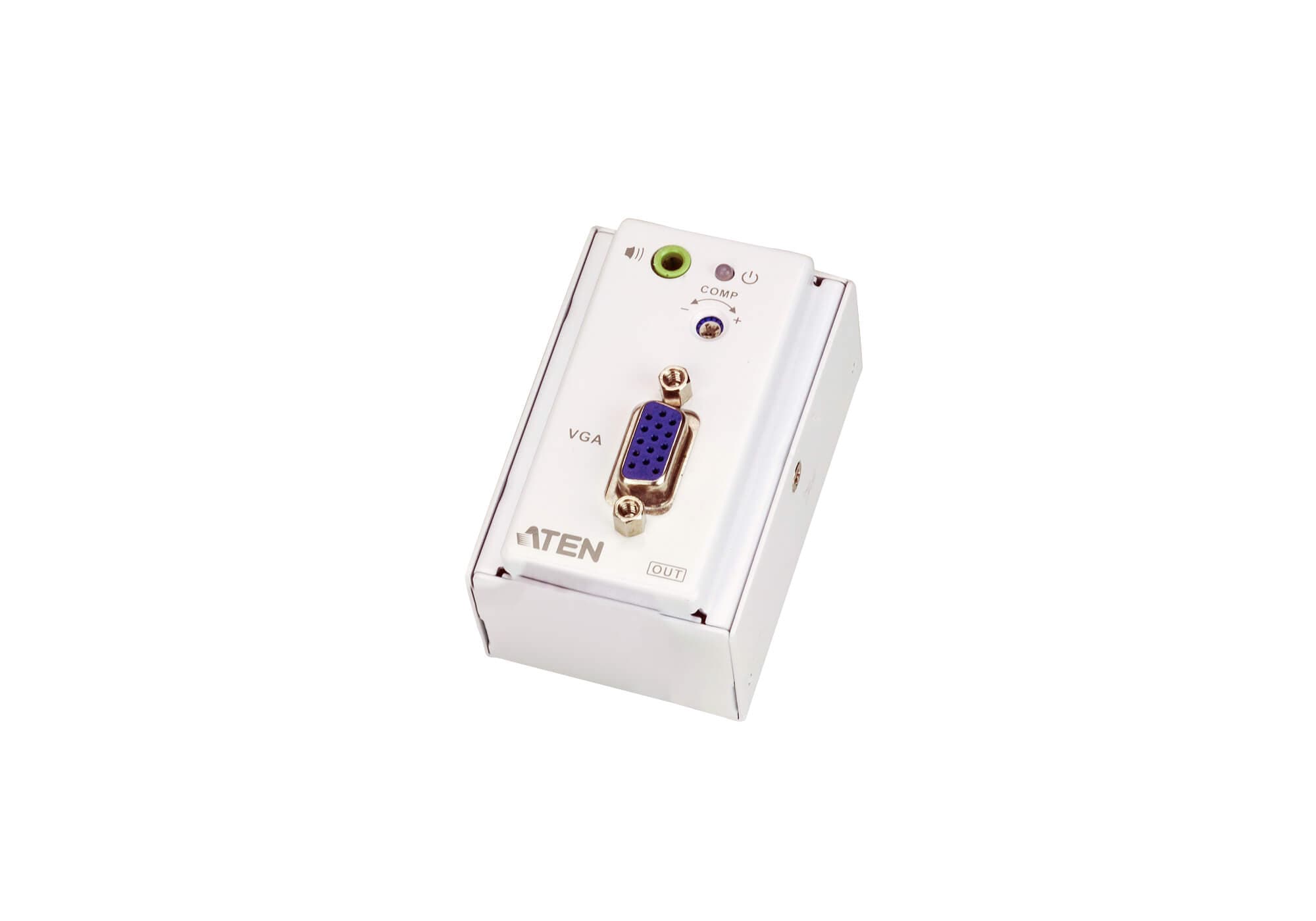

VGA/Audio Cat 5 Extender with MK Wall Plate (1280 x 1024 @150 m)
VE157
Удължава VGA и аудио по Cat 5e/6: 1920 x 1200 @ 60 Hz до 30 m или 1280 x 1024 до 150 m. Изпълнение със стенна планка тип MK; захранва се по втори кабел.
Характеристики

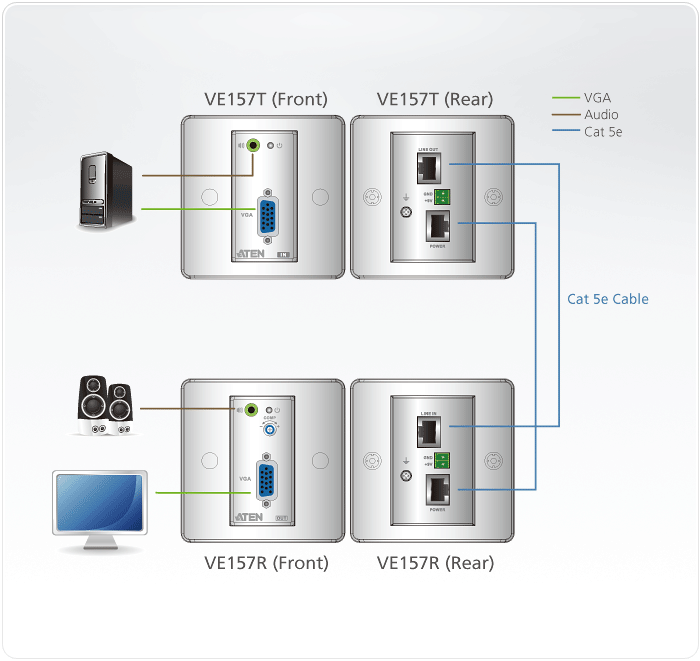

- Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
- Remotely powered from either the Transmitter or Receiver side**
- Extends the distance between VGA source and VGA display
- Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m

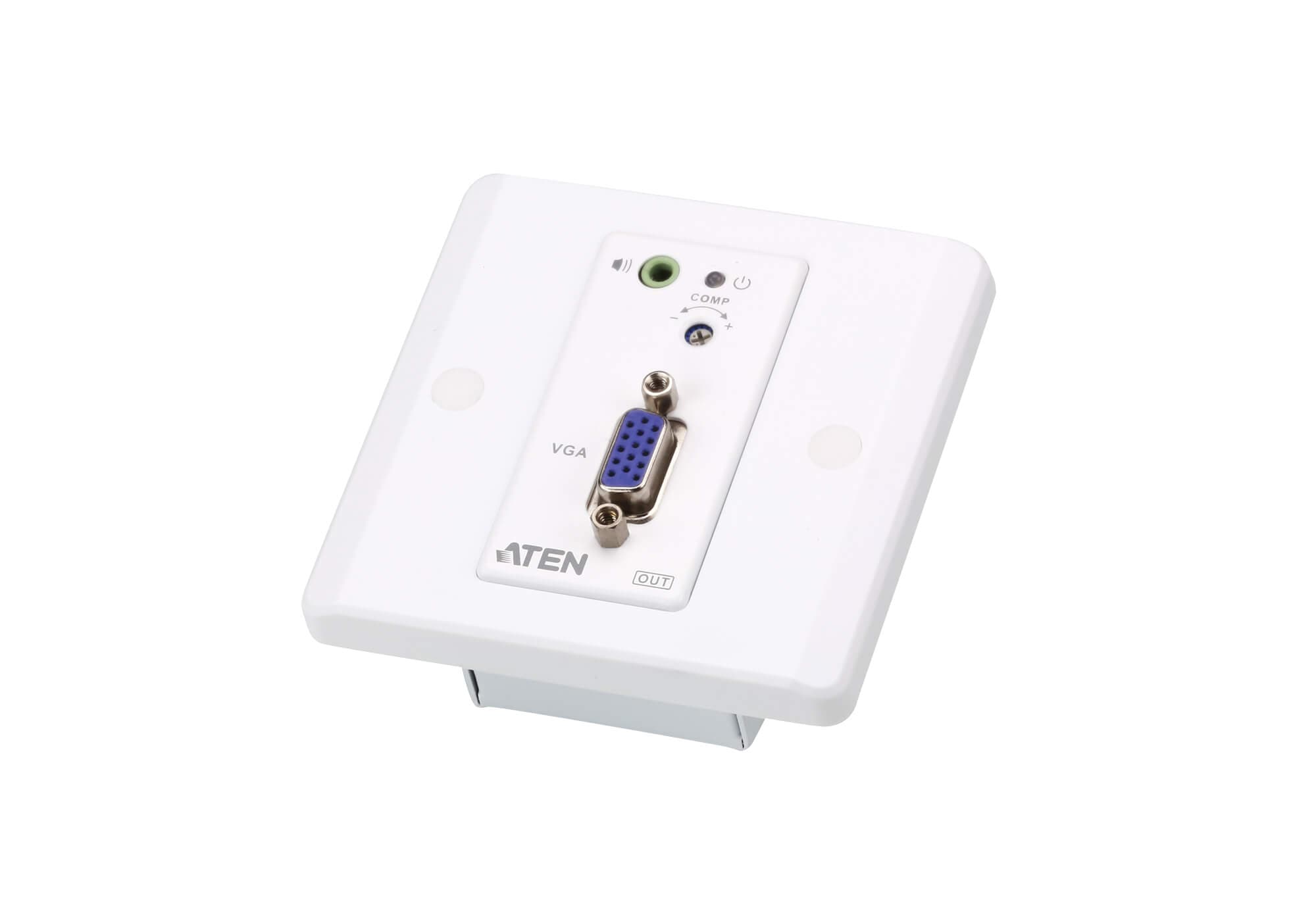

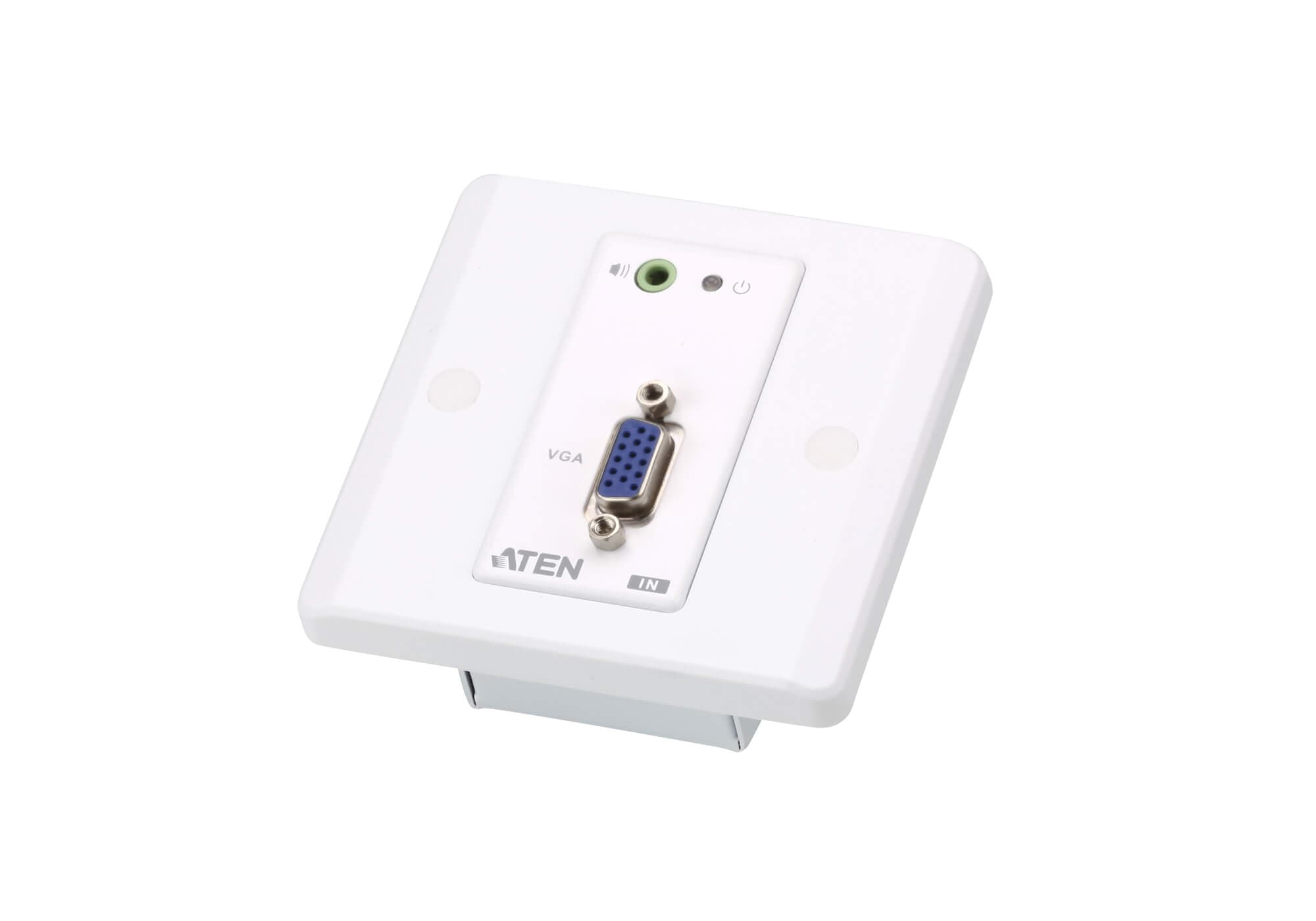

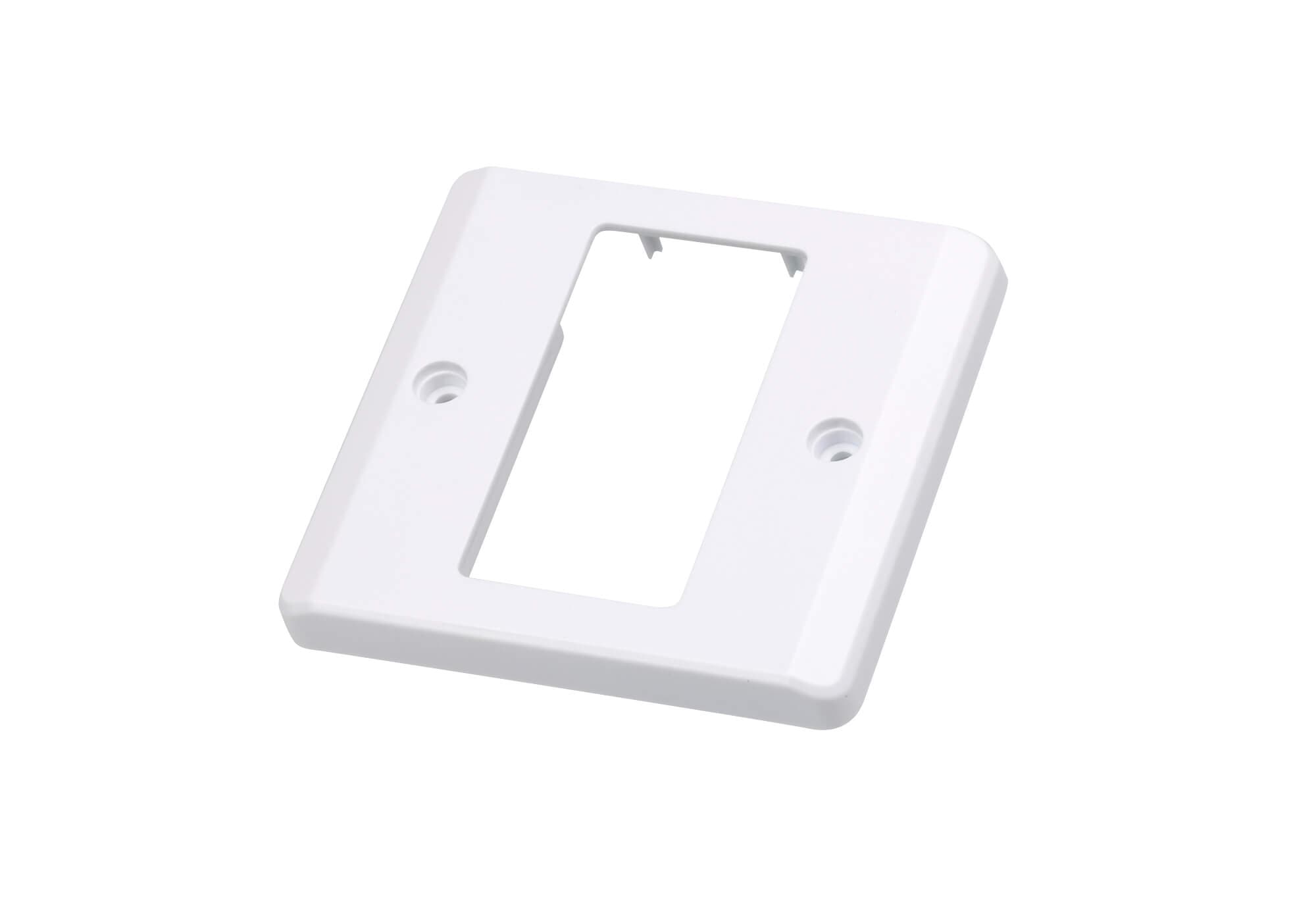

- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
- Adjustable Gain Control – manually adjusts signal strength to compensate for distance
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver **A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- N/A
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
Видео
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
- Макс. честотна лента
- 300 MHz
- Макс. честотна лента
- 300 MHz
Аудио
- Вход
- N/A
- Вход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- N/A
Конектори
- Захранване
- 1 x Terminal Block (Green)
- Захранване
- 1 x Terminal Block (Green)
- Консумация
- DC9V:0.95W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC9V:1.65W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.18 kg ( 0.4 lb )
- Тегло
- 0.18 kg ( 0.4 lb )
- Размери (Д x Ш x В)
- 6.86 x 4.44 x 4.28 cm (2.7 x 1.75 x 1.69 in.)
- Размери (Д x Ш x В)
- 6.86 x 4.44 x 4.28 cm (2.7 x 1.75 x 1.69 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
