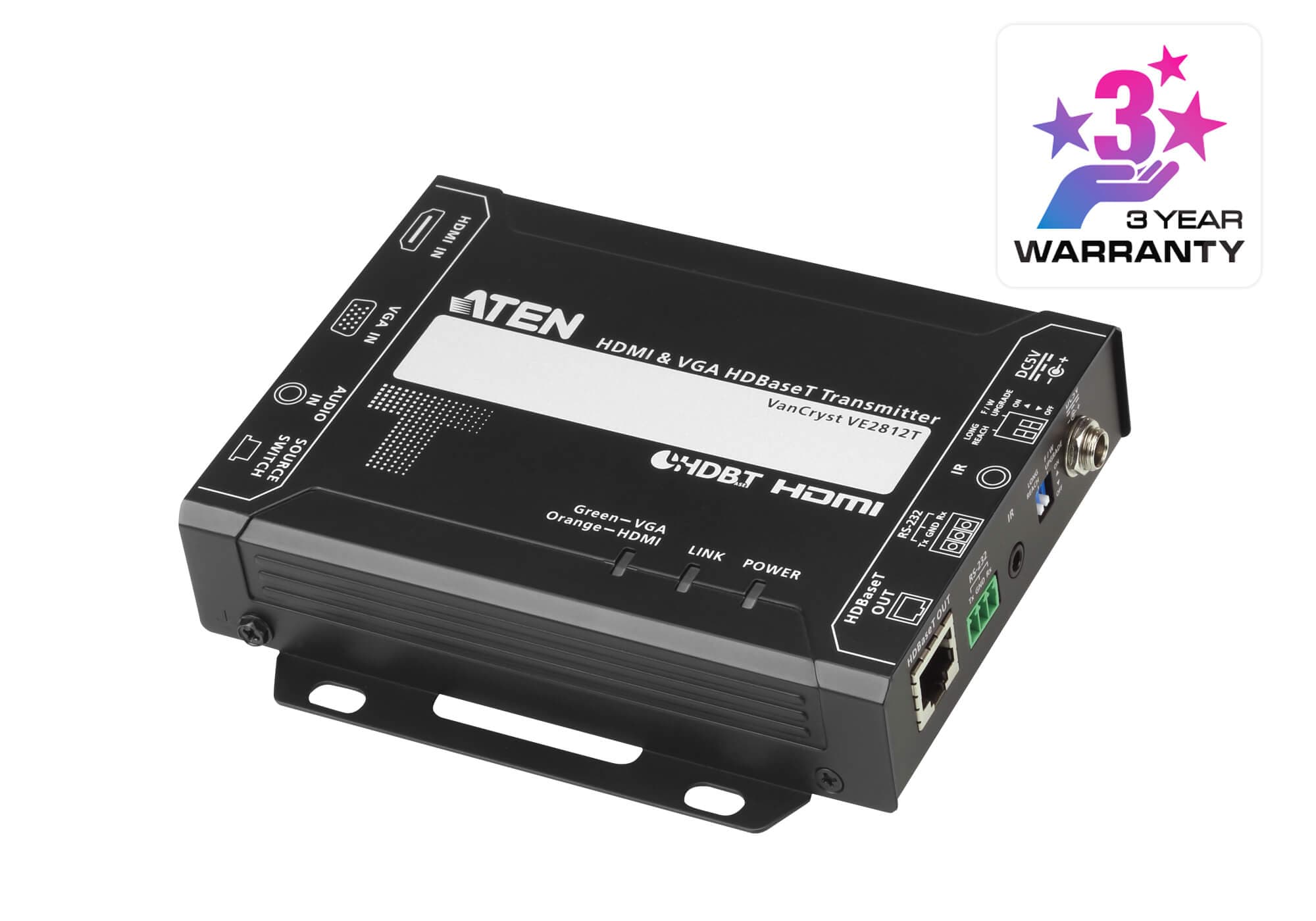

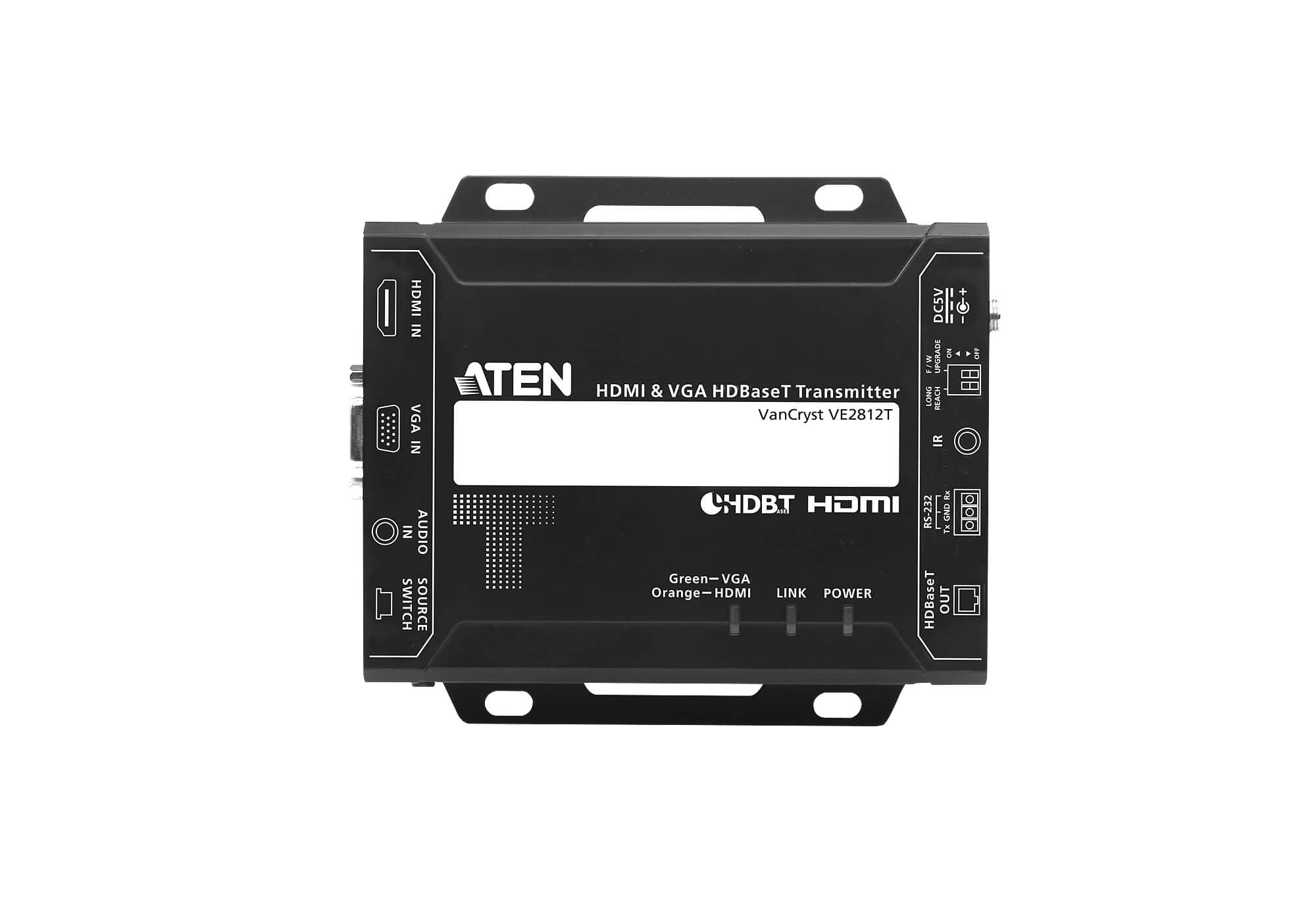

HDMI & VGA HDBaseT Transmitter (4K@100m) (HDBaseT Class A)
VE2812TСнет от производство
HDBaseT предавател, който изпраща HDMI или VGA сигнал по един Cat 5e/6/6a кабел — 4K до 100 m, а в режим Long Reach до 150 m при 1080p.
Характеристики
- Extends HDMI or VGA signals over a single Cat 5e/6/6a cable
- HDMI (3D, Deep color, 4K); HDCP compatible
- Superior video quality: • 4K / 1080p at distance up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable • VGA 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Supports Auto Switch – the VE2812T automatically switches to a newly plugged-in source

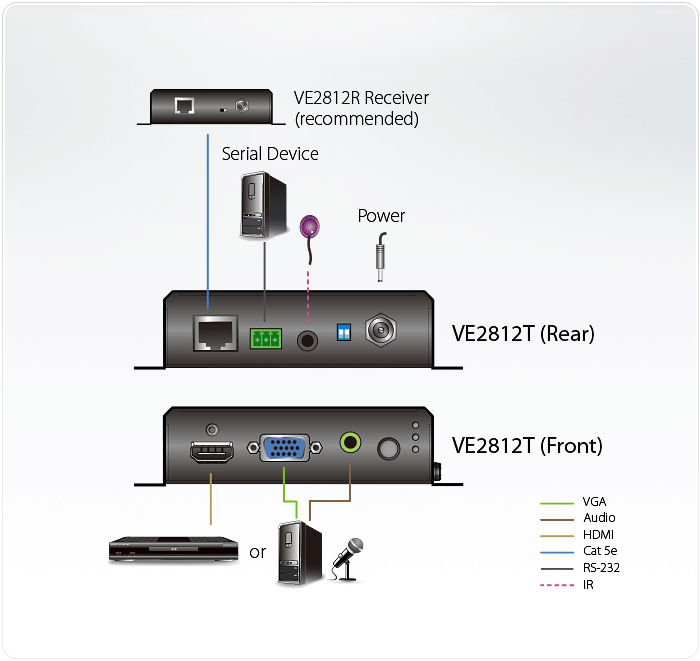

- Functions as a switch or a converter : • A Switch: Connects two sources (HDMI or VGA) • A converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
- RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Compatible Receivers – VE2812R, VE1812R, VE811R, VE814AR, VE801R, VE802R, VE601R, VE901R, or future ATEN HDBaseT Receivers
- Plug-and-play with no software installation required
- Rack mountable
- Built- in 8KV / 15 KV ESD protection

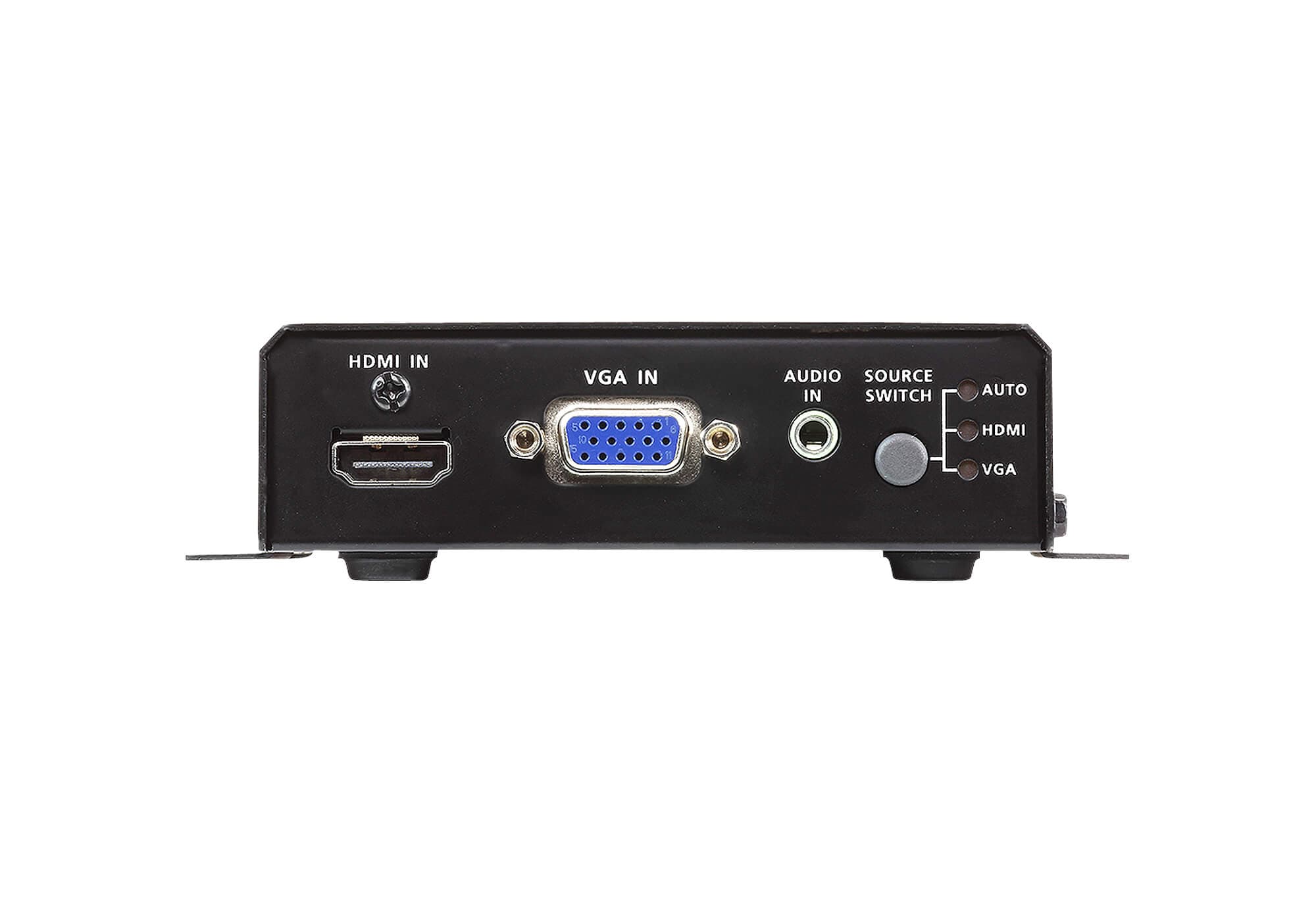

Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue)
- Импеданс
- HDMI: 100 Ω HDB-15 (VGA): 75 Ω
- Макс. разстояние
- 1.8 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

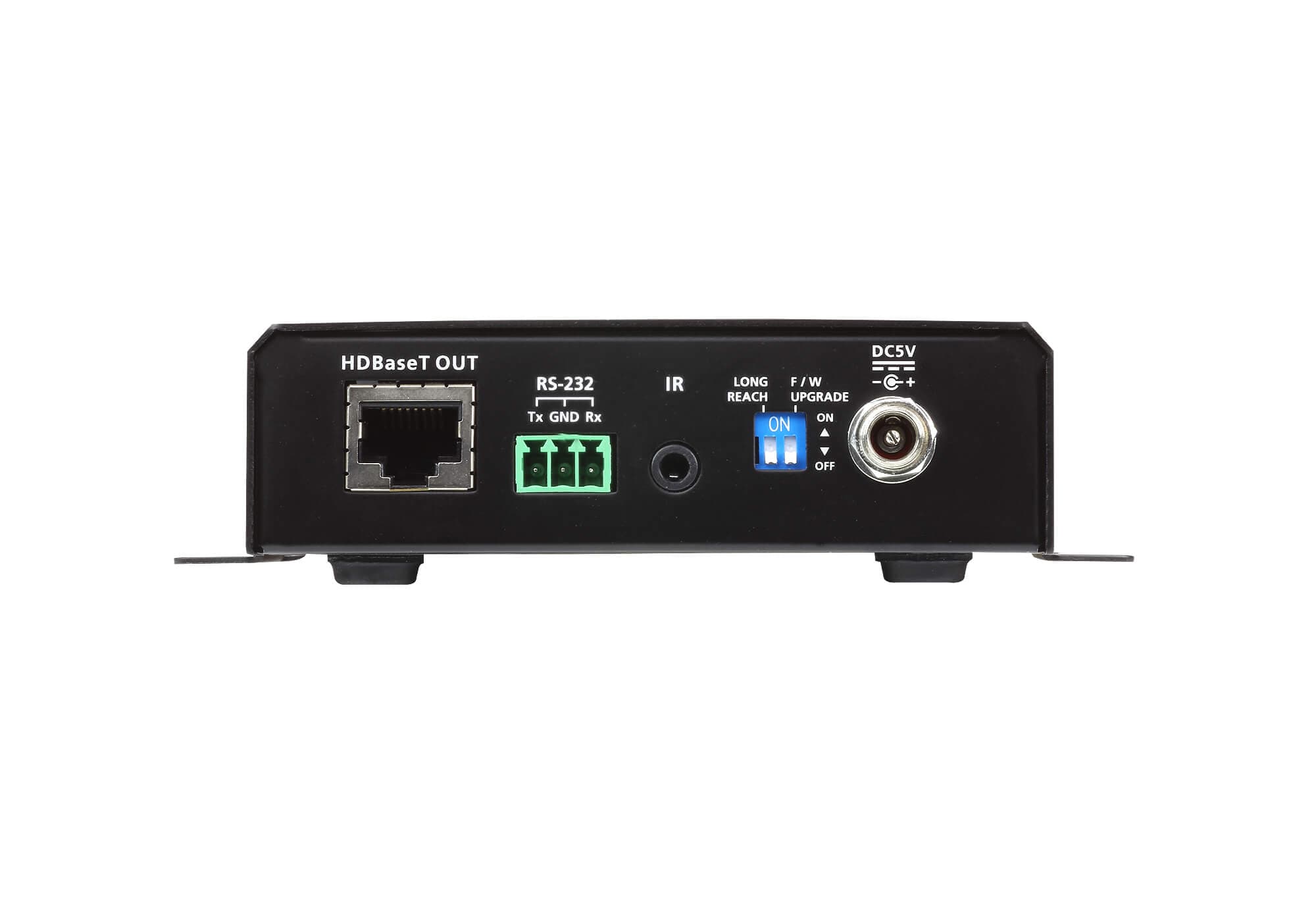

Конектори
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack (Black) with locking
Управление
- RS-232
- Connector: 1 x Terminal Block, 3 pole; Type: DTE Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- IR
- 1 x Mini Stereo Jack Female (Black)
Бутони и превключватели
- Избор на видео вход
- 1 x Push Button - HDMI, VGA and AUTO
- Превключвател Long Reach
- 1 x Slide Switch - ON/OFF
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
- Консумация
- DC5V:2.99W:14BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В) със скоба
- 14.32 x 12.30 x 3.00 cm (5.64 x 4.84 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
