USB-C Multiport Dock with Power Pass-Through
UH3234Снет от производство
Докинг станция за USB-C лаптоп, която свързва до 10 устройства през един кабел: HDMI, DisplayPort и VGA изходи, USB 3.2 Gen 1 портове, Gigabit Ethernet, четец за карти и PD зареждане до 60 W.
Характеристики

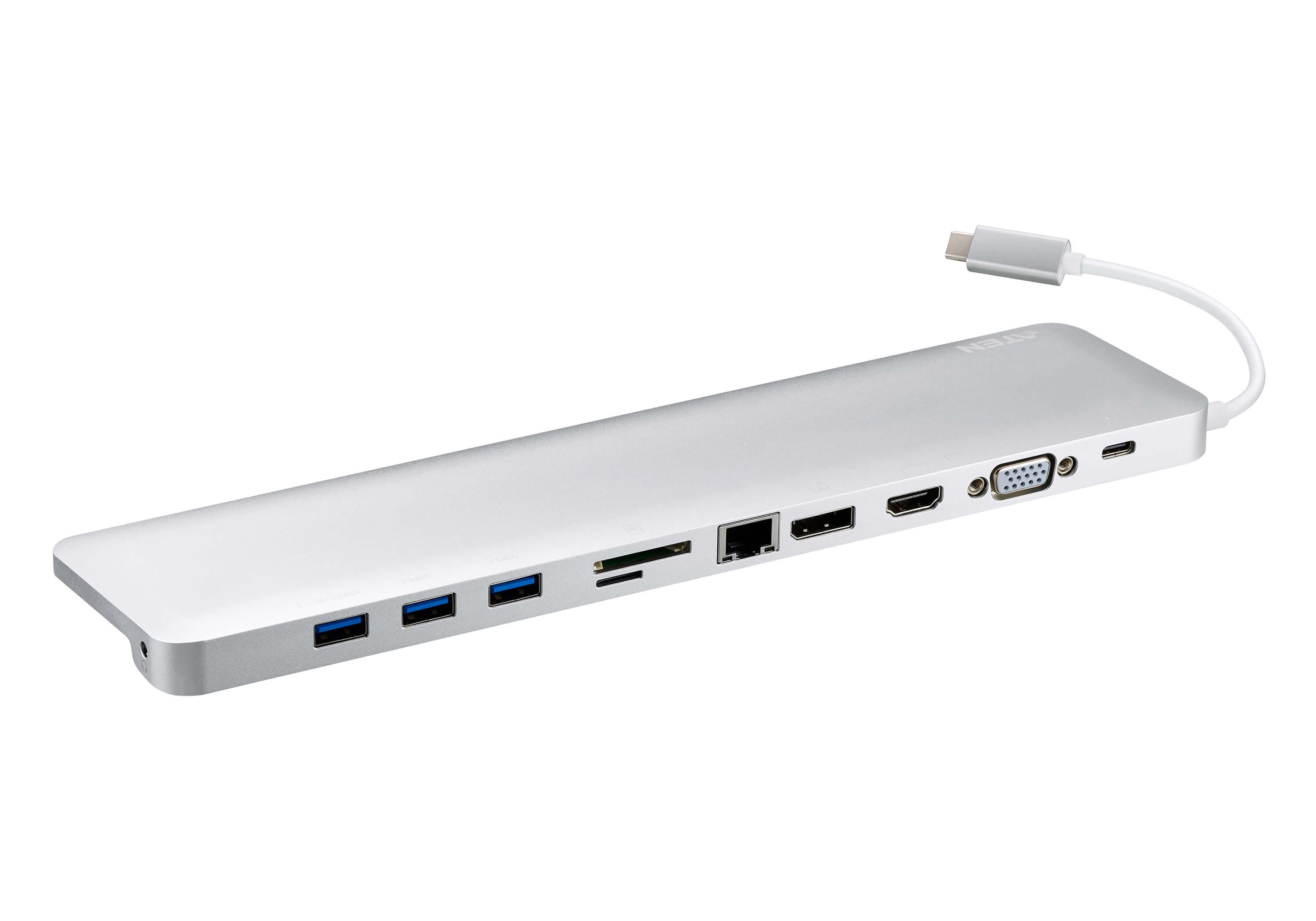

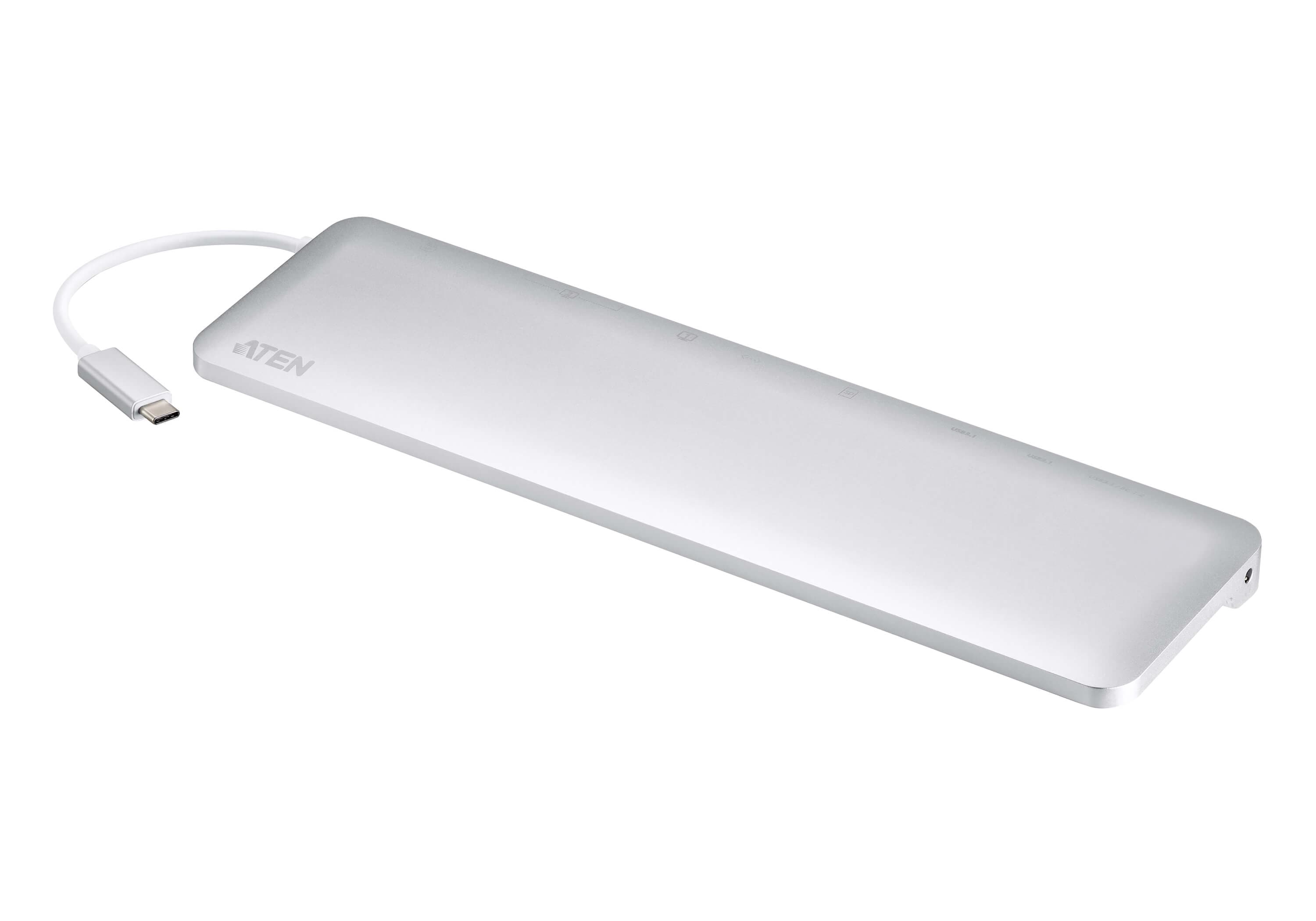

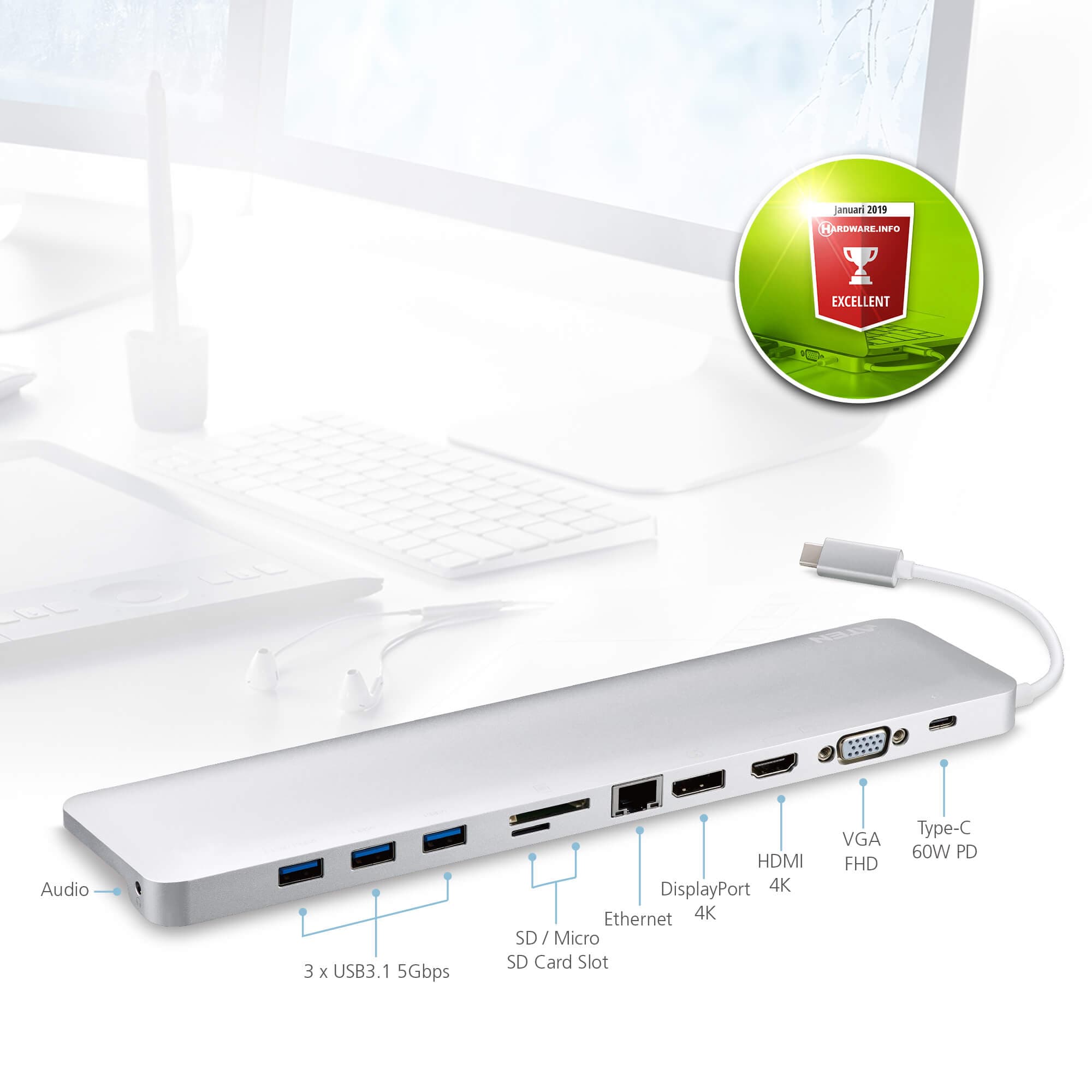

- A stylish and ultra slim docking station with HDMI, DisplayPort, VGA, USB 3.2 Gen 1 Type-A, SD/MMC/MicroSD, Ethernet and audio ports1

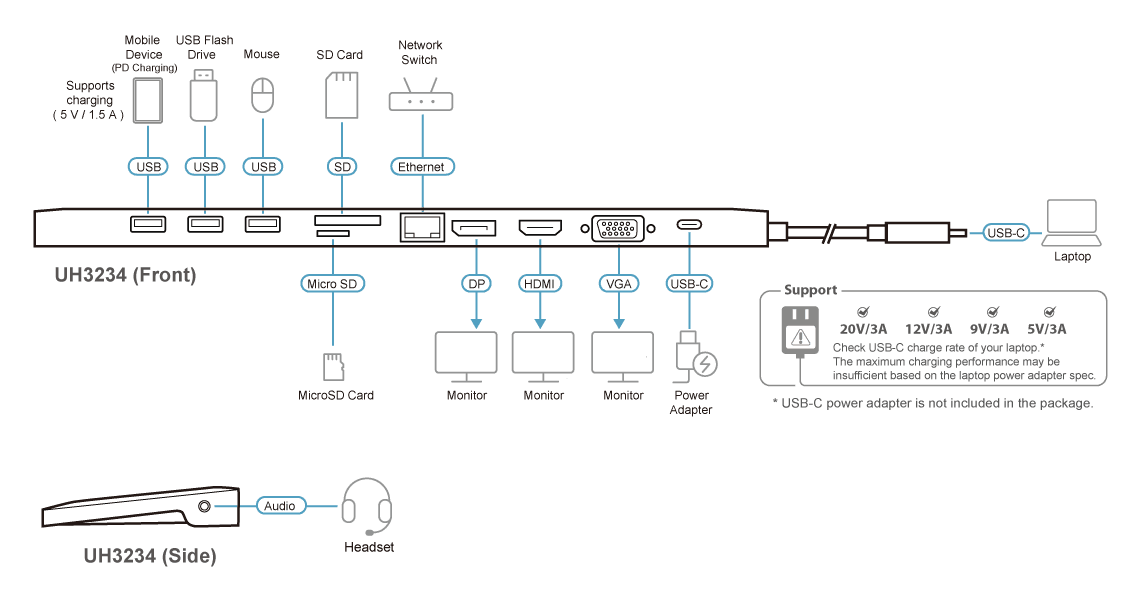

- Allows for connecting up to 10 devices instantly via a USB-C cable
- Provides Power Delivery Pass-through up to 60 W after 15 W deducted and used by the dock2
- Supported power profiles include 20V/3A, 12V/3A, 9V/3A, and 5V/3A power specifications

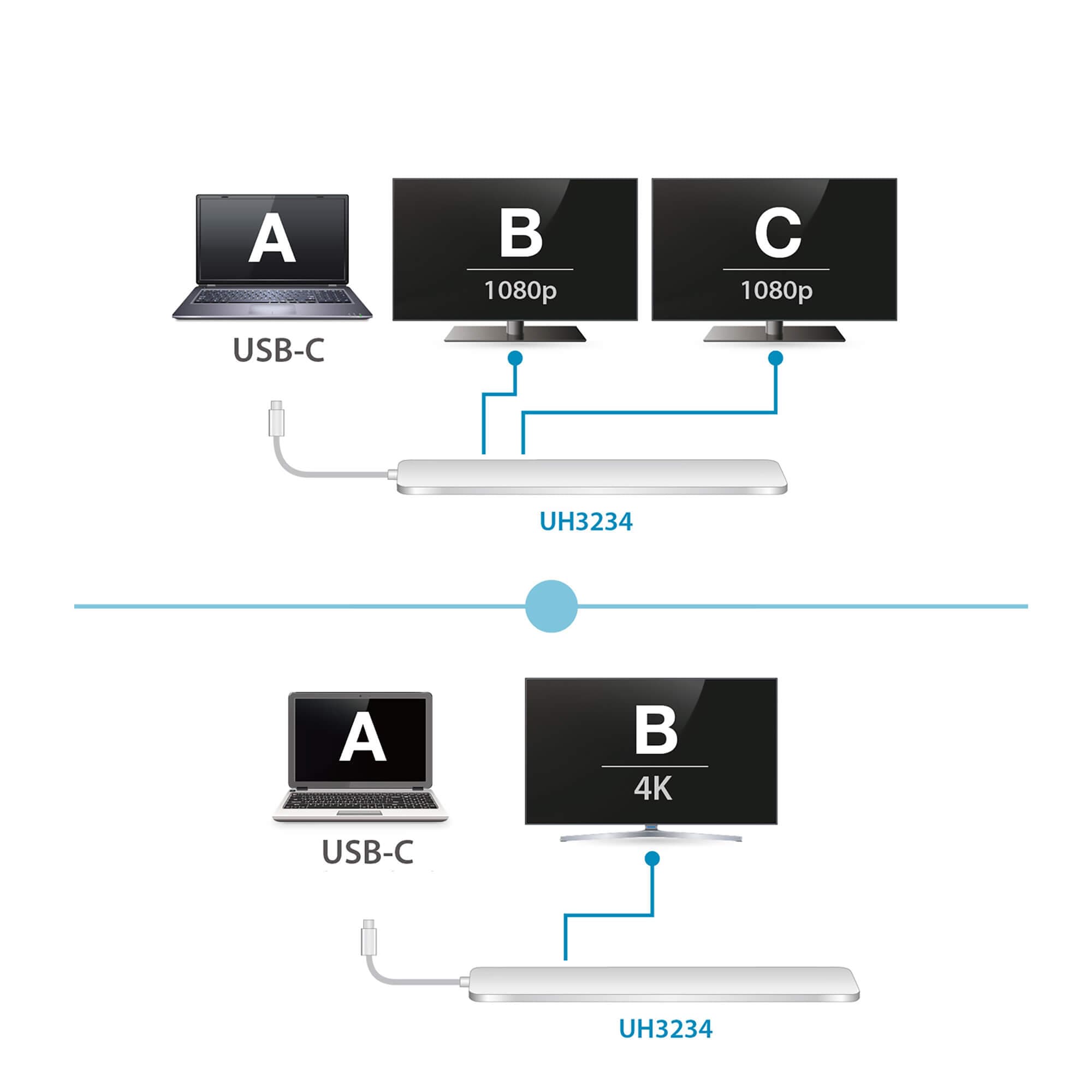

- Supports 4K resolutions on a single HDMI / DisplayPort display or dual 1080p on a DisplayPort and an HDMI/VGA3 monitor
- 1 x USB 3.2 Gen 1 Type-A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for Fast-Charging devices

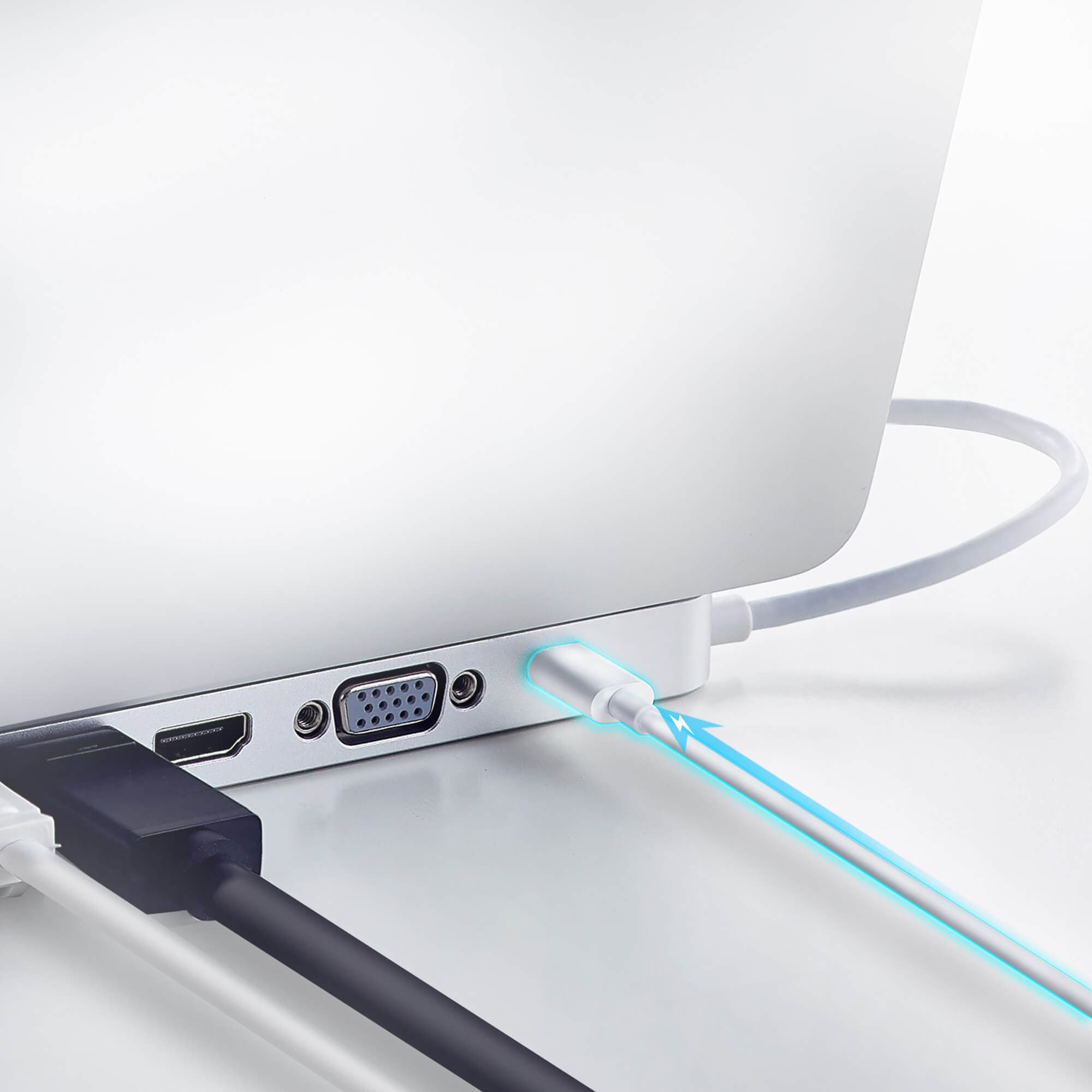

- Enhanced EMI protection by increasing the cable braid density and adding conductive foam Note: 1. SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion. 2. Power Delivery Pass-Through requires original USB-C charger from laptop. 3. • For video output to work through a USB-C port, it must support DP Alt Mode. For Dual-View to work, a computer's graphics card must support MST technology. • Mac computers only support single-view output.
Спецификация
- Връзки към компютри
- 1
Конектори
- Компютър
- 1 x USB-C Male
- Устройство
- 1 x USB 3.2 Gen1 Type-A Female with BC1.2 (Blue)* 2 x USB 3.2 Gen1 Type-A Female (Blue)* *The total output of 3 USB Ports is max. 5V, 10W.
- Видео изход
- 1 x DisplayPort Female 1 x HDMI Female 1 x VGA Female
- LAN портове
- 1 x Gigabit Ethernet Female
- Аудио
- 1 x 3.5mm stereo 4-pole microphone and headphone jack
- Захранване
- 1 x USB-C DC-in Female* * Supports USB Power Delivery 2.0 for charging up to 60W, power profiles includes 5V, 9V, 12V, and 20V (additional USB-C PD power adapter needed). * The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W. * For device charging, a Limited Power Source (LPS) certified USB-C PD power adapter over 65 Watt is recommended.
Производителност
- Flash памет
- 1 x SD/SDHC/SDXC card slot* 1 x Micro SD/SDHC/SDXC (up to 128 GB) card slot* *SD and Micro SD Card cannot be used at the same time; functionality accords to the order of insertion.
- Видео резолюция
- Single-View : DisplayPort - 3840 x 2160@30 HDMI - 3840 x 2160@30 VGA - 1920 x 1200@60 Dual-View :* DisplayPort/HDMI - 1920 x 1080@60 DisplayPort/VGA - 1920 x 1080@60 * For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
- Консумация
- DC5V:15W:66BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer iPadOS 13.1 and above, iPad Pro (USB-C)* *iPad Pro only supports single view in mirror mode
Работна среда
- Работна температура
- 0°C to 40°C (32°F to 122°F)
- Температура на съхранение
- -10°C to 70°C (-4°F to 158°F)
- Влажност
- 10% to 90% relative humidity, non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.32 kg ( 0.7 lb )
- Размери (Д x Ш x В)
- 28.00 x 7.50 x 1.45 cm (11.02 x 2.95 x 0.57 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
