USB-C Multiport Dock with Power Charging
UH3230Снет от производство
Докинг станция, която през един USB-C кабел свързва до 8 устройства и зарежда лаптопа; HDMI 2.0 и DisplayPort 1.2 изходи с 4K резолюция, Gigabit Ethernet и USB 3.1 Gen 1 портове.
Характеристики
- Connect up to 8 devices to a laptop through a single USB-C cable
- Supports HDMI 2.0 with 4K (UHD) resolutions*
- Supports DisplayPort 1.2 with 4K (UHD) resolutions*
- Analog audio line-in and line-out
- Gigabit LAN port**

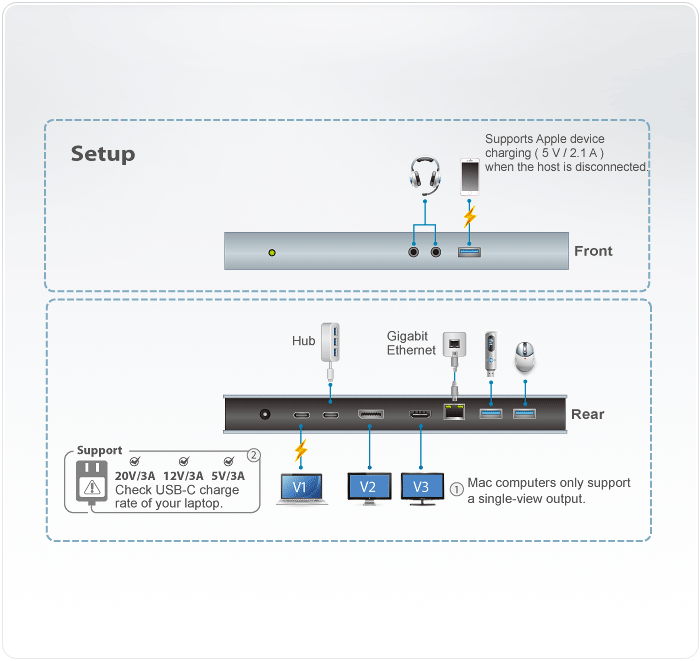

- Supports dual monitors in mirror and extended mode***
- USB 3.1 Gen 1 front panel port supports Fast-Charging
- Supports 60W USB Power Delivery 2.0 for charging a laptop via USB-C port; supported power profiles include 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A
- Works with all major operating systems: Windows®, OS X®, and i-Pad Pro****
Спецификация
- Връзки към компютри
- 1
Конектори
- Устройство
- 1 x USB-C Female (Black, Data only) 3 x USB 3.1 Gen1 Type A Female (Blue)
- Компютър
- 1 x USB-C Female (Black)
- Видео изход
- 1 x DisplayPort Female (Black) 1 x HDMI Female (Black)
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Аудио входове
- 1 x 3.5mm Stereo Input Female (Black)
- Аудио изходи
- 1 x 3.5mm Stereo Output Female (Black)
- Захранващ конектор
- 1
Индикатори
- Захранване
- 1 (White)
- Видео резолюция
- Single-View: DisplayPort- 3840x2160@30* or HDMI - 4096x2160@30 Dual-View**: DisplayPort 1 - 2048x1200@60* HDMI 2 - 1920x1200@60 *With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required. The UH3230 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI. ** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
- Консумация
- DC20V:90WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Съдържание на комплекта
- 1 x USB-C Cable
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.56 kg ( 1.24 lb )
- Размери (Д x Ш x В)
- 20.00 x 9.07 x 2.15 cm (7.87 x 3.57 x 0.85 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
