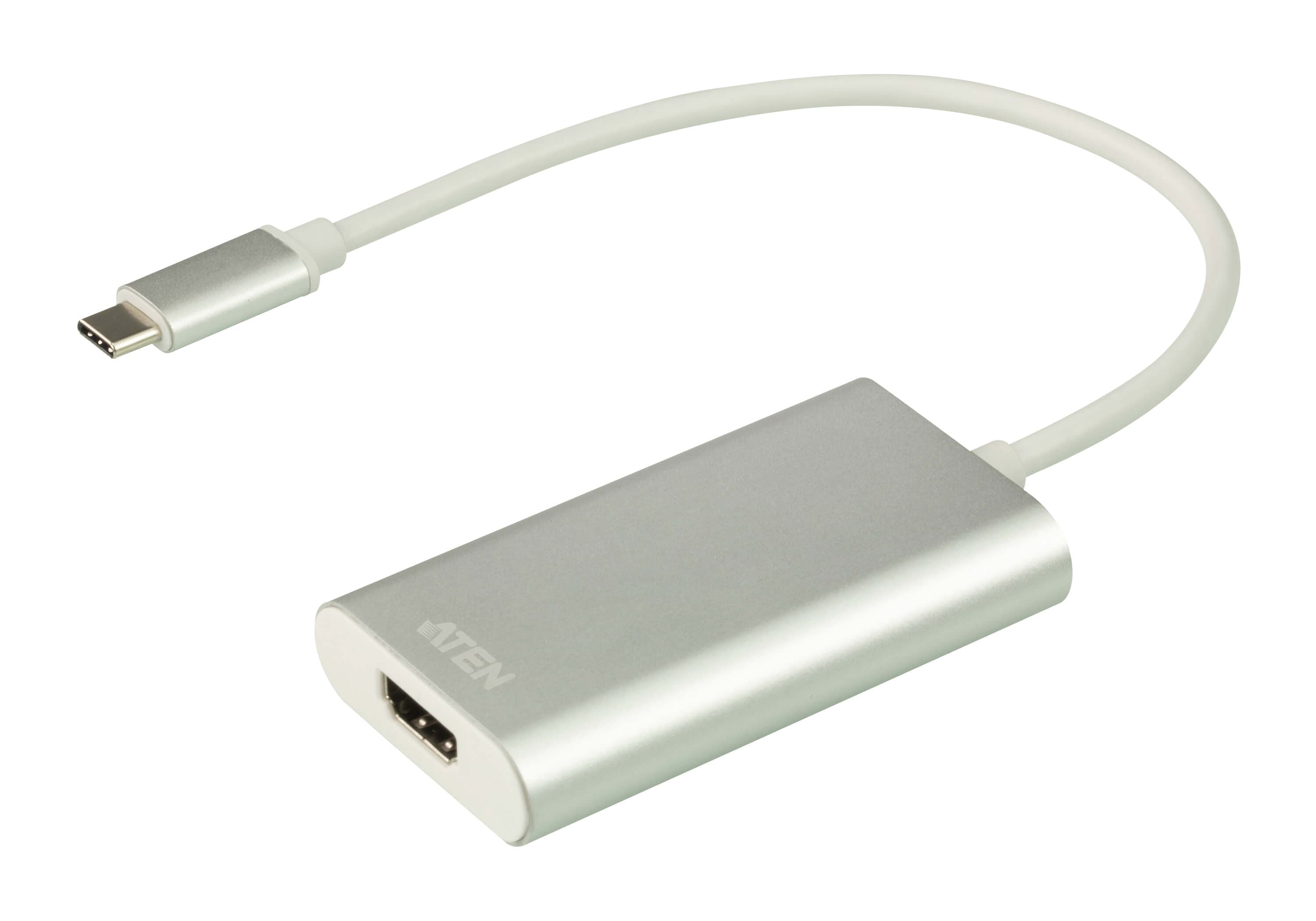

CAMLIVE™ (HDMI to USB-C UVC Video Capture)
UC3020Снет от производство

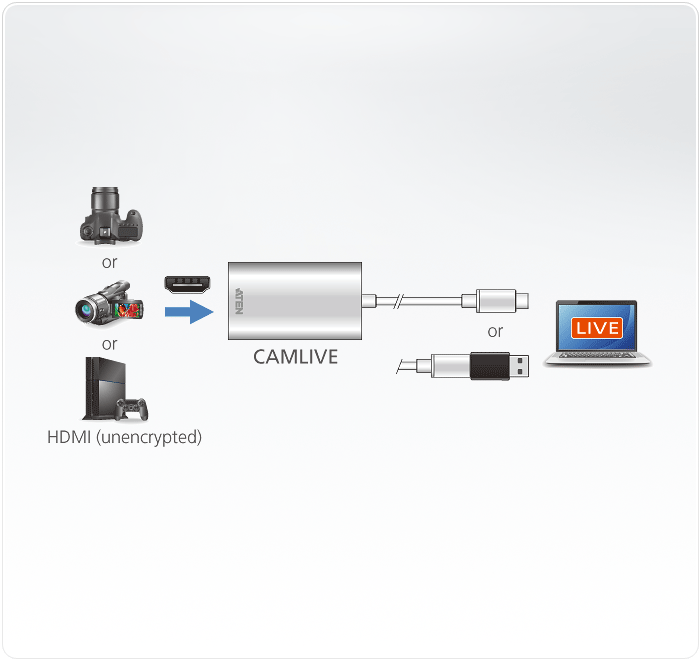

Захваща некомпресирано HDMI видео от камера или DSLR до 1080p60 и го подава по USB-C като UVC поток без драйвери; за стрийминг и видеоконференции със софтуер като OBS.
Характеристики
- Captures unencrypted HDMI video signal from camcorder or DSLR up to 1080P @ 60*
- Supports live video streaming, webcasting and video conferencing
- Compatible with popular streaming software, such as OBS, Xsplit, YouTube, Facebook and Twitch
- Plug & Play – Supports UVC/UAC v1.1
- Compatible with USB3.2 Gen1 Type-C standard
- Works with all major operating systems: Windows®, OS X® and Android® *CAMLIVE cannot display or capture HDCP protected content
Конектори
- Видео вход
- 1 x HDMI Type A Female (Black)
- USB порт
- USB 3.2 Gen1 Type-C Male (White) (USB-C to USB-A adapter package included, Black )
- Видео резолюция
- Video input: 1080p60, 720p60, 480p60, HDMI 1.4b support (unencrypted)
- Аудио дискретизация
- 16-bit PCM audio, 44.1KHz and 48KHz
- Изход
- Uncompressed 1080p, 720p60 and 480p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.2 connection)
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 – 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
- Минимални хардуерни изисквания
- PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *Latest UC3020 FW upgrade for smartphone support is required. For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
- Поддържани ОС
- Windows 10 and above * Mac OS X 10.13 and above Android 5.0.1 and above with UVC support *Window 7 requires driver installation
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.04 kg ( 0.09 lb )
- Размери (Д x Ш x В)
- 4.20 x 7.30 x 1.40 cm (1.65 x 2.87 x 0.55 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
