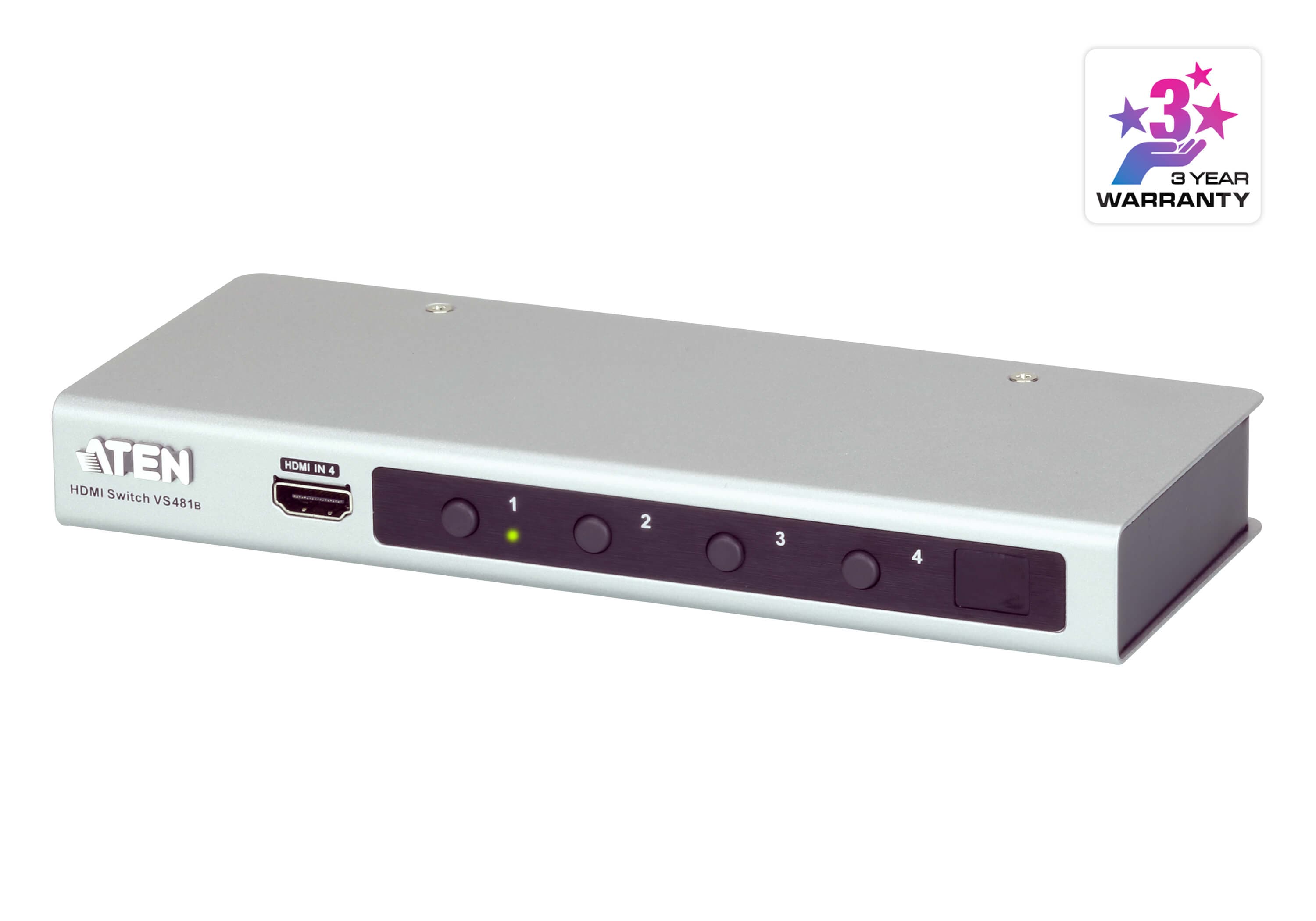

4-Port 4K HDMI Switch

Name: 4-Port 4K HDMI Switch
Brand: ATEN
SKU: VS481B

VS481B

HDMI превключвател за 4 източника към един дисплей при 4K (3840 x 2160 @ 30). Избор на вход с бутони, RS-232 или IR дистанционно.

Характеристики

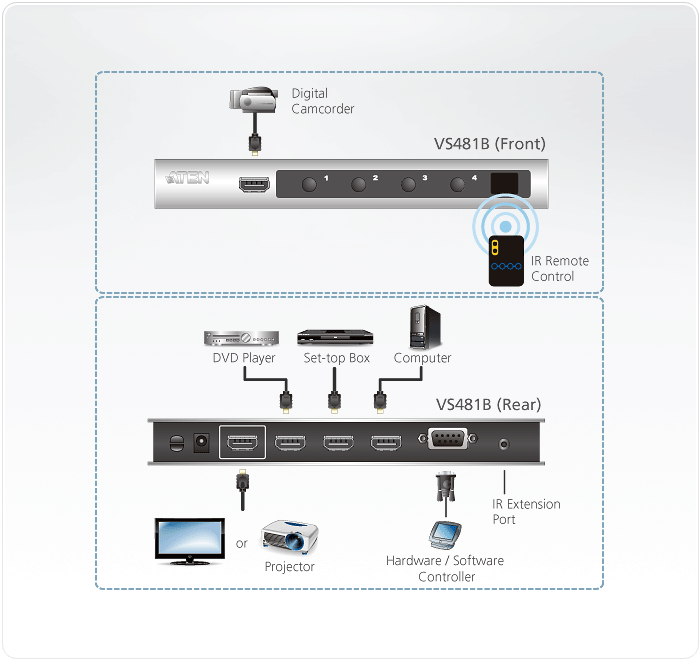

Allows up to four HDMI A/V sources to be connected to one HDMI display

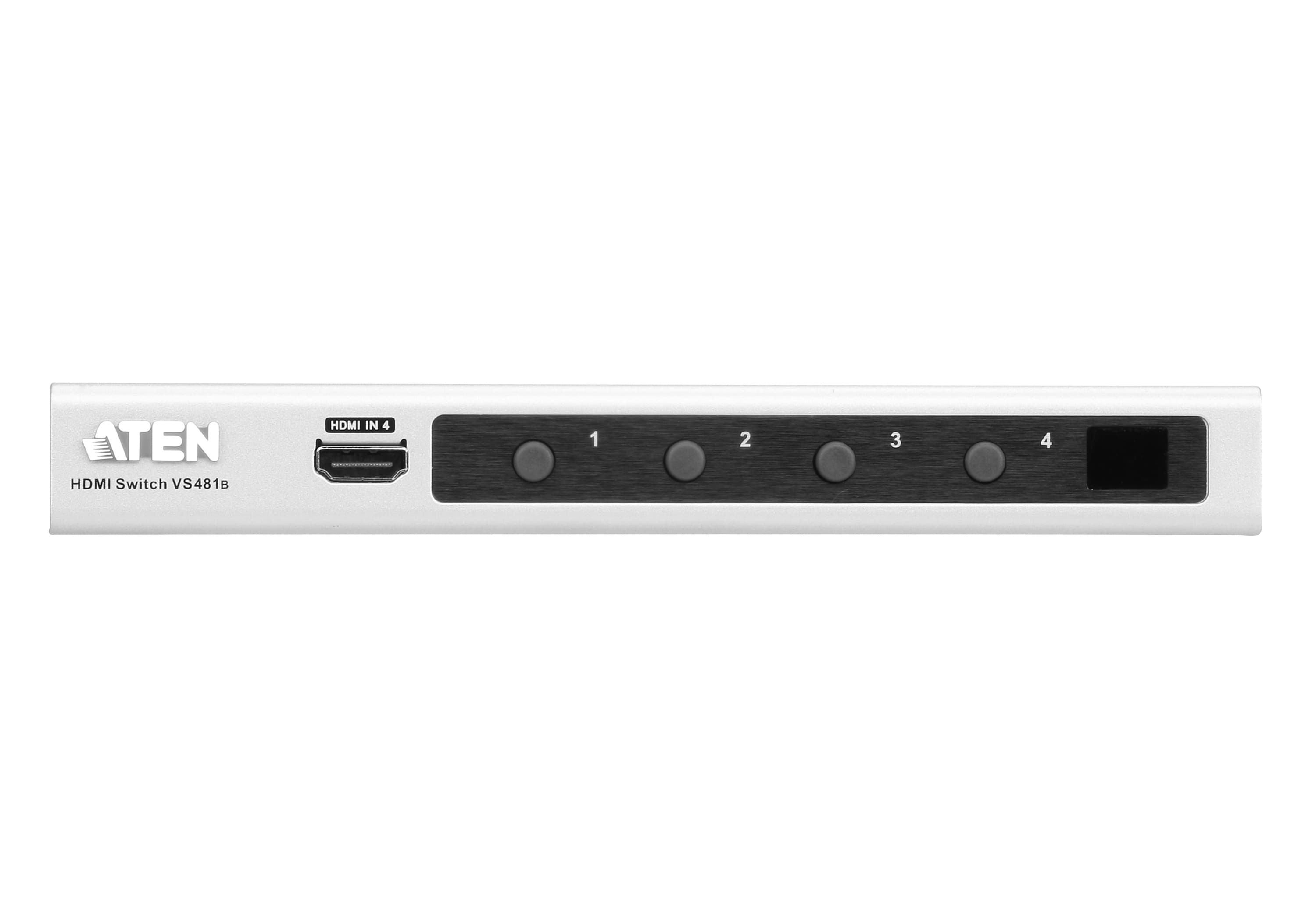

Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
Supports 340MHz bandwidth for ultrahigh 4kx2k video
HDMI (3D, Deep Color, 4kx2k); HDCP compatible
Auto switching modes for auto port selection
Long distance transmission – up to 15 m (24 AWG)
Consumer Electronics Control (CEC) support
Supports Dolby True HD and DTS HD Master Audio
Built-in bi-directional RS-232 serial remote port for high-end system control
Instant switching between HDMI input sources
Supports IR extension using a IR extension cable *
LED indication of video source devices Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Макс. резолюция: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

RS-232: Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR: 1 x Mini Stereo Jack Female (Black)

Захранване: Connector: 1 x DC Jack
Консумация: DC5V:1.76W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.48 kg ( 1.06 lb )
Размери (Д x Ш x В): 20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.)
Брой в кашон: 10 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
