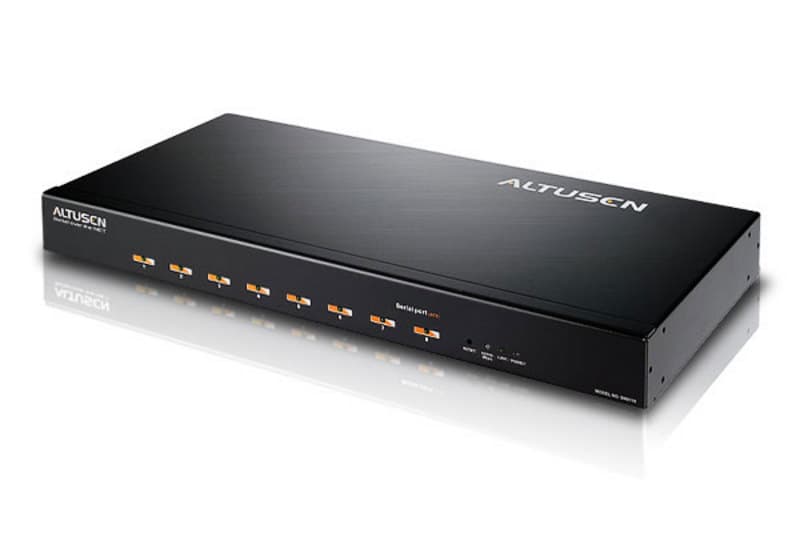

8-Port Serial Console Server
SN0108Снет от производство
Сериен конзолен сървър с 8 RJ-45 порта и 1 LAN порт за отдалечено управление на серийни конзоли — както in-band, така и out-of-band.
Характеристики
- System Accessibility and Availability
- Secure in-band and out-of-band network access to serial consoles
- In-band access of Ethernet
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Out-of-band access of dial-up modem
- Serial Console Management
- Convenient and simple access via browser or Telnet/SSH client
- Port access via Telnet/SSH client and third-party client such as PuTTY
- Direct port access from Telnet client – bypassing login to SN
- Convenient port access via the applet serial viewer from SN Web GUI
- Selectable Telnet or SSH for the serial viewer
- Sun Solaris ready – Sun “break-safe”
- Alert String
- Multiple users simultaneously access to the same port – up to 16 connections per port.
- SN0108 allows only one user to have full access to one port, and the other concurrent users may view only to the same port.
- Integrated with Power Over the NET product for port and power outlet association
- Security
- SSH and SSL support
- Private certificate support – SN0108support private certificate importing Configurable user permissions for port access and control
- Local and remote authentication and logging
- Third-party authentication – SN0108 support RADIUS and indirectly support AD through CC2000
- System Management
- System confi guration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console
- System log and event logging
- Comprehensive logging and event notifi cation
- SNMP agent
- Event notification – SN0108 support notification of SMTP email and SNMP Trap
- Firmware upgradeable
- Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
- Customizable global time zone
- NTP for time server synchronization
- DHCP for dynamic IP address assignment
- Integrated with CC2000 for data center centralized management
- Serial Device Management
- Versatile serial operating modes – SN0108 support Real COM and TCP Server
- Multiple simultaneous connections to the same port – up to 16 connections per port
- Real COM driver for Windows 2000/XP/Vista/7 and Windows Server 2003/2008
- Real TTY driver for Linux
- Fixed TTY driver for UNIX Information about Interface Adapters of SN0108 (Not included)
Конектори
- Сериен
- 8 x RJ-45 Female
- LAN портове
- 1 x RJ-45 Female
- Захранване
- 1 x IEC 60320/C14
- Локална конзола
- N/A
- Модем
- N/A
- PON
- N/A
- Laptop USB Console (LUC) порт
- N/A
- USB порт
- N/A
Бутони и превключватели
- Захранване
- 1 x Rocker Switch
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- Сериен
- 8 (Green)
- Връзка
- 1 (Green)
- 10/100 Mbps
- 1 (Orange/Green)
- 10/100/1000 Mbps
- N/A
- Захранване
- 1 (Blue)
- Макс. входна мощност
- 100–240VAC; 50/60Hz;1.8A
- Консумация
- 120V; 8W/ 230V; 8W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.30 kg ( 7.27 lb )
- Размери (Д x Ш x В)
- 43.72 x 20.98 x 4.40 cm (17.21 x 8.26 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
