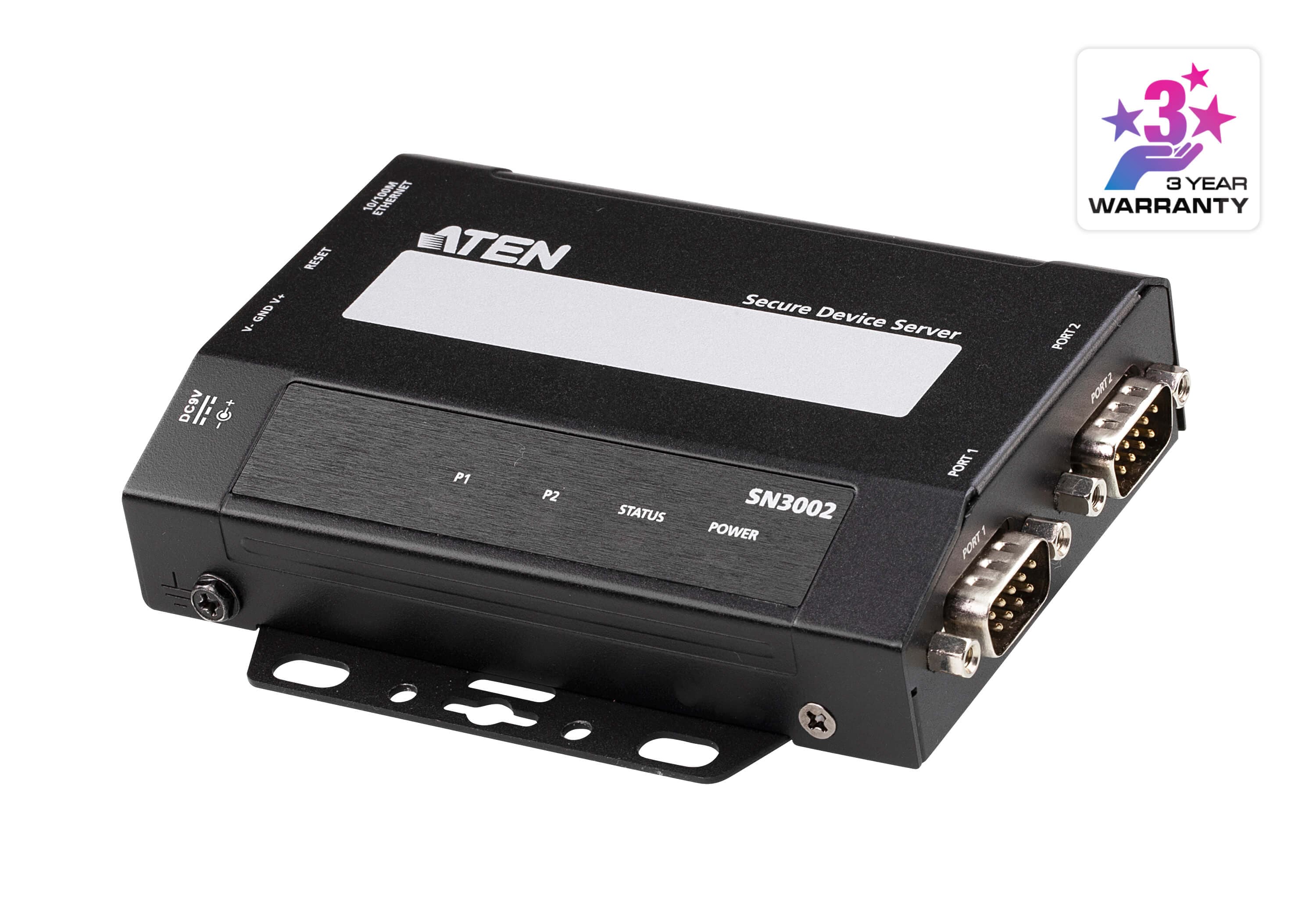

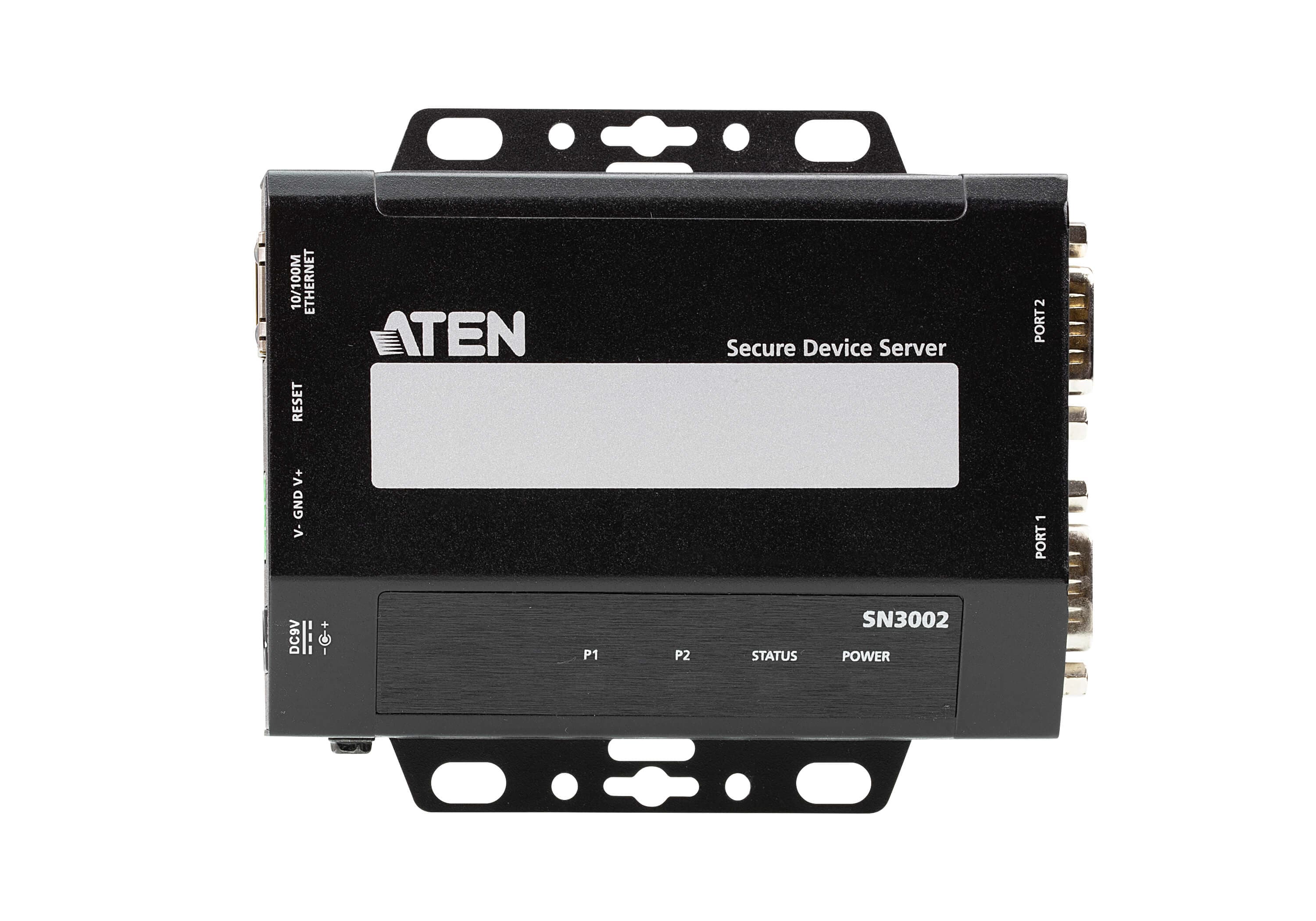

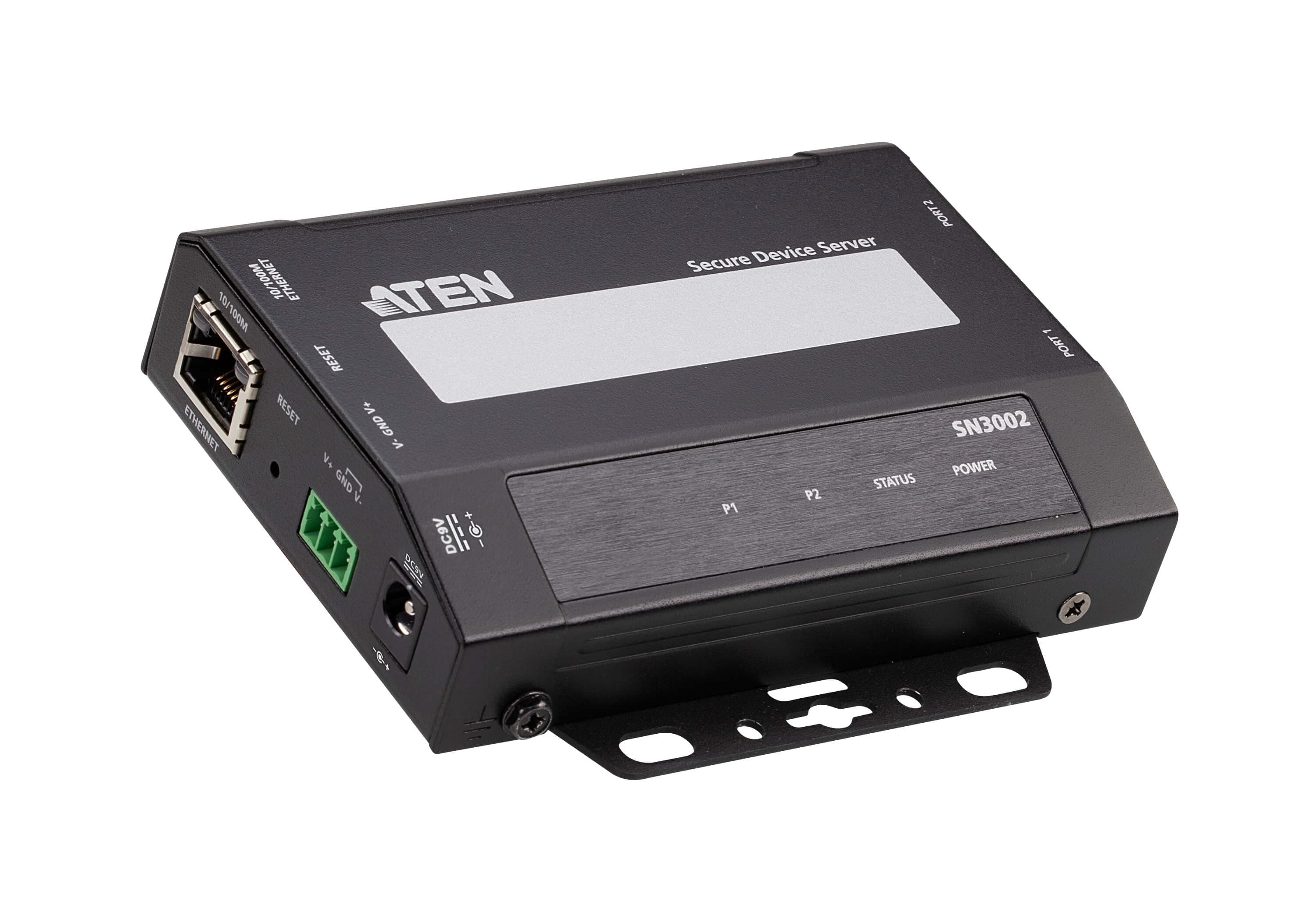

2-Port RS-232 Secure Serial Device Server
SN3002
Сървър за серийни устройства с 2 порта RS-232 (DB-9) за защитен пренос на серийни данни през Ethernet. Режими Secure Real COM и Secure TCP Server/Client; драйвери за Windows, Linux и UNIX.
Характеристики
- 2 RS-232 serial ports for secured serial data over Ethernet transmission
- Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
- Standard operation modes – Real COM, TCP Server / Client, Serial Tunneling Server / Client, UDP, Console Management (Telnet), and Console Management Direct (Telnet)
- Real COM, Real TTY, and Fixed TTY drivers for Windows, Linux, and UNIX
- Convenient console management access via Java viewer (SSH/Telnet) or third-party clients such as PuTTY
- Easy console port access via Java viewer and Sun Solaris ready ("break-safe")
- Multiple users can simultaneously access the same port – up to 16 connections per port
- Redundant power input (power jack and terminal block) for fail-safe power
- Surge protection for serial, Ethernet, and power
- DIN-rail mounting, wall mounting, rack mounting, and desktop installation available
- Supports baud rates of 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k bps
- Supports secured login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- Local and remote authentication and login
- Third-party authentication (e.g. RADIUS)
- IP address filter for security protection
- Browser access with an intuitive GUI design
- Web-based quick setup wizard for fast configuration
- Terminal-based access with a menu-driven UI via Telnet / SSH
- Online / Offline detection of connected serial devices (including terminal blocks) – automatically sending event notifications when the devices are offline (e.g. power failure) for device status monitoring
- System event logs will be saved to an internal memory or Syslog server
- Port logs will be saved to an internal memory or Syslog server
- SNMP agent (v1/v2c)
- Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c)
- Backup / Restore system configuration and upgradeable firmware
- 64 KB port buffer prevents data loss when the network is down
- NTP for time server synchronization
- Multi-language web-based GUI
Конектори
- Сериен
- 2 x DB-9 Male
- Мрежа
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack 1 x 3-pole Terminal Block
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- Захранване
- 1 (Green)
- Състояние
- 1 (Yellow Green/Red)
- 10/100 Mbps
- 2 (Green/Orange)
- Портове
- 2 (Green/Orange)
- Входно напрежение
- DC Jack: 9VDC (Power Adapter: 9VDC，100-240VAC 50~60 Hz) Terminal Block: 9-48 VDC
- Консумация
- DC9V:0.769W:4BTU/h DC48V:0.939W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Интерфейси
- Сериен
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Baud Rate: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps Data Bits: 5, 6, 7, 8 Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 1.5, 2 Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
- Мрежа
- 10/100 Base TX Built-in 1.5 kV Magnetic Isolation Protection
- Съответствие
- EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 10 MHz: 3 V/m; 10 kHz to 30 MHz: 3 to 1 V/m; 30 kHz to 80 MHz: 1 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs Safety: UL 60950-1 and UL 62368-1 standards compliant RoHS
Работна среда
- Работна температура
- 0 - 60°C
- Температура на съхранение
- -40 - 75°C
- Влажност
- 5 ~ 95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.21 kg ( 0.46 lb )
- Размери (Д x Ш x В)
- 9.80 x 11.70 x 2.60 cm (3.86 x 4.61 x 1.02 in.)
- Монтаж
- Desktop, Wall Mounting, Din-Rail Mounting, Rack Mounting (with VE-RMK1U)
- Други
- Rack mounting kit (VE-RMK1U) is sold separately.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
