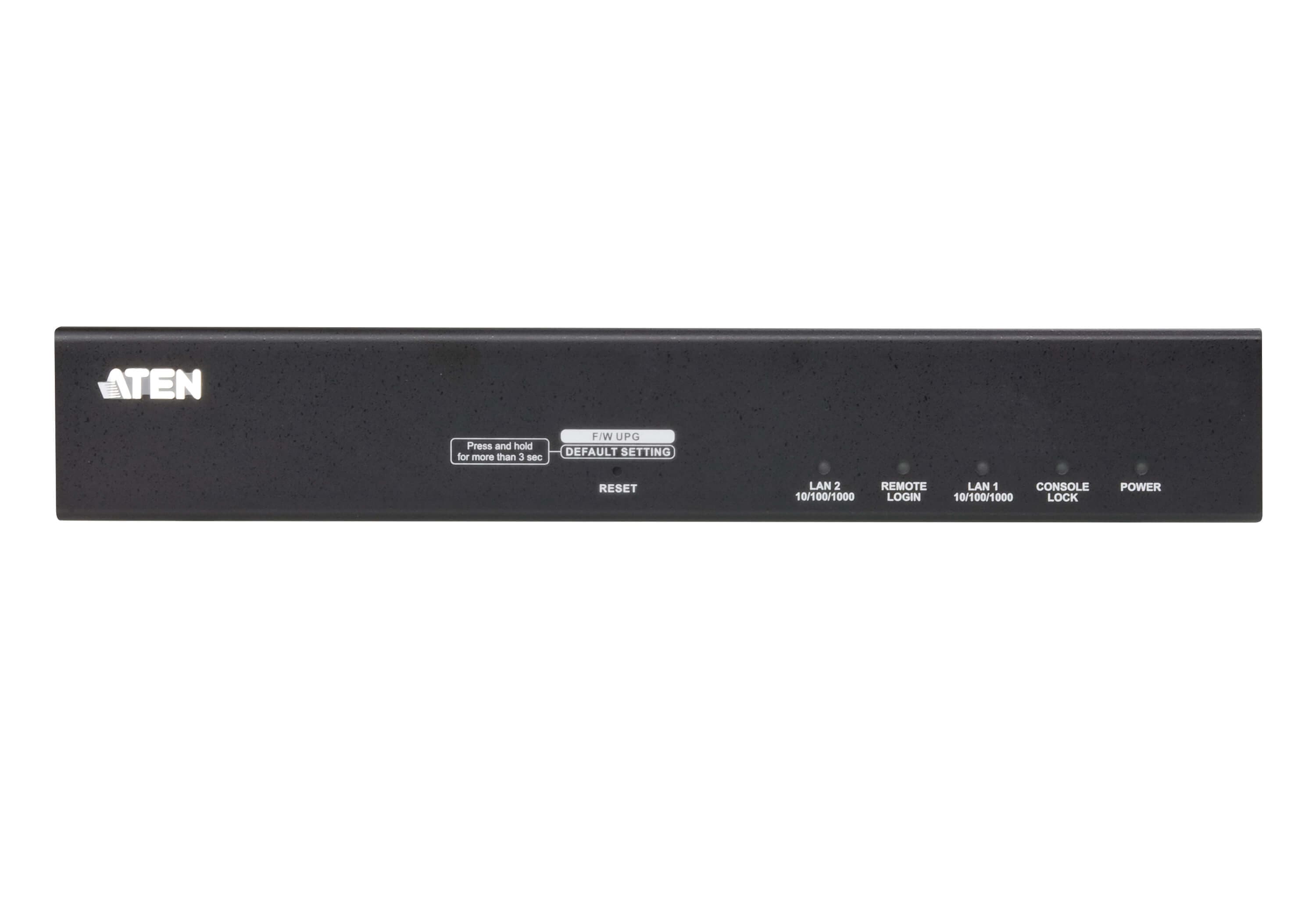

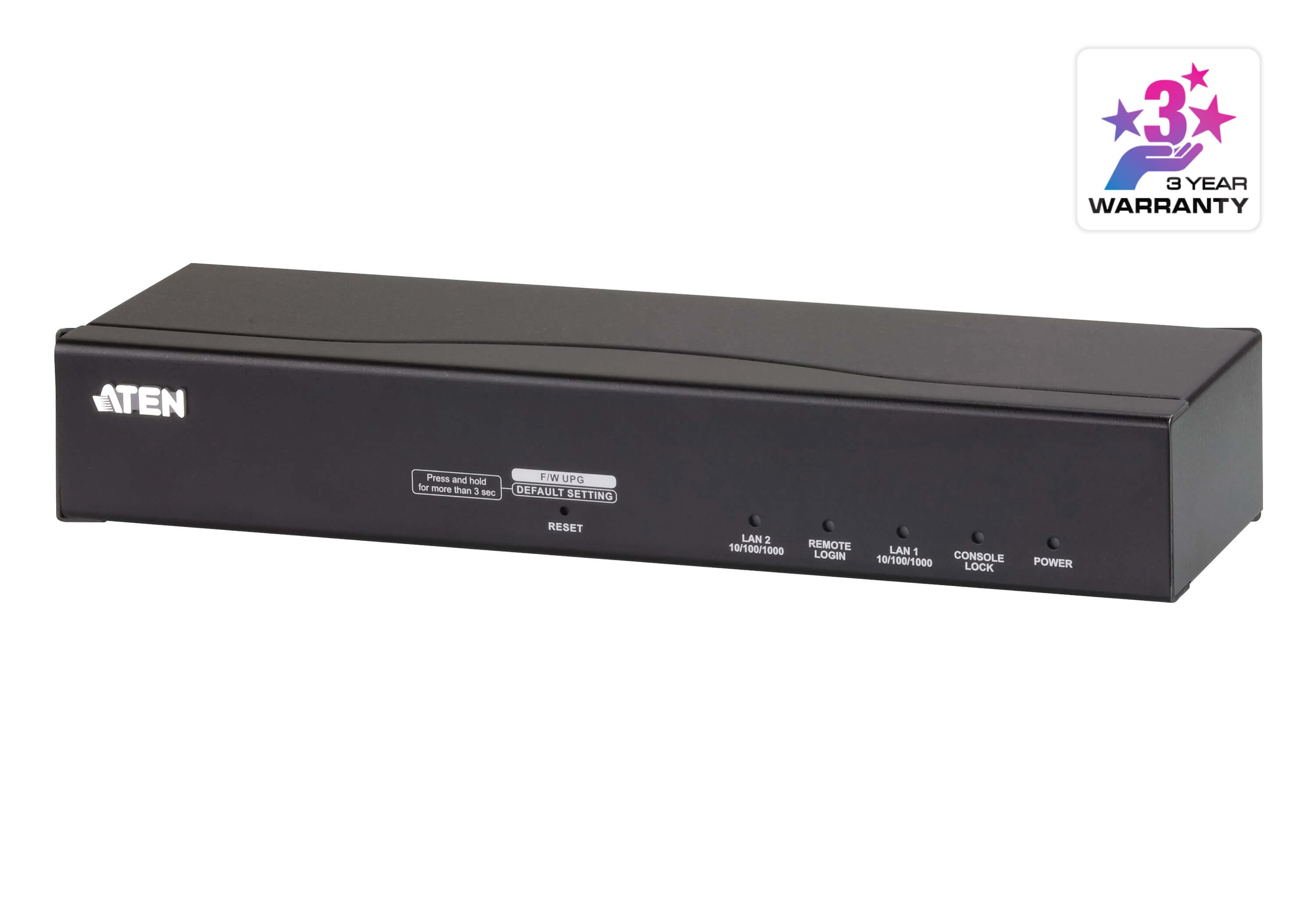

1-Local/Remote Share Access Single Port DVI KVM over IP Switch

Характеристики

• Supports Access Control Box which allows users to enable/disable remote control privilege
• Supports Panel Array to monitor all machines for operators with multiple RCM products
• Supports exclusive integrated RCM API (DLL) interface with various function for system integrators
• Supports OCR API (DLL) interface for optical character recognition
• Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality*
• Local console provides USB keyboard and mouse support**
• A mini USB port on the rear panel serves as a Virtual Media USB port, as well as a Laptop USB Console (LUC) port
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Dual Power Supply for power backup
• Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
• Virtual Media Support***
• High video resolution – up to 1920 x 1200 @ 60Hz RB for both local and remote consoles
• Enhanced fps (frames per second) throughput for crisp responsive video display
• Audio Support – microphone and speakers are supported on the local and remote console * Compatible KVM Switch: ATEN DVI Single Link KVM Switches **Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue. *** Some of the RCM101D's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
• Up to 64 user accounts – up to 32 users can simultaneously share control
• Console access right management
• End session feature – administrators can terminate running sessions
• Event logging and Windows-based Log Server support
• Event Logging – the RCM101D can record all events that take place on it and write them to a searchable database
• Critical system events sent by email and SNMP trap; Syslog support
• Firmware upgradable via remote access
• Access the RCM101D via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
• Out of Band Support – access the RCM101D through its serial port using a dial-up connection
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Local/Remote Share Mode conveniently grants shared or exclusive console privilege
• PON support to control PN0108
• DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
• Exports/imports user account and configuration settings
• Browser Access Permission – extra security feature to allow/disallow browser/http/https access
• IPv6 capable
• Console Lock – flexible Console access right management
• Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
• Full-screen or sizable and scalable Virtual Remote Desktop
• Magic Panel with configurable function for quick launch
• Smart Card/CAC Reader Support
• External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
• Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
• Supports IP/MAC Filter
• Supports password protection
• Private CA
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• Works with USB-enabled servers at OS and BIOS level
• Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
• Full screen video display or scalable video display
• Message Board for communication among remote users
• On-screen keyboard with multilanguage support
• Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
• Supports Exit Macros
• BIOS-level access
