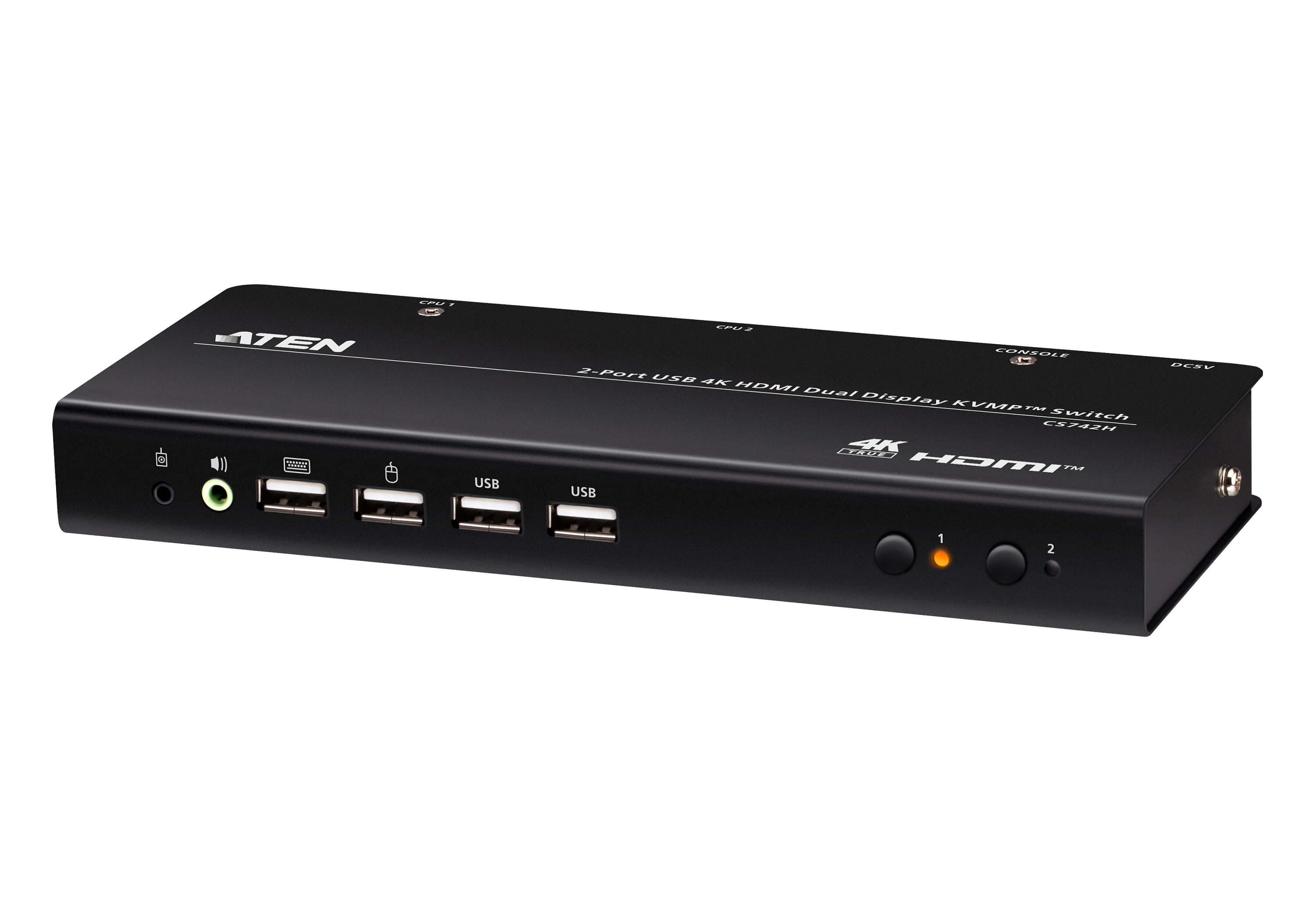

2-Port USB 4K HDMI Dual-Display KVMP™ Switch (Cables included)
CS742H
Настолен KVMP комутатор, при който една USB клавиатура и мишка управляват 2 компютъра с по два монитора при до 4096 x 2160 @ 60 Hz. Кабелите са включени; вграден USB 2.0 хъб.
Характеристики

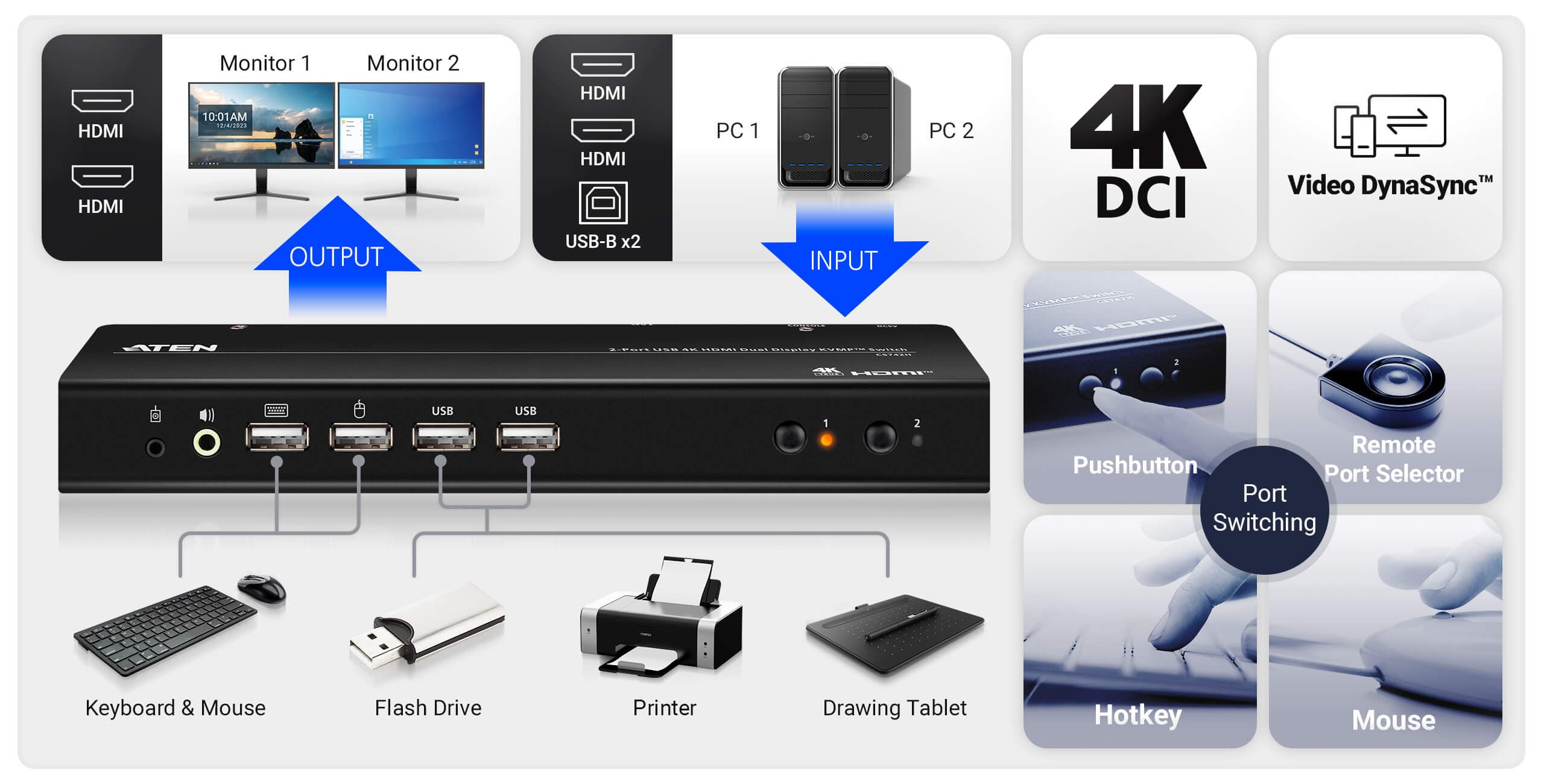

- Single USB keyboard and mouse control up to 2 PCs, simplifying cables and reducing the cost of multi-computer setups
- Superior video quality – up to 4096 x 2160 @ 60 Hz, 5120 x 1440 @ 60 Hz
- Computer Selection via pushbuttons, remote port selector, hotkeys, and mouse wheel

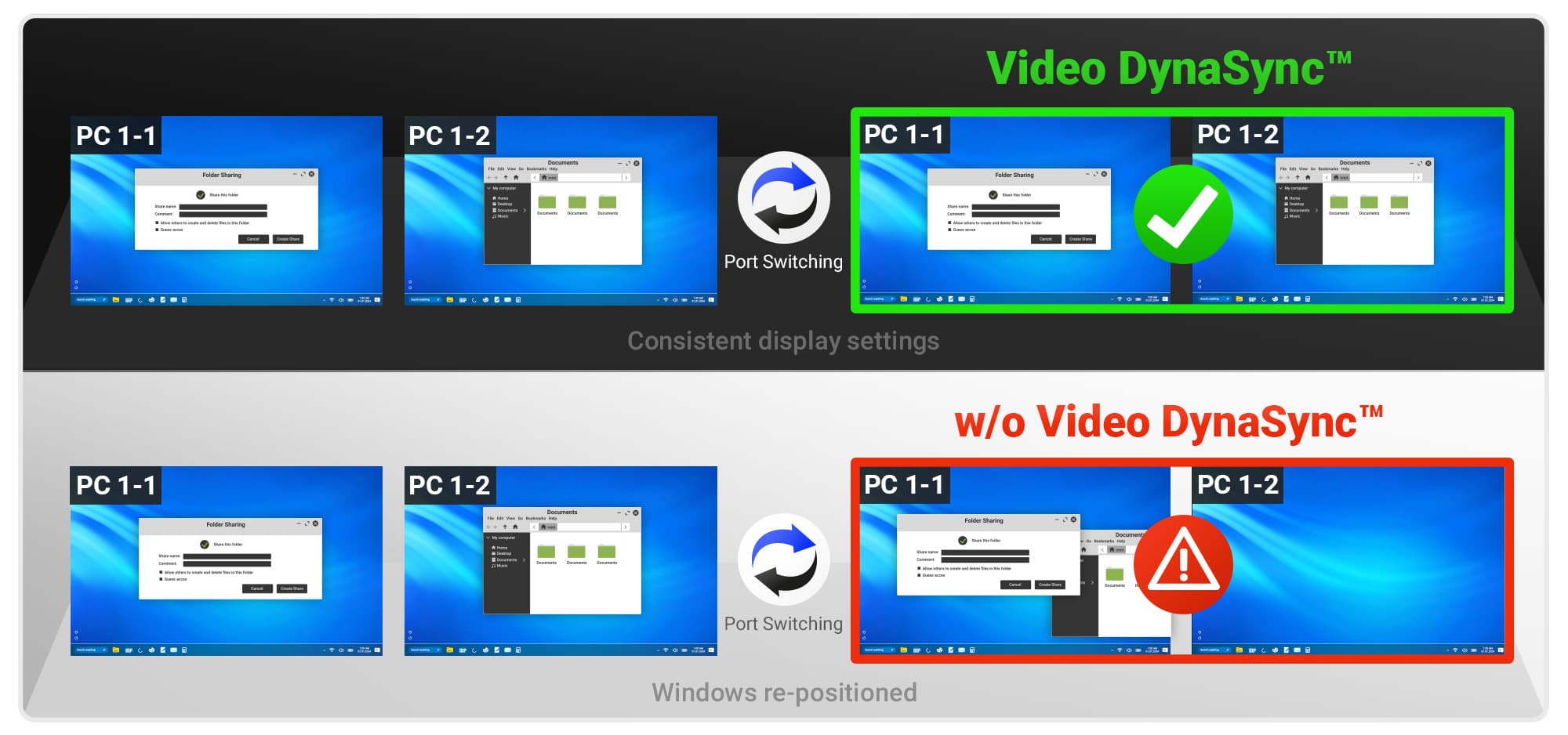

- Supports Video DynaSync™ – Exclusive ATEN technology ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows
- Multiplatform support – Windows, Mac, and Linux

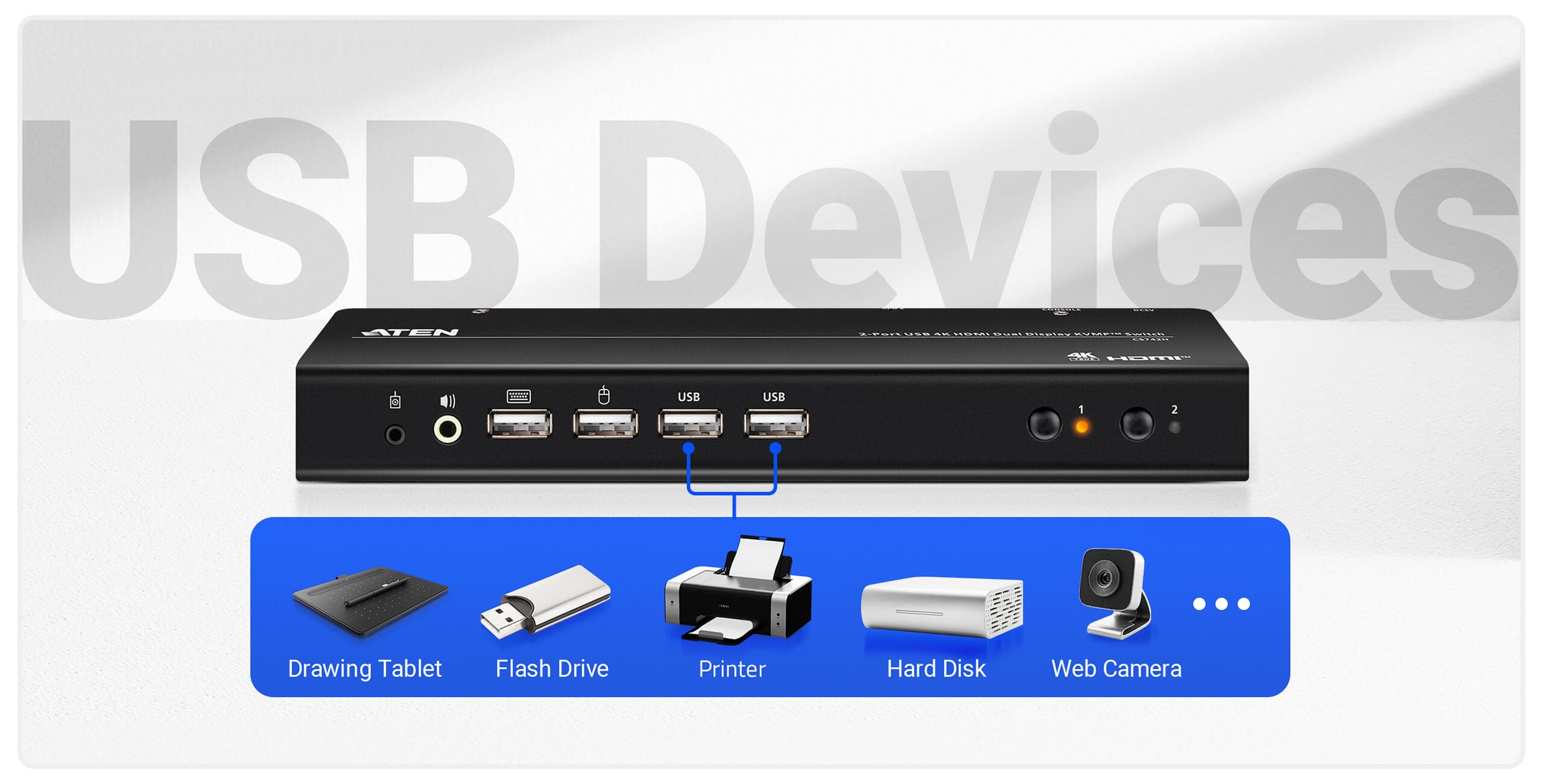

- USB peripheral sharing
- All HDMI / USB cables and power adapter included – for hassle-free installation, no extra purchases needed
- Power-on detection automatically switches to the next active computer
- Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
- Auto-scan function allows continuous monitoring of connected systems
- Plug and play – no software installation or configuration required
- Supports hot-plugging
- Firmware upgradeable
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton, Mouse wheel, Remote Port Selector

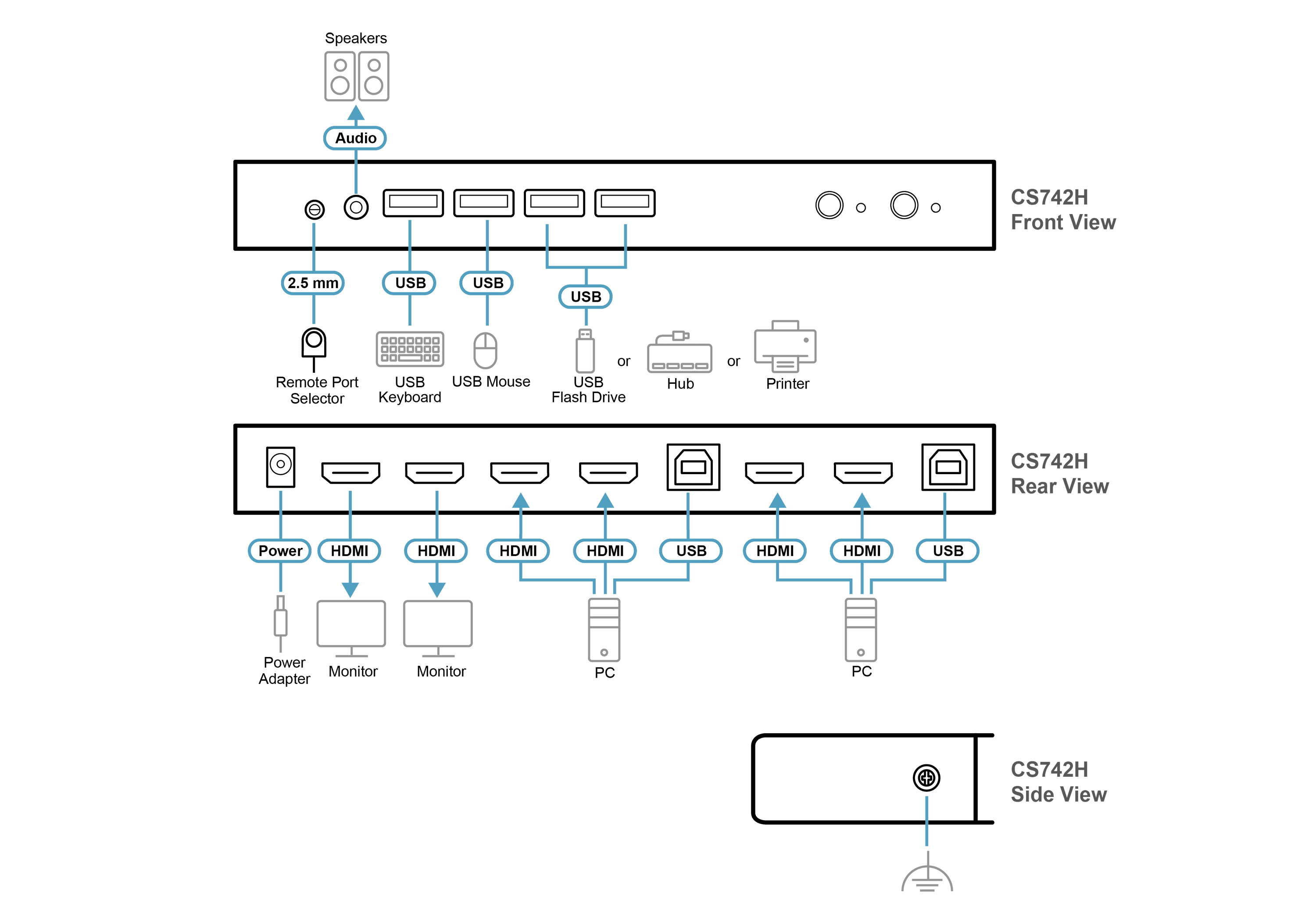

Конектори

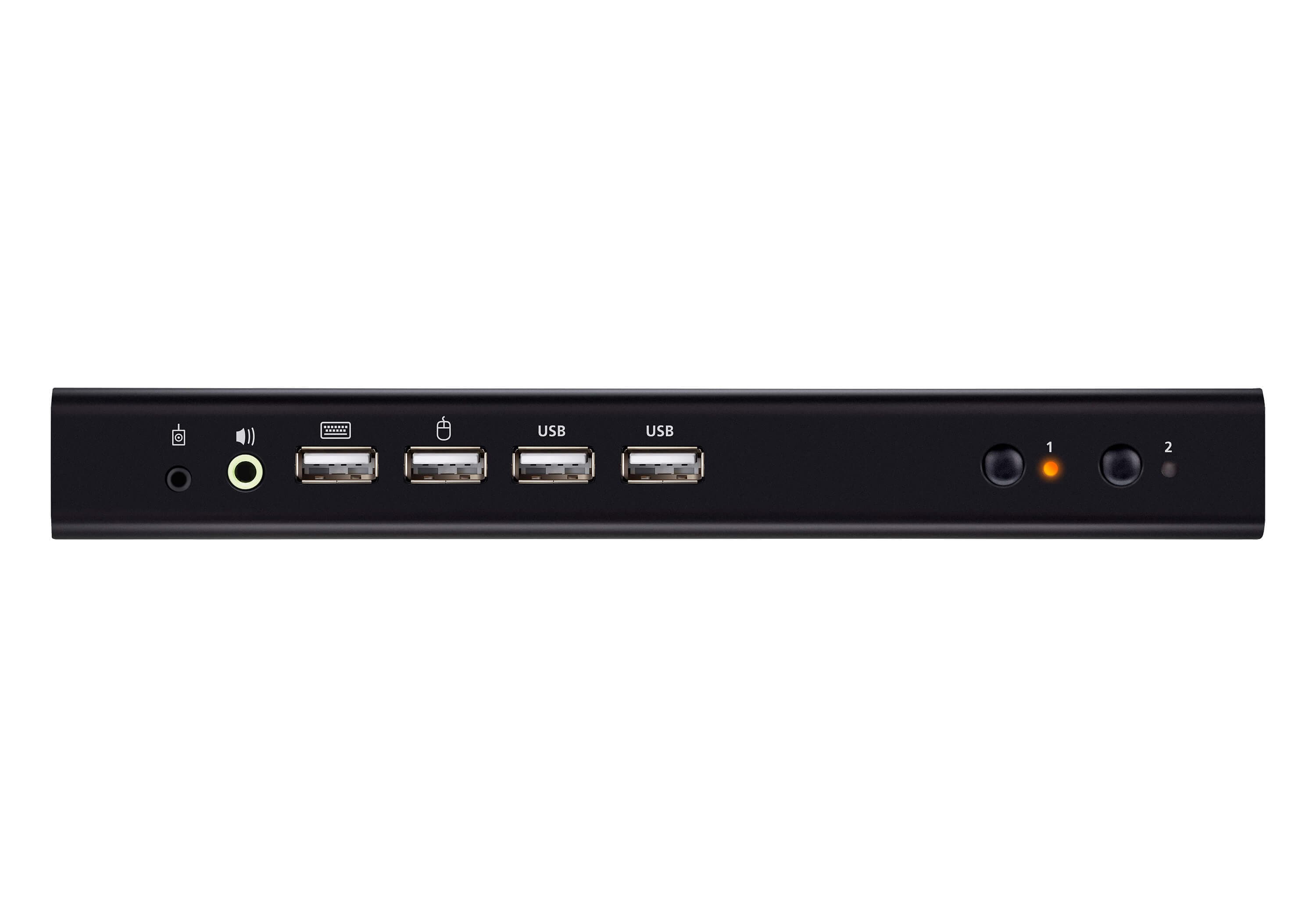

- Конзолни портове
- 2 x USB Type A Female 2 x HDMI Female (Black) 1 x 3.5mm Audio Jack Female (Green; 1 x front)

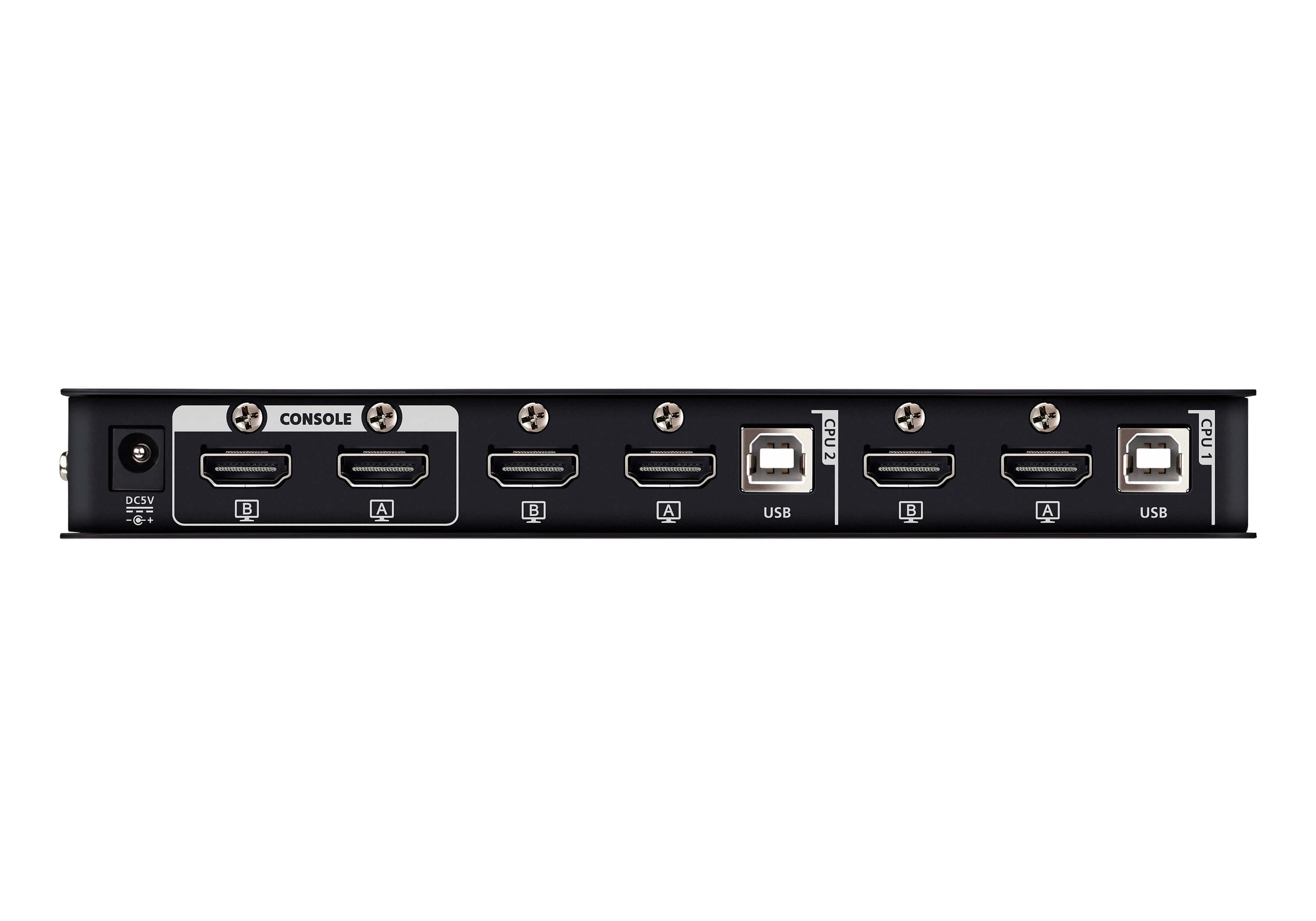

- KVM портове (компютри)
- 2 x USB2.0 Type B Female (White) 4 x HDMI Female (Black)
- Дистанционен избор на порт
- 1 x 2.5mm Audio Jack Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB2.0 Type A Female (White; 2 x front)
Бутони и превключватели
- Избран
- 2 x Pushbutton
Индикатори
- Онлайн / избран
- 2 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC5V:3.63W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В)
- 20.23 x 8.17 x 2.50 cm (7.96 x 3.22 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
