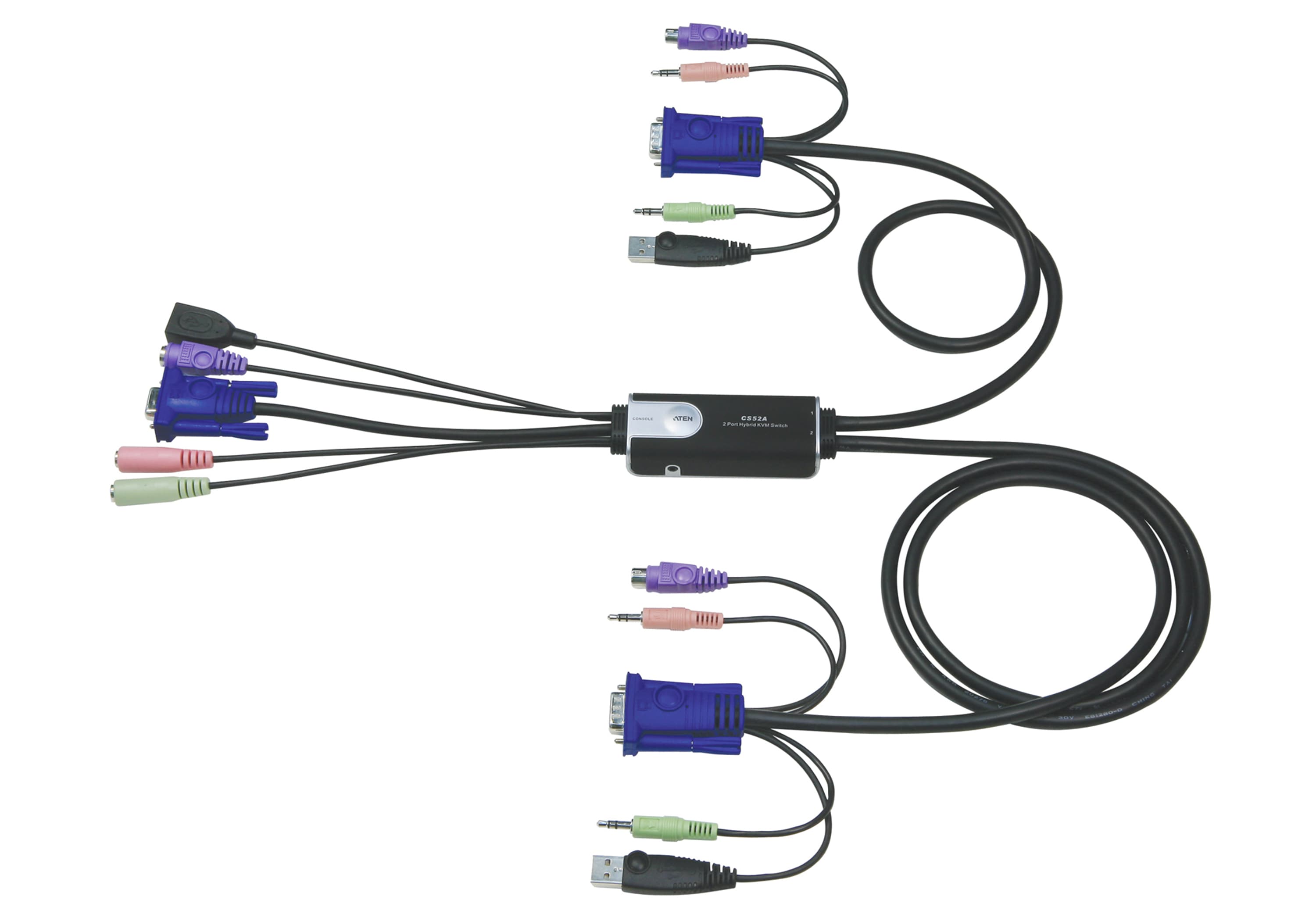

2-Port PS/2 USB VGA/Audio Cable KVM Switch with Remote Port Selector

Name: 2-Port PS/2 USB VGA/Audio Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: CS52A

CS52AСнет от производство

Кабелен KVM превключвател за 2 компютъра с VGA и аудио; конзолата комбинира PS/2 клавиатура и USB мишка. Превключване с горещи клавиши или изнесен селектор.

Характеристики

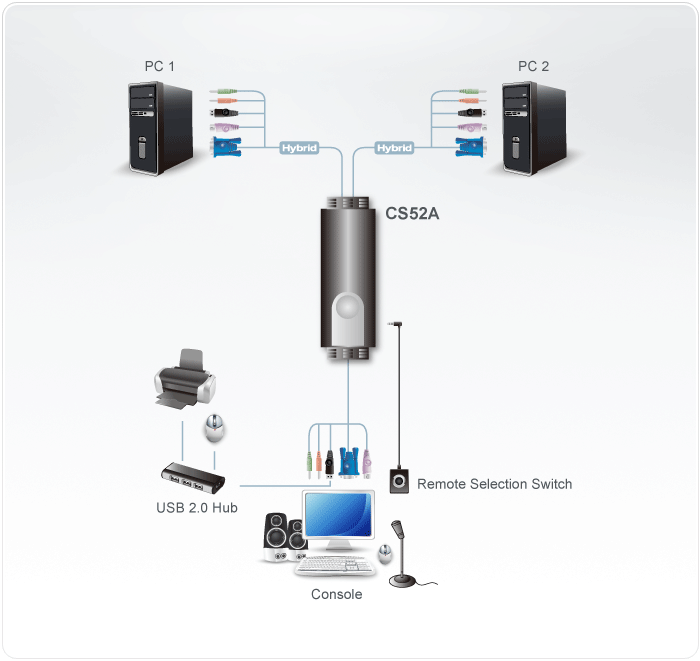

One console (monitor, PS/2 keyboard, and USB mouse) controls two computers
Remote port selection switch for convenient switch placement
Supports multi-function mice
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
Audio (microphone and speaker) enabled -full bass response provides a rich experience for 2.1 surround sound systems
Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
Superior video quality- up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Bus-Powered
OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD.

Спецификация

Връзки към компютри: 2
Избор на порт: Hotkey, Remote Port Selector

Конектори

Конзолни портове: 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM портове: 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Дистанционен избор на порт: 1 x 2.5mm Audio Jack Female

Индикатори

Избран: 2 (Green)

Дължина на кабела

Конзола: 0.15 m
Компютър: 1 x 0.6 m; 1 x 1.2 m

Емулация

Клавиатура / мишка: PS/2
Видео: 2048 x 1536; DDC2B
Интервал на сканиране: 3, 5, 10, 20 seconds (default: 5 secs.)
Консумация: DC5V:0.25W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-50°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Plastic
Тегло: 0.40 kg ( 0.88 lb )
Размери (Д x Ш x В): 8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
