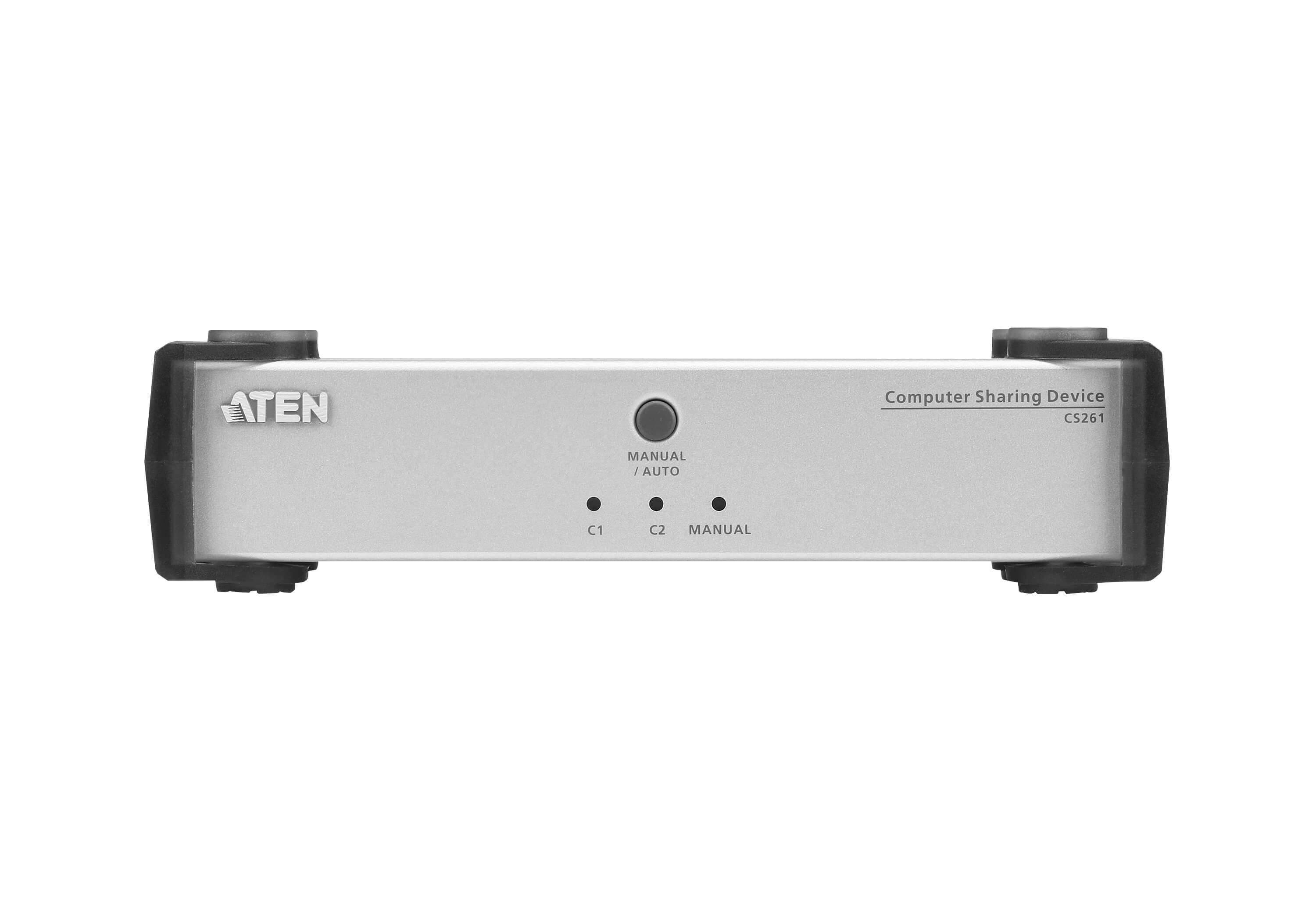

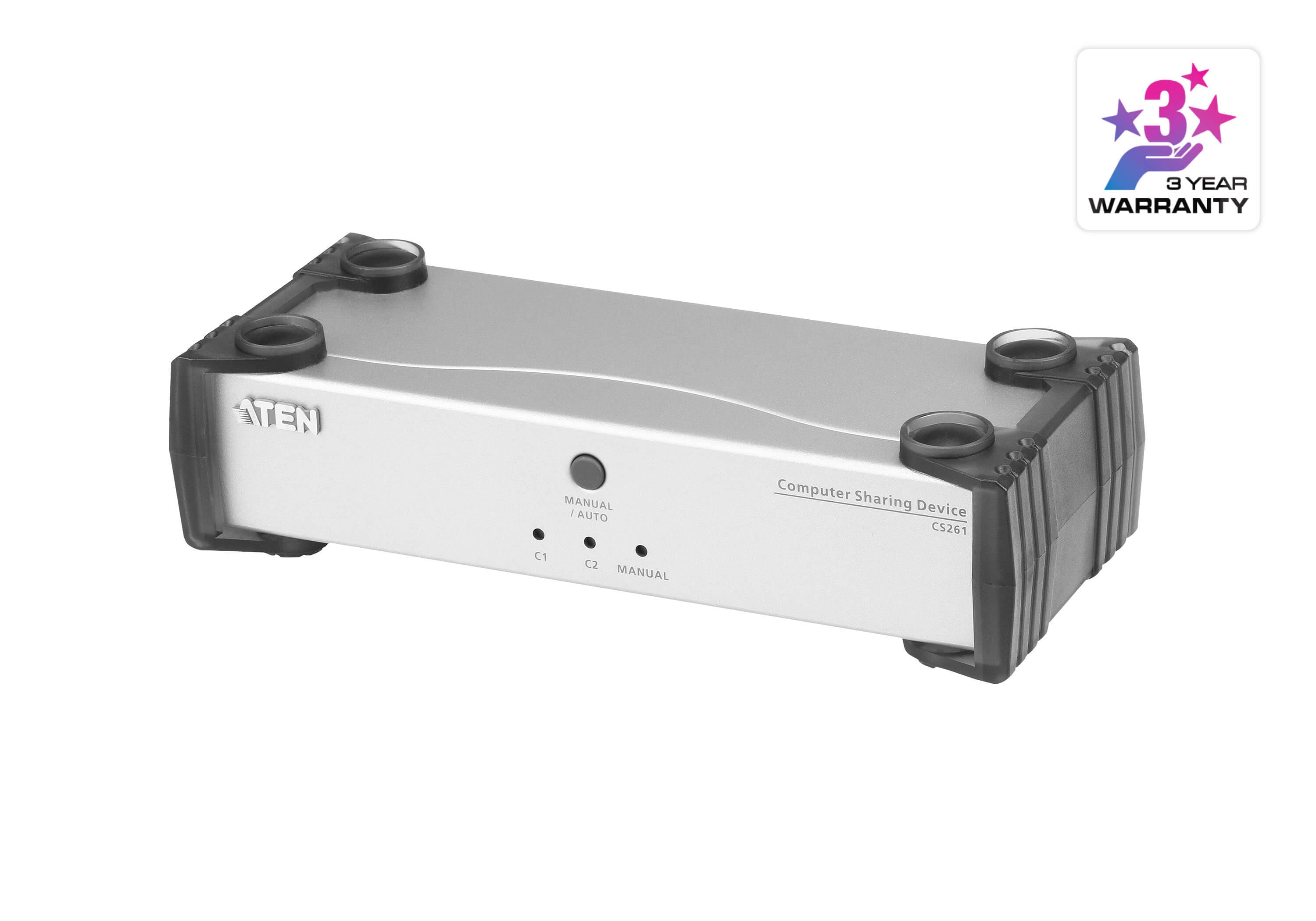

USB DVI Computer Sharing Device and Access Control Box Kit
CS261TKСнет от производство
Комплект за споделяне на един DVI компютър между две конзоли, активни една по една, с Access Control Box за управление на достъпа. Поддържа резолюции до 1920x1200 и 4K@30Hz.
Характеристики

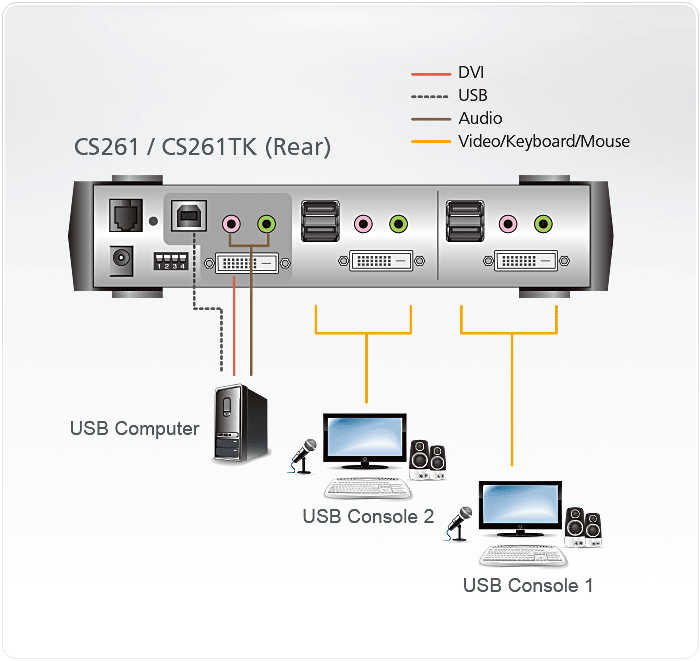

- Expands control of a DVI computer with shared access between two user consoles (one at a time)
- Superior video quality – supports resolutions up to 1080p, 1920 x 1200, and 4K @ 30 Hz*
- Supports 2.1 channel stereo sound and high definition audio**
- HDCP compliant – supports HDCP-enabled devices
- EDID Expert™ – selects optimum EDID settings for smooth power up, highquality display and use of the best resolution across different monitors
- Exclusive Console Modes: • Auto: Computer access switches to a console on a first come first serve basis • Manual: Computer access switches to a console using the front panel pushbutton or a hotkey
- Supports RS-232 serial commands to switch operation and configure settings
- Screen saver feature – blocks the console's display after a period of inactivity
- Mac/Sun keyboard emulation: consoles can use PC keyboards while working on Macintosh/Sun platforms***
- Multilingual keyboard mapping – supports English, Japanese, French and German keyboards
- Multiplatform support – Windows, Linux, Mac or Sun
- Upgradeable firmware to stay current with updates
- No software required – eliminates incompatibility and installation issues and the need to configure software Note: * 4K @ 30 Hz is supported when using a DVI to HDMI cable. ** High definition audio can be converted using a DVI to HDMI cable. *** PC keyboard combinations emulate Mac/Sun keyboards.
Спецификация
- Връзки към компютри
- 1
- Избор на конзола
- Pushbutton, RS-232, Hotkey* Note: Selecting the console via hotkeys only works in Manual Mode

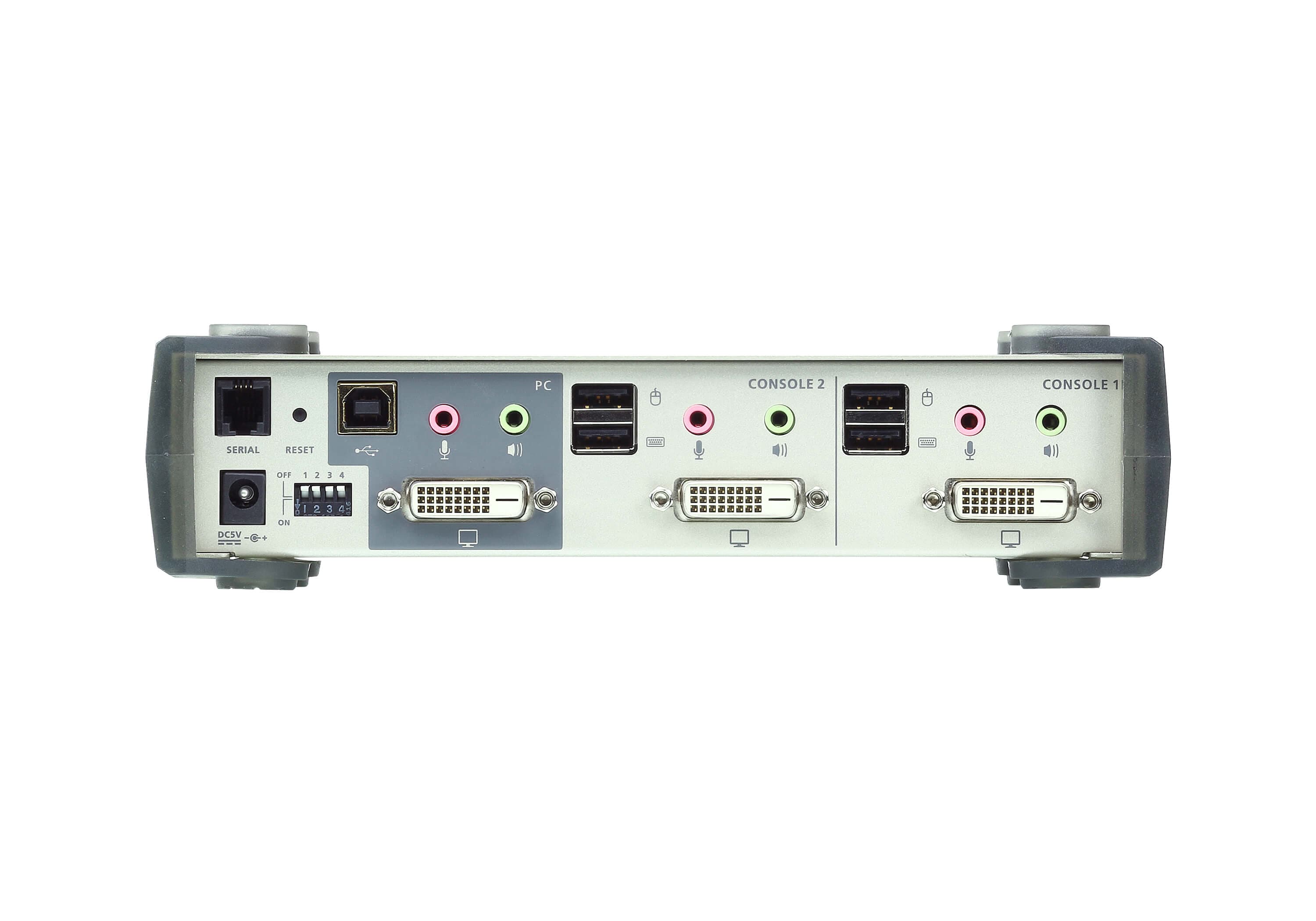

Конектори
- Конзолни портове
- 2 x DVI-D Female (White) 4 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
- KVM портове
- 1 x DVI-D Female (White) 1 x USB Type B Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
- RS-232
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Избор на режим
- 1 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- DIP превключвател
- 1 x 4 pin
Индикатори
- Избран
- 2 (Green)
- Ръчен режим
- 1 (Orange)
- Видео
- 3840 x 2160 @ 30Hz
- Консумация
- DC5V:2.4W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.72 kg ( 1.59 lb )
- Размери (Д x Ш x В)
- 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
