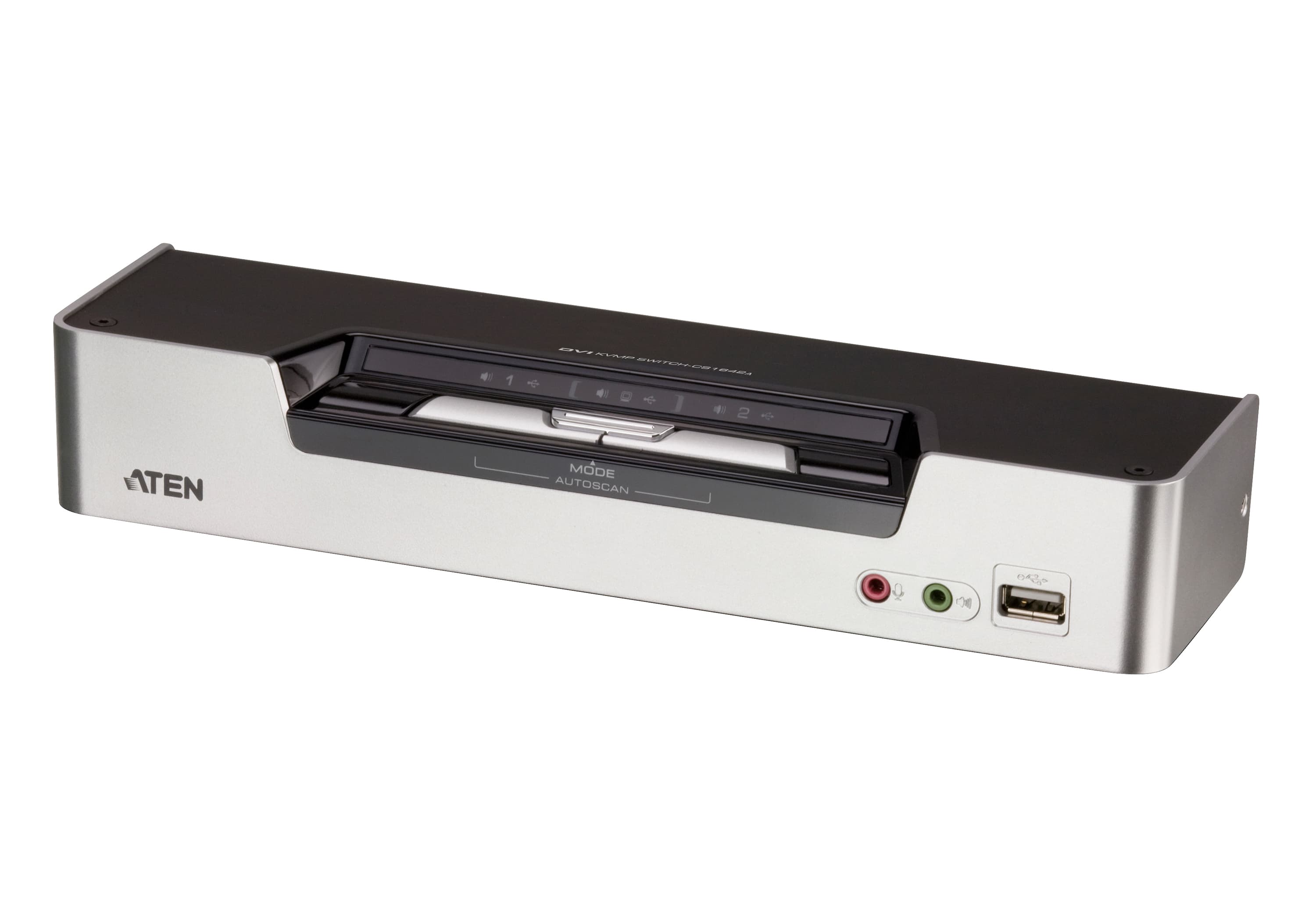

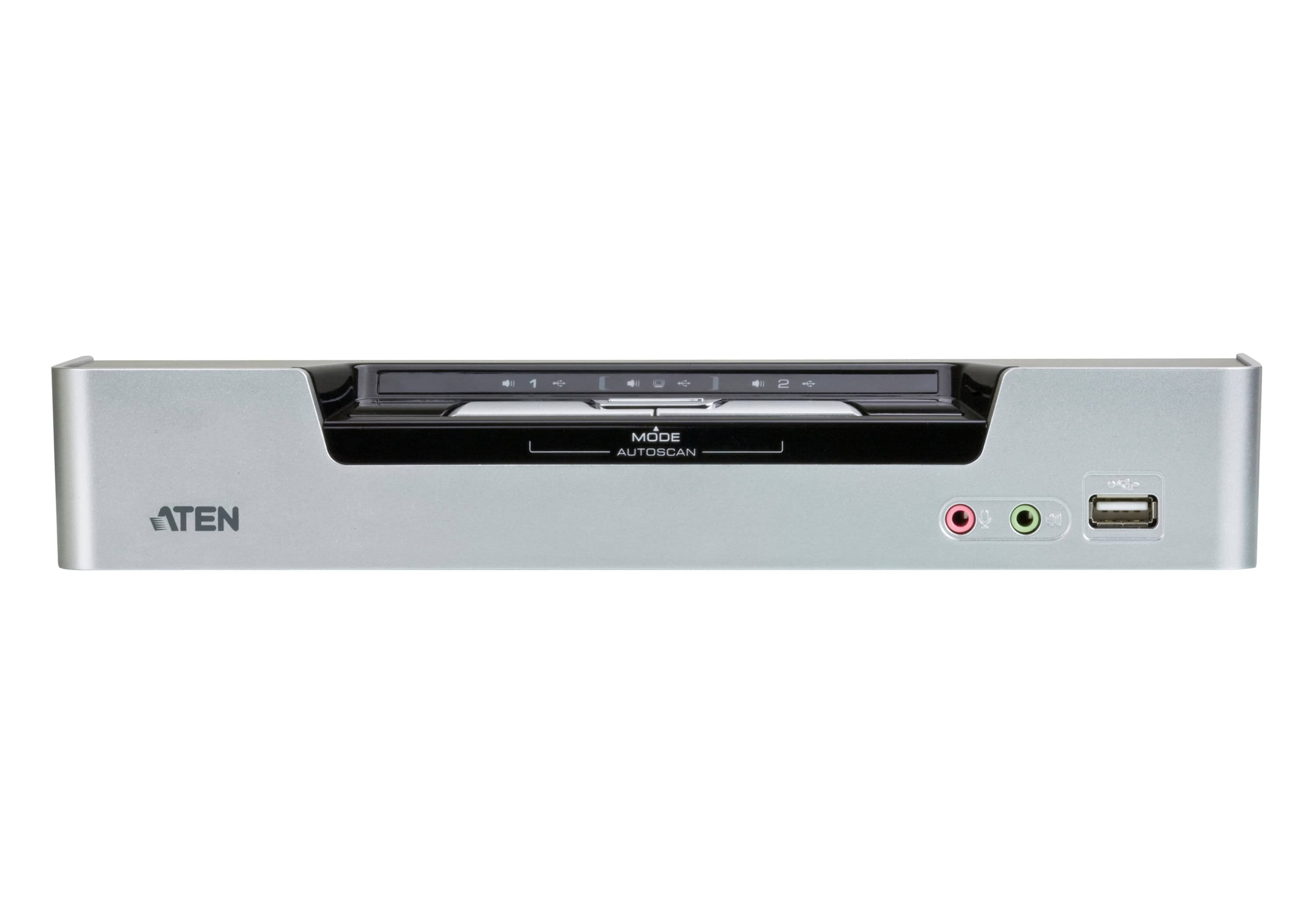

2-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch

Name: 2-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch
Brand: ATEN
SKU: CS1642A

CS1642A

KVMP превключвател за 2 компютъра с по два DVI екрана и вграден 2-портов USB хъб. Видео до 2560 x 1600 при 60Hz (DVI Dual Link).

Характеристики

One dual-screen USB console controls two/four dual-screen computers and two additional USB devices

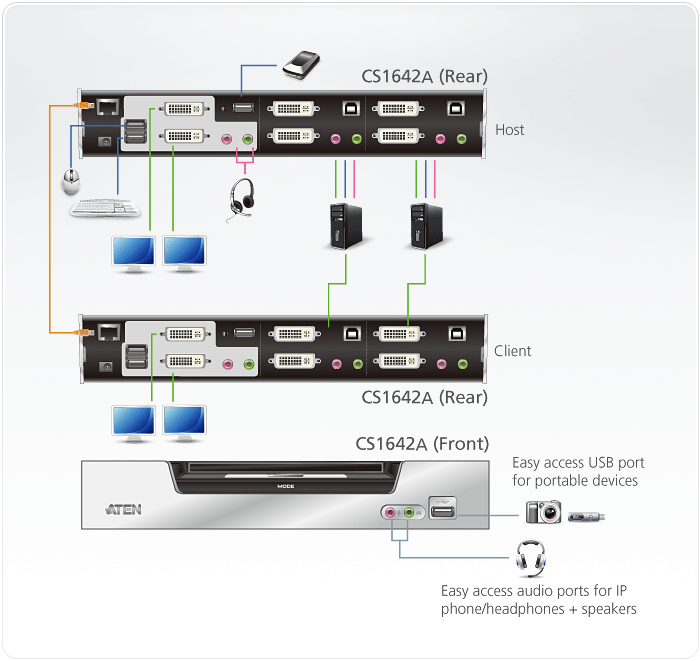

Multi-View Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
Supports widescreen resolutions
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
Sun/Mac keyboard support and emulation **
Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
Power on detection - if one computer is powered off, the CS1642A will automatically switch to the next powered-on computer * Supports Linux Kernel 2.6 and higher. The CS1642A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0. ** PC keyboard combinations emulate Mac keyboards. ** Mac keyboards only work with their own computers.

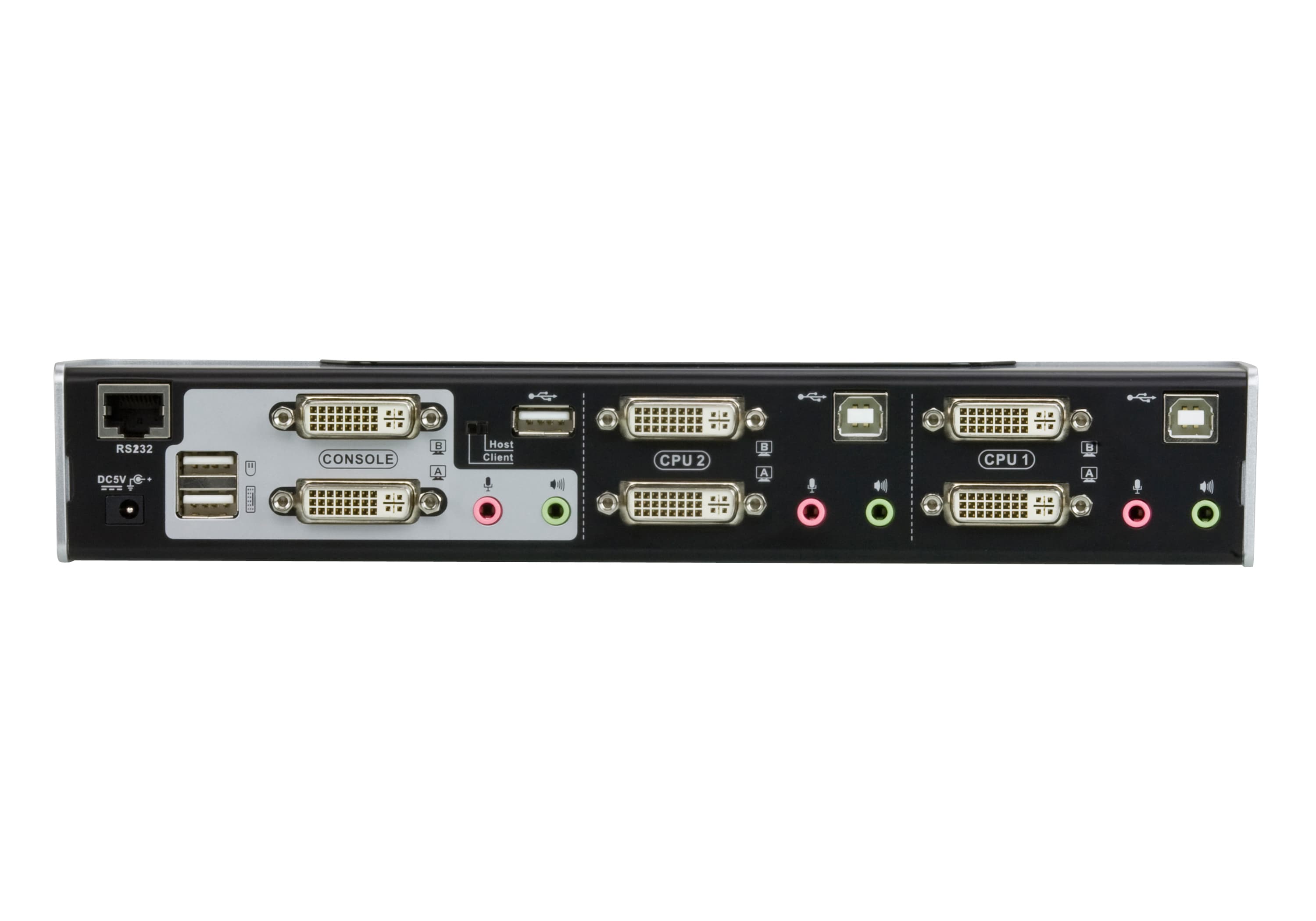

Конзолни портове: 2 x USB Type A Female (rear panel) 2 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM портове: 2 x USB Type B Female 4 x DVI-I Female (white) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain портове: 1 x RJ-45 Female (rear panel)
Захранване: 1 x DC Jack
USB хъб: 2 x USB Type A Female (1 x front panel; 1 x rear panel)

Клавиатура / мишка: USB
Видео: DVI Dual Link: 2560 x 1600 @ 60Hz; 3D Display: 1920 x 1200 @ 120Hz
Интервал на сканиране: 1-99 seconds (default: 5 secs.)
Консумация: DC5.3V:3.77W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Plastic, Metal
Тегло: 0.56 kg ( 1.23 lb )
Размери (Д x Ш x В): 26.23 x 7.68 x 4.40 cm (10.33 x 3.02 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
