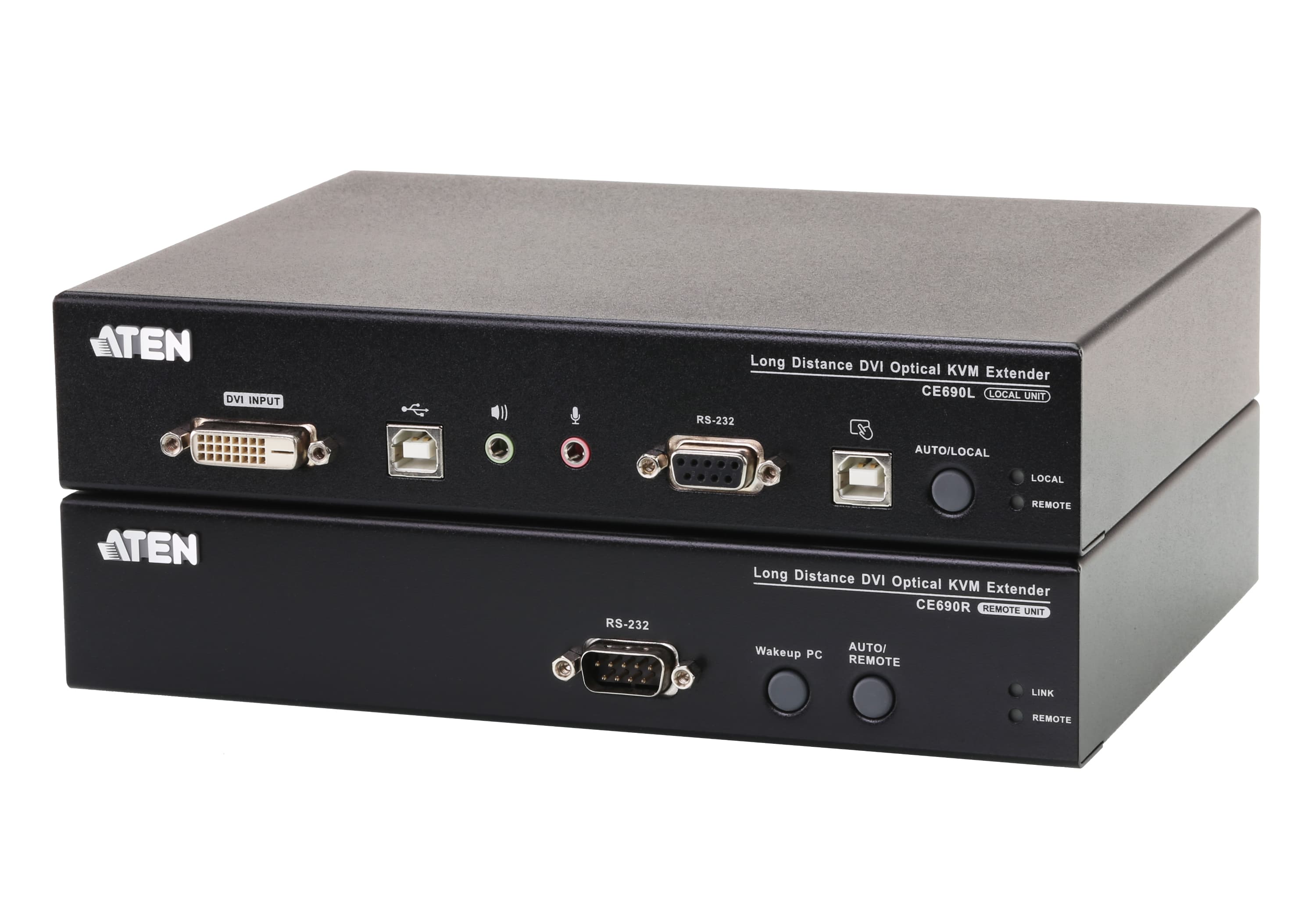

USB DVI Optical KVM Extender (1920 x 1200@20km)

Name: USB DVI Optical KVM Extender (1920 x 1200@20km)
Brand: ATEN
SKU: CE690

CE690

Оптичен KVM удължител за DVI и USB — пренася видео до 1920 x 1200 @ 60 Hz и RS-232 по оптично влакно на разстояние до 20 km.

Характеристики

Allows access to a computer or KVM installation from a local / remote console
Supports DVI-D interface and allows transmission of DVI single-link signals
Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 20 km*
Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

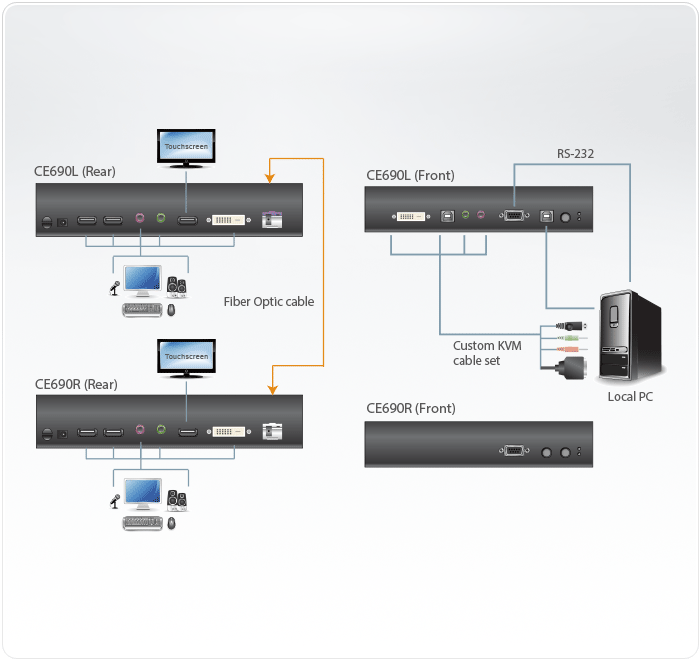

Uses one fiber optic cable to connect the local and remote units
HDCP compatible
RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate up to 115200 bps)
PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
Audio Enabled - supports stereo speakers and microphone
Rack mountable

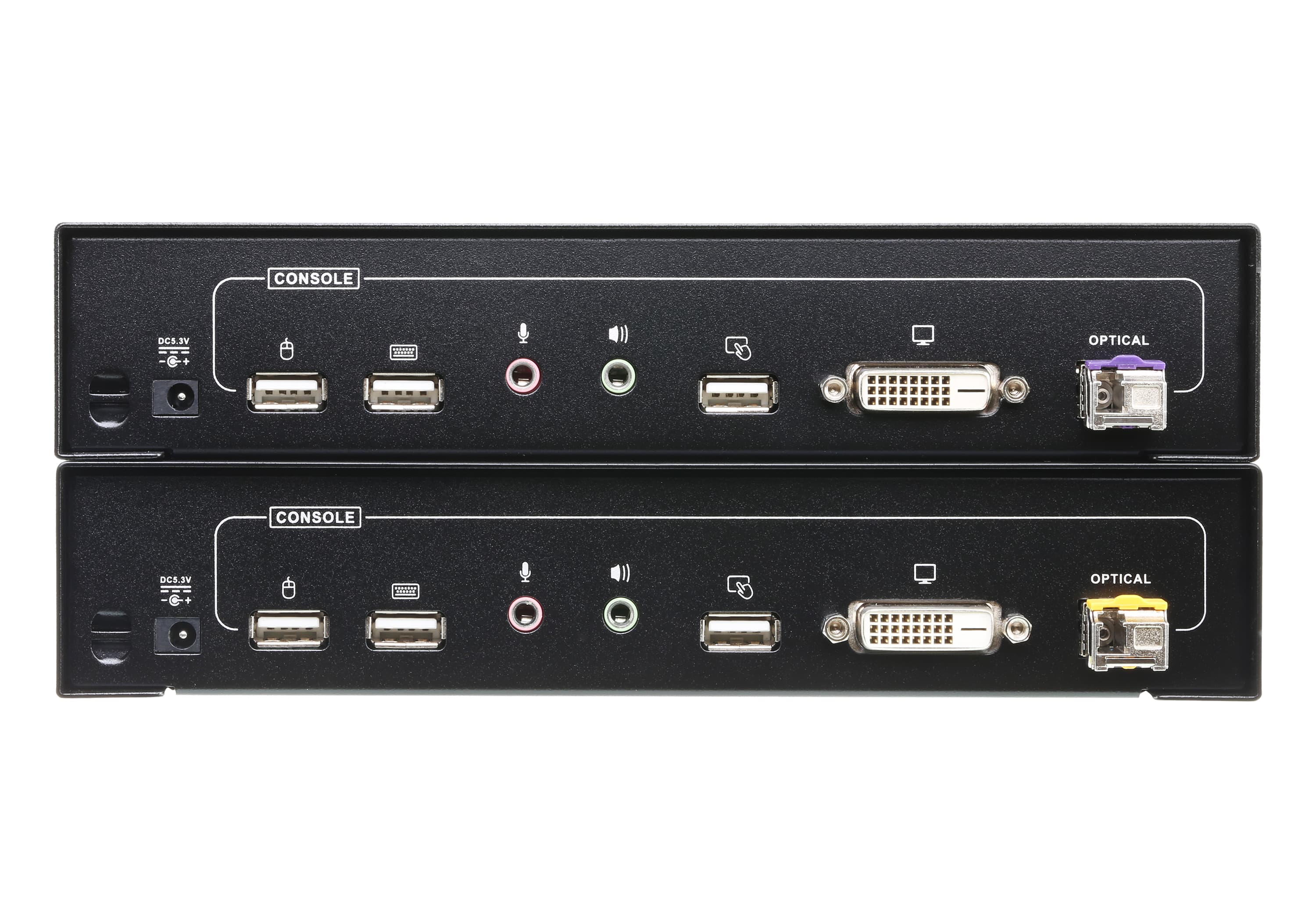

Конзолни портове: 3 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
Конзолни портове: 3 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)

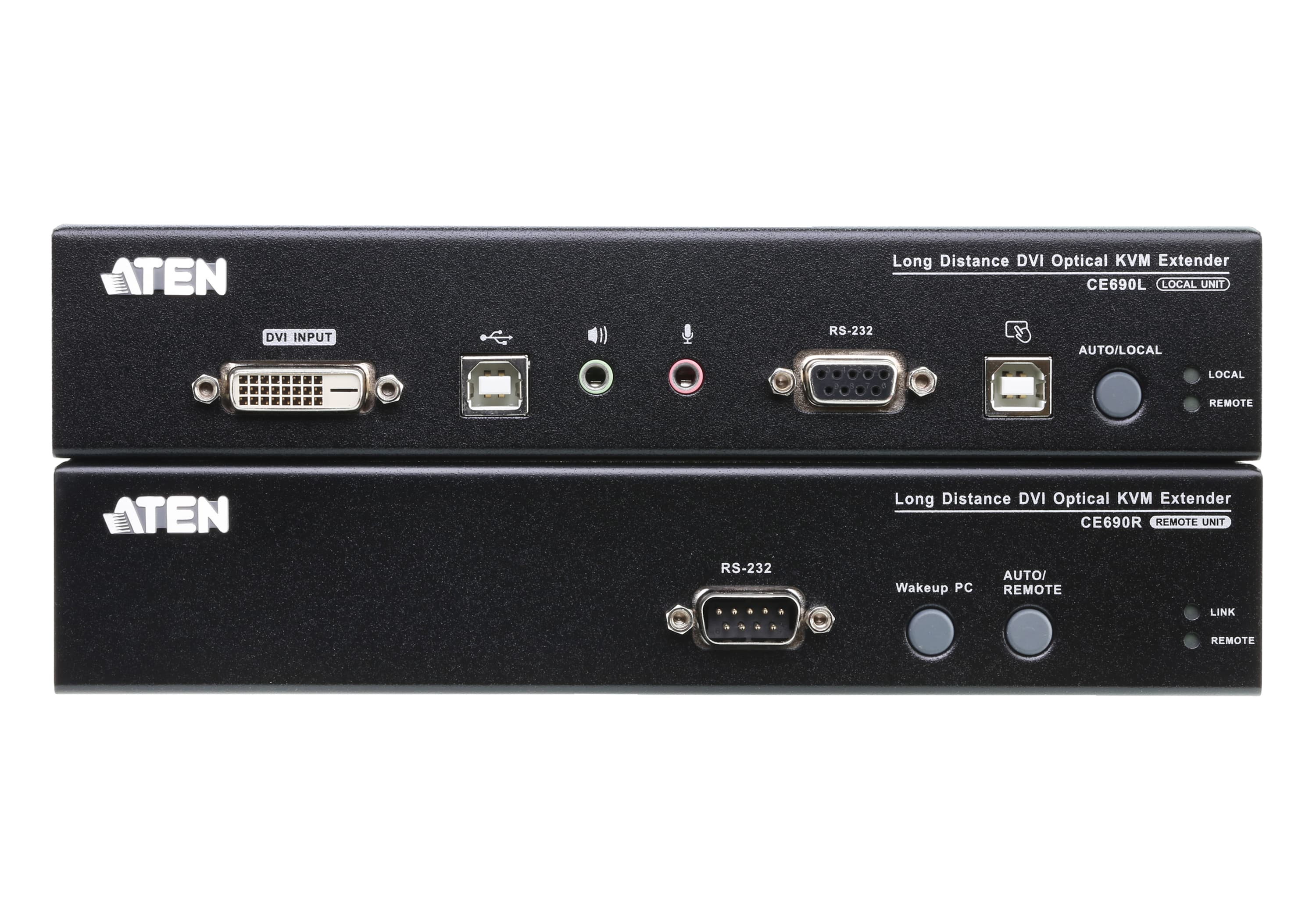

KVM портове: 2 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: N/A
RS-232: 1 x DB-9 Female (Black)
RS-232: 1 x DB-9 Male (Black)
Захранване: 1 x DC Jack (Black)
Захранване: 1 x DC Jack (Black)
Между устройства: 1 x bi-directional SFP (LC)
Между устройства: 1 x bi-directional SFP (LC)

Работно разстояние: 20 km with (SM) fiber
Работно разстояние: 20 km with (SM) fiber
Дължина на вълната: 1310/1550 nm for SM
Дължина на вълната: 1310/1550 nm for SM
Скорост на данните: Single fiber: 3.125G bps
Скорост на данните: Single fiber: 3.125G bps
Консумация: DC5.2V:6.74W:38BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.2V:5.56W:32BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 1.12 kg ( 2.47 lb )
Тегло: 1.12 kg ( 2.47 lb )
Размери (Д x Ш x В): 21.50 x 16.33 x 4.18 cm (8.46 x 6.43 x 1.65 in.)
Размери (Д x Ш x В): 21.50 x 16.29 x 4.18 cm (8.46 x 6.41 x 1.65 in.)
Забележка: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Забележка: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
