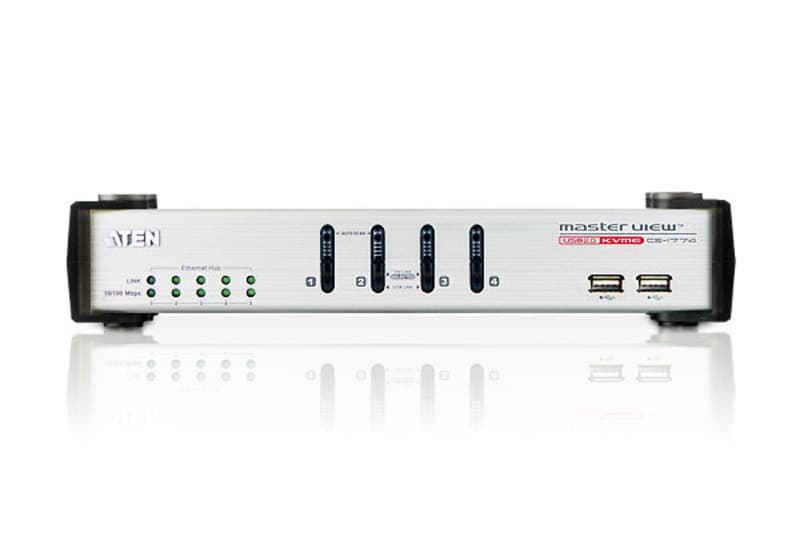

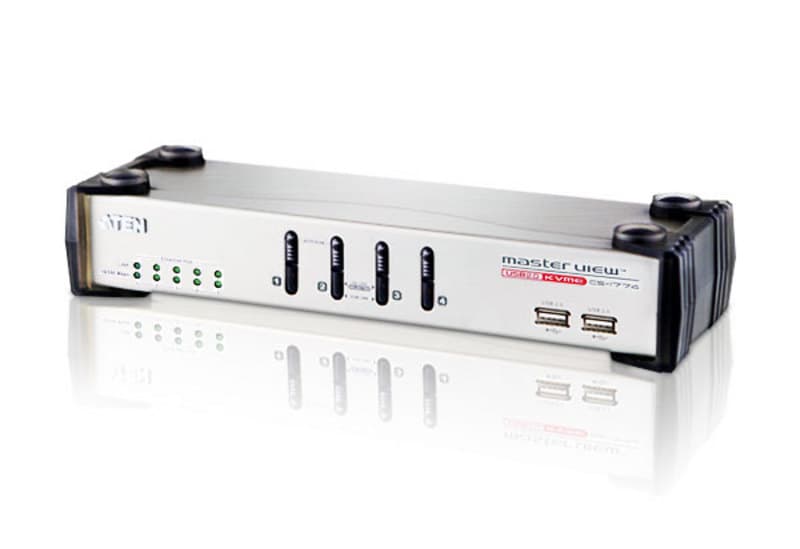

4-Port USB VGA/Audio KVME™ Switch with Ethernet Hub
CS1774Снет от производство
VGA KVM превключвател за 4 сървъра с аудио и функция 3-в-1: KVM, USB 2.0 и Ethernet. Вграден Ethernet хъб с пет порта и 2-портов USB хъб.
Характеристики
- USB 2.0 KVME™ Switch with Ethernet Hub/USB Hub
- Five auto-sensing dual speed ports (Ethernet/Fast Ethernet) plugand-and-play enabled; hub complies with IEEE802.3/IEEE802.3u Standard
- 2 port USB 2.0 Hub built in
- Multiplatform support: compatible with all operation platforms PC(Windows,Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability;switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- superior video quality - up to 2048 x 1536; DDC2B
- OS Compatibility:Windows 98, Windows ME, Windows 2000, Windows 2003, Windows XP, Windows Vista, LINUX, Mac OS 8.6/9/10 and SUN Solaris 8/9.
- SUN/Mac keyboard support and emulation* *1.PC keyboard combinations emulate SUN/Mac keyboards. *2.SUN/Mac keyboards only work with their own computers.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton
- Избор на USB / аудио порт
- Hotkey

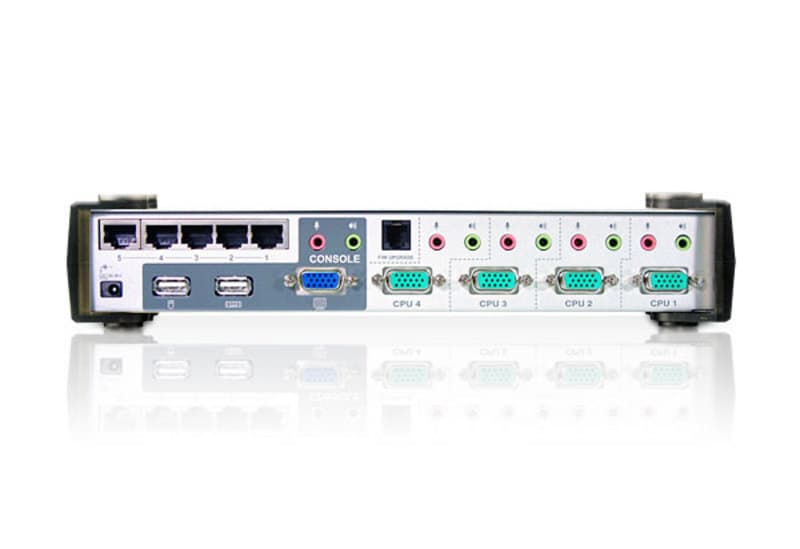

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- 4 x SPHD-15 Female (Green) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
- USB хъб
- 2 x USB Type A Female (White)
- Обновяване на фърмуера
- 1 x RJ-11 Female (Black)
- Захранване
- 1 x DC Jack(Black)
Бутони и превключватели
- Портове
- 4 x Pushbutton
Индикатори
- USB връзка
- 4 (Green)
- 10/100 Mbps
- 5 (Green)
- Онлайн / избран
- 4 (Orange)
- Връзка
- 5 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-99 seconds
- Консумация
- DC 5.3V, 5W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20°-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.92 kg ( 2.03 lb )
- Размери (Д x Ш x В)
- 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
