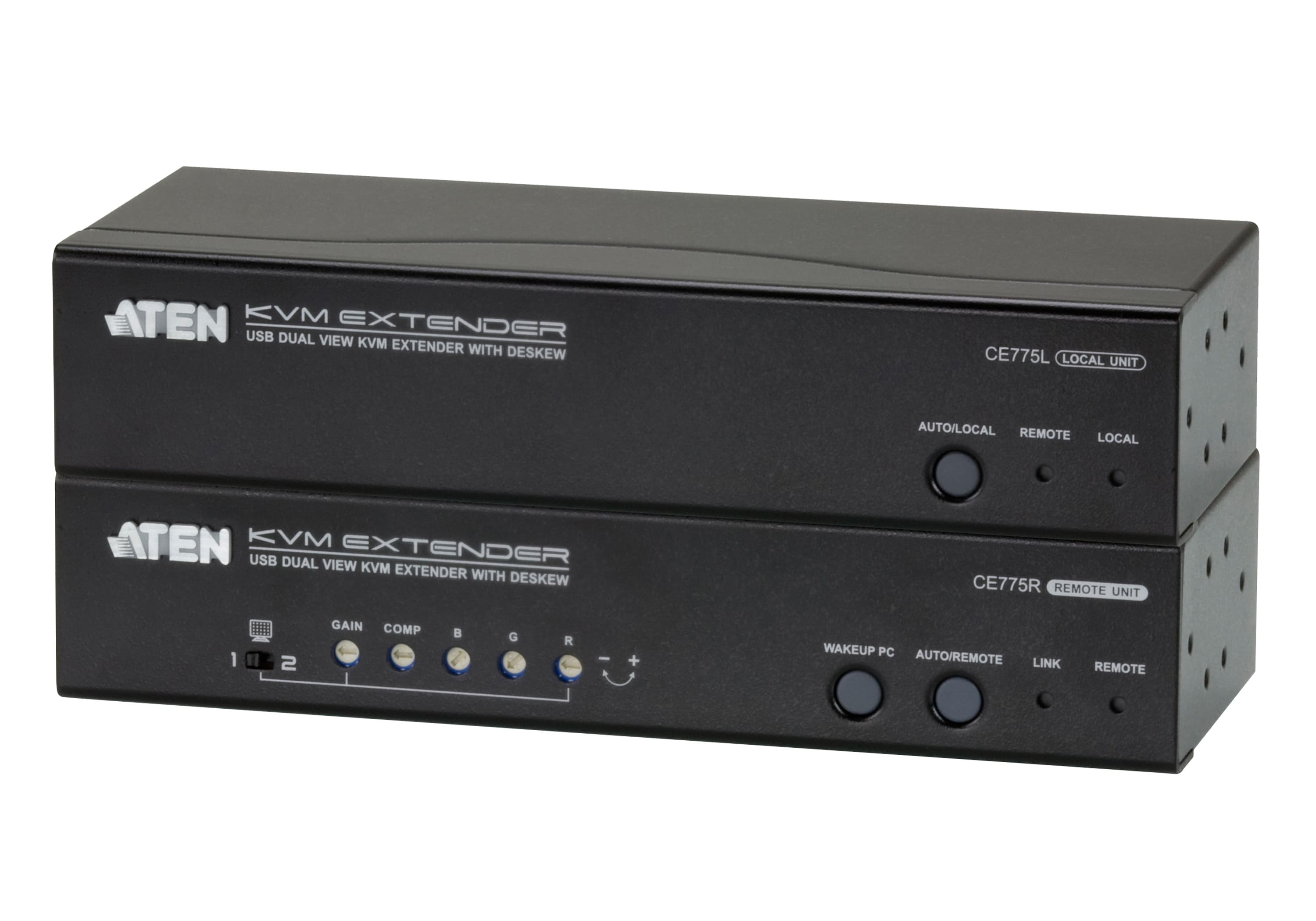

USB VGA Dual View Cat 5 KVM Extender with Deskew (1280 x 1024@300m)
CE775
KVM удължител Dual View — пренася два VGA видеосигнала към отдалечена конзола на до 300 m при 1280 x 1024, с Deskew компенсация и управление от локалната и отдалечената конзола.
Характеристики

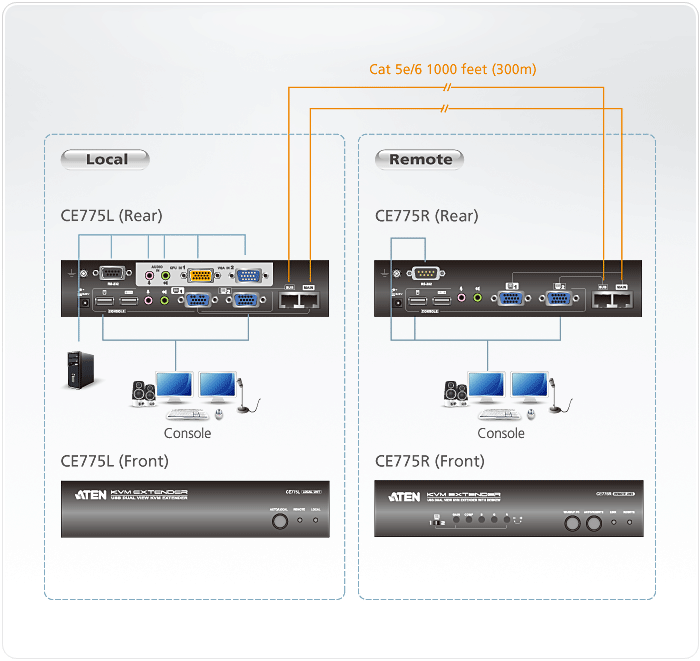

- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Superior video quality – 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
- Gain/Compensation Control – adjusts signal strength in order to compensate for distance
- On Screen Display – conveniently adjust video quality with the intuitive OSD menu system
- RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Sun/Mac keyboard support and emulation *
- Supports Wide Screen formats ** * 1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers ** The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

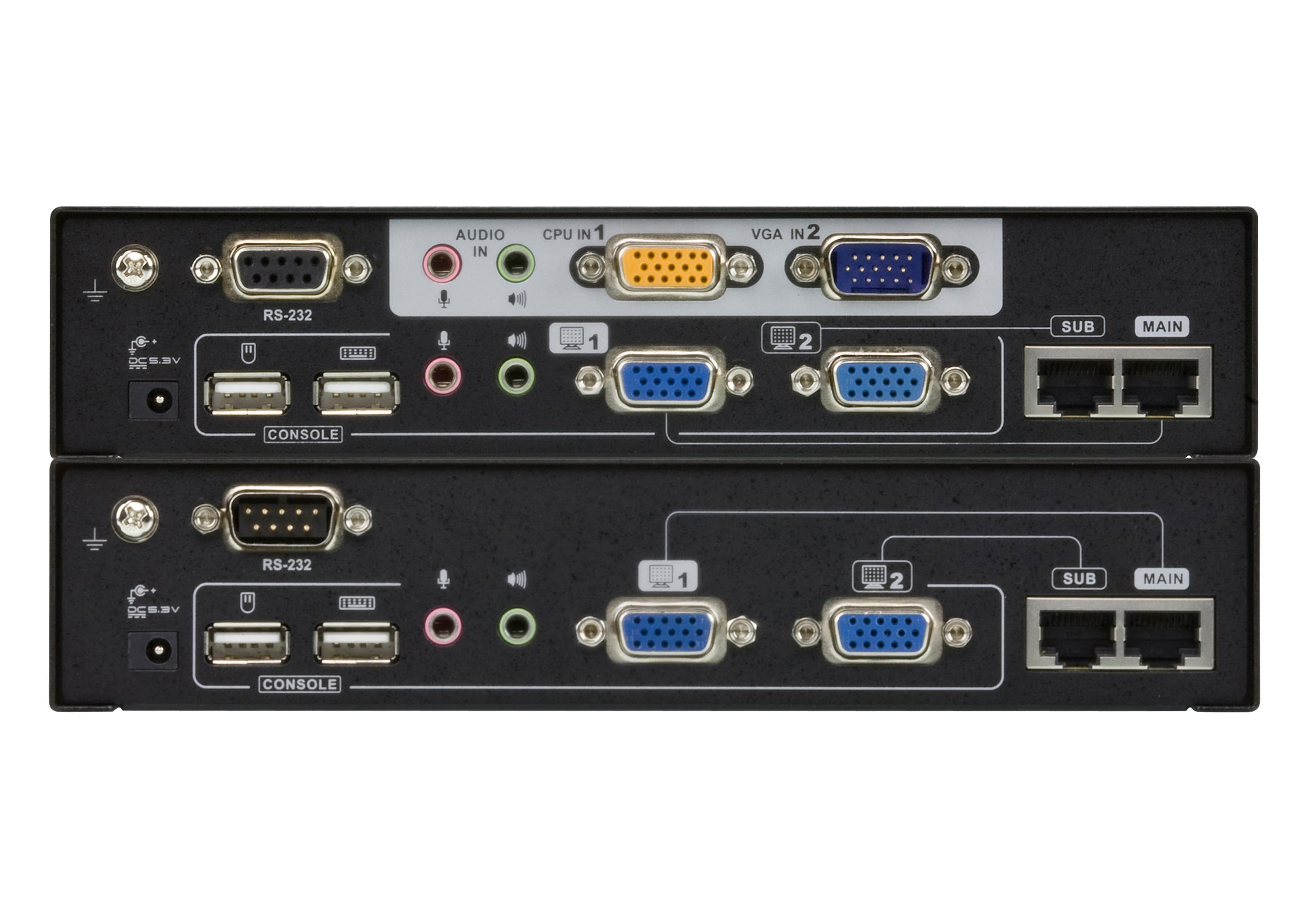

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- Конзолни портове
- 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- 1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x HDB-15 Male (Blue)
- KVM портове
- N/A
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack (Black)
- Захранване
- 1 x DC Jack (Black)
- Между устройства
- 2 x RJ-45 Female (Black)
- Между устройства
- 2 x RJ-45 Female (Black)

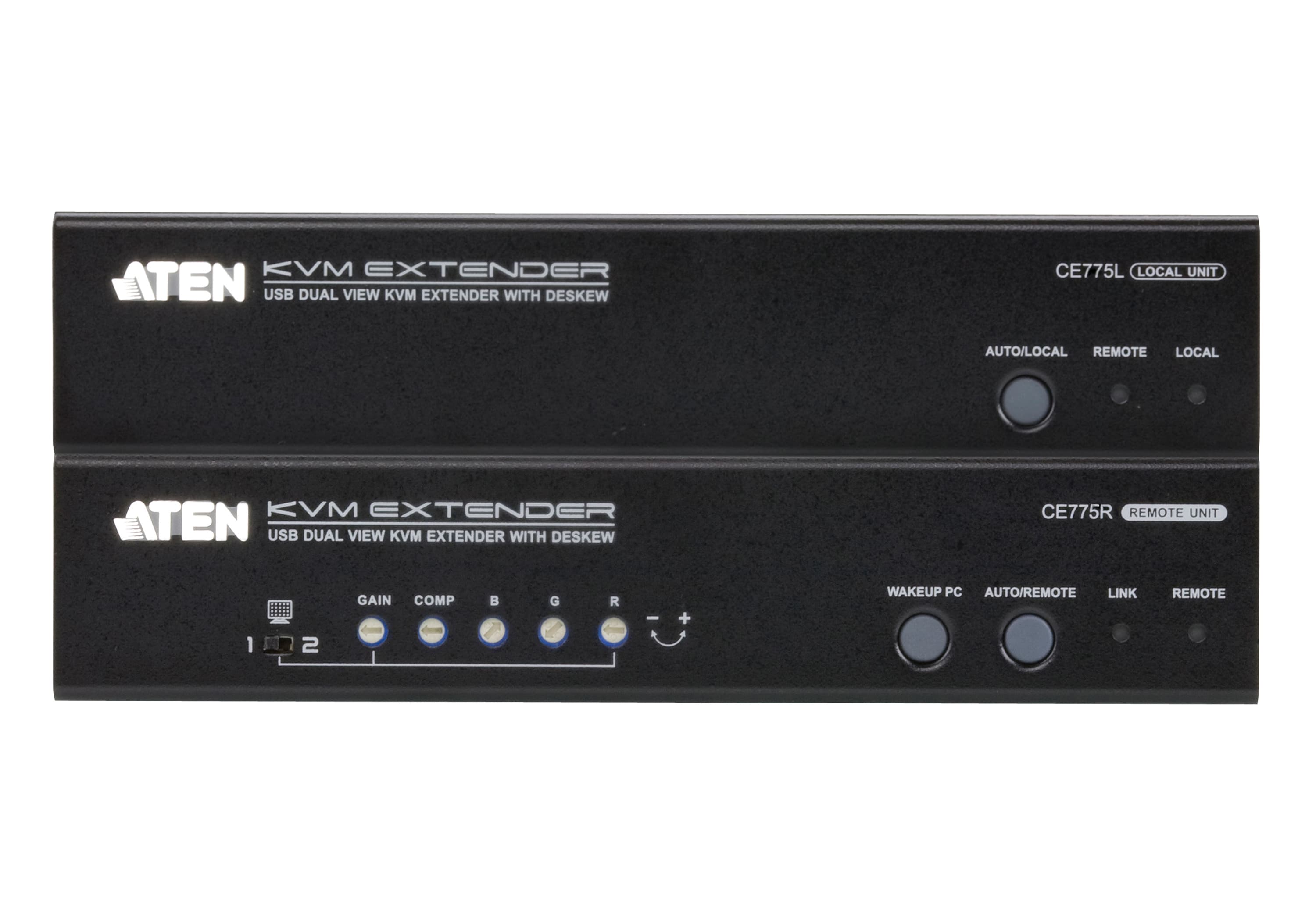

Бутони и превключватели
- Избор на работен режим
- 1 x Pushbutton
- Избор на работен режим
- 1 x Pushbutton
- Събуждане на компютъра
- N/A
- Събуждане на компютъра
- 1 x Pushbutton
- Избор на видео изход
- N/A
- Избор на видео изход
- 1 x Slide Switch
- Регулатор на видео усилване
- N/A
- Регулатор на видео усилване
- 1 x Knob
- Регулатор на видео компенсация
- N/A
- Регулатор на видео компенсация
- 1 x Knob
- RGB регулатор
- N/A
- RGB регулатор
- 3 x Knob
Индикатори
- Локално
- 1 (Green)
- Локално
- N/A
- Отдалечено
- 1 (Green)
- Отдалечено
- 1 (Green)
- Връзка
- N/A
- Връзка
- 1 (Green)
Емулация
- Клавиатура / мишка
- USB
- Клавиатура / мишка
- USB
- Видео
- 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m)
- Видео
- 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m)
- Консумация
- DC5.3V:3.9W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5.3V:8.6W:45BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.69 kg ( 1.52 lb )
- Тегло
- 0.69 kg ( 1.52 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.62 x 4.20 cm (7.87 x 3 x 1.65 in.)
- Размери (Д x Ш x В)
- 20.00 x 7.63 x 4.20 cm (7.87 x 3 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
