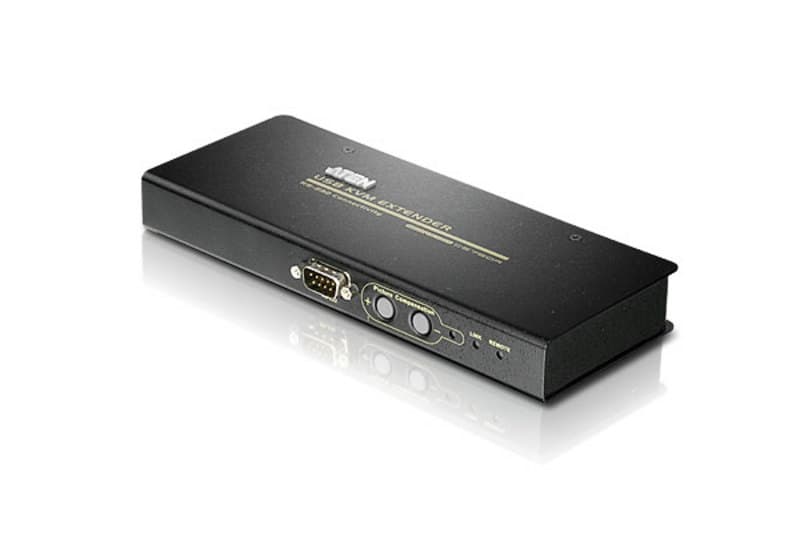

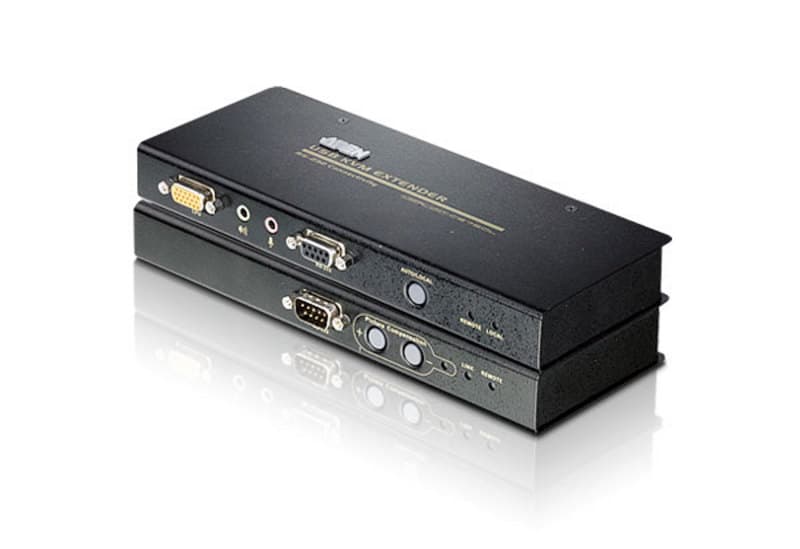

USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)

Name: USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)
Brand: ATEN
SKU: CE750

CE750Снет от производство

KVM удължител за USB конзола с VGA и аудио — до 200 m по Cat 5e при 1280 x 1024. Автоматична компенсация на сигнала, RS-232 и вграден ASIC.

Характеристики

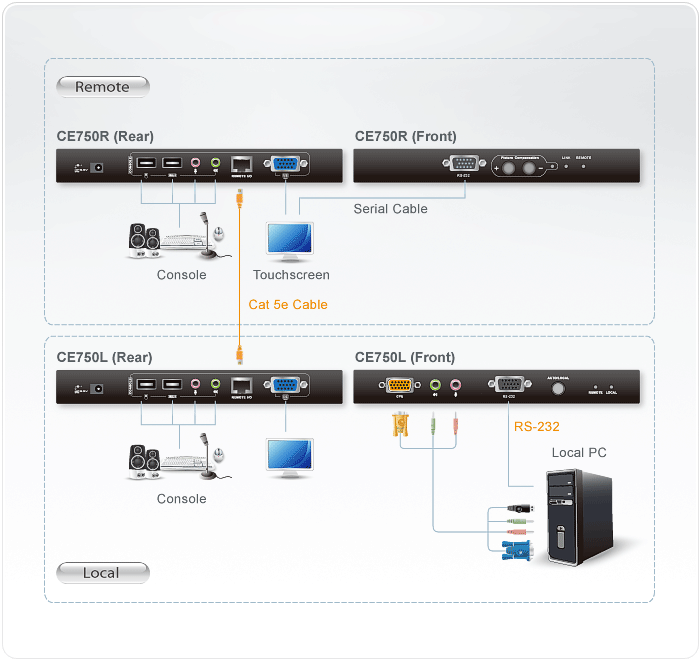

Local and Remote Units connect at distances up to 200 m using Cat 5e cable
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
USB Keyboard and USB Mouse Ports
RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) -select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz (150m),1280 x 1024 @ 60 Hz (200m)
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux, FreeBSD * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

Конзолни портове: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x DB-9 Female (Black) 1 x RJ-45 Female 1 x DC Jack
Конзолни портове: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x DB-9 Male (Black) 1 x RJ-45 Female 1 x DC Jack
KVM портове: 1 x SPHD-15 Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: N/A

Клавиатура / мишка: USB
Клавиатура / мишка: USB
Видео: 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Видео: 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Консумация: DC5.3V/3.0W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.3V/4.2W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.50 kg ( 1.1 lb )
Тегло: 0.50 kg ( 1.1 lb )
Размери (Д x Ш x В): 20.20 x 8.63 x 2.63 cm (7.95 x 3.4 x 1.04 in.)
Размери (Д x Ш x В): 20.20 x 8.63 x 2.63 cm (7.95 x 3.4 x 1.04 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
