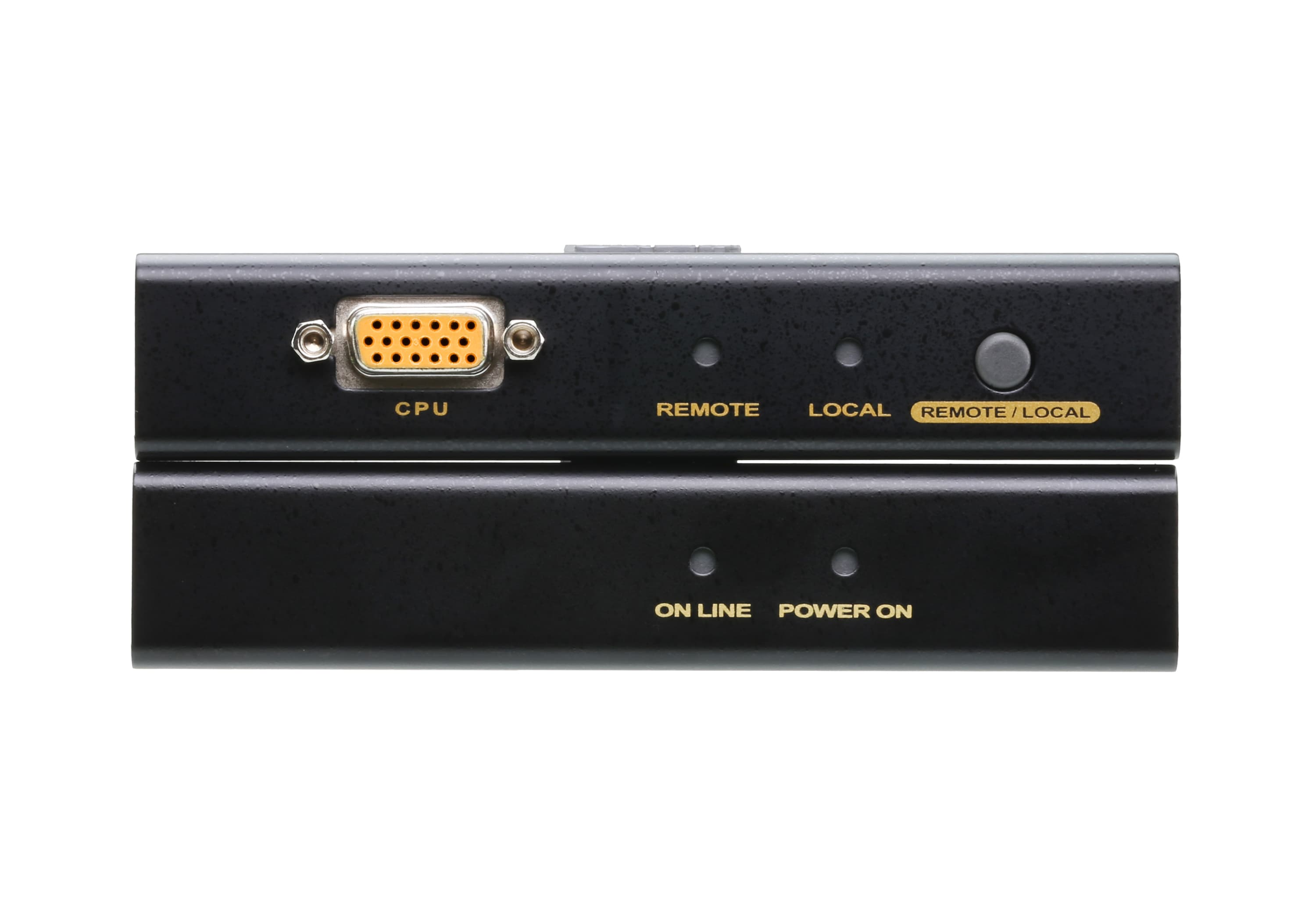

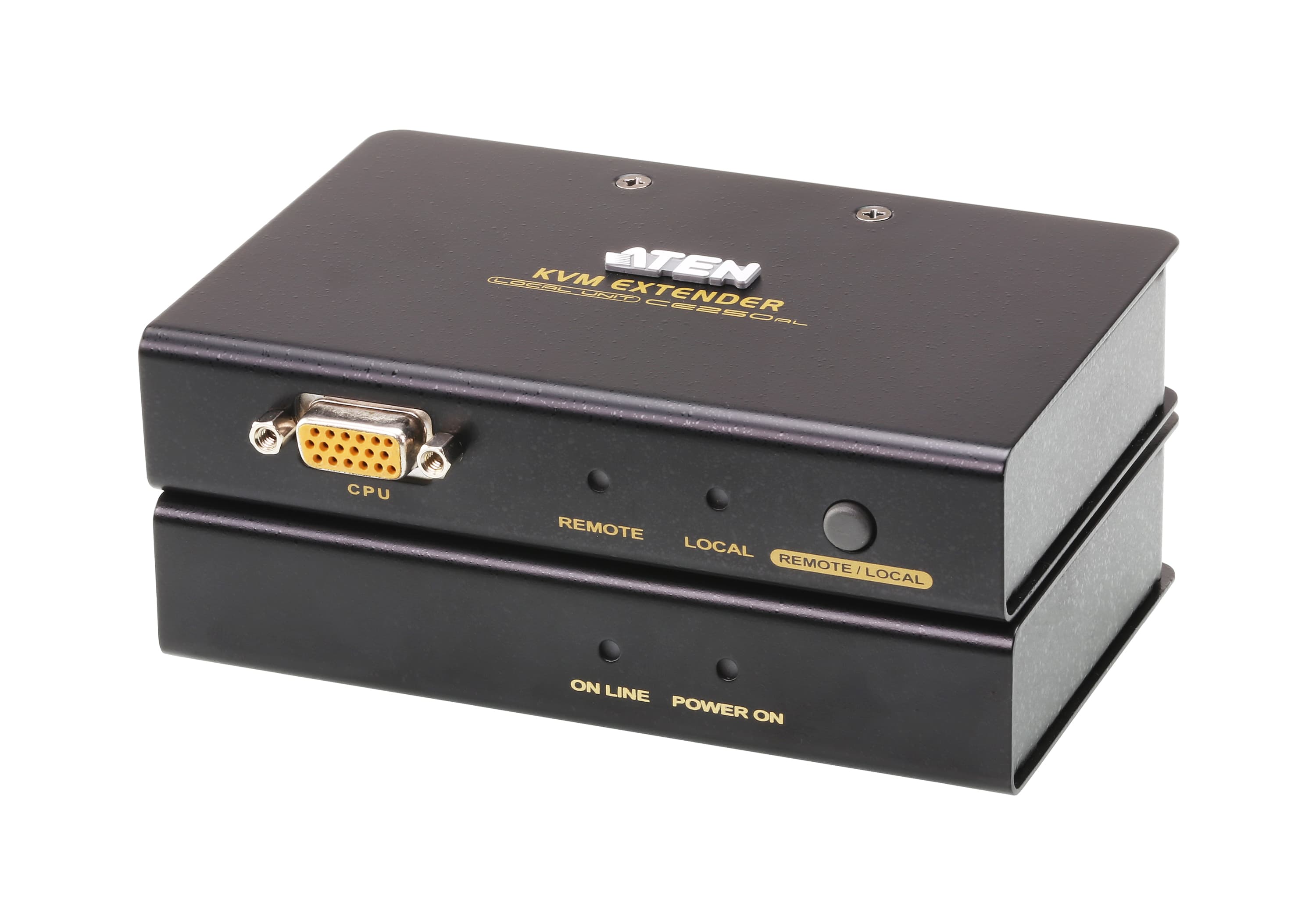

PS/2 VGA Cat 5 KVM Extender (1280 x 1024@150m)
CE250AСнет от производство

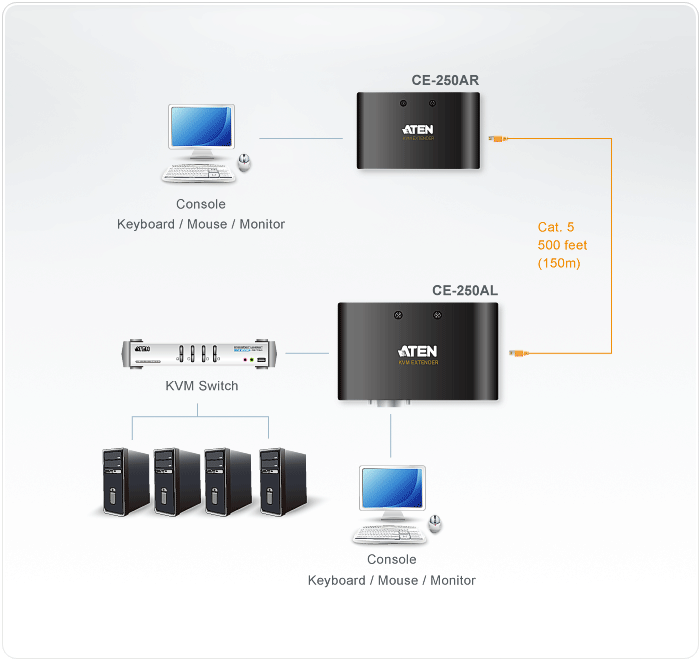

KVM удължител за PS/2 конзола с VGA — локалният и отдалеченият модул се свързват с Cat 5e на до 150 m при 1280 x 1024. Активната конзола се избира с бутон.
Характеристики
- Cat 5e cable to connect the Local and Remote Units - up to 150 m apart
- Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
- Pushbutton selection of the active console
- High resolution video -up to 1280 x 1024 @ 60 Hz
- Supports Wide Screen formats *
- Supports VGA, SVGA, and Multisync monitors - local monitor supports DDC; DDC2; DDC2B
- Supports Microsoft Intellimouse and the scrolling wheel on most mice
- Automatic gain control - automatically adjusts signal strength to compensate for distance
- Built-in 8KV ESD protection and 2KV surge protection
- Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient
- Rack Mountable
- Multiplatform support: OS Support:Windows 2000/XP/Vista and Linux. * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
Спецификация
- Избор на конзола
- 1 x Pushbutton
- Избор на конзола
- 1 x Pushbutton

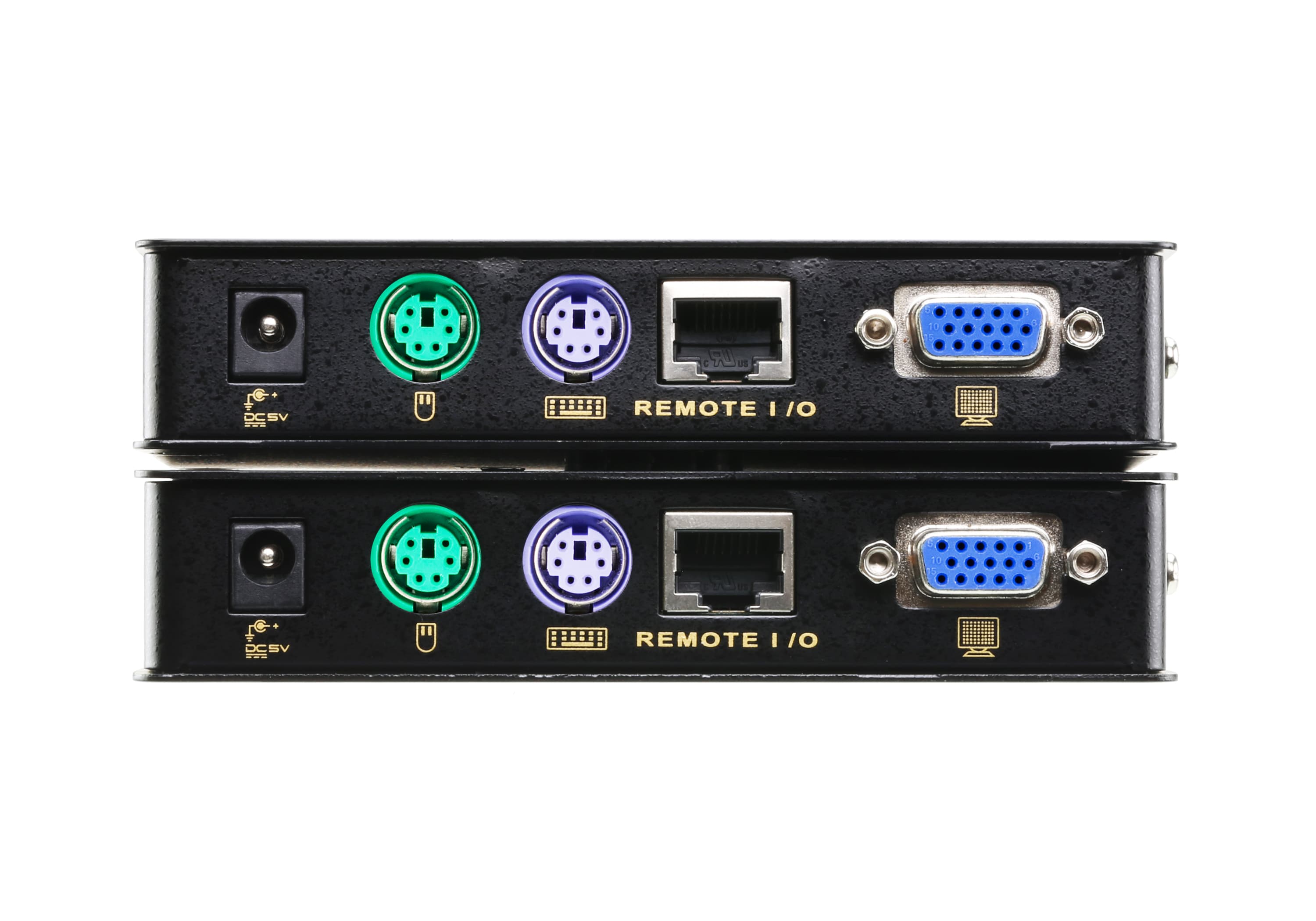

Конектори
- Конзолни портове
- 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green)
- Конзолни портове
- 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green)
- KVM портове
- 1 x SPHD-15 Female
- KVM портове
- N/A
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Между устройства
- 1 x RJ45 Female (Black)
- Между устройства
- 1 x RJ45 Female (Black)
Индикатори
- Локално
- 1 (Green)
- Локално
- N/A
- Отдалечено
- 1 (Green)
- Отдалечено
- N/A
- Захранване
- N/A
- Захранване
- 1 (Green)
- Онлайн
- N/A
- Онлайн
- 1 (Green)
Емулация
- Клавиатура / мишка
- PS/2
- Клавиатура / мишка
- PS/2
- Видео
- 1280 x 1024 @ 60Hz (150 m) DDC; DDC2; DDC2B
- Видео
- 1280 x 1024 @ 60Hz (150 m) DDC; DDC2; DDC2B
- Консумация
- DC5V:0.62W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:1.21W:10BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0~50˚C
- Работна температура
- 0~50˚C
- Температура на съхранение
- -20~60˚C
- Температура на съхранение
- -20~60˚C
- Влажност
- 0~80% RH
- Влажност
- 0~80% RH
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.33 kg ( 0.73 lb )
- Тегло
- 0.32 kg ( 0.7 lb )
- Размери (Д x Ш x В)
- 12.70 x 8.66 x 2.63 cm (5 x 3.41 x 1.04 in.)
- Размери (Д x Ш x В)
- 12.70 x 8.15 x 2.63 cm (5 x 3.21 x 1.04 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
