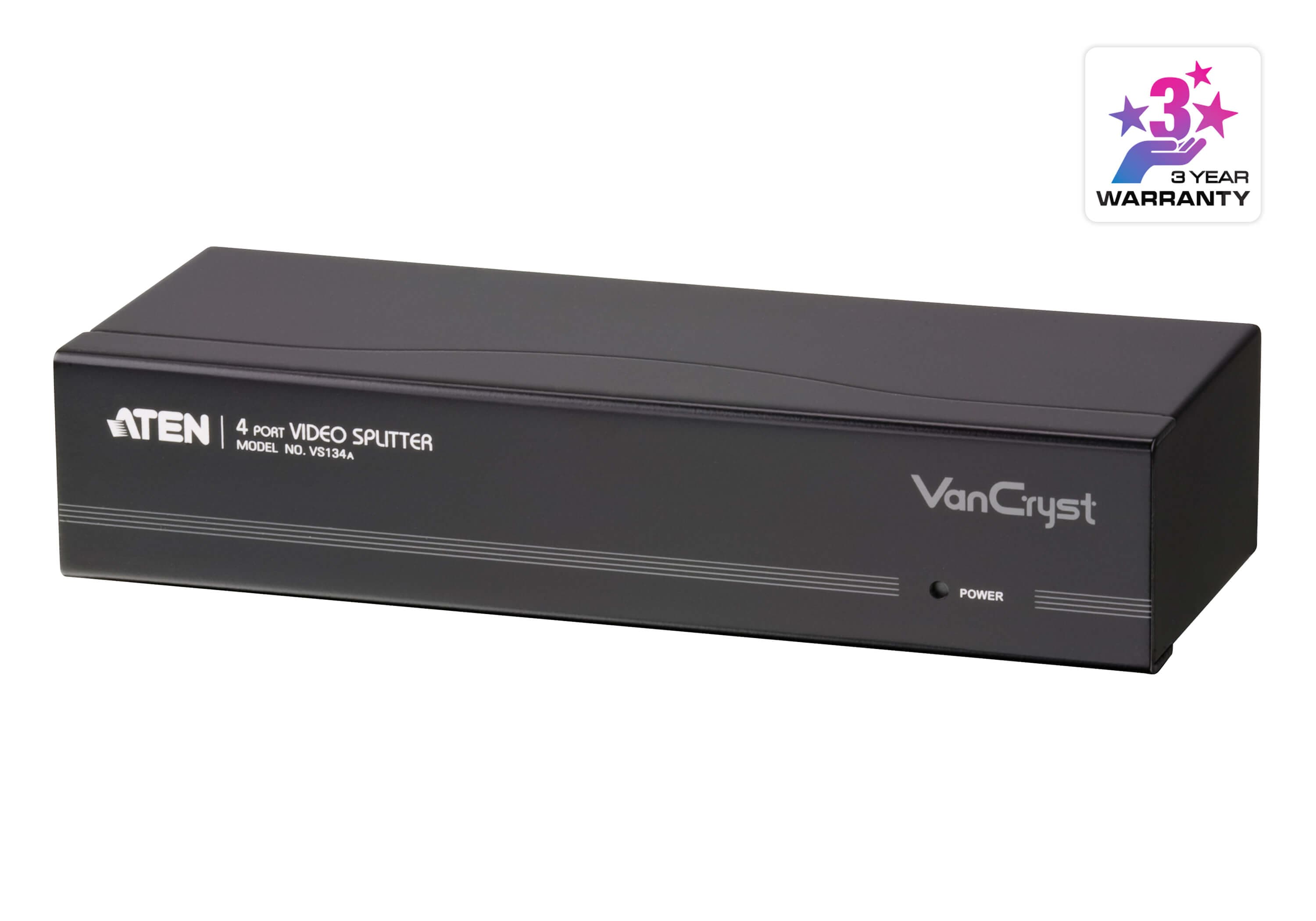

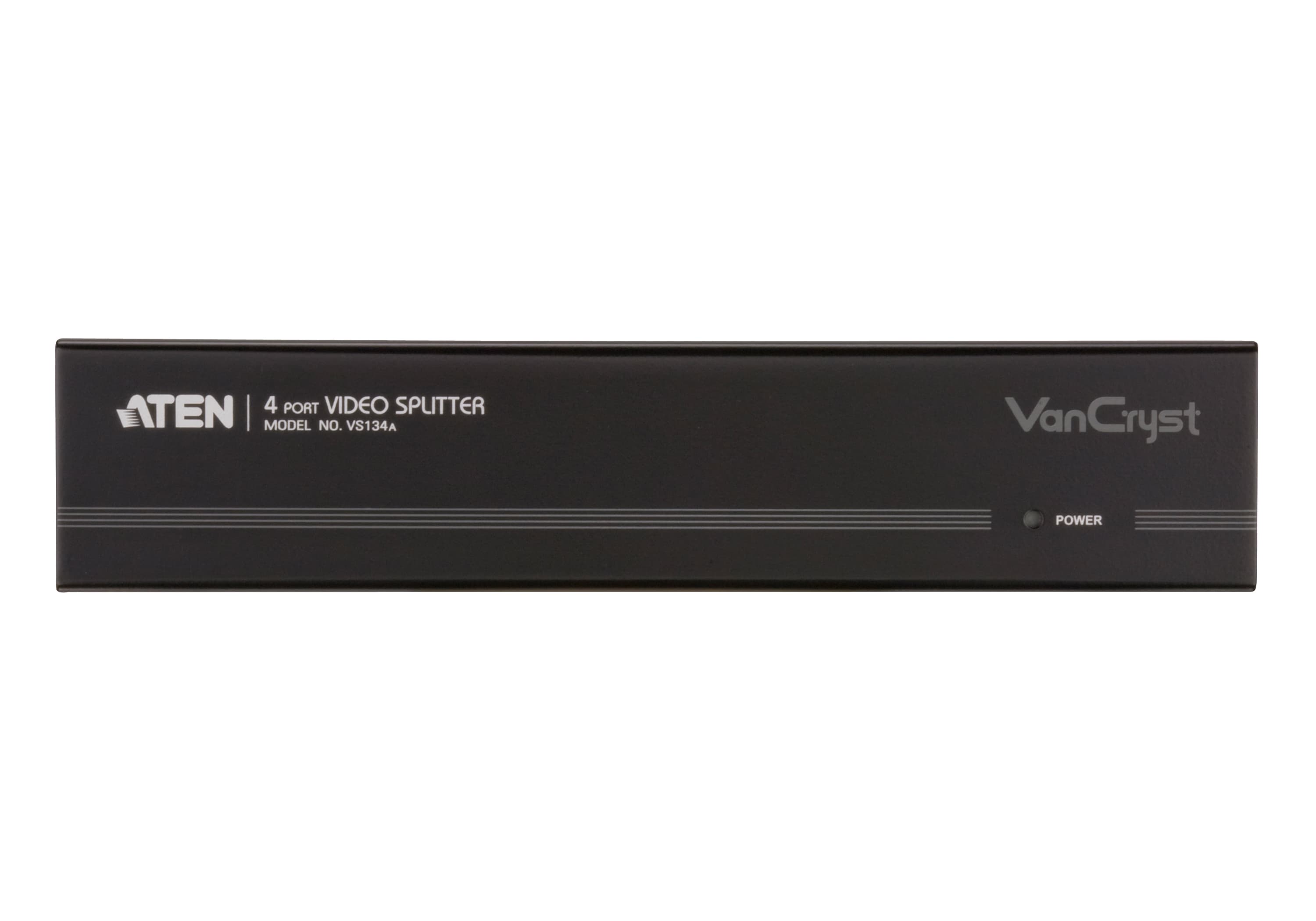

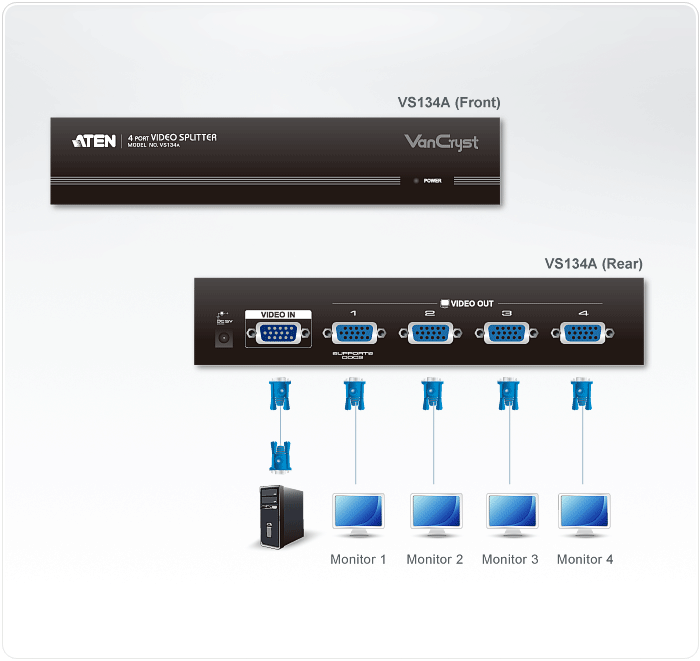

The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64
Features
- One video input to 4 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 64 video signals
- Long distance transmission - up to 30m *
- Superior video quality - up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
- All-metal casing * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

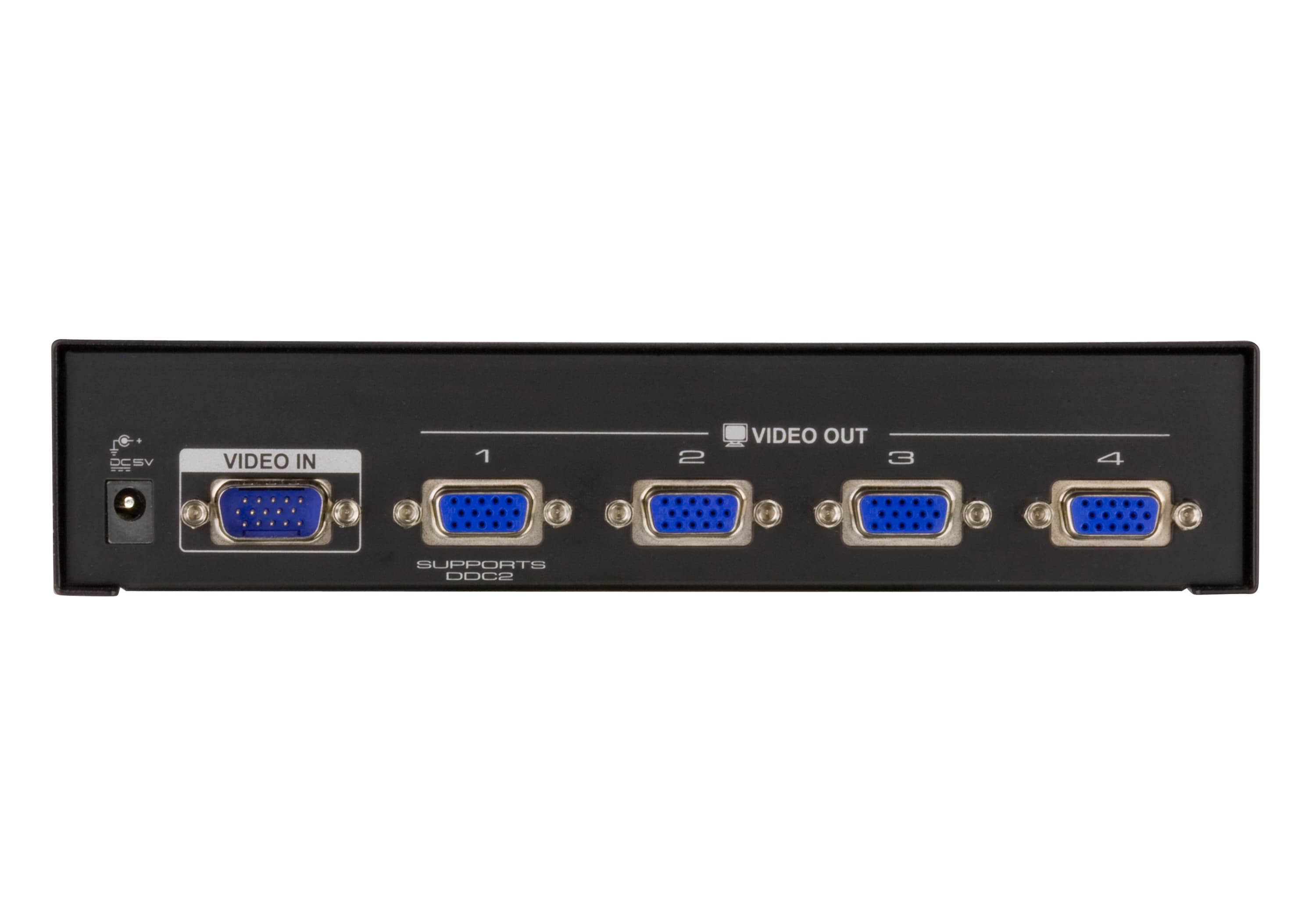

Video Input
- Interfaces
- 1 x HDB-15 Male (Blue)
- Impedance
- 75 Ω
- Max. Distance
- 1.8 m
Video Output
- Interfaces
- 4 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
Video
- Max. Bandwidth
- 450 MHz
- Max. Resolution
- Up to 2048 x 1536
- Max. Distance
- Up to 30 m
Connectors
- Power
- 1 x DC Jack
- Power Consumption
- DC5V:0.9W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.61 kg ( 1.34 lb )
- Dimensions (L x W x H)
- 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.)
- Carton Lot
- 20 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
