8-Port True 4K HDMI Splitter

Name: 8-Port True 4K HDMI Splitter
Brand: ATEN
SKU: VS0108HB

VS0108HB

Splitter feeding one HDMI source to up to 8 displays at True 4K (4096 x 2160 @ 60 Hz 4:4:4). HDMI 2.0 and HDCP 2.2 compliant; supports HDR10+.

Features

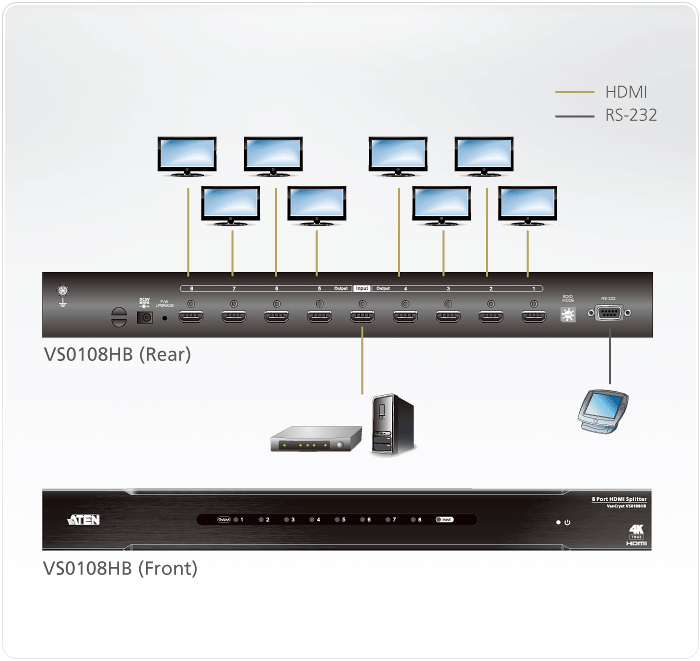

Allows one HDMI source to be connected to up to 8 HDMI displays
HDMI 2.0 (3D, Deep color, 4K); HDCP 2.2 compliant
Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
Supports HDR10+
Long distance transmission from source to output - up to 6 m
Built-in bi-directional RS-232 serial control port for high-end system control
Supports Dolby True HD and DTS HD Master Audio
Clear LED indication of device status
EDID Expert™ – Selects optimum EDID settings for smooth power- up, high quality display and use of the best resolution across different screens
Plug-and-play
Rack-mountable (1U design)

RS-232: Connector: DB-9 Female (Black) x 1 Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings: EDID Slide Switch x 1 EDID Mode: Port 1 / Default / Auto / Switch

Power: 1 x DC Jack
Power Consumption: DC5V:11.95W:56BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Housing: Metal
Weight: 2.18 kg ( 4.8 lb )
Dimensions (L x W x H): 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
Carton Lot: 3 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
