Touch panel with an 8-inch 1280 x 800 IPS capacitive display for operating the ATEN Control System; integrates with ATEN Unizon and Room Booking to show room usage status.
Features

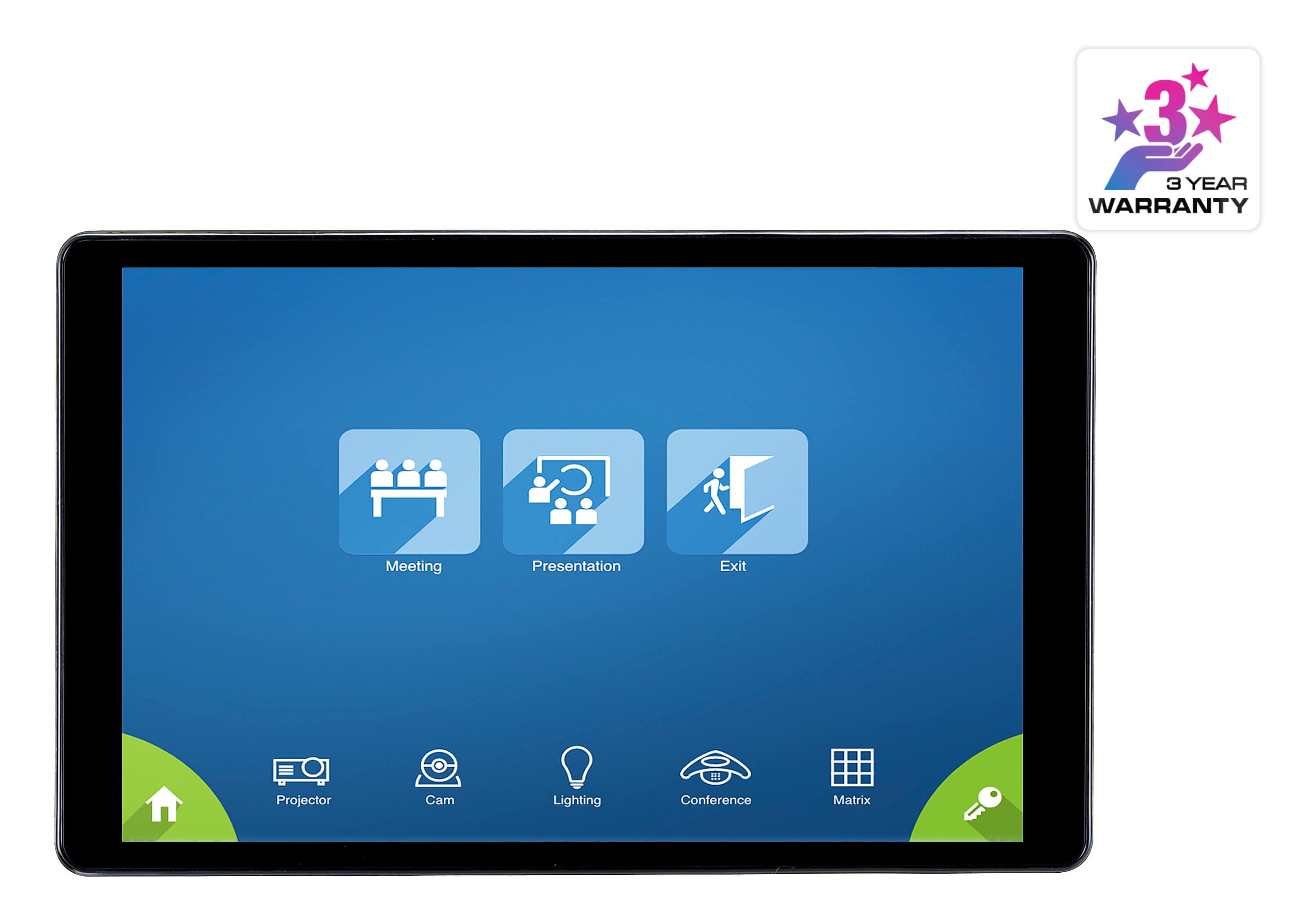

- 8” touch panel with narrow bezel modern design
- Natively installed with ATEN Control System app and designed for the integrated use with ATEN Control System
- Supports AppSwitcher to allow multiple apps to be switched and operated
- Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status
- Allows administrators for central control of multiple rooms via profiles
- Restricts user access to profiles via password authentication
- Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablet computers
- Demo mode enables demonstration without connecting a controller while familiarizing users with the solution’s most important functions
- Screen Saver helps energy saving and prolongs the device lifetime
- Allows for Display Real-time Streaming Protocol (RTSP), ONVIF, and ATEN VE89 series video preview*
- Supports Power over Ethernet (PoE), which allows it to receive power and data over a single Ethernet cable
- Side power LED – features the indicator in the dark place

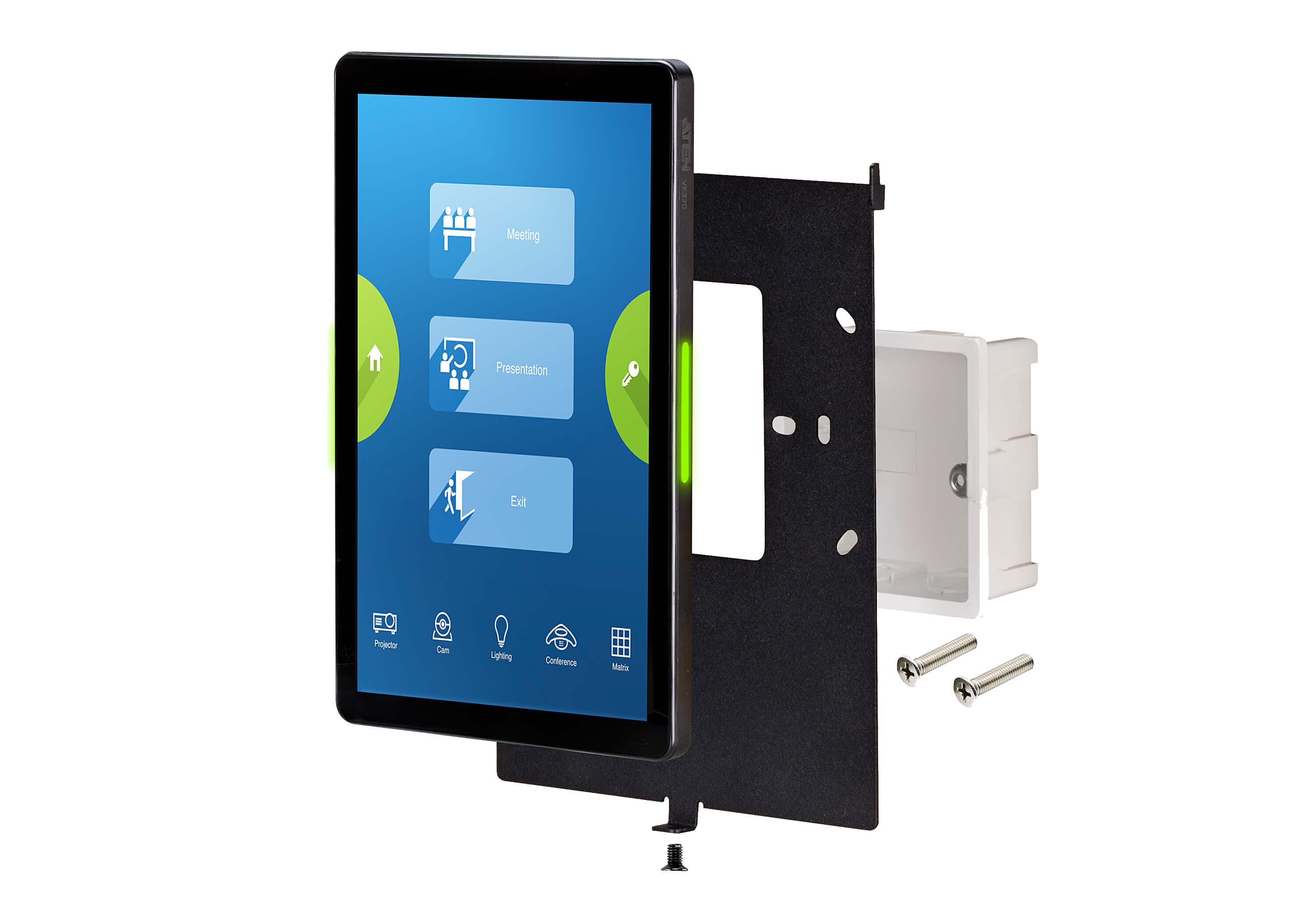

- In-wall design – perfectly fits in building decoration

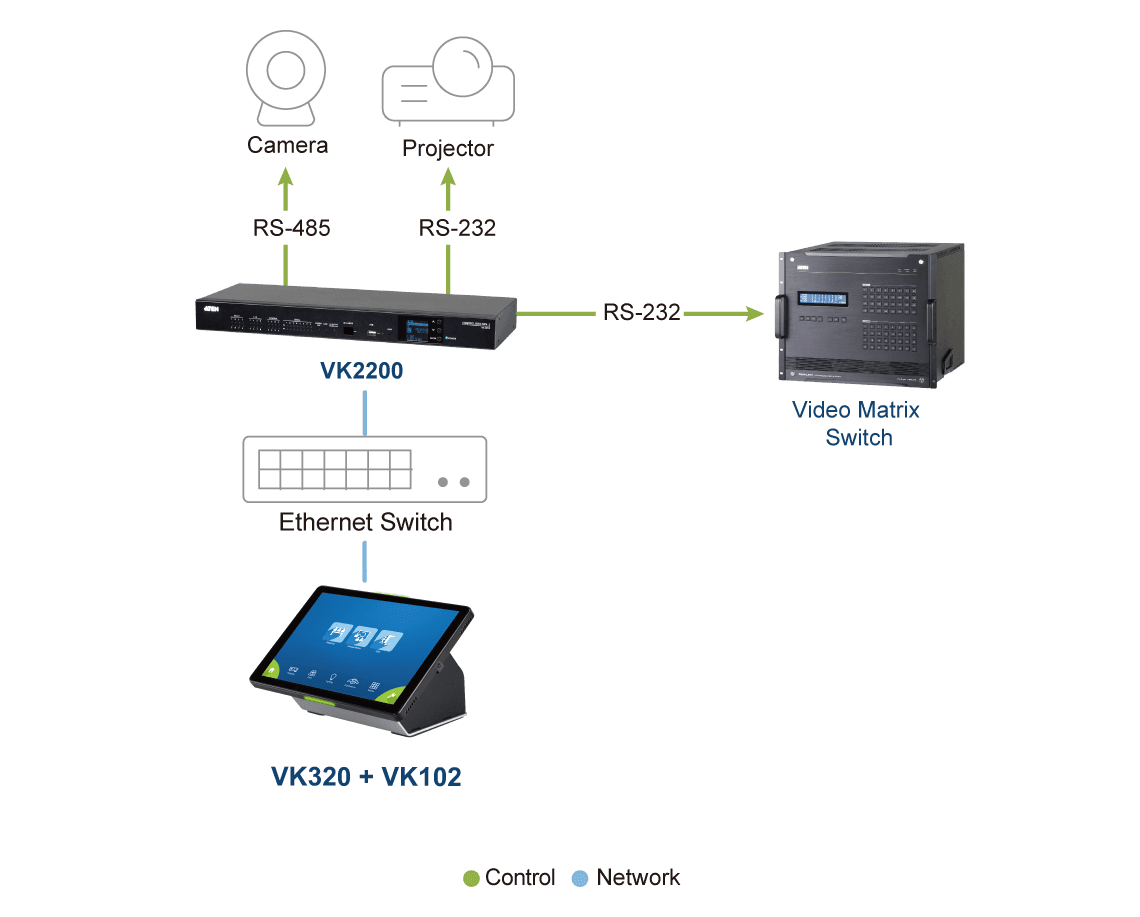

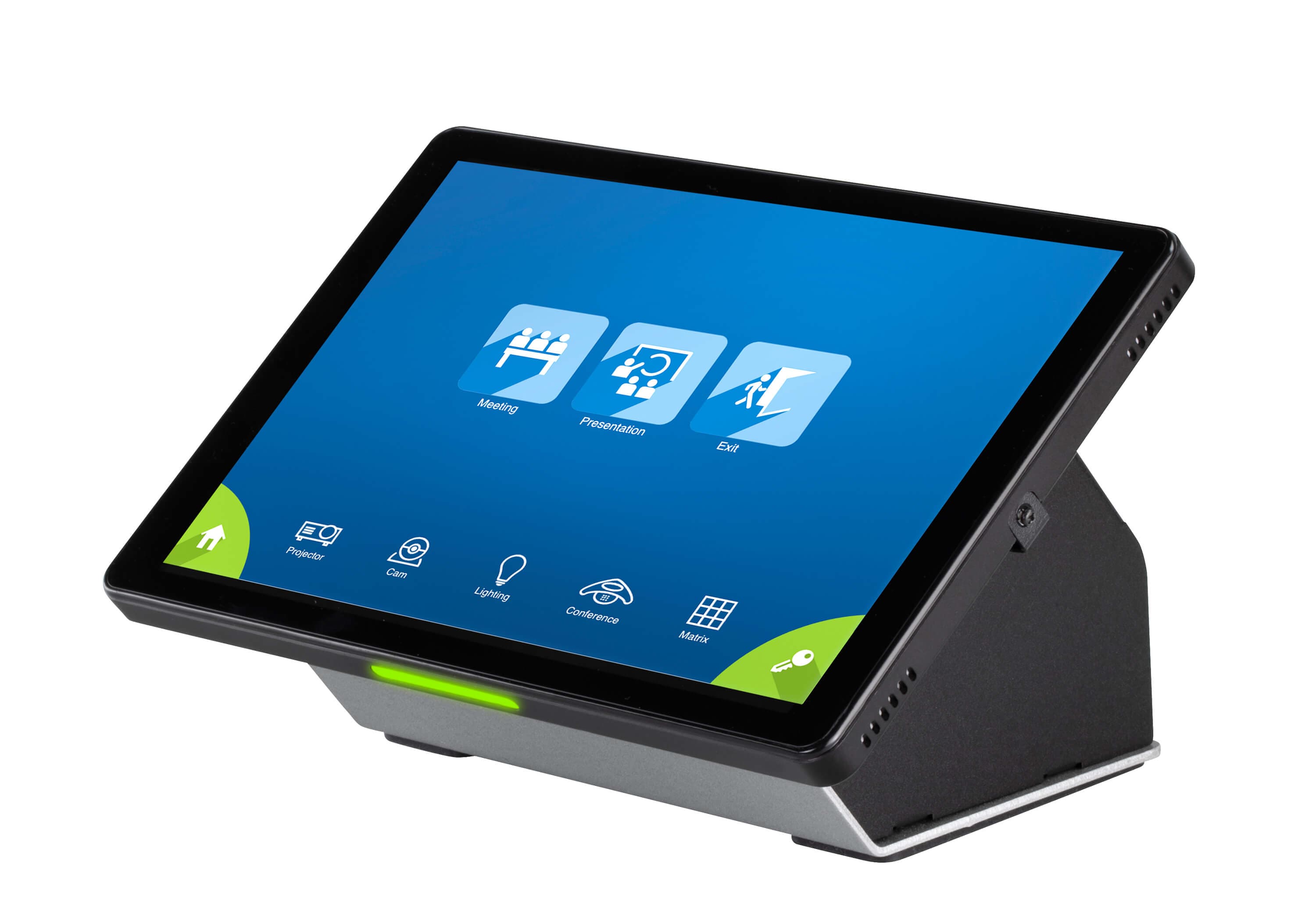

- Compatible with VK101 and VK102 Tabletop Kits for desk mounting and wall mounting *Note: The function is applicable to VK2200 / VK1200.
Specifications
- Processor
- Quad-core
Memory
- SDRAM
- 2GB
- Flash
- 32GB
Panel Spec
- Display Type
- IPS-LCD
- Size
- 8"
- Touch Screen
- Capacitive
- Resolution
- 1280 x 800
- Aspect Ratio
- 16 : 10
- Color Depth
- 8 bit
- Contrast Ratio
- 800 : 1
- Backlight
- LCD
- Viewing Angle
- ± 85° (H), ± 85° (V)
- Luminance
- 300 cd/m²
Interfaces

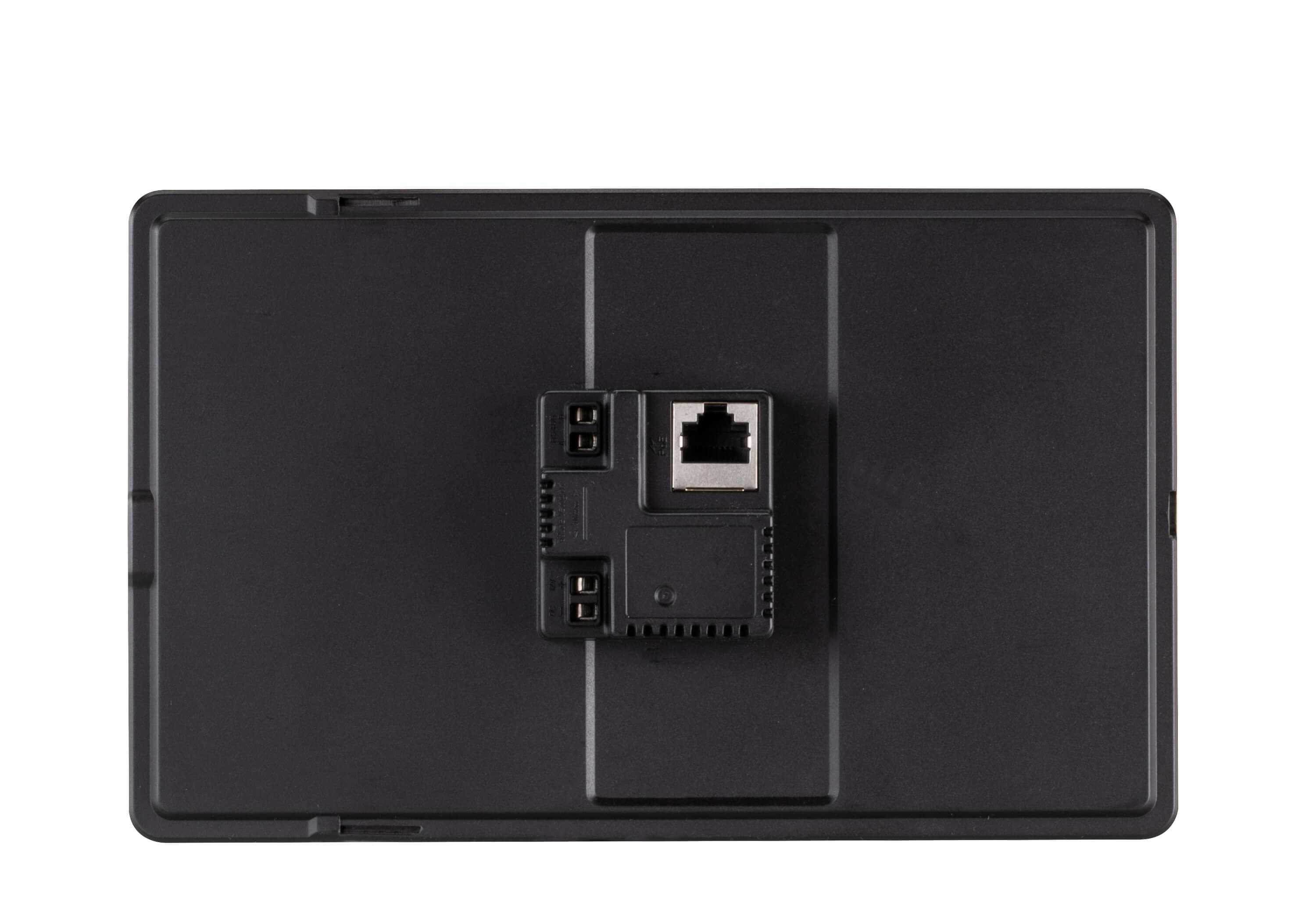

- Ethernet
- 1 x RJ-45 Female, 10 / 100 BaseT
- USB
- 1 x USB Type C
Power Inputs
- Power over Ethernet (PoE)
- 802.3 at PoE+
- Power Consumption
- DC12V:12W:40.95BTU/h POE:14.1W:48.1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 – 40°C
- Storage Temperature
- –10 – 55°C
- Humidity
- 10 - 75% RH, Non-Condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.33 kg ( 0.73 lb )
- Dimensions (L x W x H)
- 20.01 x 12.46 x 3.77 cm (7.88 x 4.91 x 1.48 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
