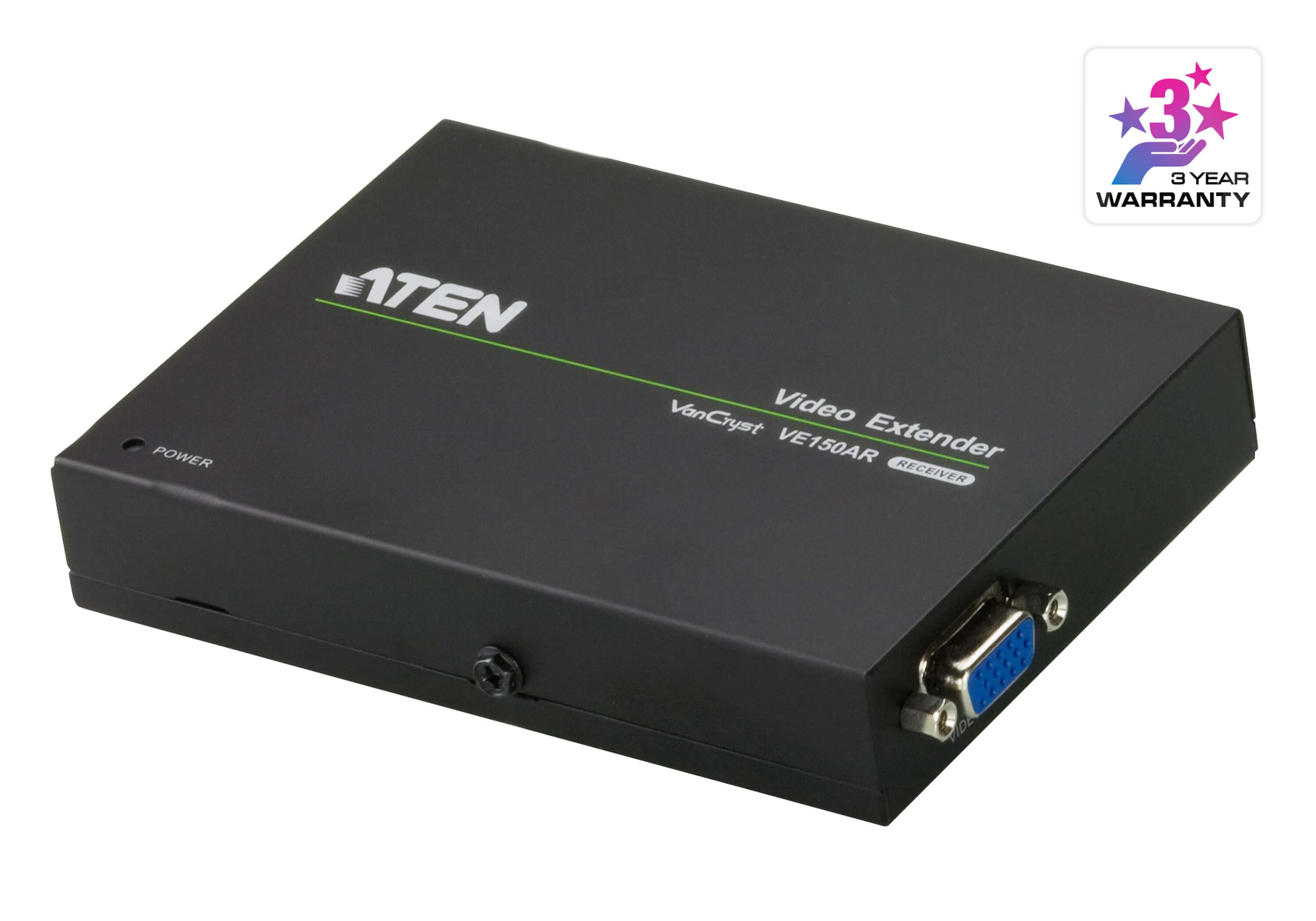

VGA Cat 5 Receiver (1280 x 1024@150m)
VE150AR
The VE150AR video receiver connects to a VE150AT to extend signals up to 150m from the source using a Cat 5e cable. It is ideal for factories and construction sites,
Features
- Long distance transmission – up to 150 m
- Adjustable gain control – manually adjust signal strength to compensate for distance
- Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Easy installation
- Rack Mountable
- Plug-and-play – no software installation required

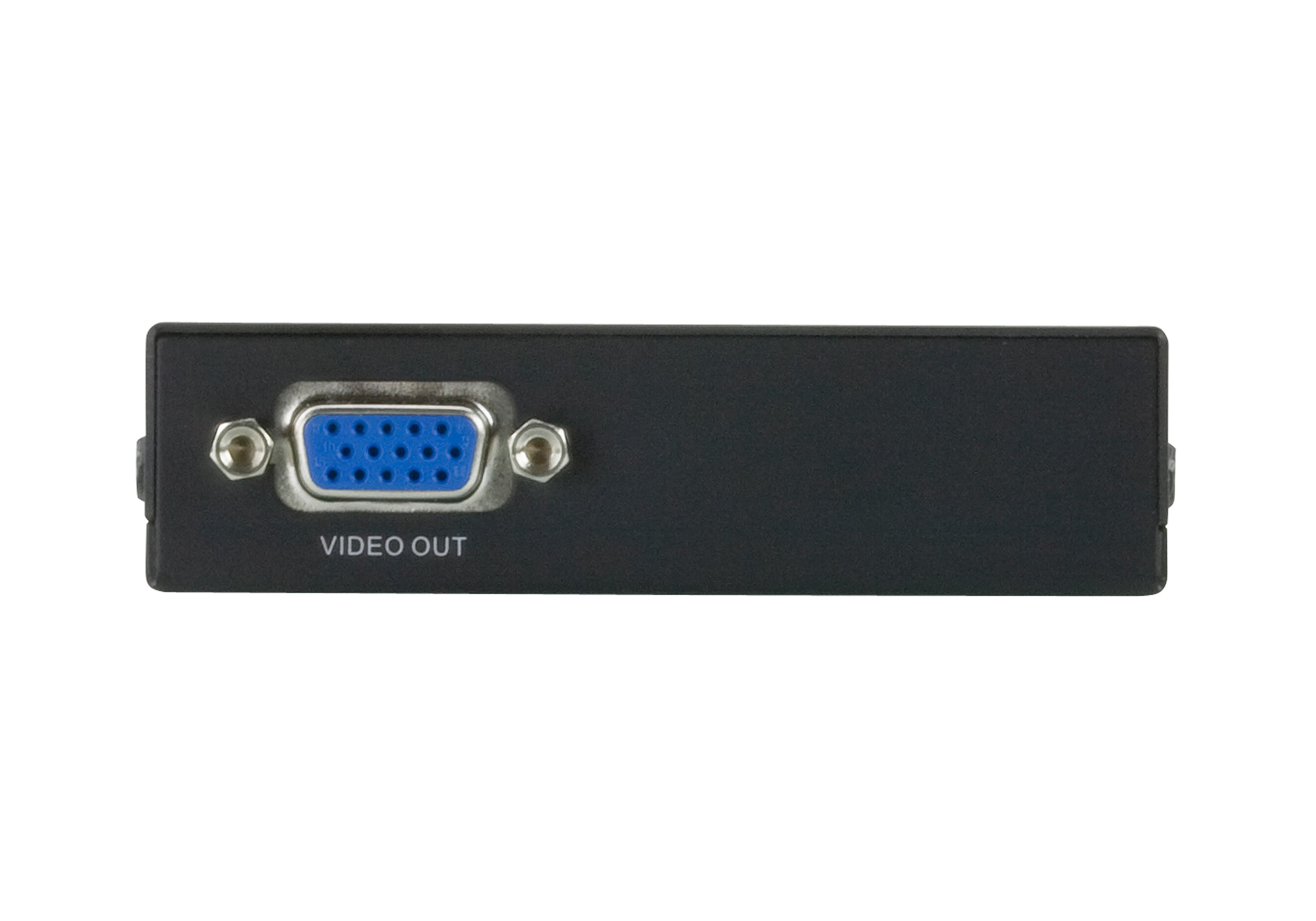

Video Output
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
Video
- Max. Bandwidth
- 300 MHz
- Max. Resolutions / Distance
- Up to 1920 x 1200@30m; 1280 x 1024@150m

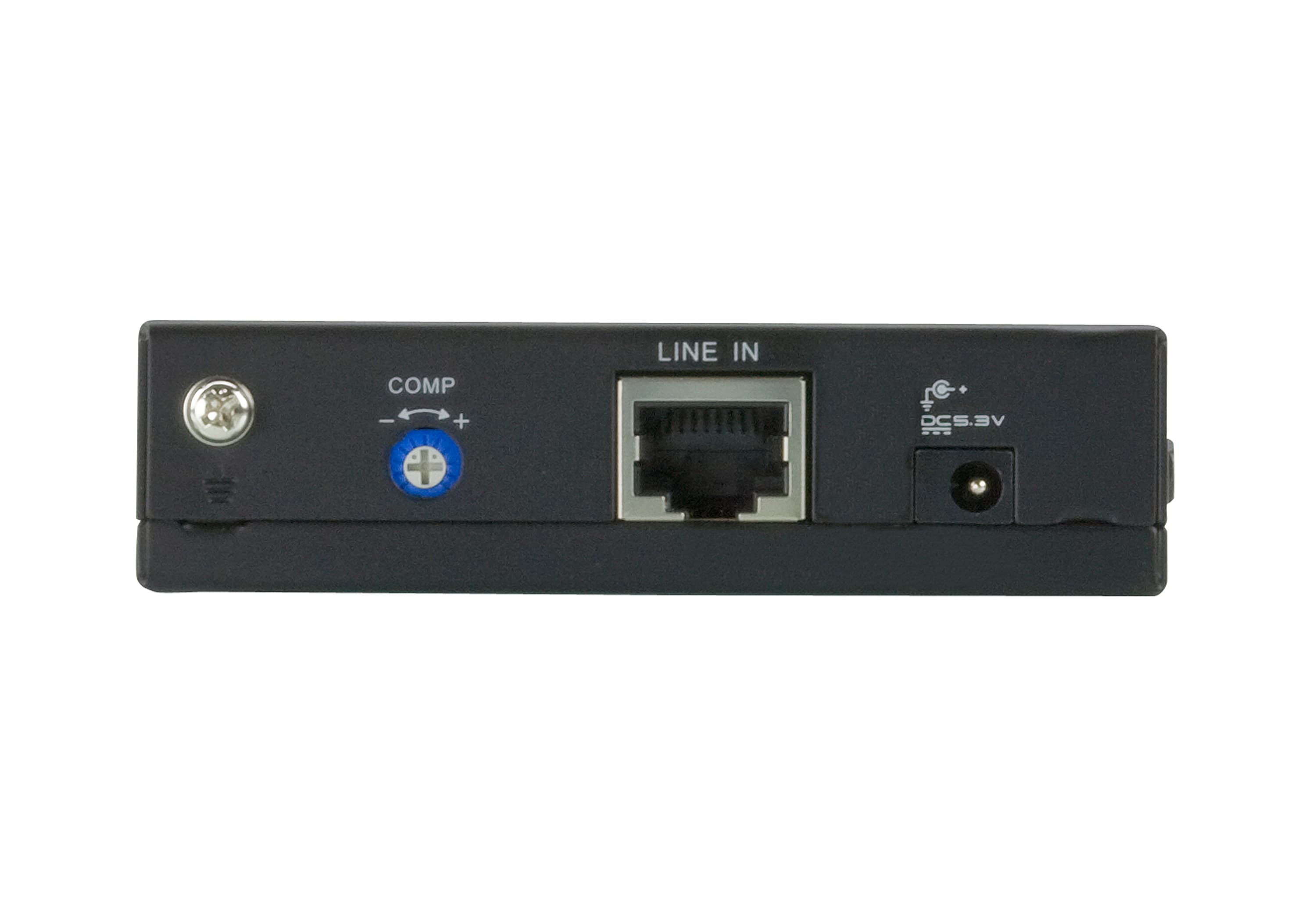

Connectors
- Power
- 1 x DC Jack
- Power Consumption
- 5.3 VDC,1.2W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.24 kg ( 0.53 lb )
- Dimensions (L x W x H)
- 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
- Carton Lot
- 5 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
