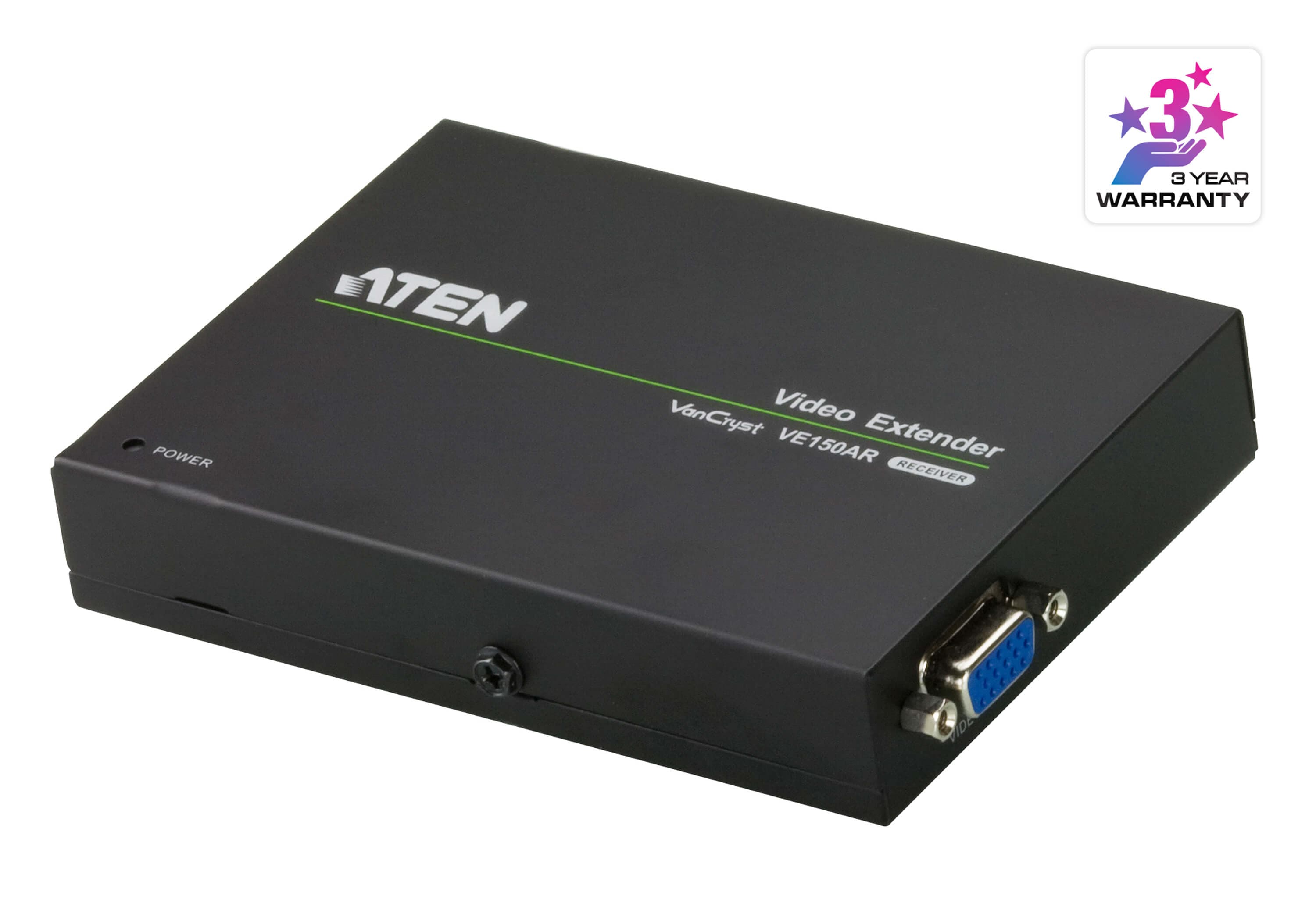

Приемник за VGA по Cat 5e — сдвоява се с предавател VE150AT и пренася сигнала до 150 m (1280 x 1024) или 30 m при 1920 x 1200; усилването се регулира ръчно.
Характеристики
- Long distance transmission – up to 150 m
- Adjustable gain control – manually adjust signal strength to compensate for distance
- Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Easy installation
- Rack Mountable
- Plug-and-play – no software installation required
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция / разстояние
- Up to 1920 x 1200@30m; 1280 x 1024@150m
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- 5.3 VDC,1.2W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.24 kg ( 0.53 lb )
- Размери (Д x Ш x В)
- 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
