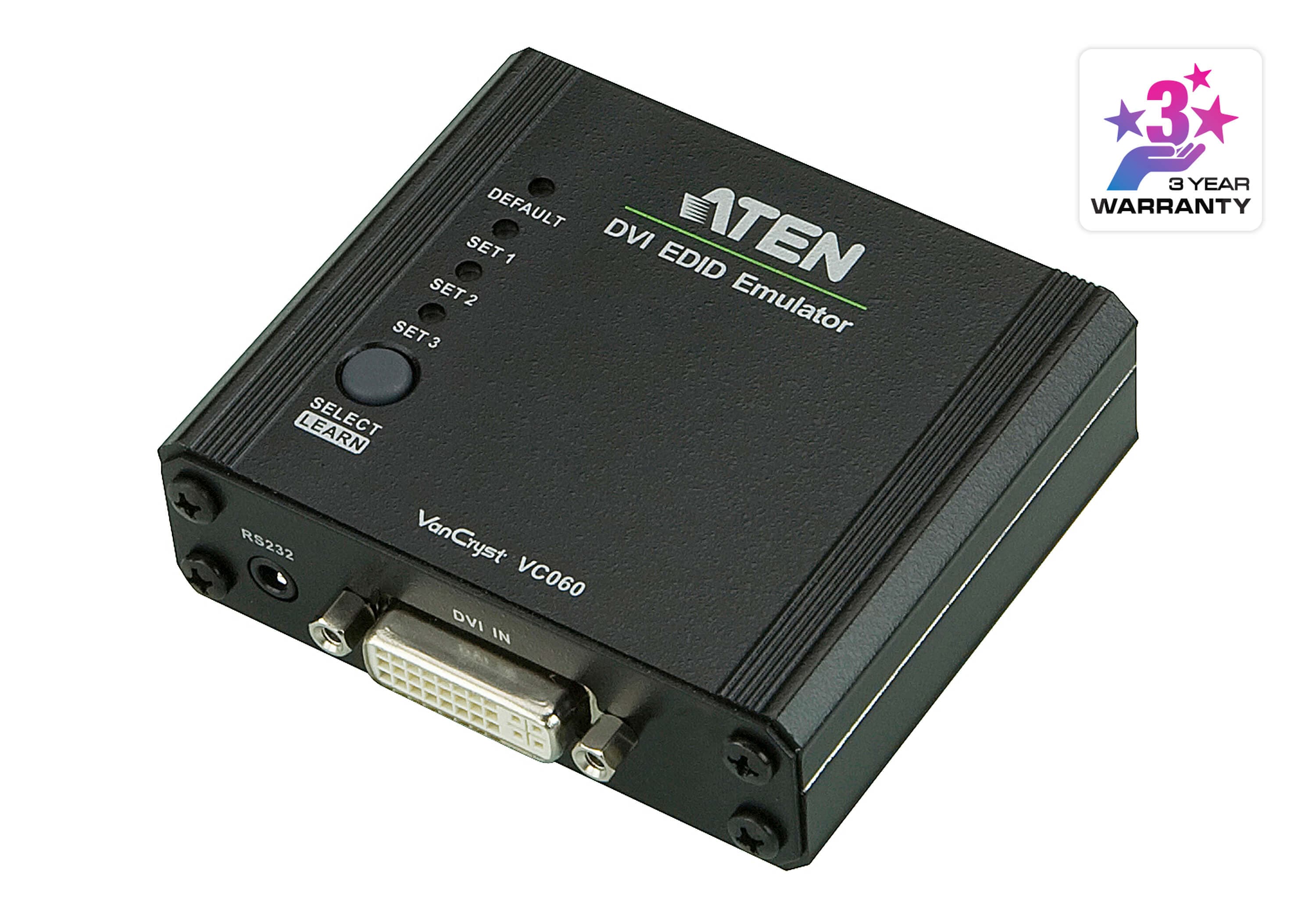

DVI EDID Emulator with Programmer

Name: DVI EDID Emulator with Programmer
Brand: ATEN
SKU: VC060

VC060

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

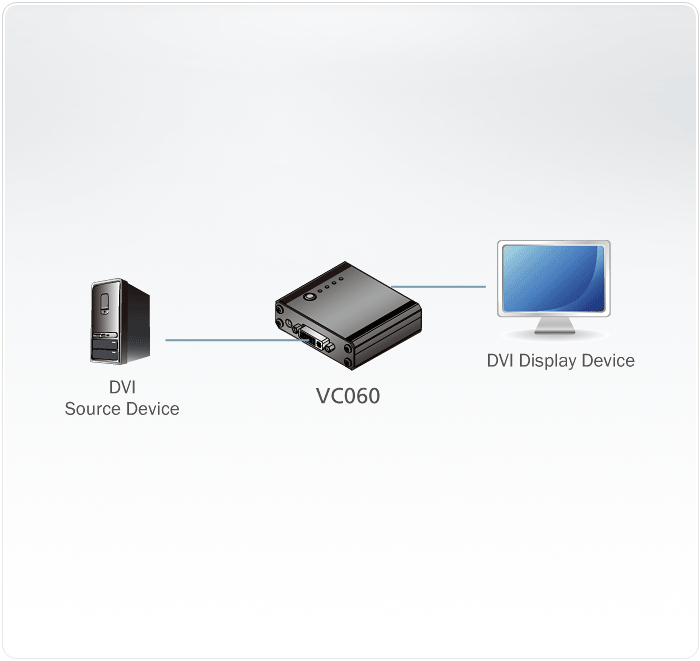

The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a

Features

Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
EDID Wizard – allows a user an easy way to manage EDID settings
EDID mode selection – Default, Learning , Programming
Automatically manages EDID communication between connected devices
Signaling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered * * If the video source is not receiving enough power an external power cord should be connected.

Specifications

Max. Video Resolution: WUXGA (1920 x 1200)
Data Rate: 2.25 Gbits

Connectors

Power: 1 x DC Jack
Power Consumption: DC5V:0.13W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal
Weight: 0.15 kg ( 0.33 lb )
Dimensions (L x W x H): 7.90 x 7.86 x 2.45 cm (3.11 x 3.09 x 0.96 in.)
Carton Lot: 5 pcs

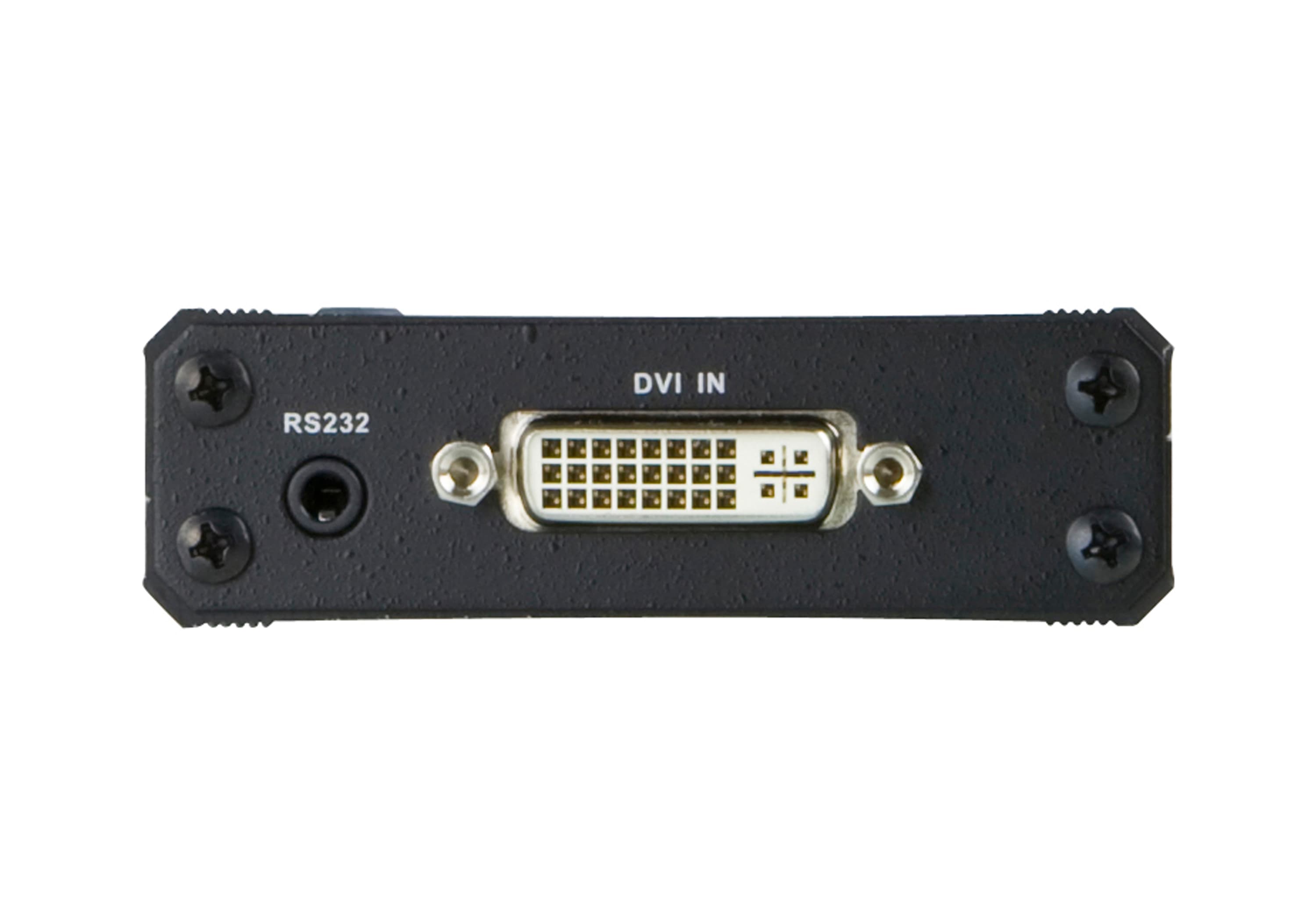

Video Input

Interfaces: 1 x DVI-I Female (White)
Impedance: 100 Ω

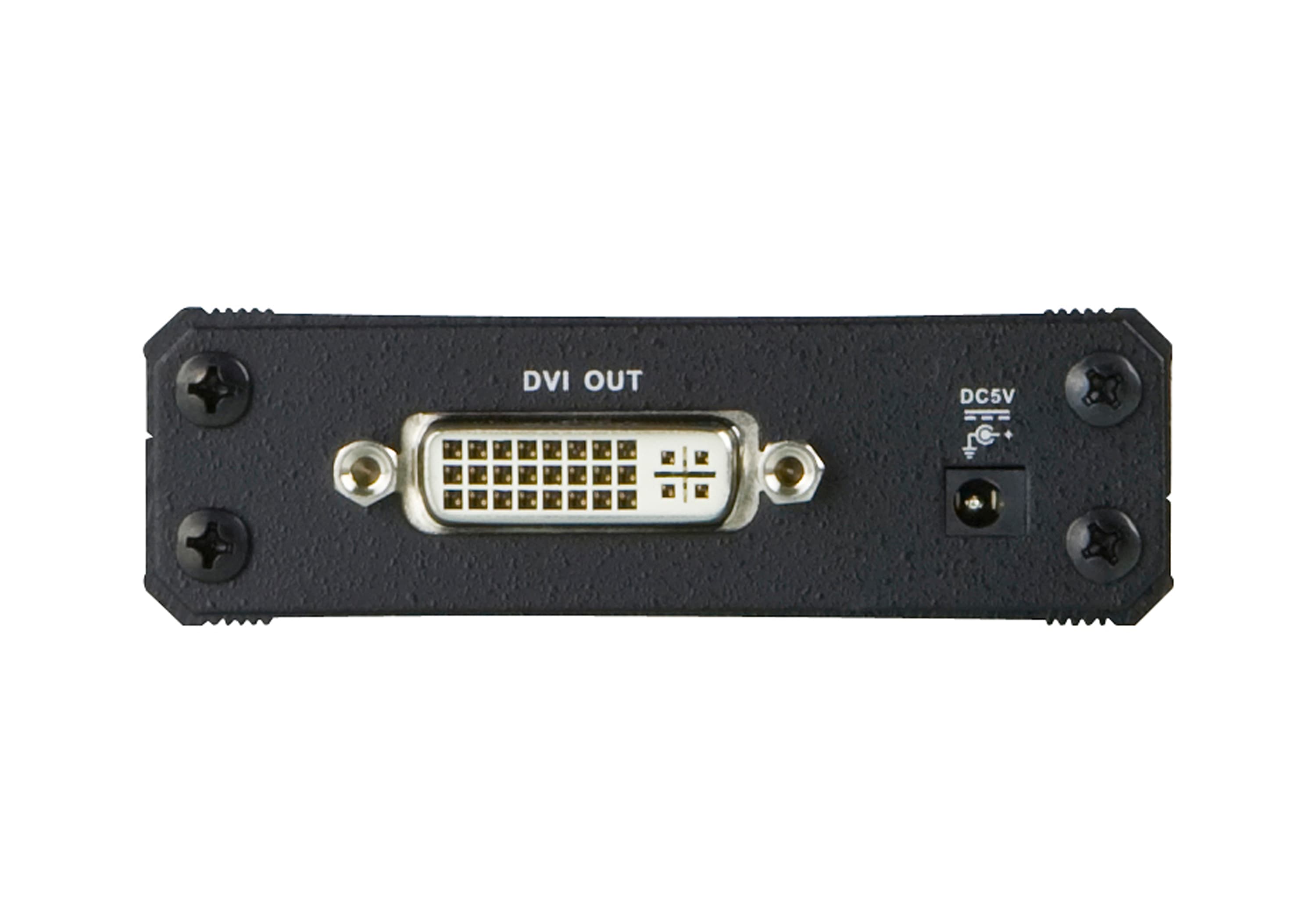

Video Output

Interfaces: 1 x DVI-I Female (White)
Impedance: 100 Ω
EDID Settings: EDID Mode: Default / Learn / Customized (EDID Wizard support)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
