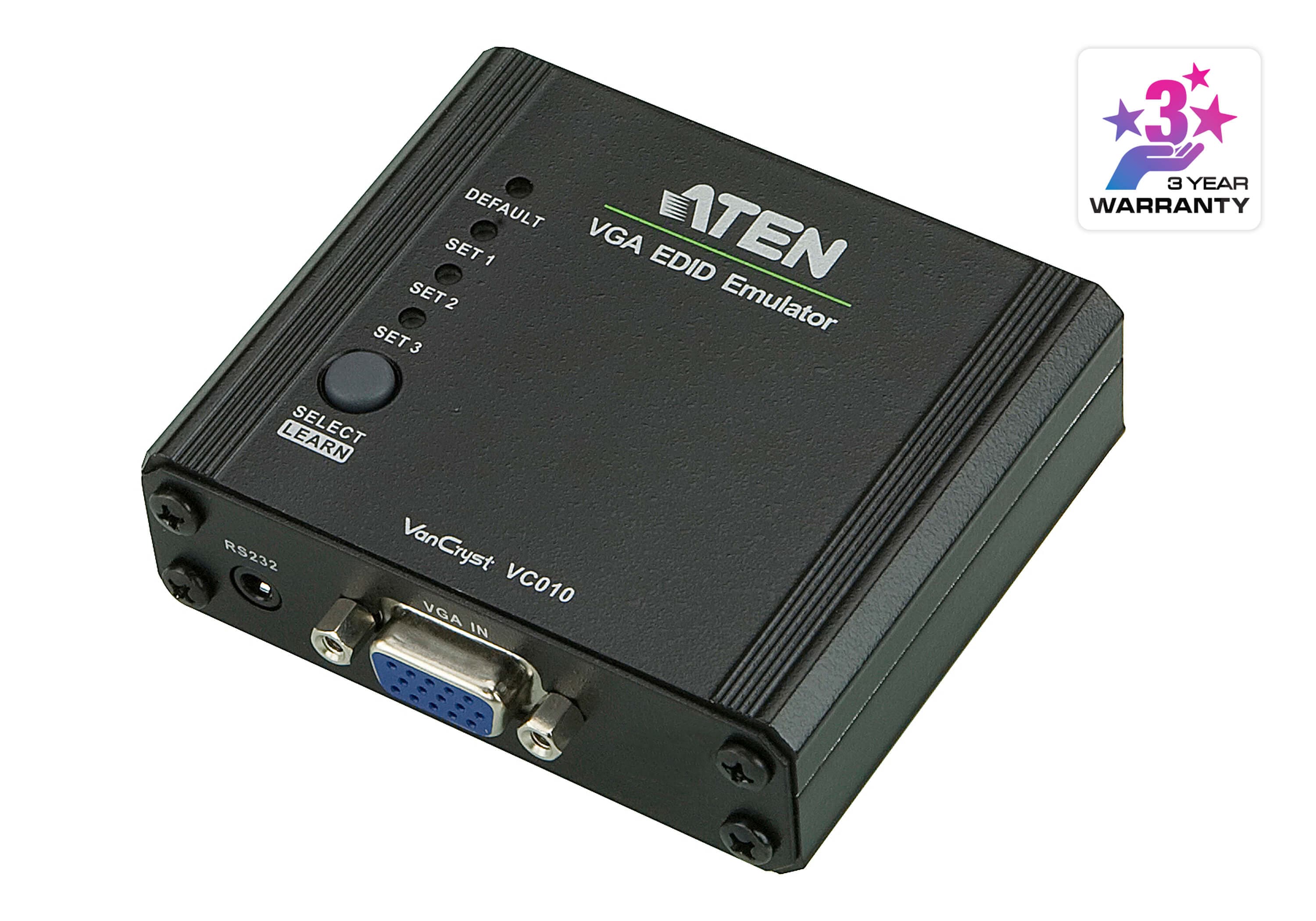

VGA EDID Emulator with Programmer
VC010

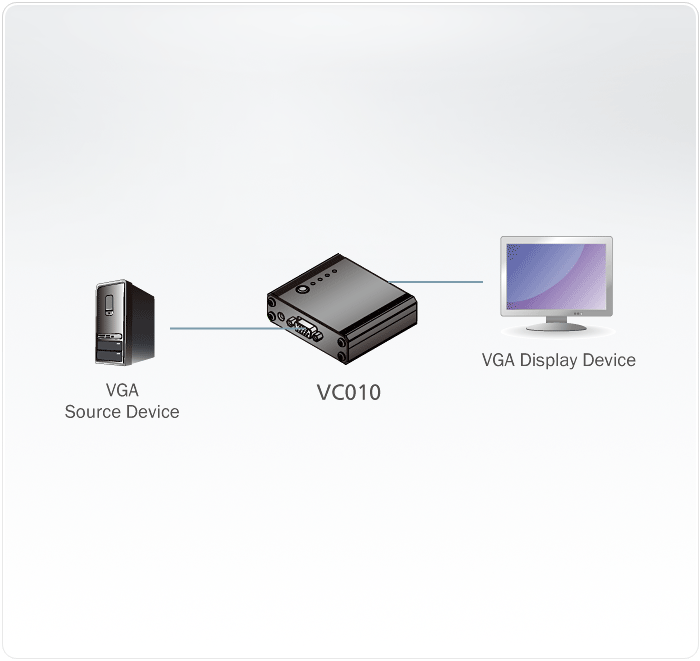

The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a
Features
- Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard – allows a user an easy way to manage EDID settings
- EDID mode selection – Default, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered * * If the video source is not receiving enough power an external power cord should be connected.
Specifications
- Data Rate
- 2.25 Gbits
- Max. Video Resolution
- WUXGA (1920 x 1200)

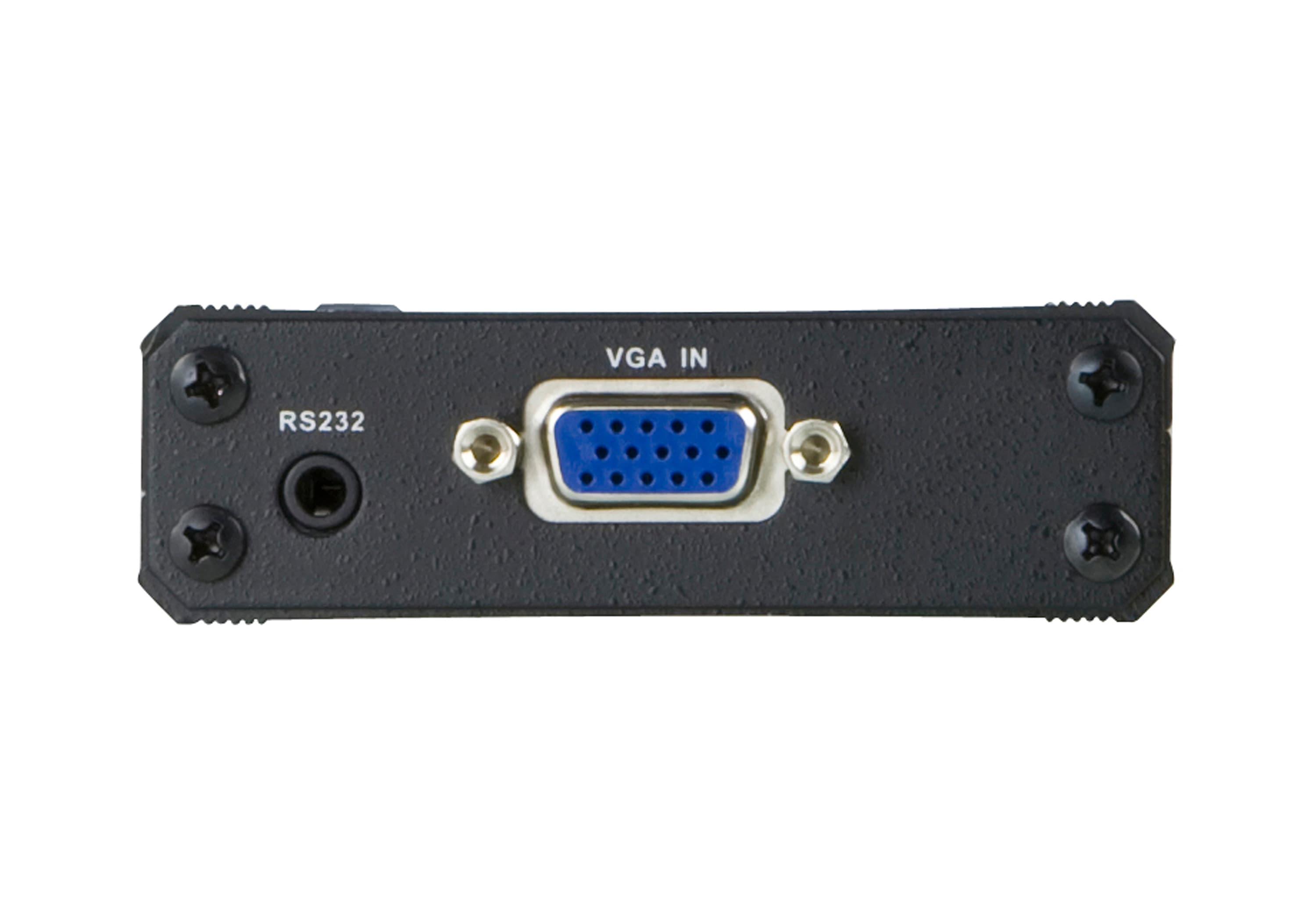

Video Input
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω

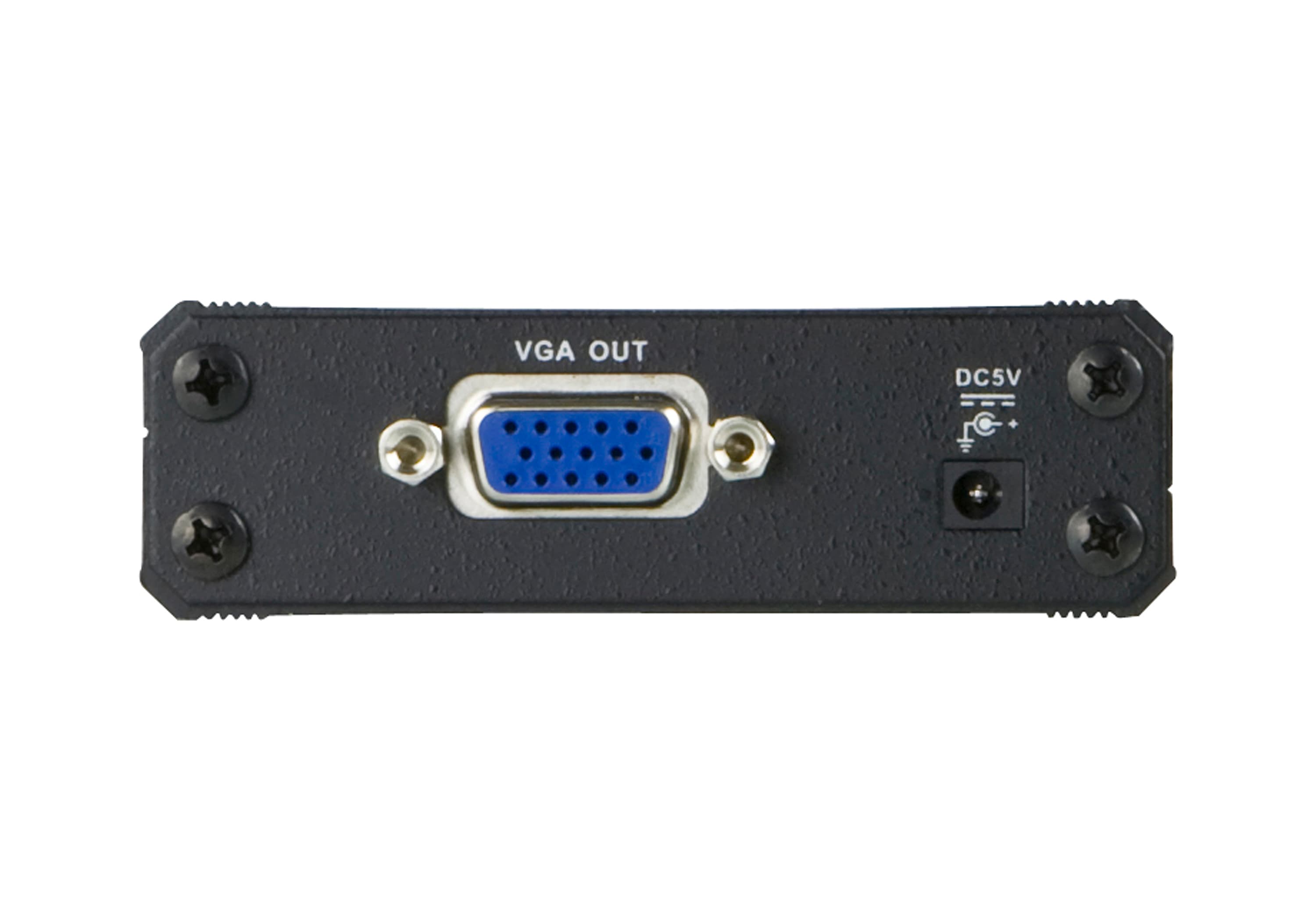

Video Output
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
- EDID Settings
- EDID Mode: Default / Learn / Customized (EDID Wizard support)
Connectors
- Power
- 1 x DC Jack
- Power Consumption
- DC5V:0.11W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.15 kg ( 0.33 lb )
- Dimensions (L x W x H)
- 7.90 x 7.76 x 2.45 cm (3.11 x 3.06 x 0.96 in.)
- Carton Lot
- 5 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
