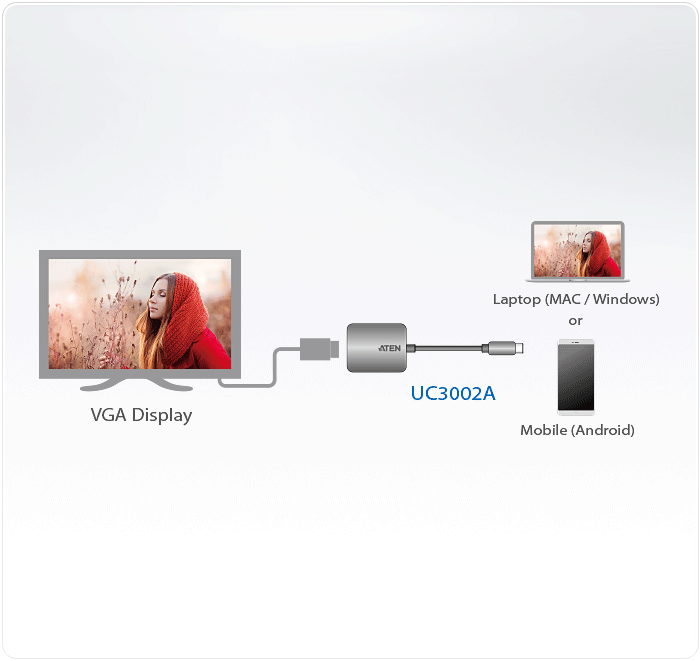

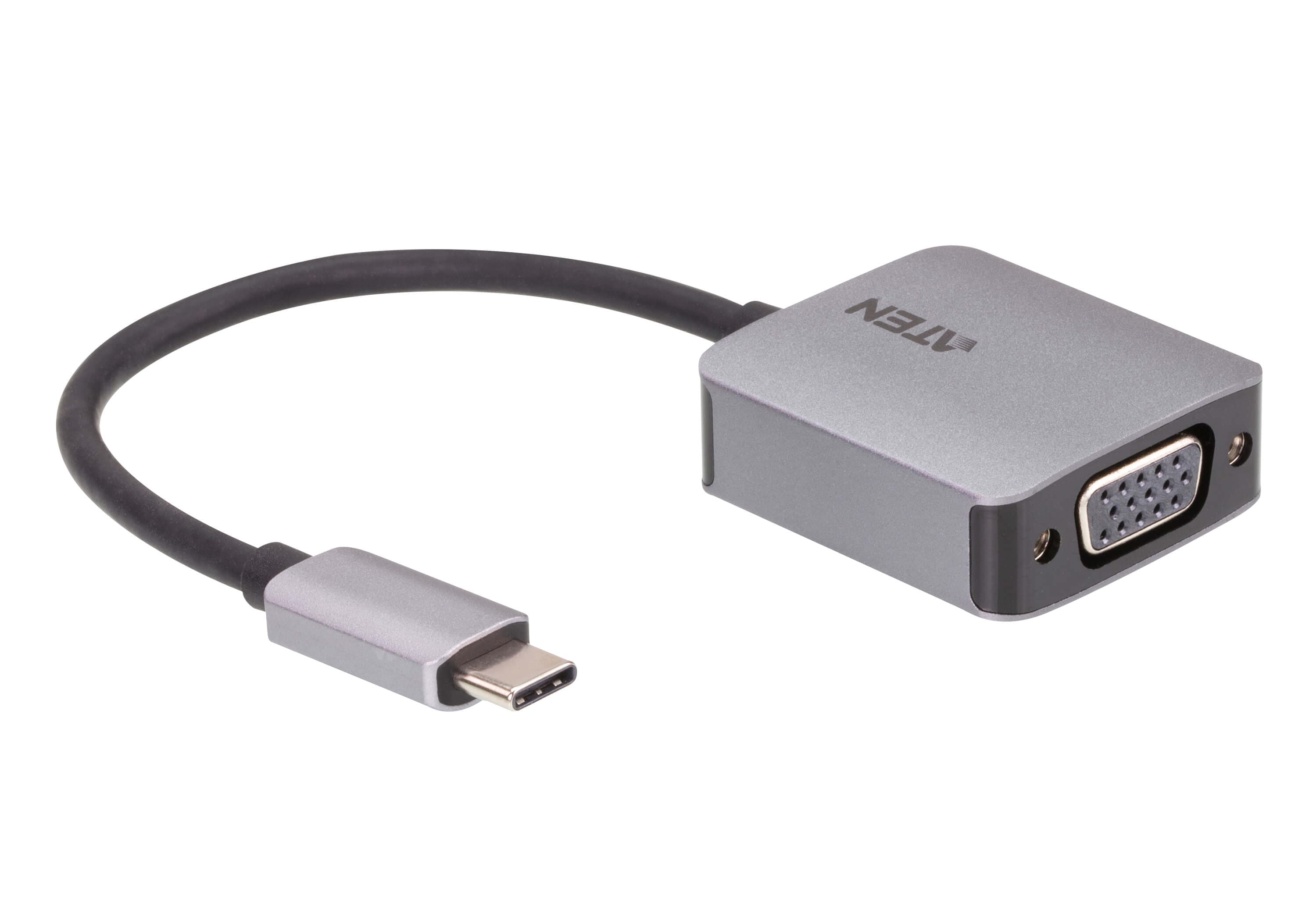

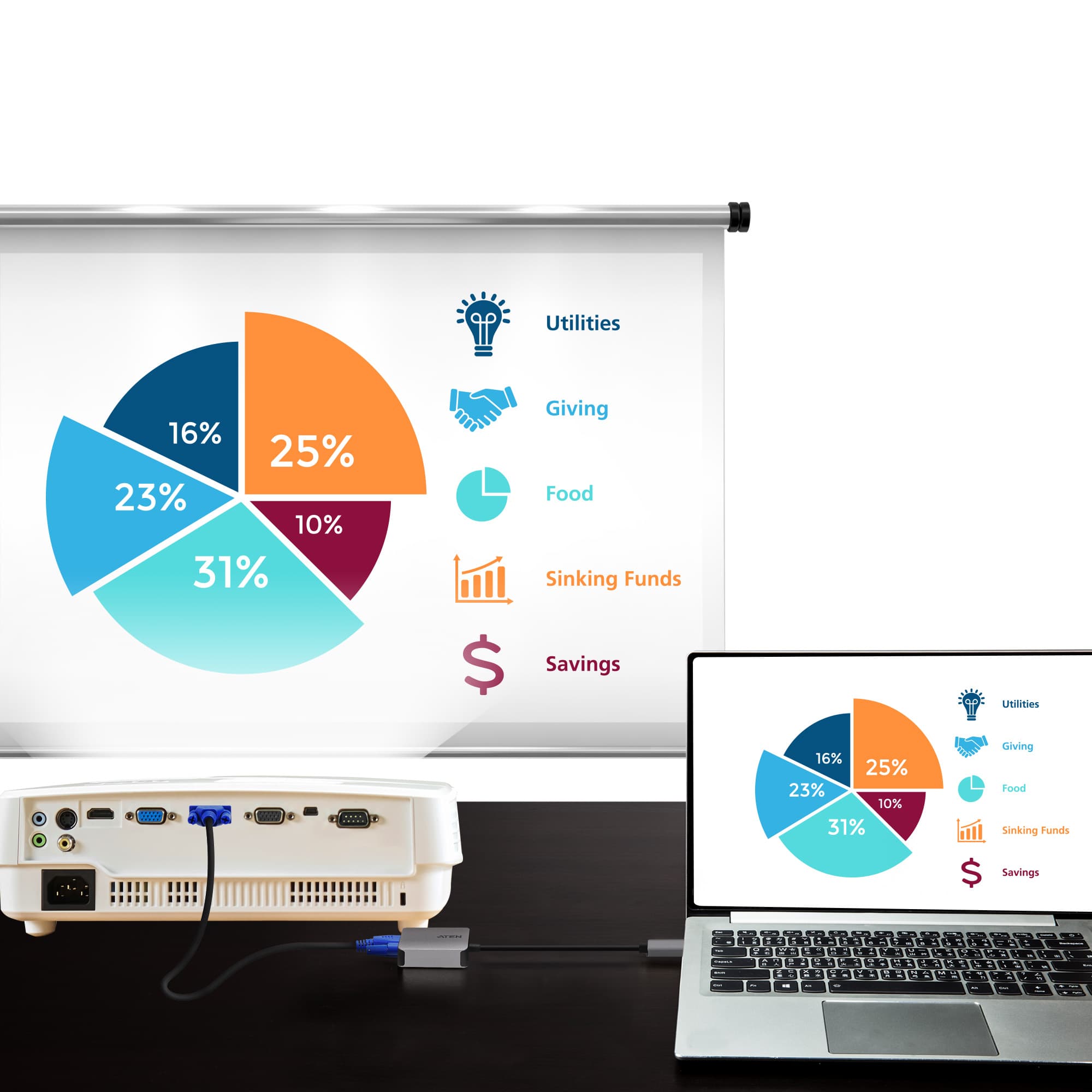

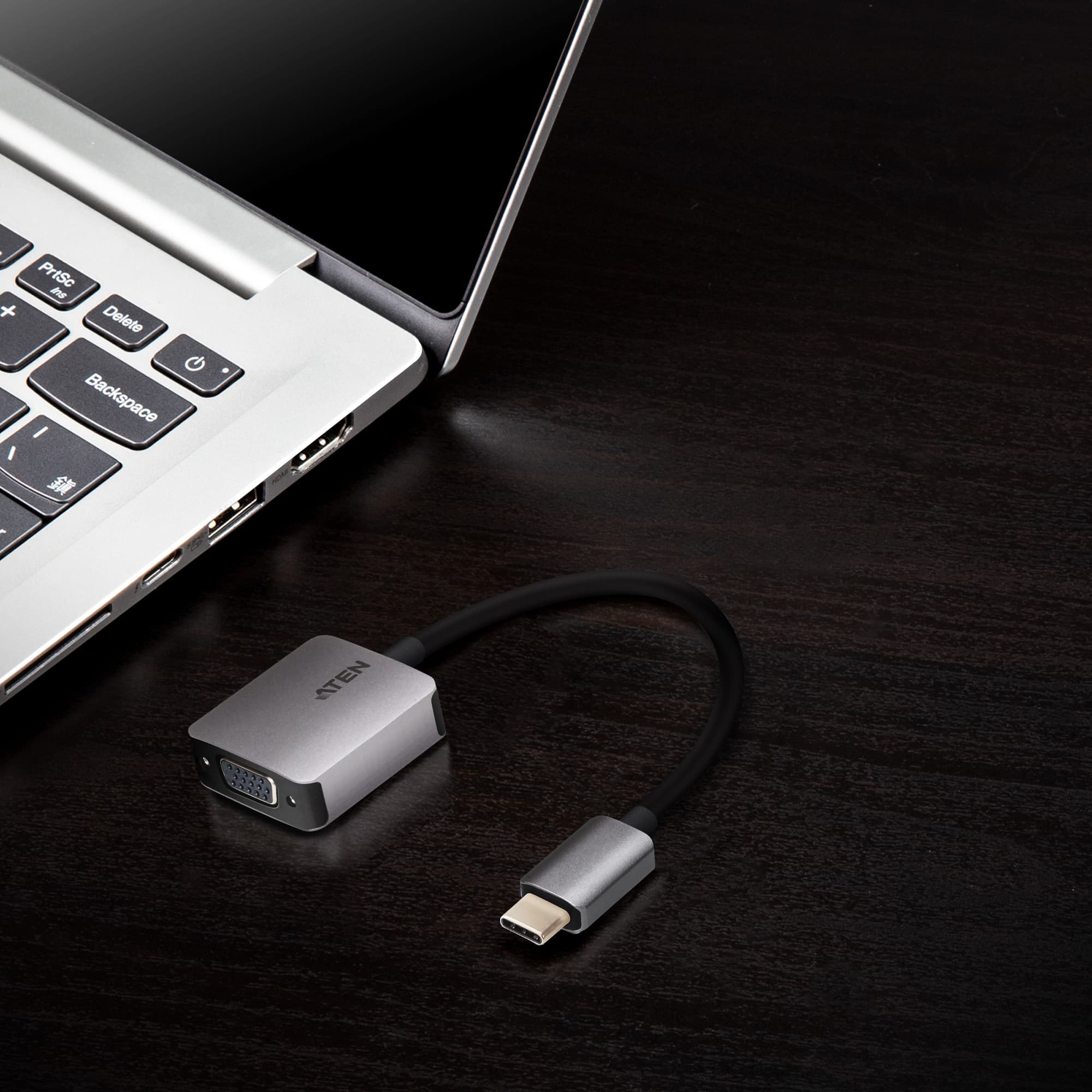

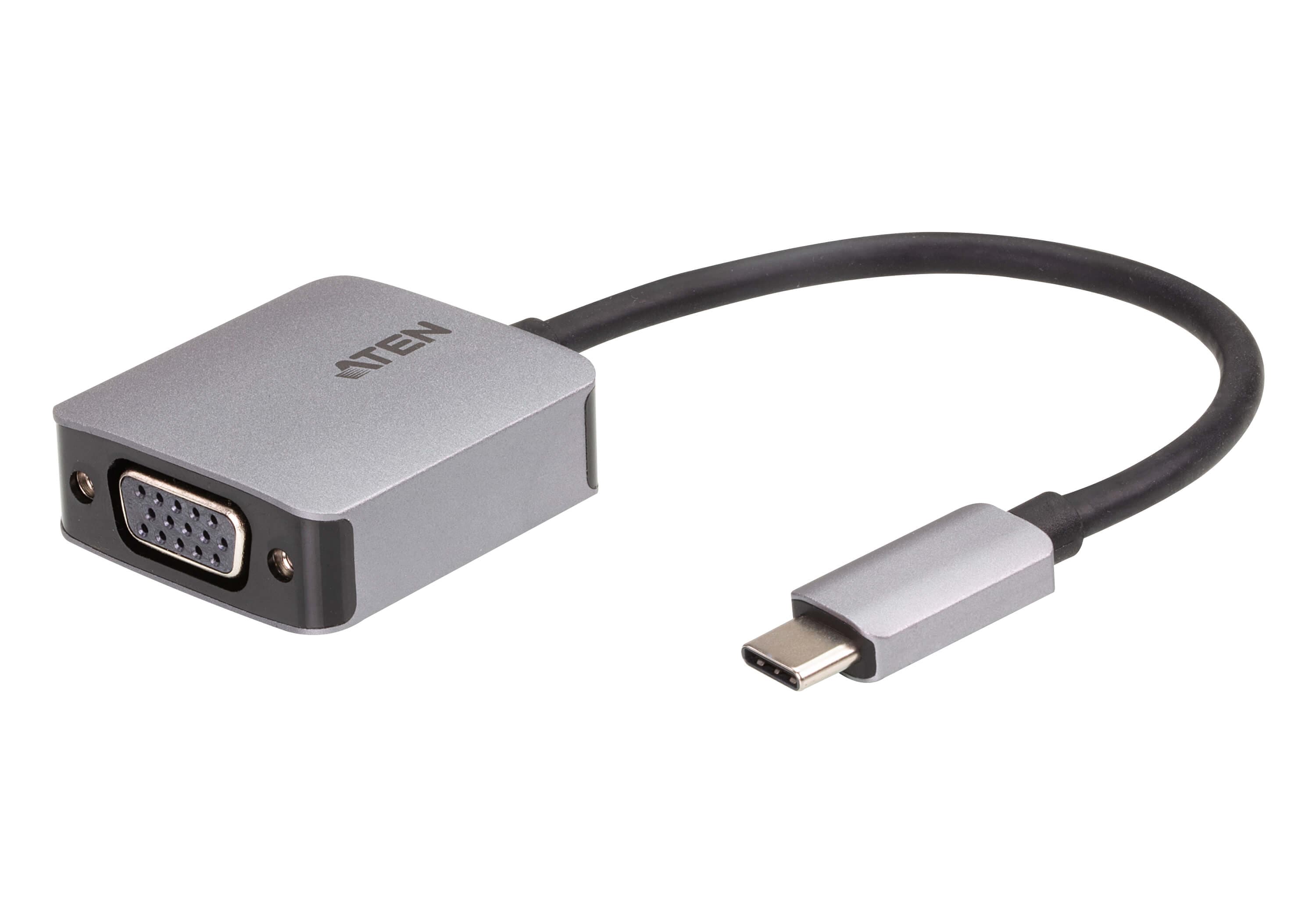

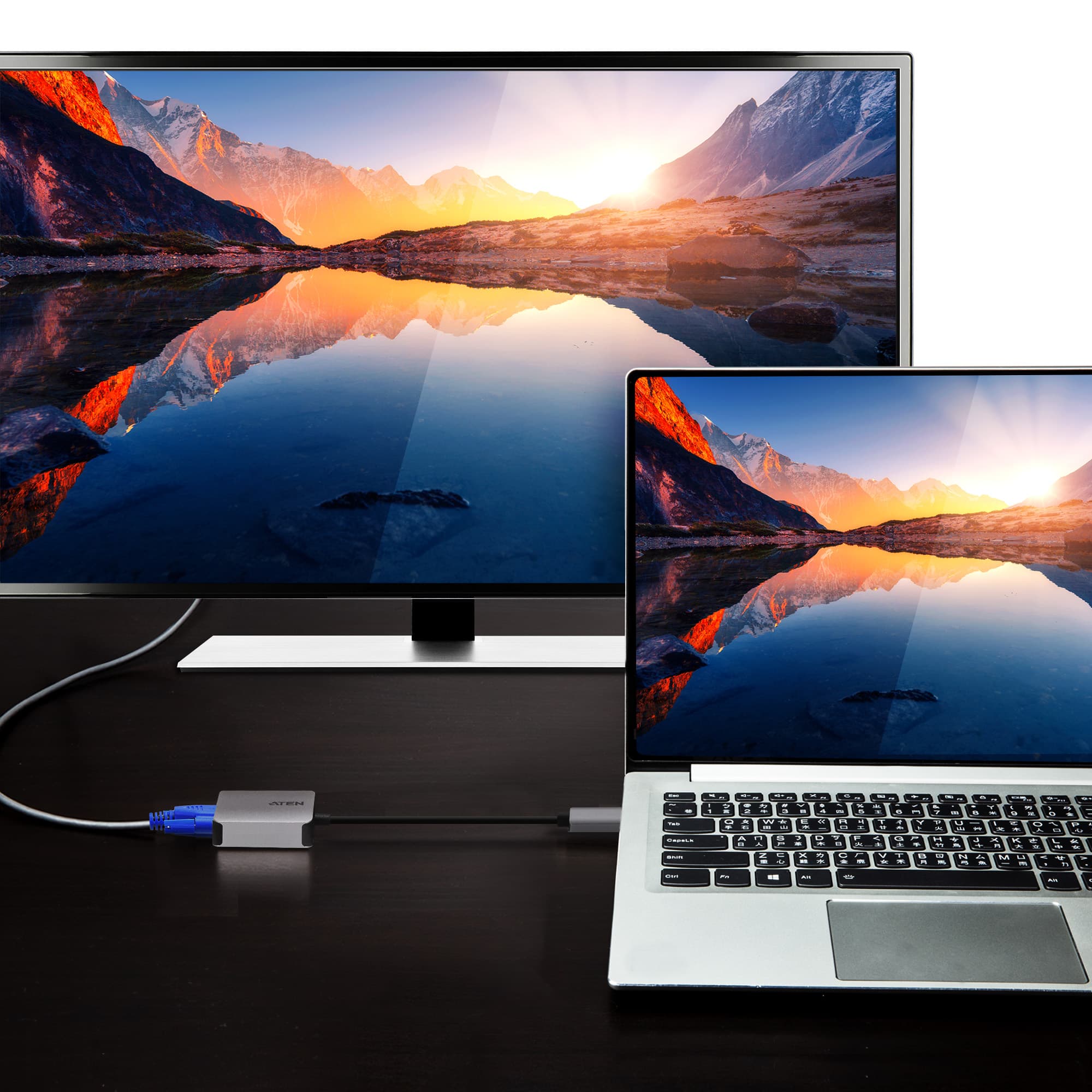

Adapter that outputs video from a USB-C laptop or smartphone with DP Alt Mode to a VGA display or projector at up to 1920 x 1200 at 60 Hz.
Features
- Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz VGA display, or projector*
- Premium casing can resists signal interference during video transmission and heat insulation

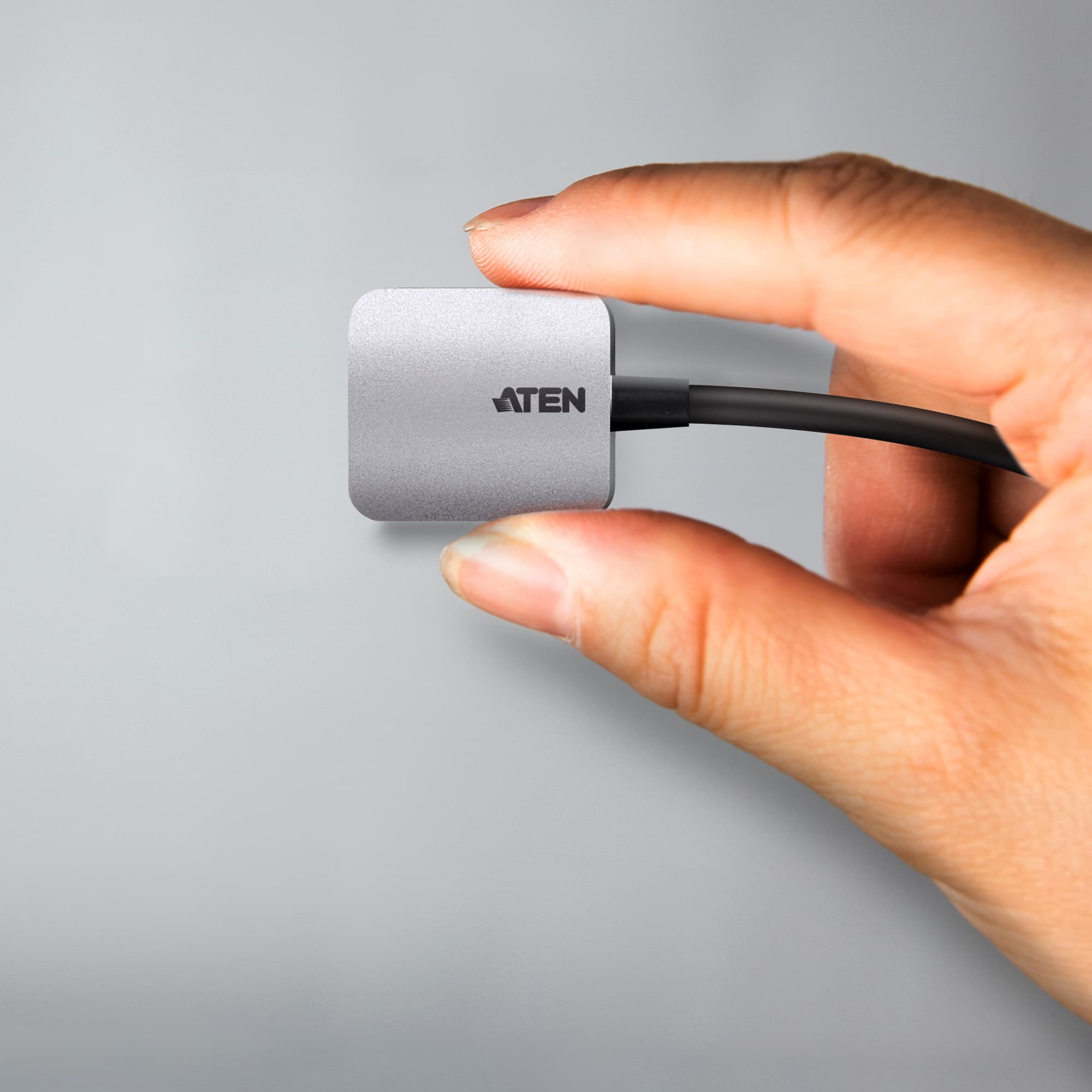

- Compact and lightweight design

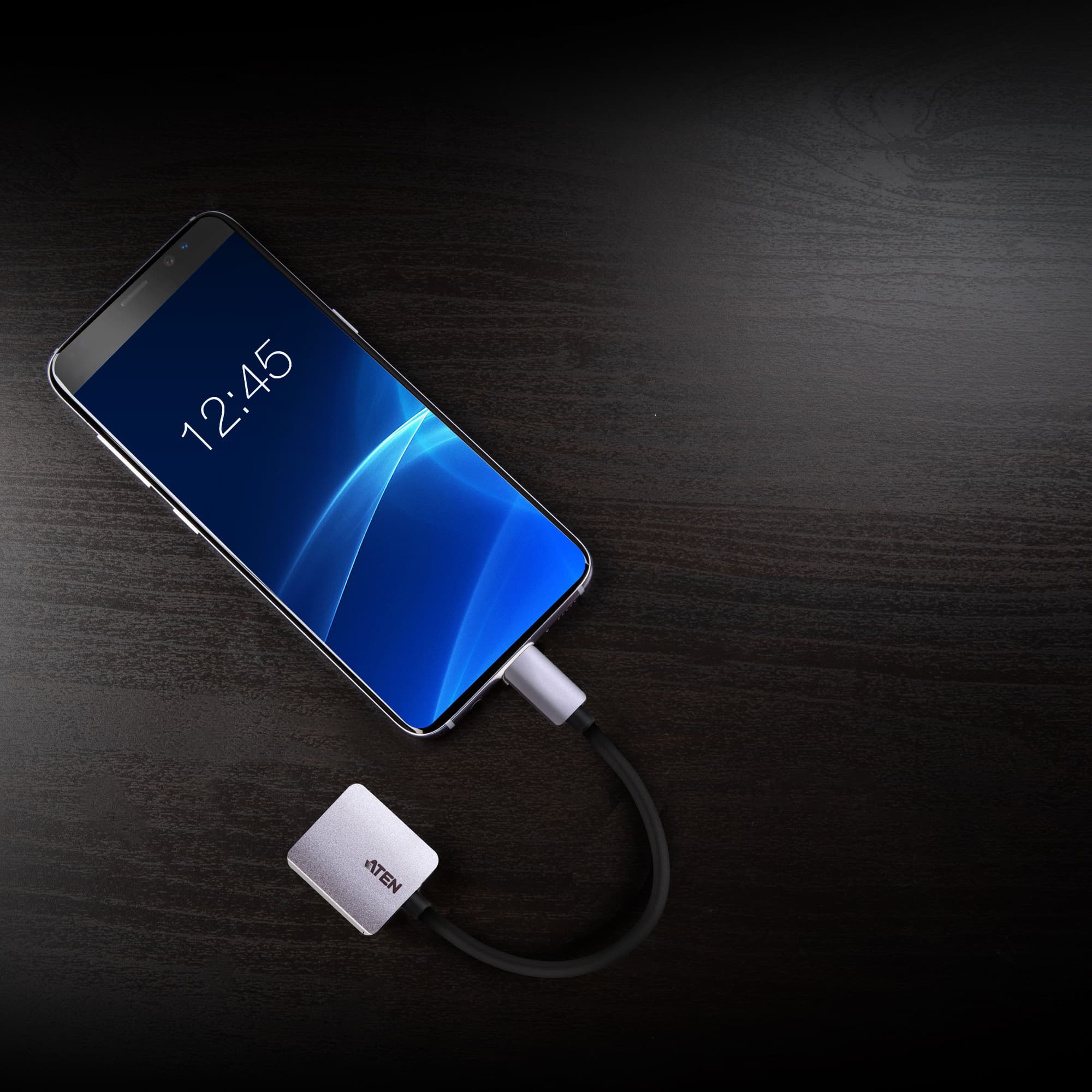

- Works with all major operating systems: Windows®, OS X®, iPad Pro 3rd gen and Android
- Plug-and-Play – no software required
- Compatible with Thunderbolt 3 (USB-C) *With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
Video Input
- Interfaces
- 1 x USB-C Male (Black)
Video Output
- Interfaces
- 1 x HDB-15 Female (Black)
Video
- Max. Pixel Clock
- 148.5 MHZ
- Max. Resolution
- 1920 x 1200@60Hz
- Compliance
- USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) USB Billboard Device Class
- System Requirements
- Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
- Operating Temperature
- 0 - 40 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Aluminum
- Weight
- 0.02 kg ( 0.06 lb )
- Dimensions (L x W x H)
- 3.95 x 1.40 x 9.60 cm (1.56 x 0.55 x 3.78 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
