Адаптер от USB-C към HDMI, който извежда 4K@60Hz (4096 x 2160) от лаптоп или смартфон с DP Alt Mode към дисплей или телевизор. Съвместим с HDMI 2.0 и HDCP 2.2.
Характеристики

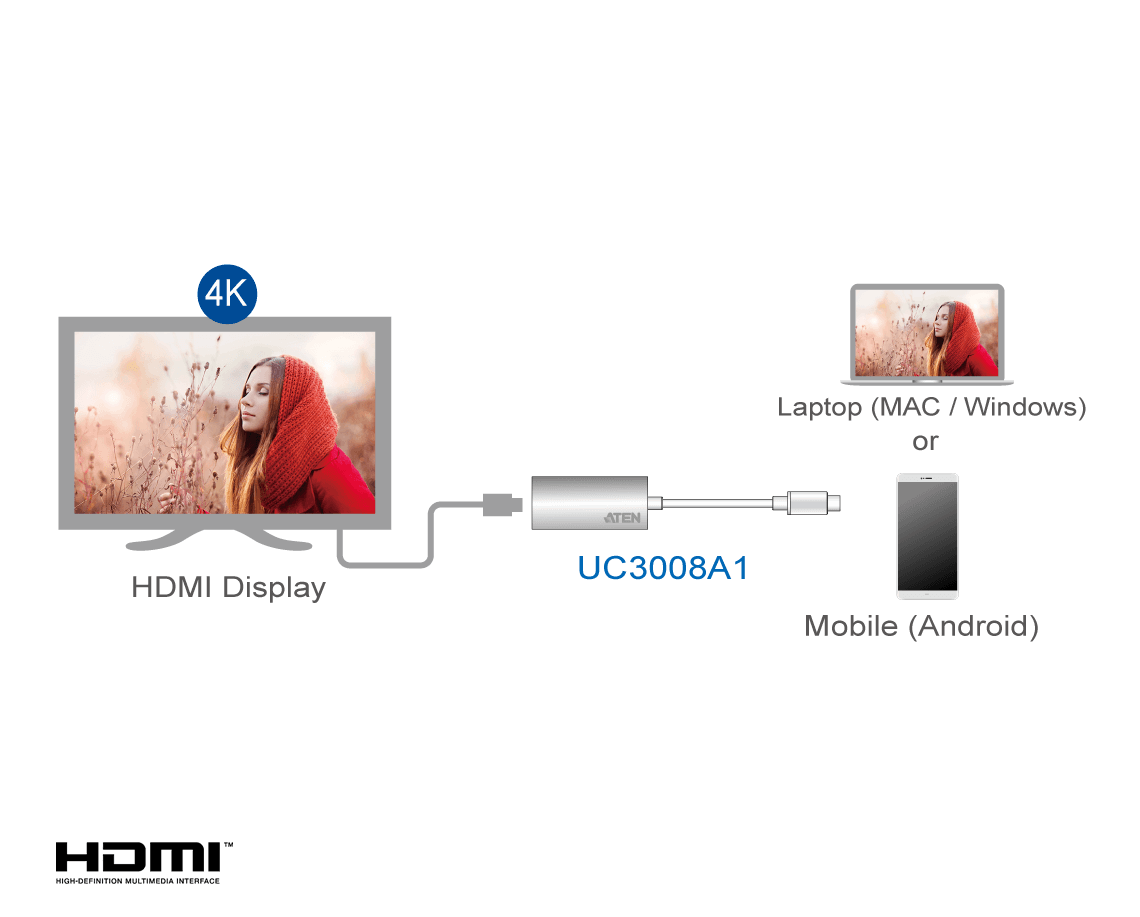

- Transfers high-quality video from a USB-C enabled laptop or smartphone to a HDMI 4K@60Hz (4096 x 2160@60Hz) display, TV or projector*
- Premium casing can resists signal interference during video transmission and heat insulation

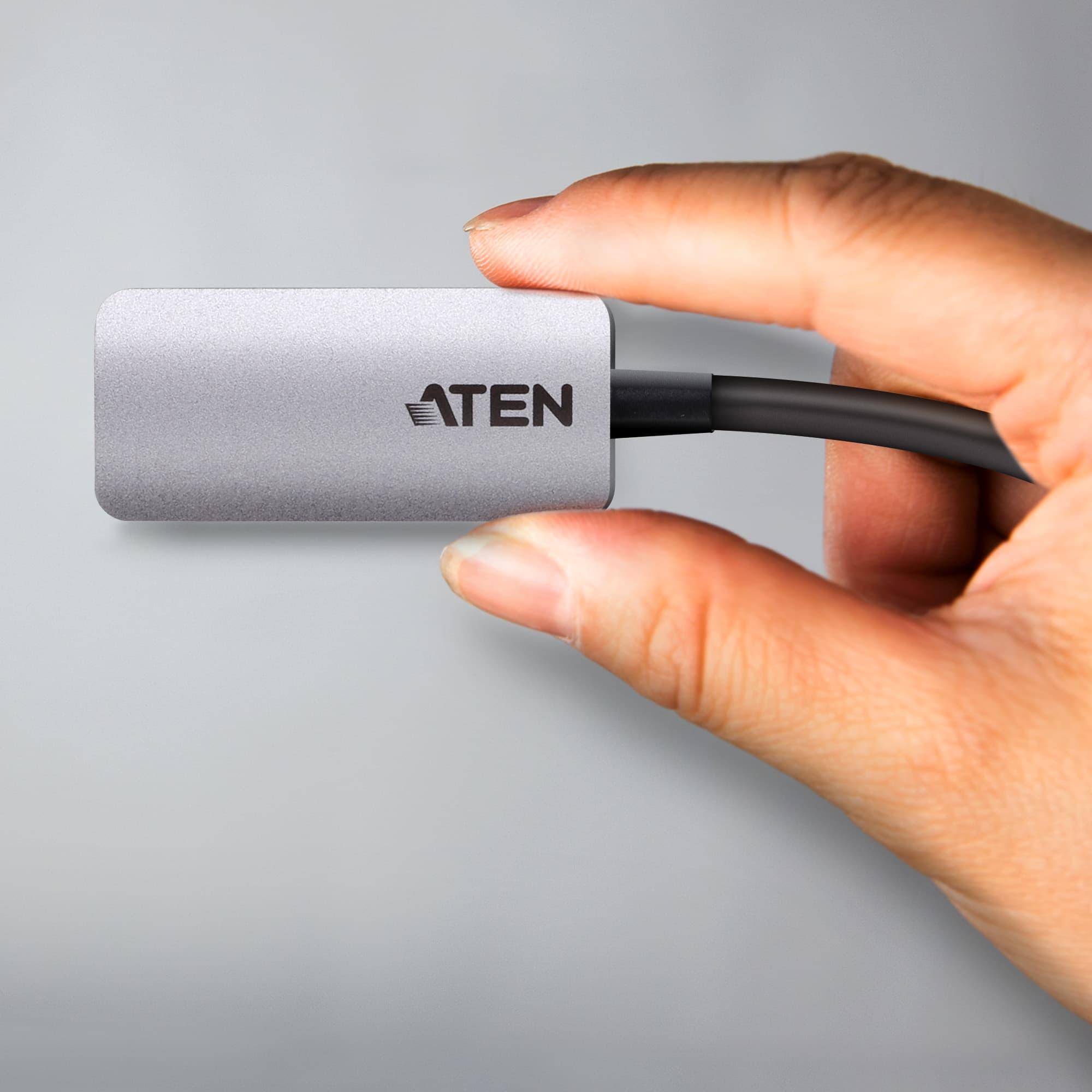

- Compact and lightweight design
- Works with all major operating systems: Windows®, OS X®, iPad Pro and Android
- Plug and Play – no software required
- Compatible with Thunderbolt 3 (USB-C) * With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
Видео вход
- Интерфейси
- 15.4 cm USB 3.2 Gen1 Type-C Cable
Видео изход
- Интерфейси
- 1 x HDMI Female
Видео
- Макс. пикселна честота
- 594MHZ
- Макс. резолюция
- 4096 x 2160@60Hz
- Съответствие
- USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) HDMI 2.0 HDCP 2.2 USB Billboard Device Class
Аудио
- Изход
- 1 x HDMI Female
- Консумация
- DC5V:1W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode iOS 12.1 and above, iPad Pro 3rd generation (2018)
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.02 kg ( 0.04 lb )
- Размери (Д x Ш x В)
- 4.32 x 1.10 x 2.20 cm (1.7 x 0.43 x 0.87 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
