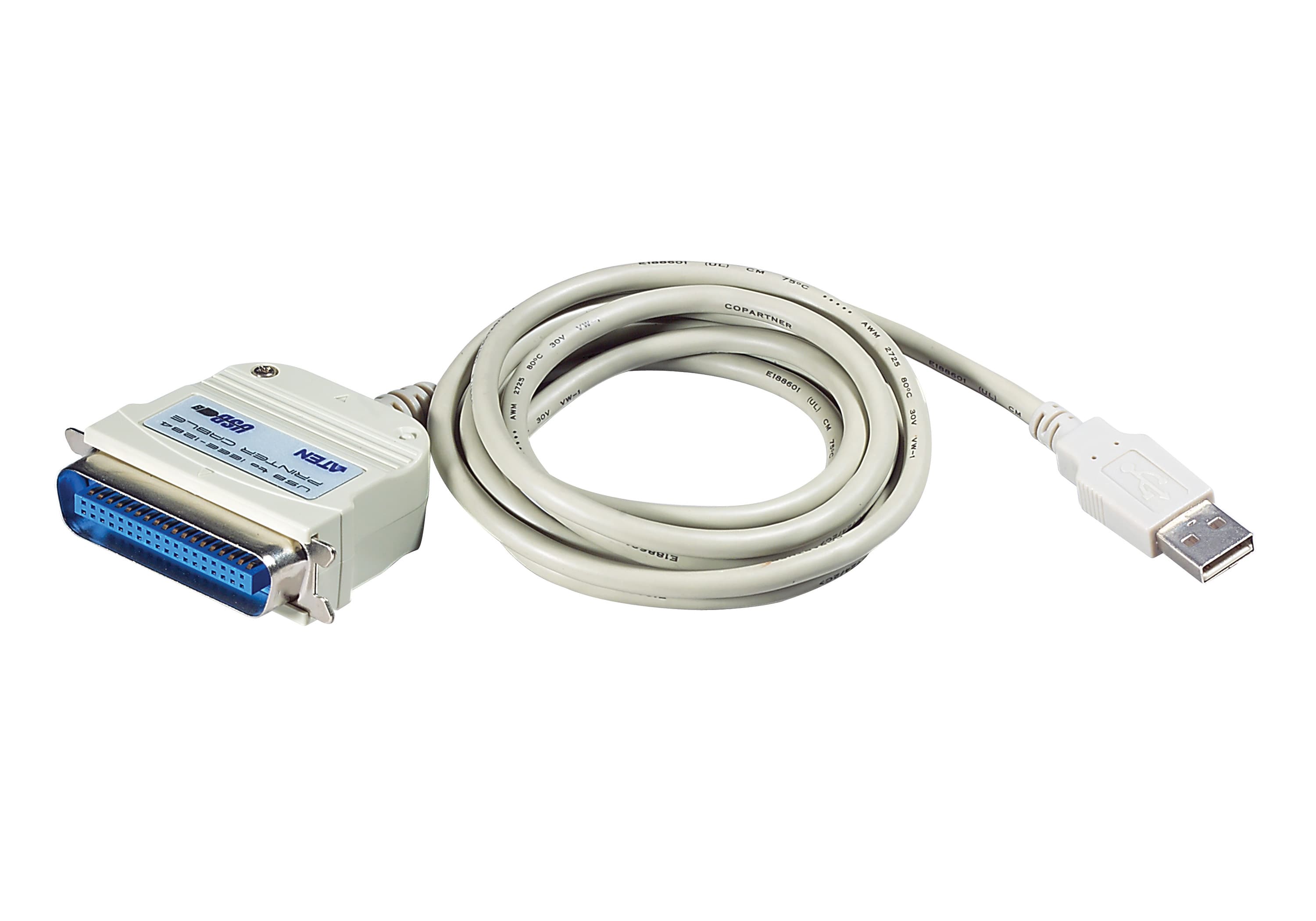

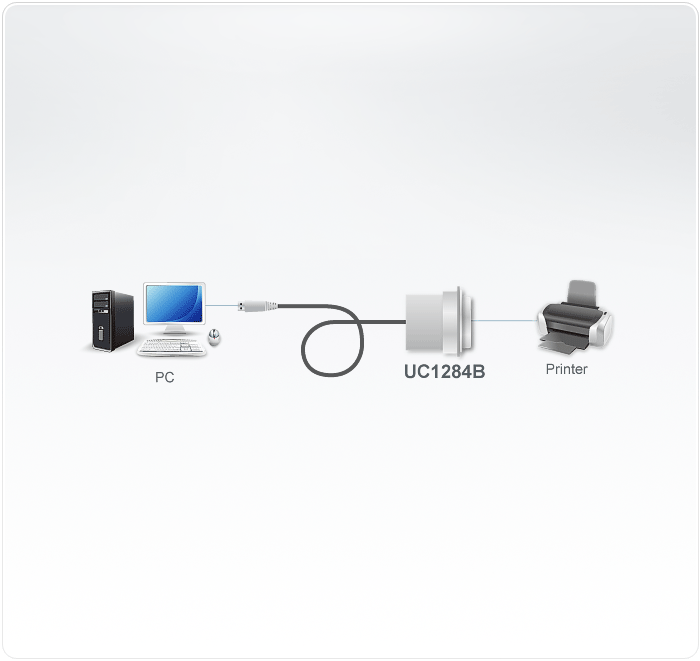

UC1284B is a USB to parallel port converter. It converts the USB on PCs, notebook PCs and handheld computing devices into a parallel port for printer connection.
Features
- Fully bidirectional to ensure compatibility with today's latest printer.
- 1 USB Type-A connector for standard USB cable connection
- 1 C-36 parallel connector
- Fully compliant with USB
- Non-powered.
- Max. Throughput: 1.2 Mbits/ Sec (ECP Mode)
- OS Support:Windows 2000, Windows XP, Windows Vista and Windows 7
Connectors
- USB Port
- 1 x USB Type A Male (White)
- Printer
- 1 x C-36 Male
- Data Rate
- 1.2 Mbits/Sec
- Cable Length
- 1.8m
- LEDs
- N/A
- Power Mode
- Bus Powered
- USB Specification
- USB compliant
Environmental
- Operating Temperature
- 0-40˚C
- Storage Temperature
- -20–60˚C
- Humidity
- 0–80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.11 kg ( 0.24 lb )
- Dimensions (L x W x H)
- 5.30 x 4.30 x 1.95 cm (2.09 x 1.69 x 0.77 in.)
- Power Consumption
- DC5V:0.1W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
