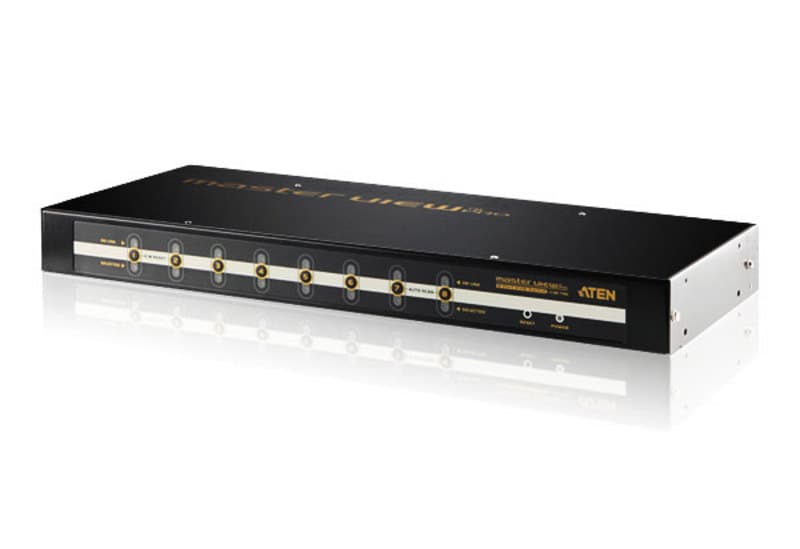

The CS78 KVM switch is a control unit that allows access to 8 computers from a single console (keyboard, monitor, and mouse). It provides pushbuttons and hotkey combinations for convenient
Features
- One PS/2 console controls 8 computers
- Computer selection via front panel pushbuttons or hotkeys
- Keyboard and mouse emulation for error free booting
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
- Auto Scan function to monitor computer operation
- Superior video quality: up to 1920 x 1440; DDC2B
- SVGA, VGA, and Multisync Monitor Support
- Hot Pluggable - Add or remove computers for maintenance without powering down the switch
- LED display for easy status monitoring
- Rack mountable in 19" (1U) system rack
Specifications
- Computer Connections
- 8
- Port Selection
- Hotkey, Pushbutton

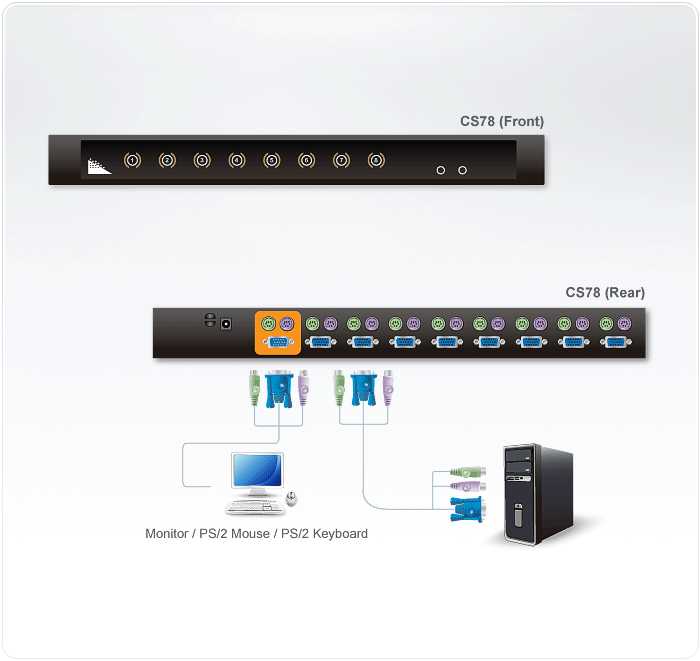

Connectors
- Console Ports
- 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green)

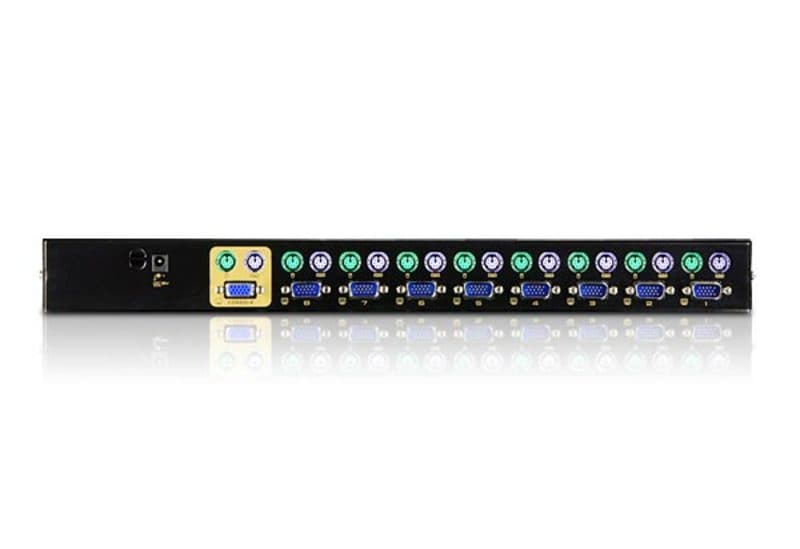

- KVM Ports
- 8 x 6-pin Mini-DIN Female (Purple) 8 x HDB-15 Male (Blue) 8 x 6-pin Mini-DIN Female (Green)
- Power
- 1 x DC Jack (Black)

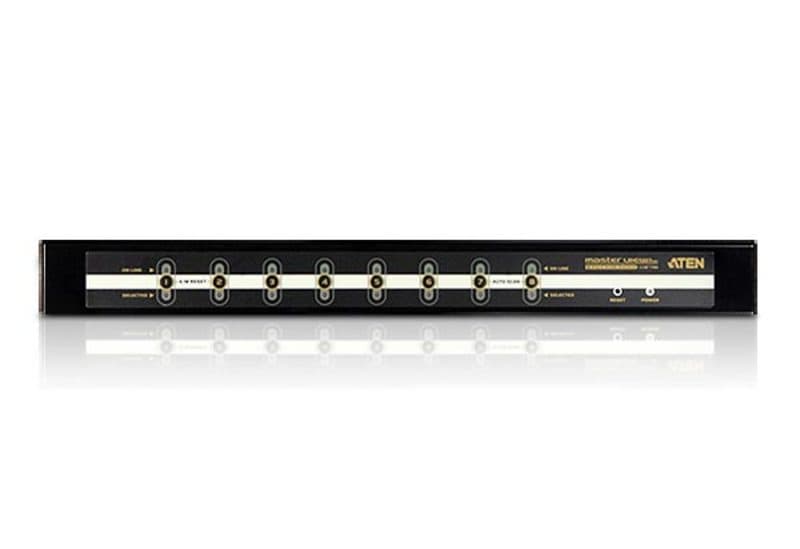

Switches
- Port Selection
- 8 x Pushbutton
- Reset
- 1 x Semi-recessed pushbutton
LEDs
- Online
- 8 (Green)
- Selected
- 8 (Orange)
- Power
- 1 (Blue)
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 1920 x 1440; DDC; DDC2; DDC2B
- Scan Interval
- 5 Seconds
- Power Consumption
- DC9V:1.90W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0~40˚C
- Storage Temperature
- -20~60˚C
- Humidity
- 0~80% RH, NC
Physical Properties
- Housing
- Metal
- Weight
- 1.89 kg ( 4.16 lb )
- Dimensions (L x W x H)
- 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
