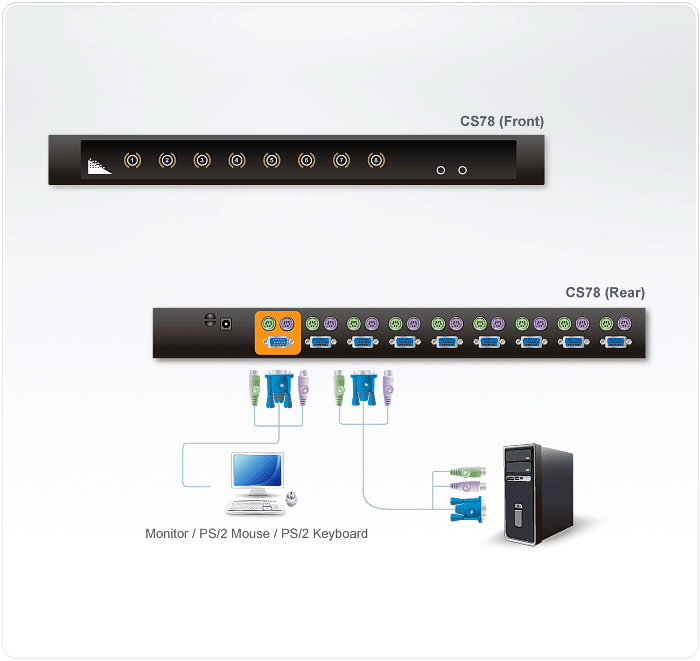

KVM превключвател — една PS/2 конзола с VGA управлява 8 компютъра. Избор с бутони на предния панел или клавишни комбинации; емулация на клавиатура и мишка за коректно стартиране.
Характеристики
- One PS/2 console controls 8 computers
- Computer selection via front panel pushbuttons or hotkeys
- Keyboard and mouse emulation for error free booting
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
- Auto Scan function to monitor computer operation
- Superior video quality: up to 1920 x 1440; DDC2B
- SVGA, VGA, and Multisync Monitor Support
- Hot Pluggable - Add or remove computers for maintenance without powering down the switch
- LED display for easy status monitoring
- Rack mountable in 19" (1U) system rack
Спецификация
- Връзки към компютри
- 8
- Избор на порт
- Hotkey, Pushbutton

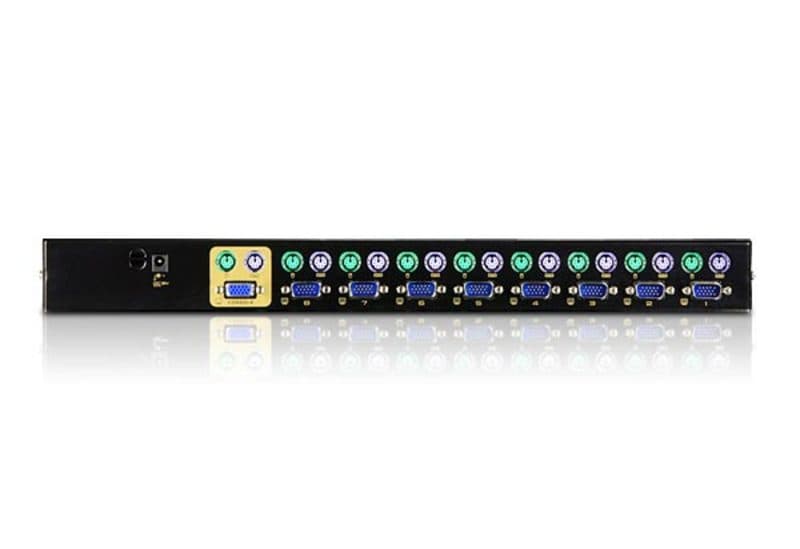

Конектори
- Конзолни портове
- 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green)
- KVM портове
- 8 x 6-pin Mini-DIN Female (Purple) 8 x HDB-15 Male (Blue) 8 x 6-pin Mini-DIN Female (Green)
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed pushbutton
Индикатори
- Онлайн
- 8 (Green)
- Избран
- 8 (Orange)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 1920 x 1440; DDC; DDC2; DDC2B
- Интервал на сканиране
- 5 Seconds
- Консумация
- DC9V:1.90W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0~40˚C
- Температура на съхранение
- -20~60˚C
- Влажност
- 0~80% RH, NC
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.89 kg ( 4.16 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
